K8S集群部署
1. 虚拟机基本配置
我们先在VirtualBox中创建一个基本的CentOS7虚拟机。然后在该基础虚拟机上面进行一些配置。作为一个基础的虚拟机。
1.1 虚拟机硬件配置
虚拟机使用双网卡：
- 网卡1，仅主机(Host-Only)网络。
- 网卡2，网络地址转换(NAT)。
内存大小：2048MB。
处理器数量：2 CPU。
虚拟分配空间： 20 GB。
1.2 虚拟机软件配置
CentOS系统安装成功后，在部署K8S集群前，先对虚拟机进行以下配置：
完成基本的配置：
时间同步，使用
chronyd服务同步时间。时区设置，设置为亚洲/上海。
关闭防火墙，关闭
firewalld服务。关闭SELinux，设置
SELINUX=disabled。关闭SWAP，使用
swapoff -a关闭SWAP。安装基本软件，如vim,jq,python,docker等
vim配置
快捷命令配置
允许 iptables 检查桥接流量
使用以下脚本：
sh
#!/bin/bash
# filename: k8s_pre_install_init.sh
# Author: meizhaohui
# Date: 2021-07-29 23:25:28
echo “Config yum”
echo "Install EPEL yum"
yum install -y epel-release
sed -e 's!^metalink=!#metalink=!g' \
-e 's!^#baseurl=!baseurl=!g' \
-e 's!//download\.fedoraproject\.org/pub!//mirrors.tuna.tsinghua.edu.cn!g' \
-e 's!http://mirrors!https://mirrors!g' \
-i /etc/yum.repos.d/epel.repo /etc/yum.repos.d/epel-testing.repo
sed -e 's|^mirrorlist=|#mirrorlist=|g' \
-e 's|^#baseurl=http://mirror.centos.org|baseurl=https://mirrors.tuna.tsinghua.edu.cn|g' \
-i.bak \
/etc/yum.repos.d/CentOS-Base.repo
echo "Install IUS yum"
yum install -y https://repo.ius.io/ius-release-el7.rpm
echo "Set yum tools"
yum install -y deltarpm yum-utils device-mapper-persistent-data lvm2 lrzsz net-tools wget
echo "Set Aliyun Docker yum mirror"
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum install -y vim git224 jq deltarpm python3 go wget
echo "Config vimrc"
cat >> ~/.vimrc << EOF
syntax on
filetype plugin indent on
set hlsearch
set backspace=2
set autoindent
set ruler
set showmode
set nu
set bg=dark
set ts=4
set softtabstop=4
set shiftwidth=4
set fileencodings=utf-8,gbk,gb18030,gk2312
set showcmd
set clipboard+=unnamed
set cursorline
set confirm
set autoindent
set cindent
set expandtab
set laststatus=2
EOF
echo "Config .bashrc"
cat >> ~/.bashrc << EOF
alias v.='vim ~/.bashrc'
alias s.='source ~/.bashrc && echo "Reload OK"'
alias vi='vim'
alias cdnet='pushd /etc/sysconfig/network-scripts/'
alias cd1='cd ..'
alias cd2='cd ../..'
alias cd3='cd ../../..'
alias cd4='cd ../../../..'
alias newhostname='hostnamectl set-hostname'
export LANG=en_US.UTF-8
alias setip='change_ip'
function change_ip(){
node_ip=\$1
config_folder="/etc/sysconfig/network-scripts"
ip_config=\$(grep 'IPADDR' "\${config_folder}"/ifcfg-*|grep -v 'ifcfg-lo'|awk -F":" '{print \$1}')
sed -i.bak "s/IPADDR.*/IPADDR=\"\$node_ip\"/g" "\${ip_config}"
}
alias addhosts="add_ip_parse"
function add_ip_parse(){
ip=\$1
domain=\$2
simple=\$(echo "\${domain}"|awk -F'.' '{print \$1}')
echo -e "\${ip}\t\${domain}\t\${simple}" >> /etc/hosts
}
alias ping='ping -c 3'
alias ip='hostname -I'
# sync time
alias st='systemctl restart chronyd && chronyc sources -v'
EOF
echo "Install Docker"
yum install -y docker-ce docker-ce-cli containerd.io
echo "Start Docker"
sed -i.bak '/ExecStart=\/usr\/bin\/dockerd/aExecStartPost=/usr/sbin/iptables -P FORWARD ACCEPT' /usr/lib/systemd/system/docker.service
systemctl daemon-reload
systemctl enable docker
systemctl start docker
echo "Config Docker mirror"
cat >> /etc/docker/daemon.json << EOF
{"registry-mirrors":["https://reg-mirror.qiniu.com/"]}
EOF
systemctl restart docker
systemctl status docker
echo "Stop Firewall"
systemctl stop firewalld
systemctl disable firewalld
echo "Disable SWAP"
swapoff -a
swapstatus=$(grep -v 'Filename' /proc/swaps |wc -l)
if [[ "${swapstatus}" -eq 0 ]]; then
sed -i.bak '/ swap /s/^#*/# /' /etc/fstab
echo "SWAP disabled!"
fi
echo "Disable SELinux"
setenforce 0
sed -i.bak 's/^SELINUX.*/SELINUX=disabled/g' /etc/selinux/config
getenforce
echo "Sync time"
yum -y install chrony
systemctl enable chronyd
systemctl start chronyd
systemctl status chronyd
echo "Set iptables"
# 允许 iptables 检查桥接流量
cat > /etc/modules-load.d/k8s.conf << EOF
br_netfilter
EOF
cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
# 使配置生效
sysctl --system
echo "Please use command 'setip' to change the IP and 'addhosts' to add new domain parse!!!"
echo "Done!"2. 虚拟机配置
虚拟机系统信息：
sh
[root@master ~]# cat /etc/centos-release
CentOS Linux release 7.7.1908 (Core)
[root@master ~]#我们在VirtualBox中复制几个刚才创建的虚拟机，并分别使用setip、sethostname命令修改虚拟机IP和主机名称，并设置节点名称解析。
我计划设置一个master和两个节点,IP和域名对应关系如下：
192.168.56.60 master.mytest.com
192.168.56.61 node1.mytest.com
192.168.56.62 node2.mytest.com设置后重启虚拟机，查看IP、主机名和名称解析:
sh
[root@master ~]# hostname -I
192.168.56.60 172.17.0.1
[root@master ~]# hostname
master.mytest.com
[root@master ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.56.60 master.mytest.com master kubeapi.mytest.com kubeapi k8s-master
192.168.56.61 node1.mytest.com node1 k8s-node1

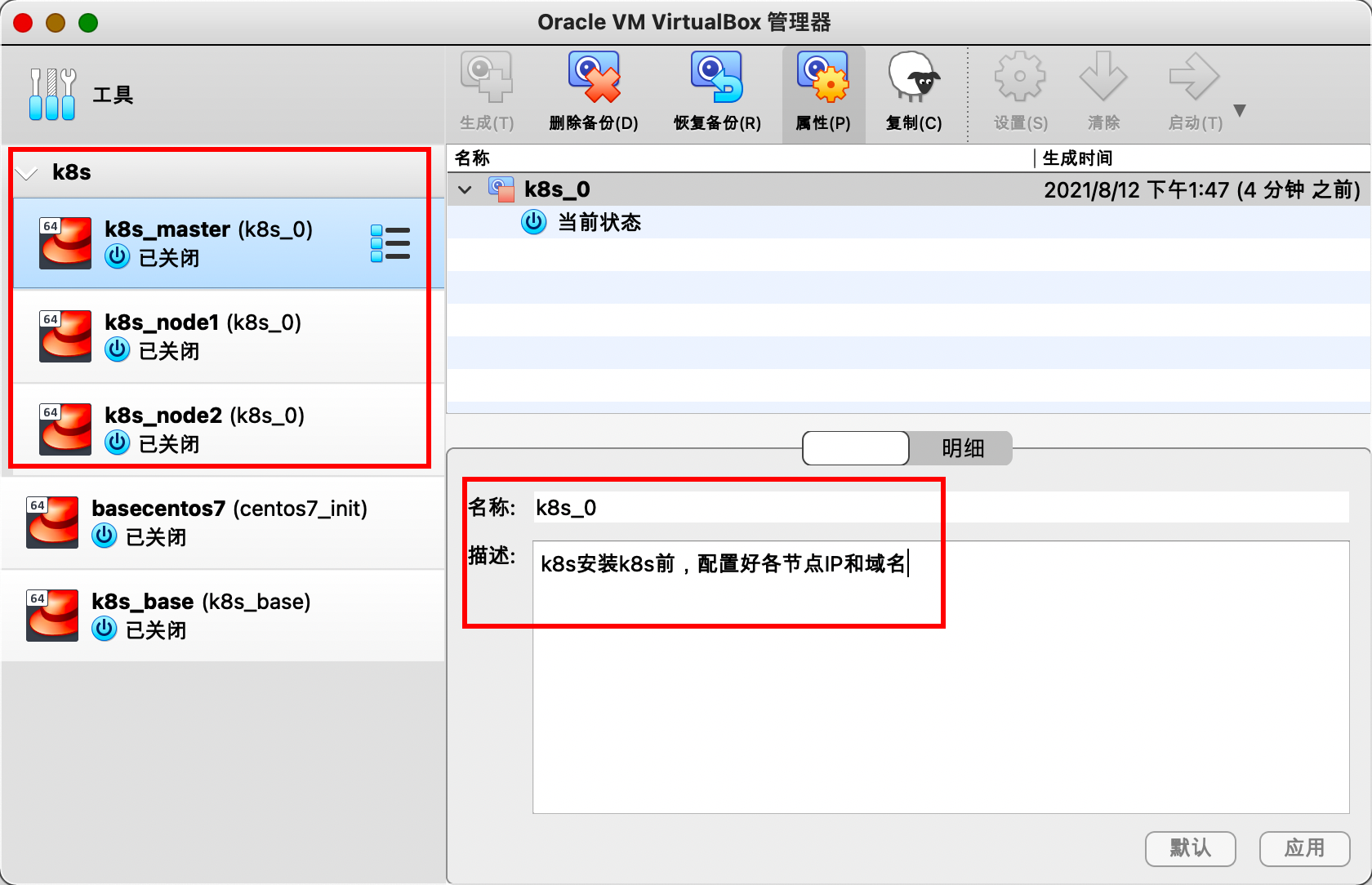

192.168.56.62 node2.mytest.com node2 k8s-node2此时，对k8s测试虚拟机进行备份，生成相应的快照。快照名称为k8s_0，并且描述信息为"k8s安装k8s前，配置好各节点IP和域名"。这样后面做测试时，可以快速恢复到该快照，不需要重新安装系统配置网络等。
启动三台虚拟机。
3. 安装k8s集群
3.1 修改Docker的CGroup的驱动
提示：以下操作需要在本示例中的所有3台虚拟机上分别进行。
kubelet需要让docker容器引擎使用systemd作为CGroup的驱动，其默认值为cgroupfs，因而，我们还需要编辑docker的配置文件/etc/docker/daemon.json，添加内容"exec-opts": ["native.cgroupdriver=systemd"]。添加完成后，查看docker的配置文件：
sh
[root@master ~]# cat /etc/docker/daemon.json
{
"registry-mirrors": ["https://reg-mirror.qiniu.com/"],
"exec-opts": ["native.cgroupdriver=systemd"]
}
[root@master ~]#修改后，重启docker服务：
sh
[root@master ~]# systemctl restart docker
[root@master ~]# systemctl status docker
● docker.service - Docker Application Container Engine
Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled)
Active: active (running) since Thu 2021-08-12 14:38:00 CST; 8s ago
Docs: https://docs.docker.com
Process: 32491 ExecStartPost=/usr/sbin/iptables -P FORWARD ACCEPT (code=exited, status=0/SUCCESS)
Main PID: 32361 (dockerd)
Tasks: 8
Memory: 31.9M
CGroup: /system.slice/docker.service
└─32361 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
Aug 12 14:38:00 master.mytest.com dockerd[32361]: time="2021-08-12T14:38:00.291438542+08:00" level=info msg="ccResolverWra...e=grpc
Aug 12 14:38:00 master.mytest.com dockerd[32361]: time="2021-08-12T14:38:00.291447604+08:00" level=info msg="ClientConn sw...e=grpc
Aug 12 14:38:00 master.mytest.com dockerd[32361]: time="2021-08-12T14:38:00.302327988+08:00" level=info msg="[graphdriver]...rlay2"
Aug 12 14:38:00 master.mytest.com dockerd[32361]: time="2021-08-12T14:38:00.307250795+08:00" level=info msg="Loading conta...tart."
Aug 12 14:38:00 master.mytest.com dockerd[32361]: time="2021-08-12T14:38:00.412650926+08:00" level=info msg="Default bridg...dress"
Aug 12 14:38:00 master.mytest.com dockerd[32361]: time="2021-08-12T14:38:00.456379139+08:00" level=info msg="Loading conta...done."
Aug 12 14:38:00 master.mytest.com dockerd[32361]: time="2021-08-12T14:38:00.473722675+08:00" level=info msg="Docker daemon...0.10.8
Aug 12 14:38:00 master.mytest.com dockerd[32361]: time="2021-08-12T14:38:00.473786016+08:00" level=info msg="Daemon has co...ation"
Aug 12 14:38:00 master.mytest.com systemd[1]: Started Docker Application Container Engine.
Aug 12 14:38:00 master.mytest.com dockerd[32361]: time="2021-08-12T14:38:00.495967020+08:00" level=info msg="API listen on....sock"
Hint: Some lines were ellipsized, use -l to show in full.
[root@master ~]#3.2 添加kubernetes的YUM源
在三台虚拟机上执行以下命令：
sh
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF然后查看一下/etc/yum.repos.d/kubernetes.repo文件：
sh
[root@master ~]# cat /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
[root@master ~]#由于官网未开放同步方式, 可能会有索引gpg检查失败的情况, 这时请用 yum install -y --nogpgcheck kubelet kubeadm kubectl 安装。
3.3 安装kubectl、kubelet和kubeadm
由于kubernetes官方更新比较快，2021年8月份已经发布到v1.22版本了，为了便于后期能够在网上搜索资料，我不用最新版本的，使用v1.18版本。
我们先看一下仓库中有哪些版本：
sh
[root@master ~]# yum search kubelet --showduplicates|tail -n 40
kubelet-1.18.10-0.x86_64 : Container cluster management
kubelet-1.18.12-0.x86_64 : Container cluster management
kubelet-1.18.13-0.x86_64 : Container cluster management
kubelet-1.18.14-0.x86_64 : Container cluster management
kubelet-1.18.15-0.x86_64 : Container cluster management
kubelet-1.18.16-0.x86_64 : Container cluster management
kubelet-1.18.17-0.x86_64 : Container cluster management
kubelet-1.18.18-0.x86_64 : Container cluster management
kubelet-1.18.19-0.x86_64 : Container cluster management
kubelet-1.18.20-0.x86_64 : Container cluster management
kubelet-1.19.0-0.x86_64 : Container cluster management
kubelet-1.19.1-0.x86_64 : Container cluster management
kubelet-1.19.2-0.x86_64 : Container cluster management
kubelet-1.19.3-0.x86_64 : Container cluster management
kubelet-1.19.4-0.x86_64 : Container cluster management
kubelet-1.19.5-0.x86_64 : Container cluster management
kubelet-1.19.6-0.x86_64 : Container cluster management
kubelet-1.19.7-0.x86_64 : Container cluster management
kubelet-1.19.8-0.x86_64 : Container cluster management
kubelet-1.19.9-0.x86_64 : Container cluster management
kubelet-1.19.10-0.x86_64 : Container cluster management
kubelet-1.19.11-0.x86_64 : Container cluster management
kubelet-1.19.12-0.x86_64 : Container cluster management
kubelet-1.19.13-0.x86_64 : Container cluster management
kubelet-1.20.0-0.x86_64 : Container cluster management
kubelet-1.20.1-0.x86_64 : Container cluster management
kubelet-1.20.2-0.x86_64 : Container cluster management
kubelet-1.20.4-0.x86_64 : Container cluster management
kubelet-1.20.5-0.x86_64 : Container cluster management
kubelet-1.20.6-0.x86_64 : Container cluster management
kubelet-1.20.7-0.x86_64 : Container cluster management
kubelet-1.20.8-0.x86_64 : Container cluster management
kubelet-1.20.9-0.x86_64 : Container cluster management
kubelet-1.21.0-0.x86_64 : Container cluster management
kubelet-1.21.1-0.x86_64 : Container cluster management
kubelet-1.21.2-0.x86_64 : Container cluster management
kubelet-1.21.3-0.x86_64 : Container cluster management
kubelet-1.22.0-0.x86_64 : Container cluster management
Name and summary matches only, use "search all" for everything.
[root@master ~]#我们安装kubelet-1.18.20这个版本。使用相同的方法，可以知道，kubeadm和kubelet也有相同的版本。
我们直接安装指定版本的kubernetes软件包：
sh
[root@master ~]# yum install -y --nogpgcheck kubectl-1.18.20 kubelet-1.18.20 kubeadm-1.18.20
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
Resolving Dependencies
--> Running transaction check
---> Package kubeadm.x86_64 0:1.18.20-0 will be installed
--> Processing Dependency: kubernetes-cni >= 0.8.6 for package: kubeadm-1.18.20-0.x86_64
--> Processing Dependency: cri-tools >= 1.13.0 for package: kubeadm-1.18.20-0.x86_64
---> Package kubectl.x86_64 0:1.18.20-0 will be installed
---> Package kubelet.x86_64 0:1.18.20-0 will be installed
--> Processing Dependency: socat for package: kubelet-1.18.20-0.x86_64
--> Processing Dependency: conntrack for package: kubelet-1.18.20-0.x86_64
--> Running transaction check
---> Package conntrack-tools.x86_64 0:1.4.4-7.el7 will be installed
--> Processing Dependency: libnetfilter_cttimeout.so.1(LIBNETFILTER_CTTIMEOUT_1.1)(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_cttimeout.so.1(LIBNETFILTER_CTTIMEOUT_1.0)(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_cthelper.so.0(LIBNETFILTER_CTHELPER_1.0)(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_queue.so.1()(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_cttimeout.so.1()(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
--> Processing Dependency: libnetfilter_cthelper.so.0()(64bit) for package: conntrack-tools-1.4.4-7.el7.x86_64
---> Package cri-tools.x86_64 0:1.13.0-0 will be installed
---> Package kubernetes-cni.x86_64 0:0.8.7-0 will be installed
---> Package socat.x86_64 0:1.7.3.2-2.el7 will be installed
--> Running transaction check
---> Package libnetfilter_cthelper.x86_64 0:1.0.0-11.el7 will be installed
---> Package libnetfilter_cttimeout.x86_64 0:1.0.0-7.el7 will be installed
---> Package libnetfilter_queue.x86_64 0:1.0.2-2.el7_2 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
===================================================================================================================================
Package Arch Version Repository Size
===================================================================================================================================
Installing:
kubeadm x86_64 1.18.20-0 kubernetes 8.8 M
kubectl x86_64 1.18.20-0 kubernetes 9.5 M
kubelet x86_64 1.18.20-0 kubernetes 21 M
Installing for dependencies:
conntrack-tools x86_64 1.4.4-7.el7 base 187 k
cri-tools x86_64 1.13.0-0 kubernetes 5.1 M
kubernetes-cni x86_64 0.8.7-0 kubernetes 19 M
libnetfilter_cthelper x86_64 1.0.0-11.el7 base 18 k
libnetfilter_cttimeout x86_64 1.0.0-7.el7 base 18 k
libnetfilter_queue x86_64 1.0.2-2.el7_2 base 23 k
socat x86_64 1.7.3.2-2.el7 base 290 k
Transaction Summary
===================================================================================================================================
Install 3 Packages (+7 Dependent packages)
Total download size: 63 M
Installed size: 266 M
。。。省略
Installed:
kubeadm.x86_64 0:1.18.20-0 kubectl.x86_64 0:1.18.20-0 kubelet.x86_64 0:1.18.20-0
Dependency Installed:
conntrack-tools.x86_64 0:1.4.4-7.el7 cri-tools.x86_64 0:1.13.0-0
kubernetes-cni.x86_64 0:0.8.7-0 libnetfilter_cthelper.x86_64 0:1.0.0-11.el7
libnetfilter_cttimeout.x86_64 0:1.0.0-7.el7 libnetfilter_queue.x86_64 0:1.0.2-2.el7_2
socat.x86_64 0:1.7.3.2-2.el7
Complete!
[root@master ~]#查看kubernetes软件安装情况：
sh
[root@master ~]# rpm -qa|grep kube
kubelet-1.18.20-0.x86_64
kubectl-1.18.20-0.x86_64
kubernetes-cni-0.8.7-0.x86_64
kubeadm-1.18.20-0.x86_64
[root@master ~]# kubelet --version
Kubernetes v1.18.20
[root@master ~]# kubeadm version -o=short
v1.18.20
[root@master ~]# kubectl version --short=true
Client Version: v1.18.20
The connection to the server localhost:8080 was refused - did you specify the right host or port?
[root@master ~]#可以看到，kubernetes相关的几个命令都能正常使用，并且版本也是我们指定的v1.18.20。
为了方便后续执行命令，我们可以设置快捷命令：
sh
alias k8let='kubelet'
alias k8adm='kubeadm'
alias k8ctl='kubectl'使用命令yum install -y --nogpgcheck kubectl-1.18.20 kubelet-1.18.20 kubeadm-1.18.20在各节点上安装相应的软件包。
这样我们的kubernetes软件包就安装完成了。
另外，我们设置一下kubelet开机启动：
sh
[root@master ~]# systemctl enable kubelet
Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.
[root@master ~]#此时不要直接启动kubelet，因为其配置文件还没有生成。
3.4 在master上进行集群初始化
现在我们只用在master虚拟机上面进行集群的初始化。
该步骤开始尝试构建Kubernetes集群的master节点，配置完成后，各worker节点直接加入到集群中的即可。需要特别说明的是，由kubeadm部署的Kubernetes集群上，集群核心组件kube-apiserver、kube-controller-manager、kube-scheduler和etcd等均会以静态Pod的形式运行，它们所依赖的镜像文件默认来自于gcr.io这一Registry服务之上。但我们无法直接访问该服务，常用的解决办法有如下两种，本示例将选择使用更易于使用的后一种方式。
- 使用能够到达该服务的代理服务；
- 使用国内的镜像服务器上的服务，例如gcr.azk8s.cn/google_containers和registry.aliyuncs.com/google_containers等 。
3.4.1 拉取镜像
在运行初始化命令之前先运行如下命令单独获取相关的镜像文件，而后再运行后面的kubeadm init命令，以便于观察到镜像文件的下载过程。
查看镜像列表：
sh
kubeadm config images list --image-repository registry.aliyuncs.com/google_containers执行：
sh
[root@master ~]# kubeadm config images list --image-repository registry.aliyuncs.com/google_containers
I0812 15:40:30.984989 29210 version.go:255] remote version is much newer: v1.22.0; falling back to: stable-1.18
W0812 15:40:33.317410 29210 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
registry.aliyuncs.com/google_containers/kube-apiserver:v1.18.20
registry.aliyuncs.com/google_containers/kube-controller-manager:v1.18.20
registry.aliyuncs.com/google_containers/kube-scheduler:v1.18.20
registry.aliyuncs.com/google_containers/kube-proxy:v1.18.20
registry.aliyuncs.com/google_containers/pause:3.2
registry.aliyuncs.com/google_containers/etcd:3.4.3-0
registry.aliyuncs.com/google_containers/coredns:1.6.7
[root@master ~]#可以看到，该镜像仓库中有多个镜像。
拉取镜像文件：
sh
kubeadm config images pull --image-repository registry.aliyuncs.com/google_containers执行：
sh
# 在拉取镜像前，查看docker的镜像列表
[root@master ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
# 拉取镜像
[root@master ~]# kubeadm config images pull --image-repository registry.aliyuncs.com/google_containers
I0812 15:44:28.995830 12325 version.go:255] remote version is much newer: v1.22.0; falling back to: stable-1.18
W0812 15:44:31.565048 12325 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-apiserver:v1.18.20
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-controller-manager:v1.18.20
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-scheduler:v1.18.20
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-proxy:v1.18.20
[config/images] Pulled registry.aliyuncs.com/google_containers/pause:3.2
[config/images] Pulled registry.aliyuncs.com/google_containers/etcd:3.4.3-0
[config/images] Pulled registry.aliyuncs.com/google_containers/coredns:1.6.7
# 查看命令是否正常退出
[root@master ~]# echo $?
0
# 再次查看docker的镜像
[root@master ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
registry.aliyuncs.com/google_containers/kube-proxy v1.18.20 27f8b8d51985 8 weeks ago 117MB
registry.aliyuncs.com/google_containers/kube-apiserver v1.18.20 7d8d2960de69 8 weeks ago 173MB
registry.aliyuncs.com/google_containers/kube-scheduler v1.18.20 a05a1a79adaa 8 weeks ago 96.1MB
registry.aliyuncs.com/google_containers/kube-controller-manager v1.18.20 e7c545a60706 8 weeks ago 162MB
registry.aliyuncs.com/google_containers/pause 3.2 80d28bedfe5d 18 months ago 683kB
registry.aliyuncs.com/google_containers/coredns 1.6.7 67da37a9a360 18 months ago 43.8MB
registry.aliyuncs.com/google_containers/etcd 3.4.3-0 303ce5db0e90 21 months ago 288MB
[root@master ~]# docker images|wc -l
8
[root@master ~]#可以看到docker的镜像已经拉取到本地了。
3.4.2 集群初始化
执行以下命令：
sh
kubeadm init \
--kubernetes-version=v1.18.20 \
--apiserver-advertise-address=192.168.56.60 \
--image-repository registry.aliyuncs.com/google_containers \
--control-plane-endpoint kubeapi.mytest.com \
--pod-network-cidr=10.244.0.0/16 \
--service-cidr=10.96.0.0/12 \
--token-ttl=0命令中的各选项简单说明如下：
--image-repository：指定要使用的镜像仓库，默认为gcr.io；
--kubernetes-version：kubernetes程序组件的版本号，它必须要与安装的kubelet程序包的版本号相同；
--control-plane-endpoint：控制平面的固定访问端点，可以是IP地址或DNS名称，会被用于集群管理员及集群组件的kubeconfig配置文件的API Server的访问地址；单控制平面部署时可以不使用该选项；
--pod-network-cidr：Pod网络的地址范围，其值为CIDR格式的网络地址，通常，Flannel网络插件的默认为10.244.0.0/16，Project Calico插件的默认值为192.168.0.0/16；
--service-cidr：Service的网络地址范围，其值为CIDR格式的网络地址，默认为10.96.0.0/12；通常，仅Flannel一类的网络插件需要手动指定该地址；
--apiserver-advertise-address：apiserver通告给其他组件的IP地址，一般应该为Master节点的用于集群内部通信的IP地址，0.0.0.0表示节点上所有可用地址；
--token-ttl：共享令牌（token）的过期时长，默认为24小时，0表示永不过期；为防止不安全存储等原因导致的令牌泄露危及集群安全，建议为其设定过期时长。未设定该选项时，在token过期后，若期望再向集群中加入其它节点，可以使用如下命令重新创建token，并生成节点加入命令。
shkubeadm token create --print-join-command
执行：
sh
[root@master ~]# kubeadm init \
> --kubernetes-version=v1.18.20 \
> --apiserver-advertise-address=192.168.56.60 \
> --image-repository registry.aliyuncs.com/google_containers \
> --control-plane-endpoint kubeapi.mytest.com \
> --pod-network-cidr=10.244.0.0/16 \
> --service-cidr=10.96.0.0/12 \
> --token-ttl=0
W0812 16:11:06.680875 6714 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
[init] Using Kubernetes version: v1.18.20
# 梅朝辉注释： 步骤1：进行预检查，看环境是否满足要求，如CPU需要2核、SWAP需要关闭等等
# 此处提示一个警告，该版本的Docker未经过验证
[preflight] Running pre-flight checks
[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.8. Latest validated version: 19.03
# 梅朝辉注释： 步骤2：下载k8s集群需要的镜像
# 我们在上一节已经拉取了镜像，此处初始化就会缩短时间，通过提前拉取镜像，可以看到镜像是否能够拉取成功
# 避免在集群初始化时出现异常
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
# 梅朝辉注释： 步骤3：启动kubelet组件，并准备kubelet的配置文件
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
# 梅朝辉注释： 步骤4： 生成证书,存放在/etc/kubernetes/pki目录下
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [master.mytest.com kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local kubeapi.mytest.com] and IPs [10.96.0.1 192.168.56.60]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [master.mytest.com localhost] and IPs [192.168.56.60 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [master.mytest.com localhost] and IPs [192.168.56.60 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
# 梅朝辉注释： 步骤5：生成kubeconfig配置文件
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
# 梅朝辉注释： 步骤6：控制面板，以静态Pod的形式启动APIServer和Controller-Manager
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
W0812 16:11:12.395441 6714 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[control-plane] Creating static Pod manifest for "kube-scheduler"
W0812 16:11:12.396611 6714 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
# 梅朝辉注释： 步骤7：以静态Pod的形式启动etcd
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
# 梅朝辉注释： 步骤8： 等待控制面板启动
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
# 梅朝辉注释：所有控制面板组件都是健康的
[apiclient] All control plane components are healthy after 20.512808 seconds
# 梅朝辉注释： 步骤9： 存储kubelet配置文件到ConfigMap中
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.18" in namespace kube-system with the configuration for the kubelets in the cluster
# 梅朝辉注释：证书上传，忽略
[upload-certs] Skipping phase. Please see --upload-certs
# 梅朝辉注释：步骤10： 给master节点添加标签，标记污点，后续创建Pod时，不会分配到master节点上
[mark-control-plane] Marking the node master.mytest.com as control-plane by adding the label "node-role.kubernetes.io/master=''"
[mark-control-plane] Marking the node master.mytest.com as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
# 梅朝辉注释：步骤11： 引导TOKEN，配置bootstrap tls，给节点自动颁发证书
[bootstrap-token] Using token: ntf08x.uaudrocid80akszx
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
# 梅朝辉注释：步骤12： 安装插件，CoreDNS为K8S集群中做内部解析的，Kube-Proxy是负责Pod的网络的
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
# 梅朝辉注释：k8s控制平面初始化成功
Your Kubernetes control-plane has initialized successfully!
# 梅朝辉注释：用户需要执行的步骤1：复制配置文件,使得可以使用kubectl命令。
# 如果不拷贝，则不能使用`kubectl get node`查看集群节点信息，此时是直接没有权限的
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
# 梅朝辉注释：用户可选的步骤1：添加其他控制平面节点，这样可以将集群升级为高可用。
You can now join any number of control-plane nodes by copying certificate authorities
and service account keys on each node and then running the following as root:
kubeadm join kubeapi.mytest.com:6443 --token ntf08x.uaudrocid80akszx \
--discovery-token-ca-cert-hash sha256:e60ab1ae8fcc0f8b8d3d2256c59738723a7ad04bee1aa0c0a1d8256bc62b4293 \
--control-plane
# 梅朝辉注释：用户需要执行的步骤2：在节点中执行命令，将节点加入到集群中，注意，该需要需要在node节点中执行
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join kubeapi.mytest.com:6443 --token ntf08x.uaudrocid80akszx \
--discovery-token-ca-cert-hash sha256:e60ab1ae8fcc0f8b8d3d2256c59738723a7ad04bee1aa0c0a1d8256bc62b4293
[root@master ~]# echo $?
0
[root@master ~]#执行集群初始化时，会经过多个步骤，各个步骤的解释，详见上面命令行操作中的备注信息。
如果此处你想初始化失败，可以使用kubeadm reset来重置k8s集群，并且需要执行以下命令来删除相关文件：
sh
iptables -F && iptables -t nat -F && iptables -t mangle -F && iptables -X
ipvsadm --clear
systemctl stop kubelet
systemctl stop docker
rm -rf /var/lib/cni/*
rm -rf /var/lib/kubelet/*
rm -rf /etc/cni/*
rm -rf $HOME/.kube/config
systemctl start docker3.4.3 验证k8s集群初始化过程(可忽略)
- 查看kubelet的配置文件
sh
[root@master ~]# cat /var/lib/kubelet/kubeadm-flags.env
KUBELET_KUBEADM_ARGS="--cgroup-driver=systemd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.2"
[root@master ~]#
[root@master ~]# cat -n /var/lib/kubelet/config.yaml
1 apiVersion: kubelet.config.k8s.io/v1beta1
2 authentication:
3 anonymous:
4 enabled: false
5 webhook:
6 cacheTTL: 0s
7 enabled: true
8 x509:
9 clientCAFile: /etc/kubernetes/pki/ca.crt
10 authorization:
11 mode: Webhook
12 webhook:
13 cacheAuthorizedTTL: 0s
14 cacheUnauthorizedTTL: 0s
15 clusterDNS:
16 - 10.96.0.10
17 clusterDomain: cluster.local
18 cpuManagerReconcilePeriod: 0s
19 evictionPressureTransitionPeriod: 0s
20 fileCheckFrequency: 0s
21 healthzBindAddress: 127.0.0.1
22 healthzPort: 10248
23 httpCheckFrequency: 0s
24 imageMinimumGCAge: 0s
25 kind: KubeletConfiguration
26 nodeStatusReportFrequency: 0s
27 nodeStatusUpdateFrequency: 0s
28 rotateCertificates: true
29 runtimeRequestTimeout: 0s
30 staticPodPath: /etc/kubernetes/manifests
31 streamingConnectionIdleTimeout: 0s
32 syncFrequency: 0s
33 volumeStatsAggPeriod: 0s
[root@master ~]#- 查看证书列表
sh
[root@master ~]# ls -lh /etc/kubernetes/pki/
total 56K
-rw-r--r-- 1 root root 1.3K Aug 12 16:11 apiserver.crt
-rw-r--r-- 1 root root 1.1K Aug 12 16:11 apiserver-etcd-client.crt
-rw------- 1 root root 1.7K Aug 12 16:11 apiserver-etcd-client.key
-rw------- 1 root root 1.7K Aug 12 16:11 apiserver.key
-rw-r--r-- 1 root root 1.1K Aug 12 16:11 apiserver-kubelet-client.crt
-rw------- 1 root root 1.7K Aug 12 16:11 apiserver-kubelet-client.key
-rw-r--r-- 1 root root 1.1K Aug 12 16:11 ca.crt
-rw------- 1 root root 1.7K Aug 12 16:11 ca.key
drwxr-xr-x 2 root root 162 Aug 12 16:11 etcd
-rw-r--r-- 1 root root 1.1K Aug 12 16:11 front-proxy-ca.crt
-rw------- 1 root root 1.7K Aug 12 16:11 front-proxy-ca.key
-rw-r--r-- 1 root root 1.1K Aug 12 16:11 front-proxy-client.crt
-rw------- 1 root root 1.7K Aug 12 16:11 front-proxy-client.key
-rw------- 1 root root 1.7K Aug 12 16:11 sa.key
-rw------- 1 root root 451 Aug 12 16:11 sa.pub
[root@master ~]# ls -lh /etc/kubernetes/pki/etcd/
total 32K
-rw-r--r-- 1 root root 1017 Aug 12 16:11 ca.crt
-rw------- 1 root root 1.7K Aug 12 16:11 ca.key
-rw-r--r-- 1 root root 1.1K Aug 12 16:11 healthcheck-client.crt
-rw------- 1 root root 1.7K Aug 12 16:11 healthcheck-client.key
-rw-r--r-- 1 root root 1.2K Aug 12 16:11 peer.crt
-rw------- 1 root root 1.7K Aug 12 16:11 peer.key
-rw-r--r-- 1 root root 1.2K Aug 12 16:11 server.crt
-rw------- 1 root root 1.7K Aug 12 16:11 server.key
[root@master ~]#可以看到，生成了非常多的证书文件。
- 查看kubeconfig配置文件
sh
[root@master ~]# ls -lh /etc/kubernetes/
total 32K
-rw------- 1 root root 5.4K Aug 12 16:11 admin.conf
-rw------- 1 root root 5.4K Aug 12 16:11 controller-manager.conf
-rw------- 1 root root 1.9K Aug 12 16:11 kubelet.conf
drwxr-xr-x 2 root root 113 Aug 12 16:11 manifests
drwxr-xr-x 3 root root 4.0K Aug 12 16:11 pki
-rw------- 1 root root 5.4K Aug 12 16:11 scheduler.conf
[root@master ~]#由于kubeadm init最后让复制/etc/kubernetes/admin.conf配置文件，我们先备份一下该文件：
sh
[root@master ~]# cp /etc/kubernetes/admin.conf{,.bak}
[root@master ~]# ls -lh /etc/kubernetes/admin.conf*
-rw------- 1 root root 5.4K Aug 12 16:11 /etc/kubernetes/admin.conf
-rw------- 1 root root 5.4K Aug 12 17:26 /etc/kubernetes/admin.conf.bak
[root@master ~]#- 查看kubelet状态
sh
[root@master ~]# systemctl status kubelet
● kubelet.service - kubelet: The Kubernetes Node Agent
Loaded: loaded (/usr/lib/systemd/system/kubelet.service; enabled; vendor preset: disabled)
Drop-In: /usr/lib/systemd/system/kubelet.service.d
└─10-kubeadm.conf
Active: active (running) since Thu 2021-08-12 16:11:34 CST; 1h 16min ago
Docs: https://kubernetes.io/docs/
Main PID: 8433 (kubelet)
Tasks: 15
Memory: 37.3M
CGroup: /system.slice/kubelet.service
└─8433 /usr/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf --kubeconfig=/etc/kubernetes/ku...
Aug 12 17:27:12 master.mytest.com kubelet[8433]: W0812 17:27:12.080379 8433 cni.go:237] Unable to update cni config: no.../net.d
Aug 12 17:27:12 master.mytest.com kubelet[8433]: E0812 17:27:12.654601 8433 kubelet.go:2212] Container runtime network ...alized
Aug 12 17:27:17 master.mytest.com kubelet[8433]: W0812 17:27:17.082894 8433 cni.go:237] Unable to update cni config: no.../net.d
Aug 12 17:27:17 master.mytest.com kubelet[8433]: E0812 17:27:17.668554 8433 kubelet.go:2212] Container runtime network ...alized
Aug 12 17:27:22 master.mytest.com kubelet[8433]: W0812 17:27:22.092081 8433 cni.go:237] Unable to update cni config: no.../net.d
Aug 12 17:27:22 master.mytest.com kubelet[8433]: E0812 17:27:22.683736 8433 kubelet.go:2212] Container runtime network ...alized
Aug 12 17:27:27 master.mytest.com kubelet[8433]: W0812 17:27:27.093106 8433 cni.go:237] Unable to update cni config: no.../net.d
Aug 12 17:27:27 master.mytest.com kubelet[8433]: E0812 17:27:27.701610 8433 kubelet.go:2212] Container runtime network ...alized
Aug 12 17:27:32 master.mytest.com kubelet[8433]: W0812 17:27:32.093955 8433 cni.go:237] Unable to update cni config: no.../net.d
Aug 12 17:27:32 master.mytest.com kubelet[8433]: E0812 17:27:32.715703 8433 kubelet.go:2212] Container runtime network ...alized
Hint: Some lines were ellipsized, use -l to show in full.
[root@master ~]#
[root@master ~]# ps -ef|grep 'bin/kubelet'|grep -v 'grep'
root 8433 1 1 16:11 ? 00:01:26 /usr/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf --kubeconfig=/etc/kubernetes/kubelet.conf --config=/var/lib/kubelet/config.yaml --cgroup-driver=systemd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.2这时，可以看到，kubelet服务已经启动了，通过进程可以发现，kubelet启动时，使用了kubeadm init初始化生成的多个配置文件。
3.4.4 复制配置文件并验证
在我们复制/etc/kubernetes/admin.conf前，我们先执行一条命令kubectl get nodes:
sh
[root@master ~]# kubectl get nodes
The connection to the server localhost:8080 was refused - did you specify the right host or port?
[root@master ~]#此时，可以看到，不能正常获取到集群的节点信息。
执行这三条命令：
sh
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config我们是root用户，直接在master上面执行：
sh
[root@master ~]# mkdir -p $HOME/.kube
[root@master ~]# sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@master ~]# sudo chown $(id -u):$(id -g) $HOME/.kube/config
[root@master ~]# ls -lah .kube/config
-rw------- 1 root root 5.4K Aug 12 17:40 .kube/config
[root@master ~]#此时再次查看节点信息:
sh
[root@master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master.mytest.com NotReady master 90m v1.18.20
[root@master ~]#此时，可以看到，当前的master节点的状态是NotReady，即未就绪状态。
此时，我们查看一下日志信息：
sh
[root@master ~]# tail /var/log/messages
Aug 12 17:44:12 master kubelet: E0812 17:44:12.357037 8433 kubelet.go:2212] Container runtime network not ready: NetworkReady=false reason:NetworkPluginNotReady message:docker: network plugin is not ready: cni config uninitialized
Aug 12 17:44:12 master kubelet: W0812 17:44:12.617353 8433 cni.go:237] Unable to update cni config: no networks found in /etc/cni/net.d
Aug 12 17:44:17 master kubelet: E0812 17:44:17.373716 8433 kubelet.go:2212] Container runtime network not ready: NetworkReady=false reason:NetworkPluginNotReady message:docker: network plugin is not ready: cni config uninitialized
Aug 12 17:44:17 master kubelet: W0812 17:44:17.624174 8433 cni.go:237] Unable to update cni config: no networks found in /etc/cni/net.d
Aug 12 17:44:22 master kubelet: E0812 17:44:22.389514 8433 kubelet.go:2212] Container runtime network not ready: NetworkReady=false reason:NetworkPluginNotReady message:docker: network plugin is not ready: cni config uninitialized
Aug 12 17:44:22 master kubelet: W0812 17:44:22.630131 8433 cni.go:237] Unable to update cni config: no networks found in /etc/cni/net.d
Aug 12 17:44:27 master kubelet: E0812 17:44:27.407339 8433 kubelet.go:2212] Container runtime network not ready: NetworkReady=false reason:NetworkPluginNotReady message:docker: network plugin is not ready: cni config uninitialized
Aug 12 17:44:27 master kubelet: W0812 17:44:27.630585 8433 cni.go:237] Unable to update cni config: no networks found in /etc/cni/net.d
Aug 12 17:44:32 master kubelet: E0812 17:44:32.423892 8433 kubelet.go:2212] Container runtime network not ready: NetworkReady=false reason:NetworkPluginNotReady message:docker: network plugin is not ready: cni config uninitialized
Aug 12 17:44:32 master kubelet: W0812 17:44:32.631120 8433 cni.go:237] Unable to update cni config: no networks found in /etc/cni/net.d可以看到NetworkPluginNotReady信息，即kubernetes的网络插件没有准备好。因此，我们需要先安装一下kubernates的网络插件。
此时，查看Pod的信息：
sh
[root@master ~]# kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-7ff77c879f-fbdl7 0/1 Pending 0 95m
kube-system coredns-7ff77c879f-zkx44 0/1 Pending 0 95m
kube-system etcd-master.mytest.com 1/1 Running 0 96m
kube-system kube-apiserver-master.mytest.com 1/1 Running 0 96m
kube-system kube-controller-manager-master.mytest.com 1/1 Running 0 96m
kube-system kube-proxy-nzmm4 1/1 Running 0 95m
kube-system kube-scheduler-master.mytest.com 1/1 Running 0 96m
[root@master ~]#可以看到coredns也处于pending状态。
下一步就是要安装网络插件。
3.5 安装网络插件
Kubernetes系统上Pod网络的实现依赖于第三方插件进行，这类插件有近数十种之多，较为著名的有flannel、calico、canal和kube-router等，简单易用的实现是为CoreOS提供的flannel项目。下面的命令用于在线部署flannel至Kubernetes系统之上：
~]# kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
我们先下载一下这个文件，看看文件内容。
你也可以直接点下载kube-flannel.yml 下载我已经修改好的配置文件kube-flannel.yml。
sh
# 下载
[root@master ~]# wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
--2021-08-12 17:54:03-- https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.111.133, 185.199.108.133, 185.199.109.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.111.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 4813 (4.7K) [text/plain]
Saving to: ‘kube-flannel.yml’
100%[=========================================================================================>] 4,813 8.32KB/s in 0.6s
2021-08-12 17:54:04 (8.32 KB/s) - ‘kube-flannel.yml’ saved [4813/4813]
[root@master ~]#查看kube-flannel.yml文件内容：
sh
[root@master ~]# cat kube-flannel.yml
---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
name: psp.flannel.unprivileged
annotations:
seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
privileged: false
volumes:
- configMap
- secret
- emptyDir
- hostPath
allowedHostPaths:
- pathPrefix: "/etc/cni/net.d"
- pathPrefix: "/etc/kube-flannel"
- pathPrefix: "/run/flannel"
readOnlyRootFilesystem: false
# Users and groups
runAsUser:
rule: RunAsAny
supplementalGroups:
rule: RunAsAny
fsGroup:
rule: RunAsAny
# Privilege Escalation
allowPrivilegeEscalation: false
defaultAllowPrivilegeEscalation: false
# Capabilities
allowedCapabilities: ['NET_ADMIN', 'NET_RAW']
defaultAddCapabilities: []
requiredDropCapabilities: []
# Host namespaces
hostPID: false
hostIPC: false
hostNetwork: true
hostPorts:
- min: 0
max: 65535
# SELinux
seLinux:
# SELinux is unused in CaaSP
rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: flannel
rules:
- apiGroups: ['extensions']
resources: ['podsecuritypolicies']
verbs: ['use']
resourceNames: ['psp.flannel.unprivileged']
- apiGroups:
- ""
resources:
- pods
verbs:
- get
- apiGroups:
- ""
resources:
- nodes
verbs:
- list
- watch
- apiGroups:
- ""
resources:
- nodes/status
verbs:
- patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: flannel
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: flannel
subjects:
- kind: ServiceAccount
name: flannel
namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: flannel
namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
name: kube-flannel-cfg
namespace: kube-system
labels:
tier: node
app: flannel
data:
cni-conf.json: |
{
"name": "cbr0",
"cniVersion": "0.3.1",
"plugins": [
{
"type": "flannel",
"delegate": {
"hairpinMode": true,
"isDefaultGateway": true
}
},
{
"type": "portmap",
"capabilities": {
"portMappings": true
}
}
]
}
net-conf.json: |
{
"Network": "10.244.0.0/16",
"Backend": {
"Type": "vxlan"
}
}
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: kube-flannel-ds
namespace: kube-system
labels:
tier: node
app: flannel
spec:
selector:
matchLabels:
app: flannel
template:
metadata:
labels:
tier: node
app: flannel
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: kubernetes.io/os
operator: In
values:
- linux
hostNetwork: true
priorityClassName: system-node-critical
tolerations:
- operator: Exists
effect: NoSchedule
serviceAccountName: flannel
initContainers:
- name: install-cni
image: quay.io/coreos/flannel:v0.14.0
command:
- cp
args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
volumeMounts:
- name: cni
mountPath: /etc/cni/net.d
- name: flannel-cfg
mountPath: /etc/kube-flannel/
containers:
- name: kube-flannel
image: quay.io/coreos/flannel:v0.14.0
command:
- /opt/bin/flanneld
args:
- --ip-masq
- --kube-subnet-mgr
resources:
requests:
cpu: "100m"
memory: "50Mi"
limits:
cpu: "100m"
memory: "50Mi"
securityContext:
privileged: false
capabilities:
add: ["NET_ADMIN", "NET_RAW"]
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: run
mountPath: /run/flannel
- name: flannel-cfg
mountPath: /etc/kube-flannel/
volumes:
- name: run
hostPath:
path: /run/flannel
- name: cni
hostPath:
path: /etc/cni/net.d
- name: flannel-cfg
configMap:
name: kube-flannel-cfg
[root@master ~]#通过下面的命令，可知，该配置文件中使用的是quay.io镜像仓库，是国外的镜像仓库，下载会比较慢，我们换成Docker的镜像仓库，由于我们配置了加速源，可以很快的下载下来。
sh
[root@master ~]# grep -n 'image' kube-flannel.yml
169: image: quay.io/coreos/flannel:v0.14.0
183: image: quay.io/coreos/flannel:v0.14.0我们将这两行进行替换掉，使用lizhenliang/flannel镜像。
备份并替换：
sh
[root@master ~]# cp kube-flannel.yml{,.bak}
[root@master ~]# ls kube-flannel.yml*
kube-flannel.yml kube-flannel.yml.bak
[root@master ~]# sed -n 's@image: quay.io/coreos/flannel@image: lizhenliang/flannel@gp' kube-flannel.yml
image: lizhenliang/flannel:v0.14.0
image: lizhenliang/flannel:v0.14.0
[root@master ~]# sed -i 's@image: quay.io/coreos/flannel@image: lizhenliang/flannel@g' kube-flannel.yml
[root@master ~]# grep -n 'image' kube-flannel.yml
169: image: lizhenliang/flannel:v0.14.0
183: image: lizhenliang/flannel:v0.14.0可以看到，文件已经替换成功。
然后，直接运行，使用命令kubectl apply -f kube-flannel.yml来安装网络插件：
sh
[root@master ~]# kubectl apply -f kube-flannel.yml
podsecuritypolicy.policy/psp.flannel.unprivileged created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created
[root@master ~]# echo $?
0
[root@master ~]#命令正常执行。我们再看一下节点和Pod状态：
sh
[root@master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master.mytest.com Ready master 120m v1.18.20
[root@master ~]# kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-7ff77c879f-fbdl7 1/1 Running 0 120m
kube-system coredns-7ff77c879f-zkx44 1/1 Running 0 120m
kube-system etcd-master.mytest.com 1/1 Running 0 120m
kube-system kube-apiserver-master.mytest.com 1/1 Running 0 120m
kube-system kube-controller-manager-master.mytest.com 1/1 Running 0 120m
kube-system kube-flannel-ds-b722r 1/1 Running 0 2m14s
kube-system kube-proxy-nzmm4 1/1 Running 0 120m
kube-system kube-scheduler-master.mytest.com 1/1 Running 0 120m
[root@master ~]#此时，可以看到，节点已经变成Ready就绪状态，并且所有的Pod都是Running运行状态。
此时，coredns有可能启动失败：
sh
[root@k8s-master ~]# kubectl get pods -n kube-system
NAME READY STATUS RESTARTS AGE
coredns-7ff77c879f-g4cvs 0/1 Pending 0 45m
coredns-7ff77c879f-wbvwd 0/1 Pending 0 44m
etcd-k8s-master 1/1 Running 0 80m
kube-apiserver-k8s-master 1/1 Running 0 80m
kube-controller-manager-k8s-master 1/1 Running 0 80m
kube-flannel-ds-89mmk 1/1 Running 0 42m
kube-flannel-ds-9k7nw 1/1 Running 0 56m
kube-flannel-ds-w5lpj 1/1 Running 0 41m
kube-proxy-glfmr 1/1 Running 0 79m
kube-proxy-vscq8 1/1 Running 0 42m
kube-proxy-vxk8w 1/1 Running 0 41m
kube-scheduler-k8s-master 1/1 Running 0 80m
[root@k8s-master ~]#查看日志信息：
sh
[root@k8s-master ~]# tail /var/log/messages
Nov 22 22:16:14 master kubelet: {
Nov 22 22:16:14 master kubelet: "type": "portmap",
Nov 22 22:16:14 master kubelet: "capabilities": {
Nov 22 22:16:14 master kubelet: "portMappings": true
Nov 22 22:16:14 master kubelet: }
Nov 22 22:16:14 master kubelet: }
Nov 22 22:16:14 master kubelet: ]
Nov 22 22:16:14 master kubelet: }
Nov 22 22:16:14 master kubelet: : [failed to find plugin "flannel" in path [/opt/cni/bin]]
Nov 22 22:16:14 master kubelet: W1122 22:16:14.196831 2946 cni.go:237] Unable to update cni config: no valid networks found in /etc/cni/net.d
[root@k8s-master ~]#查看pod coredns的事件信息：
sh
[root@k8s-master ~]# kubectl describe pod coredns-7ff77c879f-g4cvs -n kube-system
....省略
Volumes:
config-volume:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: coredns
Optional: false
coredns-token-jbfmf:
Type: Secret (a volume populated by a Secret)
SecretName: coredns-token-jbfmf
Optional: false
QoS Class: Burstable
Node-Selectors: kubernetes.io/os=linux
Tolerations: CriticalAddonsOnly
node-role.kubernetes.io/master:NoSchedule
node.kubernetes.io/not-ready:NoExecute for 300s
node.kubernetes.io/unreachable:NoExecute for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 44m (x22 over 47m) default-scheduler 0/1 nodes are available: 1 node(s) had taint {node.kubernetes.io/not-ready: }, that the pod didn't tolerate.
Warning FailedScheduling 44m (x3 over 44m) default-scheduler 0/2 nodes are available: 2 node(s) had taint {node.kubernetes.io/not-ready: }, that the pod didn't tolerate.
Warning FailedScheduling 106s (x32 over 43m) default-scheduler 0/3 nodes are available: 3 node(s) had taint {node.kubernetes.io/not-ready: }, that the pod didn't tolerate.查看文件信息：
sh
[root@k8s-master ~]# ls -lah /etc/cni/net.d/
total 4.0K
drwxr-xr-x 2 root root 33 Nov 22 21:14 .
drwxr-xr-x 3 root root 19 Nov 22 21:14 ..
-rw-r--r-- 1 root root 292 Nov 22 21:14 10-flannel.conflist
[root@k8s-master ~]# ls -lah /opt/c
cni/ containerd/
[root@k8s-master ~]# ls -lah /opt/cni/bin/
total 46M
drwxr-xr-x. 2 root root 235 Nov 5 00:24 .
drwxr-xr-x. 3 root root 17 Nov 5 00:24 ..
-rwxr-xr-x. 1 root root 2.7M Sep 15 07:11 bandwidth
-rwxr-xr-x. 1 root root 3.0M Sep 15 07:11 bridge
-rwxr-xr-x. 1 root root 7.1M Sep 15 07:11 dhcp
-rwxr-xr-x. 1 root root 3.1M Sep 15 07:11 firewall
-rwxr-xr-x. 1 root root 2.7M Sep 15 07:11 host-device
-rwxr-xr-x. 1 root root 2.3M Sep 15 07:11 host-local
-rwxr-xr-x. 1 root root 2.8M Sep 15 07:11 ipvlan
-rwxr-xr-x. 1 root root 2.3M Sep 15 07:11 loopback
-rwxr-xr-x. 1 root root 2.8M Sep 15 07:11 macvlan
-rwxr-xr-x. 1 root root 2.6M Sep 15 07:11 portmap
-rwxr-xr-x. 1 root root 2.9M Sep 15 07:11 ptp
-rwxr-xr-x. 1 root root 2.5M Sep 15 07:11 sbr
-rwxr-xr-x. 1 root root 2.0M Sep 15 07:11 static
-rwxr-xr-x. 1 root root 2.4M Sep 15 07:11 tuning
-rwxr-xr-x. 1 root root 2.8M Sep 15 07:11 vlan
-rwxr-xr-x. 1 root root 2.5M Sep 15 07:11 vrf
[root@k8s-master ~]#出现此问题，是因为高版本的插件中没有flannel程序。 可以使用以下命令下载低版本的插件：
sh
wget https://github.com/containernetworking/plugins/releases/download/v0.8.7/cni-plugins-linux-amd64-v0.8.7.tgz你也可以直接点下载flannel 下载。
下载后，将其解压：
sh
[root@master ~]# wget https://github.com/containernetworking/plugins/releases/download/v0.8.7/cni-plugins-linux-amd64-v0.8.7.tgz
[root@master ~]# mkdir cni-plugins
[root@master ~]# tar -zxvf cni-plugins-linux-amd64-v0.8.7.tgz -C cni-plugins
[root@master ~]# ls -lah cni-plugins/flannel
-rwxr-xr-x 1 root root 3.3M Aug 27 2020 cni-plugins-v0.8.7/flannel将flannel文件复制到/opt/cni/bin目录下，并添加可执行权限：
sh
[root@master ~]# cp cni-plugins/flannel /opt/cni/bin/
[root@master ~]# chmod +x /opt/cni/bin/flannel
[root@master ~]# ll /opt/cni/bin/flannel
-rwxr-xr-x 1 root root 3439780 Aug 27 2020 /opt/cni/bin/flannel此时再重启coredns两个pod:
sh
[root@k8s-master bin]# kubectl delete pod coredns-7ff77c879f-g4cvs -n kube-system
pod "coredns-7ff77c879f-g4cvs" deleted
[root@k8s-master bin]# kubectl delete pod coredns-7ff77c879f-wbvwd -n kube-system
pod "coredns-7ff77c879f-wbvwd" deleted
[root@k8s-master bin]# kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-7ff77c879f-hvxgz 1/1 Running 0 35s
kube-system coredns-7ff77c879f-p4f8q 1/1 Running 0 18s
kube-system etcd-k8s-master 1/1 Running 1 42h
kube-system kube-apiserver-k8s-master 1/1 Running 1 42h
kube-system kube-controller-manager-k8s-master 1/1 Running 1 42h
kube-system kube-flannel-ds-89mmk 1/1 Running 0 41h
kube-system kube-flannel-ds-9k7nw 1/1 Running 1 41h
kube-system kube-flannel-ds-w5lpj 1/1 Running 0 41h
kube-system kube-proxy-glfmr 1/1 Running 1 42h
kube-system kube-proxy-vscq8 1/1 Running 0 41h
kube-system kube-proxy-vxk8w 1/1 Running 0 41h
kube-system kube-scheduler-k8s-master 1/1 Running 1 42h
[root@k8s-master bin]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master Ready master 42h v1.18.20
k8s-node1 NotReady <none> 41h v1.18.20
k8s-node2 NotReady <none> 41h v1.18.20这个时候，可以看到master节点所有pod正常运行！说明master主节点配置正常。
按相同的方式，在k8s-node1和k8s-node2节点下载flannel文件，并放在/opt/cni/bin/flannel路径，增加可执行权限，然后重启kubelet。
sh
[root@k8s-node1 ~]# chmod +x /opt/cni/bin/flannel
[root@k8s-node1 ~]# ll /opt/cni/bin/flannel
-rwxr-xr-x 1 root root 3439780 Aug 27 2020 /opt/cni/bin/flannel
[root@k8s-node1 ~]# systemctl restart kubelet
[root@k8s-node1 ~]# systemctl status kubelet
● kubelet.service - kubelet: The Kubernetes Node Agent
Loaded: loaded (/usr/lib/systemd/system/kubelet.service; disabled; vendor preset: disabled)
Drop-In: /usr/lib/systemd/system/kubelet.service.d
└─10-kubeadm.conf
Active: active (running) since Thu 2022-11-24 15:02:06 CST; 15min ago
Docs: https://kubernetes.io/docs/
Main PID: 2880 (kubelet)
Tasks: 16
Memory: 33.3M
CGroup: /system.slice/kubelet.service
└─2880 /usr/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf --kubeconfig=/etc/ku...
Nov 24 15:02:12 k8s-node1 kubelet[2880]: W1124 15:02:12.774079 2880 pod_container_deletor.go:77] Container "b...iners
Nov 24 15:02:12 k8s-node1 kubelet[2880]: I1124 15:02:12.803000 2880 reconciler.go:224] operationExecutor.Veri...110")
Nov 24 15:02:12 k8s-node1 kubelet[2880]: I1124 15:02:12.803040 2880 reconciler.go:224] operationExecutor.Veri...110")
Nov 24 15:02:12 k8s-node1 kubelet[2880]: I1124 15:02:12.803060 2880 reconciler.go:224] operationExecutor.Veri...110")
Nov 24 15:02:12 k8s-node1 kubelet[2880]: I1124 15:02:12.803076 2880 reconciler.go:224] operationExecutor.VerifyCon...
Nov 24 15:02:12 k8s-node1 kubelet[2880]: I1124 15:02:12.803092 2880 reconciler.go:224] operationExecutor.Veri...110")
Nov 24 15:02:12 k8s-node1 kubelet[2880]: I1124 15:02:12.803106 2880 reconciler.go:224] operationExecutor.Veri...110")
Nov 24 15:02:12 k8s-node1 kubelet[2880]: I1124 15:02:12.803120 2880 reconciler.go:224] operationExecutor.Veri...110")
Nov 24 15:02:12 k8s-node1 kubelet[2880]: I1124 15:02:12.803135 2880 reconciler.go:224] operationExecutor.VerifyCon...
Nov 24 15:02:12 k8s-node1 kubelet[2880]: I1124 15:02:12.803144 2880 reconciler.go:157] Reconciler: start to s...state
Hint: Some lines were ellipsized, use -l to show in full.
[root@k8s-node1 ~]#节点k8s-node2按相同的方法下载flannel，设置权限，并重启kubelet服务。
此时再查看集群信息：
sh
[root@k8s-master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master Ready master 42h v1.18.20
k8s-node1 Ready <none> 41h v1.18.20
k8s-node2 Ready <none> 41h v1.18.20可以看到，集群配置成功！！！ 注意，如果你还没配置其他节点，可以按后续步骤添加节点。
现在查看一下正常运行的容器：
sh
[root@master ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
37b88f5b0af3 67da37a9a360 "/coredns -conf /etc…" 3 minutes ago Up 3 minutes k8s_coredns_coredns-7ff77c879f-zkx44_kube-system_1f5d8bfd-d4ff-4efa-b70d-f98d7538675e_0
53c4440c7b72 67da37a9a360 "/coredns -conf /etc…" 3 minutes ago Up 3 minutes k8s_coredns_coredns-7ff77c879f-fbdl7_kube-system_9cd6f3f4-b234-45d3-906f-37afb75dc5c4_0
a5505760cae2 registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 3 minutes ago Up 3 minutes k8s_POD_coredns-7ff77c879f-zkx44_kube-system_1f5d8bfd-d4ff-4efa-b70d-f98d7538675e_0
0fe8b36cf268 registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 3 minutes ago Up 3 minutes k8s_POD_coredns-7ff77c879f-fbdl7_kube-system_9cd6f3f4-b234-45d3-906f-37afb75dc5c4_0
b257627cbd18 8522d622299c "/opt/bin/flanneld -…" 4 minutes ago Up 4 minutes k8s_kube-flannel_kube-flannel-ds-b722r_kube-system_a0f30718-ec8e-4931-8e95-0bc33d464945_0
e20aa5d56136 registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 4 minutes ago Up 4 minutes k8s_POD_kube-flannel-ds-b722r_kube-system_a0f30718-ec8e-4931-8e95-0bc33d464945_0
fbb59a9fcd3d 27f8b8d51985 "/usr/local/bin/kube…" 2 hours ago Up 2 hours k8s_kube-proxy_kube-proxy-nzmm4_kube-system_92c5af10-9aa3-49a8-9d2f-ed46045d09f3_0
ae903b4033d9 registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 2 hours ago Up 2 hours k8s_POD_kube-proxy-nzmm4_kube-system_92c5af10-9aa3-49a8-9d2f-ed46045d09f3_0
4195620f0212 a05a1a79adaa "kube-scheduler --au…" 2 hours ago Up 2 hours k8s_kube-scheduler_kube-scheduler-master.mytest.com_kube-system_c871ae39a802385d75a9bc63229003c0_0
33246821314b 7d8d2960de69 "kube-apiserver --ad…" 2 hours ago Up 2 hours k8s_kube-apiserver_kube-apiserver-master.mytest.com_kube-system_c58a587dd1f416378a0cec08a0e83e51_0
1a5b0f255ca2 303ce5db0e90 "etcd --advertise-cl…" 2 hours ago Up 2 hours k8s_etcd_etcd-master.mytest.com_kube-system_9c3f6e582e1acc630efb5ee84d994008_0
01521565d76a registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 2 hours ago Up 2 hours k8s_POD_kube-scheduler-master.mytest.com_kube-system_c871ae39a802385d75a9bc63229003c0_0
029f7c6b66d0 e7c545a60706 "kube-controller-man…" 2 hours ago Up 2 hours k8s_kube-controller-manager_kube-controller-manager-master.mytest.com_kube-system_912a1414f7cd245daf8395f4c4899e74_0
6f8255098622 registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 2 hours ago Up 2 hours k8s_POD_kube-apiserver-master.mytest.com_kube-system_c58a587dd1f416378a0cec08a0e83e51_0
05a46b32c721 registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 2 hours ago Up 2 hours k8s_POD_etcd-master.mytest.com_kube-system_9c3f6e582e1acc630efb5ee84d994008_0
2cca357c6e5c registry.aliyuncs.com/google_containers/pause:3.2 "/pause" 2 hours ago Up 2 hours k8s_POD_kube-controller-manager-master.mytest.com_kube-system_912a1414f7cd245daf8395f4c4899e74_0
[root@master ~]# docker ps |wc -l
17
[root@master ~]#可以看到，此时已经运行了17个容器了。
可以看到运行了很多pause容器，这个容器有什么作用？后续研究。
3.6 添加集群节点
上面我们已经知道master节点已经能够正常工作了。现在我们只用在各节点上面运行kubeadm init时生成的将节点加入集群的命令：
sh
kubeadm join kubeapi.mytest.com:6443 --token ntf08x.uaudrocid80akszx \
--discovery-token-ca-cert-hash sha256:e60ab1ae8fcc0f8b8d3d2256c59738723a7ad04bee1aa0c0a1d8256bc62b4293我们在node1和node2节点上面分别运行以上命令。
在node1节点执行：
sh
[root@node1 ~]# kubeadm join kubeapi.mytest.com:6443 --token ntf08x.uaudrocid80akszx \
> --discovery-token-ca-cert-hash sha256:e60ab1ae8fcc0f8b8d3d2256c59738723a7ad04bee1aa0c0a1d8256bc62b4293
W0812 18:33:16.483466 15374 join.go:346] [preflight] WARNING: JoinControlPane.controlPlane settings will be ignored when control-plane flag is not set.
[preflight] Running pre-flight checks
[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.8. Latest validated version: 19.03
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.18" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
[root@node1 ~]# echo $?
0
[root@node1 ~]#再在node2节点执行：
sh
[root@node2 ~]# kubeadm join kubeapi.mytest.com:6443 --token ntf08x.uaudrocid80akszx \
> --discovery-token-ca-cert-hash sha256:e60ab1ae8fcc0f8b8d3d2256c59738723a7ad04bee1aa0c0a1d8256bc62b4293
W0812 18:34:17.352493 14951 join.go:346] [preflight] WARNING: JoinControlPane.controlPlane settings will be ignored when control-plane flag is not set.
[preflight] Running pre-flight checks
[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.8. Latest validated version: 19.03
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.18" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
[root@node2 ~]# echo $?
0
[root@node2 ~]#可以看到，在node1和node2节点上面都执行成功了。
我们现在在master上面查看一下集群节点的相关状态信息。
sh
[root@master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master.mytest.com Ready master 144m v1.18.20
node1.mytest.com Ready <none> 2m30s v1.18.20
node2.mytest.com Ready <none> 89s v1.18.20
[root@master ~]# kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
master.mytest.com Ready master 144m v1.18.20 192.168.56.60 <none> CentOS Linux 7 (Core) 3.10.0-1062.el7.x86_64 docker://20.10.8
node1.mytest.com Ready <none> 2m45s v1.18.20 192.168.56.61 <none> CentOS Linux 7 (Core) 3.10.0-1062.el7.x86_64 docker://20.10.8
node2.mytest.com Ready <none> 104s v1.18.20 192.168.56.62 <none> CentOS Linux 7 (Core) 3.10.0-1062.el7.x86_64 docker://20.10.8
[root@master ~]#查看Pod信息：
sh
[root@master ~]# kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-7ff77c879f-fbdl7 1/1 Running 0 146m
kube-system coredns-7ff77c879f-zkx44 1/1 Running 0 146m
kube-system etcd-master.mytest.com 1/1 Running 0 146m
kube-system kube-apiserver-master.mytest.com 1/1 Running 0 146m
kube-system kube-controller-manager-master.mytest.com 1/1 Running 0 146m
kube-system kube-flannel-ds-2pqx7 1/1 Running 0 3m34s
kube-system kube-flannel-ds-b722r 1/1 Running 0 28m
kube-system kube-flannel-ds-lhbps 1/1 Running 0 4m35s
kube-system kube-proxy-4sfq6 1/1 Running 0 3m34s
kube-system kube-proxy-nzmm4 1/1 Running 0 146m
kube-system kube-proxy-vll68 1/1 Running 0 4m35s
kube-system kube-scheduler-master.mytest.com 1/1 Running 0 146m
[root@master ~]# kubectl get pods -A -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-7ff77c879f-fbdl7 1/1 Running 0 146m 10.244.0.3 master.mytest.com <none> <none>
kube-system coredns-7ff77c879f-zkx44 1/1 Running 0 146m 10.244.0.2 master.mytest.com <none> <none>
kube-system etcd-master.mytest.com 1/1 Running 0 146m 192.168.56.60 master.mytest.com <none> <none>
kube-system kube-apiserver-master.mytest.com 1/1 Running 0 146m 192.168.56.60 master.mytest.com <none> <none>
kube-system kube-controller-manager-master.mytest.com 1/1 Running 0 146m 192.168.56.60 master.mytest.com <none> <none>
kube-system kube-flannel-ds-2pqx7 1/1 Running 0 3m43s 192.168.56.62 node2.mytest.com <none> <none>
kube-system kube-flannel-ds-b722r 1/1 Running 0 28m 192.168.56.60 master.mytest.com <none> <none>
kube-system kube-flannel-ds-lhbps 1/1 Running 0 4m44s 192.168.56.61 node1.mytest.com <none> <none>
kube-system kube-proxy-4sfq6 1/1 Running 0 3m43s 192.168.56.62 node2.mytest.com <none> <none>
kube-system kube-proxy-nzmm4 1/1 Running 0 146m 192.168.56.60 master.mytest.com <none> <none>
kube-system kube-proxy-vll68 1/1 Running 0 4m44s 192.168.56.61 node1.mytest.com <none> <none>
kube-system kube-scheduler-master.mytest.com 1/1 Running 0 146m 192.168.56.60 master.mytest.com <none> <none>
[root@master ~]#这样，我们的集群就安装配置成功了！
我们将三台虚拟机关机，然后创建备份快照。快照名称为k8s_1，描述信息为k8s集群部署完成，nodes和pods都正常运行，未添加其他实际应用。
4. Kubernetes集群第一个应用
我们已经成功安装配置了k8s集群，现在是时候在集群上面部署应用了。我们来部署Kubernetes Dashboard这个UI系统。
可参考：
按官方帮助信息，只需要执行命令：
sh
kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml即可。
你也可以直接点下载recommended.yaml 下载我已经修改好的配置文件recommended.yaml。
我们先手动下载recommended.yaml文件：
sh
[root@master ~]# wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml
--2021-08-12 23:04:15-- https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.111.133, 185.199.110.133, 185.199.108.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.111.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 7552 (7.4K) [text/plain]
Saving to: ‘recommended.yaml’
100%[=============================================================================================================================>] 7,552 --.-K/s in 0s
2021-08-12 23:04:16 (44.1 MB/s) - ‘recommended.yaml’ saved [7552/7552]
[root@master ~]#我们查看一下recommended.yaml文件的service配置：
sh
[root@master ~]# ls -la recommended.yaml
-rw-r--r-- 1 root root 7552 Aug 12 23:04 recommended.yaml
[root@master ~]# cat -n recommended.yaml|sed -n '30,46p'
30 ---
31
32 kind: Service
33 apiVersion: v1
34 metadata:
35 labels:
36 k8s-app: kubernetes-dashboard
37 name: kubernetes-dashboard
38 namespace: kubernetes-dashboard
39 spec:
40 ports:
41 - port: 443
42 targetPort: 8443
43 selector:
44 k8s-app: kubernetes-dashboard
45
46 ---
[root@master ~]#我们备份yaml文件并增加一下：
sh
[root@master ~]# cp recommended.yaml{,.bak}
[root@master ~]# ls -la recommended.yaml*
-rw-r--r-- 1 root root 7552 Aug 12 23:04 recommended.yaml
-rw-r--r-- 1 root root 7552 Aug 12 23:22 recommended.yaml.bak
[root@master ~]# vi recommended.yaml
[root@master ~]# cat -n recommended.yaml|sed -n '30,47p'
30 ---
31
32 kind: Service
33 apiVersion: v1
34 metadata:
35 labels:
36 k8s-app: kubernetes-dashboard
37 name: kubernetes-dashboard
38 namespace: kubernetes-dashboard
39 spec:
40 type: NodePort
41 ports:
42 - port: 443
43 targetPort: 8443
44 selector:
45 k8s-app: kubernetes-dashboard
46
47 ---
[root@master ~]#
[root@master ~]# diff recommended.yaml recommended.yaml.bak
40d39
< type: NodePort
[root@master ~]#第40行的type:NodePort是新增的内容。
然后，我们使用命令kubectl apply -f recommended.yaml创建应用：
sh
[root@master ~]# kubectl apply -f recommended.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created
[root@master ~]#查看Pod信息：
sh
[root@master ~]# kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-7ff77c879f-fbdl7 1/1 Running 1 7h16m
kube-system coredns-7ff77c879f-zkx44 1/1 Running 1 7h16m
kube-system etcd-master.mytest.com 1/1 Running 1 7h16m
kube-system kube-apiserver-master.mytest.com 1/1 Running 1 7h16m
kube-system kube-controller-manager-master.mytest.com 1/1 Running 1 7h16m
kube-system kube-flannel-ds-2pqx7 1/1 Running 1 4h54m
kube-system kube-flannel-ds-b722r 1/1 Running 1 5h18m
kube-system kube-flannel-ds-lhbps 1/1 Running 1 4h55m
kube-system kube-proxy-4sfq6 1/1 Running 1 4h54m
kube-system kube-proxy-nzmm4 1/1 Running 1 7h16m
kube-system kube-proxy-vll68 1/1 Running 1 4h55m
kube-system kube-scheduler-master.mytest.com 1/1 Running 1 7h16m
kubernetes-dashboard dashboard-metrics-scraper-78f5d9f487-grsqn 1/1 Running 0 50s
kubernetes-dashboard kubernetes-dashboard-6bc5cb8879-wswsl 1/1 Running 0 50s
[root@master ~]#
[root@master ~]# kubectl get pods -n kubernetes-dashboard
NAME READY STATUS RESTARTS AGE
dashboard-metrics-scraper-78f5d9f487-grsqn 1/1 Running 0 4m22s
kubernetes-dashboard-6bc5cb8879-wswsl 1/1 Running 0 4m22s可以看到kubernetes-dashboard已经正常运行。
查看对应的Service信息：
sh
[root@master ~]# kubectl get services -n kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
dashboard-metrics-scraper ClusterIP 10.96.169.151 <none> 8000/TCP 3m56s
kubernetes-dashboard NodePort 10.102.68.190 <none> 443:31934/TCP 3m57s
[root@master ~]#查看对应的Pod在哪个节点上运行的：
sh
[root@master ~]# kubectl get pods -n kubernetes-dashboard -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
dashboard-metrics-scraper-78f5d9f487-grsqn 1/1 Running 0 7m18s 10.244.2.2 node2.mytest.com <none> <none>
kubernetes-dashboard-6bc5cb8879-wswsl 1/1 Running 0 7m18s 10.244.1.2 node1.mytest.com <none> <none>
[root@master ~]# kubectl get services -n kubernetes-dashboard -o wide
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
dashboard-metrics-scraper ClusterIP 10.96.169.151 <none> 8000/TCP 7m37s k8s-app=dashboard-metrics-scraper
kubernetes-dashboard NodePort 10.102.68.190 <none> 443:31934/TCP 7m38s k8s-app=kubernetes-dashboard
[root@master ~]#可以知道kubernetes-dashboard运行在节点node1上面。其对应的端口号是31934。
为了能在我们宿主机上面能够访问集群中的应用，我们在宿主机上面也配置一下域名解析。
sh
$ tail -n 5 /etc/hosts
# k8s
192.168.56.60 master.mytest.com master kubeapi.mytest.com kubeapi k8s-master
192.168.56.61 node1.mytest.com node1 k8s-node1
192.168.56.62 node2.mytest.com node2 k8s-node2现在我们在宿主机上面访问node1.mytest.com:31934 http://node1.mytest.com:31934/ 看看会看到什么。
可以看到，页面返回的信息是"Client sent an HTTP request to an HTTPS server."，提示需要使用https方式访问。
我们改成https方式访问，访问链接 https://node1.mytest.com:31934/，此时看到的界面如下：
我们选择高级,并"接受风险并继续"，看到如下页面：
可以看到，可以通过两种方式进行登陆。我们使用token的方式登陆。
下面先来生成token。
- 创建service account
sh
[root@master ~]# kubectl create serviceaccount dashboard-admin -n kube-system
serviceaccount/dashboard-admin created- service account账户绑定到集群角色cluster-admin
sh
[root@master ~]# kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin
clusterrolebinding.rbac.authorization.k8s.io/dashboard-admin created
[root@master ~]#- 获取secret的名称
sh
[root@master ~]# kubectl get secret -n kube-system|head -n 1; kubectl get secret -n kube-system|grep 'dash'
NAME TYPE DATA AGE
dashboard-admin-token-4kkdc kubernetes.io/service-account-token 3 9m20s
[root@master ~]# kubectl get secret -n kube-system|grep 'dash'|awk '{print $1}'
dashboard-admin-token-4kkdc- 获取token值
sh
[root@master ~]# kubectl describe secrets -n kube-system dashboard-admin-token-4kkdc
Name: dashboard-admin-token-4kkdc
Namespace: kube-system
Labels: <none>
Annotations: kubernetes.io/service-account.name: dashboard-admin
kubernetes.io/service-account.uid: a666ccfc-13d5-49c8-bdbd-9f725b01fcbb
Type: kubernetes.io/service-account-token
Data
====
ca.crt: 1025 bytes
namespace: 11 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6IjhLTWpoZUpQbGtxSUgxTnFMdGRJY2lVNlNBeU1XNzNqaXpfU1l4RkY5cmMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tNGtrZGMiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYTY2NmNjZmMtMTNkNS00OWM4LWJkYmQtOWY3MjViMDFmY2JiIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.hg8xgiYKLH5tyZ8W7UvTRDYXv0vhGphGOxbCuLA4Yn_LbFbrMdmNTqcZQT-kgsS7RMVMgK9NWYZtv9szzhPwdWoLTkTcTLtyECHwhXOk6usSFlCVA8CI_2qj8l4zUty0MLEHSGF_jTcZsvio8UH8dCxCbPPx5Ks3ZcEfw-nMm6rA4hRqH1dQ0YhTk_VC01dv81x17W9SOwsAZoXOpUUFelhxBHIE8iChUmOxtjUvPjmXYn2sOJ_F7cF6PAG_HZQv4y0Gg8uwUMWlNy6fRrKIIOdfcPbSv8fYH486y1C9uc8YXI7p2DQx5nU5qDQtWslGc_9kftGzW-vzypzrzWsGXw
[root@master ~]#token行的内容就是最后需要的数据。将其复制粘贴到Web界面的输入框中。
然后，我们就可以进入到DashBoard界面了。
此时，在界面上面看到没有任何Pod。
我们可以快速创建一个Pod。
如，创建一个Nginx的Pod:
sh
[root@master ~]# kubectl create deployment myweb --image=nginx
deployment.apps/myweb created
[root@master ~]# kubectl get pods
NAME READY STATUS RESTARTS AGE
myweb-544b6f5455-2hs9m 1/1 Running 0 60s
[root@master ~]#此时，在DashBoard界面上面会自动显示出刚才创建的myweb这个Pod：
至此，k8s集群以及其基本应用的尝试已经完成了。
后续，再在集群上面进行深入的学习。
学习过程中存在的疑问：
- docker pause镜像的作用？
- k8s是如何选择在哪个节点上面运行Pod的？
- k8s为什么不能在master上面运行自己的Pod？
- Pod是什么？
- k8s可以使用非自签名证书吗？
- 如何访问k8s的服务，如Web页面，怎么样确定端口号的？
问题比较多，后面一点一点的总结分析。
