使用clair扫描Docker镜像漏洞

• 1. 安装基础工具
• 2. 编译安装clair-scanner
• 3. 下载镜像
• 4. 运行容器
• 5. 扫描
• 6. 故障排除

参考:

• https://github.com/arminc/clair-scanner

我们可以通过clair来扫描Docker镜像漏洞。

1. 安装基础工具

我们需要安装git和golang:

$ sudo yum install -y git golang

查看git和golang的版本信息：

$ git --version
git version 2.24.4
$ go version
go version go1.16.13 linux/amd64

配置go加速：

# Golang environment settings
export GOROOT=/usr/lib/golang # golang install path
export GOPATH=~/data/go_data # golang workspace
export GOBIN=${GOPATH}/bin # golang exe files
export PATH=${GOBIN}:${PATH}
export GOPROXY=https://goproxy.cn
export GO111MODULE=on

将以上配置加入到~/.bashrc文件中，并使用source ~/.bashrc加载配置。

2. 编译安装clair-scanner

# Clone the repo 下载代码
$ git clone https://github.com/arminc/clair-scanner.git

# Build and install 构建和安装
$ cd clair-scanner
$ make build
$ make installLocal

# Run 运行
$ ./clair-scanner -h

3. 下载镜像

# 下载漏洞数据库镜像
$ docker pull arminc/clair-db

# 下载clair-local-scan镜像
$ docker pull arminc/clair-local-scan:v2.1.8_9bca9a9a7bce2fd2e84efcc98ab00c040177e258

查看镜像：

$ docker images
REPOSITORY                TAG                                               IMAGE ID       CREATED        SIZE
arminc/clair-db           latest                                            a2f42fc0ce5e   14 hours ago   679MB
arminc/clair-local-scan   v2.1.8_9bca9a9a7bce2fd2e84efcc98ab00c040177e258   e77be8484e41   14 hours ago   464MB
redis                     latest                                            bba24acba395   7 days ago     113MB

4. 运行容器

运行容器：

$ docker run -d --name clair-db arminc/clair-db:latest
0a2721f943bfbe45250a129564d36ab2b1c78dfdb0bed4c9f53243426e3a7a02
$ docker run -p 6060:6060 --link clair-db:postgres -d --name clair arminc/clair-local-scan:v2.1.8_9bca9a9a7bce2fd2e84efcc98ab00c040177e258
28edf93ba32b66d5616d41337cfc5b449788669032ecb26b9994d68bf1ac9334
$

查看运行的容器：

$ docker ps
CONTAINER ID   IMAGE                                                                     COMMAND                  CREATED              STATUS              PORTS                                                 NAMES
28edf93ba32b   arminc/clair-local-scan:v2.1.8_9bca9a9a7bce2fd2e84efcc98ab00c040177e258   "/usr/bin/dumb-init …"   About a minute ago   Up About a minute   0.0.0.0:6060->6060/tcp, :::6060->6060/tcp, 6061/tcp   clair
0a2721f943bf   arminc/clair-db:latest                                                    "docker-entrypoint.s…"   2 minutes ago        Up 2 minutes        5432/tcp                                              clair-db
$

5. 扫描

获取docker0的IP信息：

$ ifconfig docker0|grep "inet "
        inet 172.18.0.1  netmask 255.255.0.0  broadcast 0.0.0.0

此处的172.18.0.1即是docker0的IP。

我们对下载的redis镜像进行扫描：

$ clair-scanner --ip="172.18.0.1" -c "http://localhost:6060" redis:latest 2>&1 > redis.report
2022/04/06 23:33:52 [INFO] ▶ Start clair-scanner
2022/04/06 23:33:56 [INFO] ▶ Server listening on port 9279
2022/04/06 23:33:56 [INFO] ▶ Analyzing ce48e167cda6274020886d8aabe7c3e6abde585ad1c70b82ffb1552e63e9fd05
2022/04/06 23:33:56 [INFO] ▶ Analyzing dab7039dbbb8a78585185a7a03ab46192f8e16b56a53ad26d85b859146b1b537
2022/04/06 23:33:56 [INFO] ▶ Analyzing c26aeb5606adb4e186fde99b2e864347fe880e0ab67a49c58cfd046f10bdc54e
2022/04/06 23:33:56 [INFO] ▶ Analyzing 6c6b40f210f159593404920484982353968f7af428de397e9f791786ded74628
2022/04/06 23:33:56 [INFO] ▶ Analyzing 7af902ae1e7b599066bda5c9f1122a9ea3127a7002acb26e26ce0357633c6437
2022/04/06 23:33:56 [INFO] ▶ Analyzing 257cc5e4f2ad448c685be02ef26e0ea40daf48efa1049121e5adeb4bfc65ca55
2022/04/06 23:33:56 [WARN] ▶ Image [redis:latest] contains 39 total vulnerabilities
2022/04/06 23:33:56 [ERRO] ▶ Image [redis:latest] contains 39 unapproved vulnerabilities
$ head -n 13 redis.report
+------------+-----------------------------+--------------+------------------+--------------------------------------------------------------+
| STATUS     | CVE SEVERITY                | PACKAGE NAME | PACKAGE VERSION  | CVE DESCRIPTION                                              |
+------------+-----------------------------+--------------+------------------+--------------------------------------------------------------+
| Unapproved | Low CVE-2016-2781           | coreutils    | 8.32-4           | chroot in GNU coreutils, when used with --userspec,          |
|            |                             |              |                  | allows local users to escape to the parent session           |
|            |                             |              |                  | via a crafted TIOCSTI ioctl call, which pushes               |
|            |                             |              |                  | characters to the terminal's input buffer.                   |
|            |                             |              |                  | https://security-tracker.debian.org/tracker/CVE-2016-2781    |
+------------+-----------------------------+--------------+------------------+--------------------------------------------------------------+
| Unapproved | Negligible CVE-2011-4116    | perl         | 5.32.1-4+deb11u2 | _is_safe in the File::Temp module for                        |
|            |                             |              |                  | Perl does not properly handle symlinks.                      |
|            |                             |              |                  | https://security-tracker.debian.org/tracker/CVE-2011-4116    |
+------------+-----------------------------+--------------+------------------+--------------------------------------------------------------+

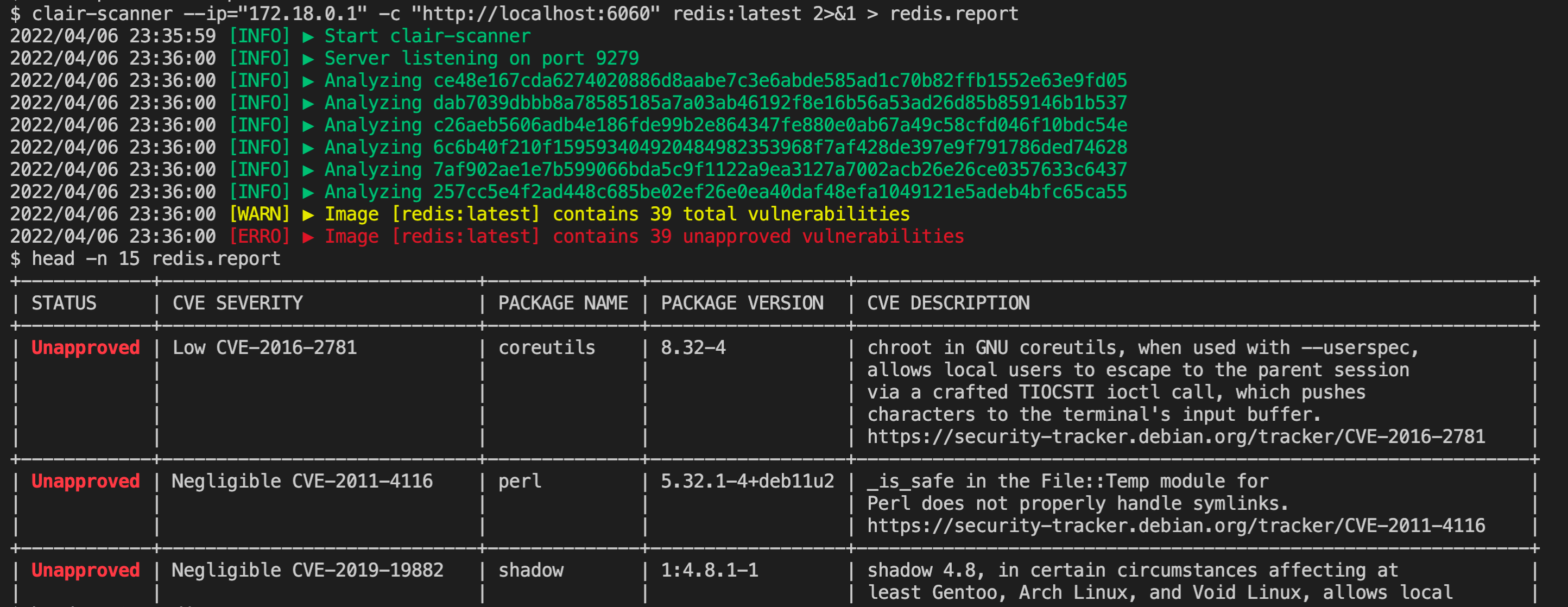

效果图如下：

可以看到最新的redis镜像包含39个漏洞需要处理。

6. 故障排除

https://github.com/arminc/clair-scanner 中给出了几个常见故障的示例：

Troubleshooting

If you get [CRIT] ▶ Could not save Docker image [image:version]: Error response from daemon: reference does not exist, this means that image image:version is not locally present. You should have this image present locally before trying to analyze it (e.g.: docker pull image:version).

Errors like [CRIT] ▶ Could not analyze layer: Clair responded with a failure: Got response 400 with message {"Error":{"Message":"could not find layer"}} indicates that Clair can not retrieve a layer from clair-scanner. This means that you probably specified a wrong IP address in options (--ip). Note that you should use a publicly accessible IP when clair is running in a container, or it wont be able to connect to clair-scanner. If clair is running inside the docker, use the docker0 ip address. You can find the docker0 ip address by running ifconfig docker0 | grep inet

[CRIT] ▶ Could not read Docker image layers: manifest.json is not valid fires when image version is not specified and is required. Try to add :version (.e.g. :latest) after the image name.

[CRIT] ▶ Could not analyze layer: POST to Clair failed Post http://docker:6060/v1/layers: dial tcp: lookup docker on 127.0.0.53:53: no such host indicates that clair server could ne be reached. Double check hostname and port in -c argument, and your clair settings (in clair's docker-compose.yml for instance if you run it this way).

即：

• [CRIT] ▶ Could not save Docker image [image:version]: Error response from daemon: reference does not exist，即image:version镜像不在本地，即你没有下载该镜像，不能直接扫描，需要使用docker pull image:version先下载镜像。
• [CRIT] ▶ Could not analyze layer: Clair responded with a failure: Got response 400 with message {"Error":{"Message":"could not find layer"}}，即--ip配置异常，应使用ifconfig docker0|grep inet来获取docker0的IP地址。
• [CRIT] ▶ Could not read Docker image layers: manifest.json is not valid，未指定镜像版本信息。
• [CRIT] ▶ Could not analyze layer: POST to Clair failed Post http://docker:6060/v1/layers: dial tcp: lookup docker on 127.0.0.53:53: no such host，Clair服务器网站无法访问。应仔细检查-c参数中的主机名和端口，对应本文中的docker run -p 6060:6060 --link clair-db:postgres -d --name clair arminc/clair-local-scan:v2.1.8_9bca9a9a7bce2fd2e84efcc98ab00c040177e258运行的容器。
