CenOS7安装GitLab(使用外部Nginx配置)并配置HTTPS协议
本文讲解在CentOS7系统中安装GitLab(使用外部Nginx配置)并配置HTTPS协议进行加密传输数据。
实验环境
- server服务端: 操作系统为CentOS 7.6，IP:192.168.56.14， git:2.16.5。
- 宿主机：Windows 10，IP:192.168.1.8， git:git version 2.21.0.windows.1。
查看server服务端信息:
sh
[root@hellogitlab ~]# cat /etc/centos-release
CentOS Linux release 7.6.1810 (Core)
[root@hellogitlab ~]# ip addr show|grep 192
inet 192.168.1.11/24 brd 192.168.1.255 scope global noprefixroute dynamic enp0s3安装GitLab
参考https://about.gitlab.com/install/#centos-7在CentOS7上面安装Omnibus package。
安装依赖
安装必要依赖，并开启防火墙放行80和443端口:
sh
# 说明：安装依赖
[root@hellogitlab ~]# yum install curl policycoreutils-python openssh-server deltarpm -y
# 说明：查看防火墙放行列表
[root@hellogitlab ~]# firewall-cmd --list-all
public (active)
target: default
icmp-block-inversion: no
interfaces: enp0s3 enp0s8
sources:
services: ssh dhcpv6-client
ports: 8140/tcp 53/tcp 11211/tcp
protocols:
masquerade: no
forward-ports:
source-ports:
icmp-blocks:
rich rules:
# 说明：防火墙放行80端口
[root@hellogitlab ~]# firewall-cmd --zone=public --add-port=80/tcp --permanent
success
[root@hellogitlab ~]# firewall-cmd --zone=public --add-port=443/tcp --permanent
success
# 说明：重启防火墙
[root@hellogitlab ~]# firewall-cmd --reload
success
# 说明：查看防火墙放行列表
[root@hellogitlab ~]# firewall-cmd --list-all
public (active)
target: default
icmp-block-inversion: no
interfaces: enp0s3
sources:
services: ssh dhcpv6-client
ports: 80/tcp 443/tcp
protocols:
masquerade: no
forward-ports:
source-ports:
icmp-blocks:
rich rules:新增GitLab的国内清华大学的yum源
- 清华大学YUM源地址https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el7/
- 清华大学Gitlab Community Edition 镜像使用帮助https://mirrors.tuna.tsinghua.edu.cn/help/gitlab-ce/
新建 /etc/yum.repos.d/gitlab-ce.repo，内容如下:
sh
[gitlab-ce]
name=Gitlab CE Repository
baseurl=https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el$releasever/
gpgcheck=0
enabled=1使用以下命令添加数据:
sh
[root@hellogitlab ~]# cat > /etc/yum.repos.d/gitlab-ce.repo << EOF
> [gitlab-ce]
> name=Gitlab CE Repository
> baseurl=https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el\$releasever/
> gpgcheck=0
> enabled=1
> EOF
[root@hellogitlab ~]# cat /etc/yum.repos.d/gitlab-ce.repo
[gitlab-ce]
name=Gitlab CE Repository
baseurl=https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el$releasever/
gpgcheck=0
enabled=1查找yum源中gitlab-ce的版本:
sh
[root@hellogitlab ~]# yum list gitlab-ce --showduplicates|tail -n 30|head
gitlab-ce.x86_64 11.9.12-ce.0.el7 gitlab-ce
gitlab-ce.x86_64 11.10.0-ce.0.el7 gitlab-ce
gitlab-ce.x86_64 11.10.1-ce.0.el7 gitlab-ce
gitlab-ce.x86_64 11.10.2-ce.0.el7 gitlab-ce
gitlab-ce.x86_64 11.10.3-ce.0.el7 gitlab-ce
gitlab-ce.x86_64 11.10.4-ce.0.el7 gitlab-ce
gitlab-ce.x86_64 11.10.5-ce.0.el7 gitlab-ce
gitlab-ce.x86_64 11.10.6-ce.0.el7 gitlab-ce
gitlab-ce.x86_64 11.10.7-ce.0.el7 gitlab-ce
gitlab-ce.x86_64 11.10.8-ce.0.el7 gitlab-ce安装gitlab-ce-11.10.0
我们安装11.10.0版本:
sh
[root@hellogitlab ~]# yum install gitlab-ce-11.10.0 -y
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
* base: mirrors.tuna.tsinghua.edu.cn
* extras: mirrors.tuna.tsinghua.edu.cn
* updates: mirrors.tuna.tsinghua.edu.cn
Resolving Dependencies
--> Running transaction check
---> Package gitlab-ce.x86_64 0:11.10.0-ce.0.el7 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
==============================================================================================================================================
Package Arch Version Repository Size
==============================================================================================================================================
Installing:
gitlab-ce x86_64 11.10.0-ce.0.el7 gitlab-ce 594 M
Transaction Summary
==============================================================================================================================================
Install 1 Package
Total download size: 594 M
Installed size: 594 M
Downloading packages:
gitlab-ce-11.10.0-ce.0.el7.x86_64.rpm 14% [======- ] 5.9 MB/s | 88 MB 00:01:24 ETA
gitlab-ce-11.10.0-ce.0.el7.x86_64.rpm | 594 MB 00:01:56
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Installing : gitlab-ce-11.10.0-ce.0.el7.x86_64 [################################### ] 1/1
Installing : gitlab-ce-11.10.0-ce.0.el7.x86_64 [############################################################ ] 1/1
Installing : gitlab-ce-11.10.0-ce.0.el7.x86_64 1/1
It looks like GitLab has not been configured yet; skipping the upgrade script.
*. *.
*** ***
***** *****
.****** *******
******** ********
,,,,,,,,,***********,,,,,,,,,
,,,,,,,,,,,*********,,,,,,,,,,,
.,,,,,,,,,,,*******,,,,,,,,,,,,
,,,,,,,,,*****,,,,,,,,,.
,,,,,,,****,,,,,,
.,,,***,,,,
,*,.
_______ __ __ __
/ ____(_) /_/ / ____ _/ /_
/ / __/ / __/ / / __ `/ __ \
/ /_/ / / /_/ /___/ /_/ / /_/ /
\____/_/\__/_____/\__,_/_.___/
Thank you for installing GitLab!
GitLab was unable to detect a valid hostname for your instance.
Please configure a URL for your GitLab instance by setting `external_url`
configuration in /etc/gitlab/gitlab.rb file.
Then, you can start your GitLab instance by running the following command:
sudo gitlab-ctl reconfigure
For a comprehensive list of configuration options please see the Omnibus GitLab readme
https://gitlab.com/gitlab-org/omnibus-gitlab/blob/master/README.md
Verifying : gitlab-ce-11.10.0-ce.0.el7.x86_64 1/1
Installed:
gitlab-ce.x86_64 0:11.10.0-ce.0.el7
Complete!查看GitLab版本:
sh
[root@hellogitlab ~]# cat /opt/gitlab/embedded/service/gitlab-rails/VERSION
11.10.0配置GitLab配置文件
GitLab配置文件存放路径为/etc/gitlab/gitlab.rb，我们先备份一份原始配置文件:
sh
[root@hellogitlab ~]# cp /etc/gitlab/gitlab.rb /etc/gitlab/gitlab.rb.20190818_1106.bak
[root@hellogitlab ~]# ls -lah /etc/gitlab/
total 188K
drwxr-xr-x 2 root root 58 Aug 18 11:06 .
drwxr-xr-x. 77 root root 8.0K Aug 18 11:03 ..
-rw------- 1 root root 88K Aug 18 11:03 gitlab.rb
-rw------- 1 root root 88K Aug 18 11:06 gitlab.rb.20190818_1106.bak外部URL(external URL)配置
- 为了给用户展示正确的仓库克隆链接，需要设置external URL。
- 外部URL可以分多种形式：
- IP地址形式的URL，开放80端口
- 域名形式的URL，开放80端口
- 使用CA认证的URL，开放443端口
第一种方式通过IP地址形式的URL开放80端口，可以参考CenOS7安装GitLab(使用外部Nginx配置)。
我们今天使用域名形式和CA认证的URL。先尝试使用域名形式的URL。
- 13 external_url 'http://gitlab.example.com' ---> external_url 'http://hellogitlab.com'
说明："--->" 表示修改为， 前面的13表示第13行。
使用命令修改:
sh
# 查看本地的hostname，并绑定hostname与ip地址
[root@hellogitlab ~]# hostname
hellogitlab.com
[root@hellogitlab ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
[root@hellogitlab ~]# ip addr show|grep 192
inet 192.168.1.11/24 brd 192.168.1.255 scope global noprefixroute dynamic enp0s3
[root@hellogitlab ~]# echo "192.168.1.11 hellogitlab.com" >> /etc/hosts
[root@hellogitlab ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.1.11 hellogitlab.com
[root@hellogitlab ~]# ping hellogitlab.com -c 3
PING hellogitlab.com (192.168.1.11) 56(84) bytes of data.
64 bytes from hellogitlab.com (192.168.1.11): icmp_seq=1 ttl=64 time=0.032 ms
64 bytes from hellogitlab.com (192.168.1.11): icmp_seq=2 ttl=64 time=0.040 ms
64 bytes from hellogitlab.com (192.168.1.11): icmp_seq=3 ttl=64 time=0.040 ms
--- hellogitlab.com ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2000ms
rtt min/avg/max/mdev = 0.032/0.037/0.040/0.006 ms
# 设置gitlab的URL地址
[root@hellogitlab ~]# sed -i "13s@external_url 'http://gitlab.example.com'@external_url \"http://hellogitlab.com\"@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '13p'
13 external_url "http://hellogitlab.com"时区配置
时区设置为"Asia/Shanghai":
- 49 # gitlab_rails['time_zone'] = 'UTC' ---> gitlab_rails['time_zone'] = 'Asia/Shanghai'
使用命令修改:
sh
[root@hellogitlab ~]# sed -i "49s@^# gitlab_rails\['time_zone'\] = 'UTC'@gitlab_rails\['time_zone'\] = 'Asia/Shanghai'@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '49p'
49 gitlab_rails['time_zone'] = 'Asia/Shanghai'Email邮箱设置
参考： https://docs.gitlab.com/omnibus/settings/smtp.html

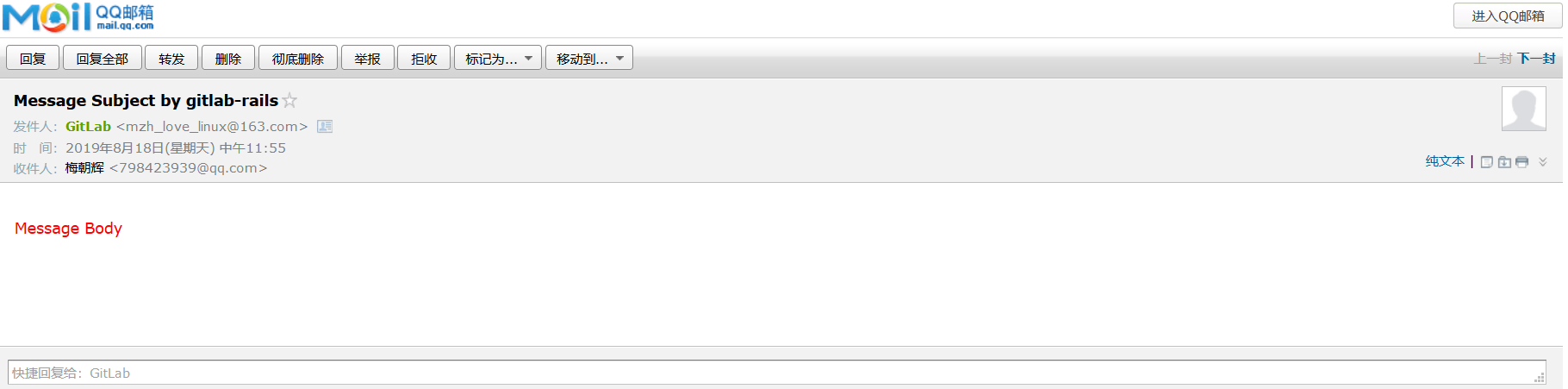

我们使用网易的163邮箱作为邮件的发送人。
原始配置:
51 ### Email Settings
52 # gitlab_rails['gitlab_email_enabled'] = true
53 # gitlab_rails['gitlab_email_from'] = 'example@example.com'
54 # gitlab_rails['gitlab_email_display_name'] = 'Example'
55 # gitlab_rails['gitlab_email_reply_to'] = 'noreply@example.com'
56 # gitlab_rails['gitlab_email_subject_suffix'] = ''修改为:
51 ### Email Settings
52 gitlab_rails['gitlab_email_enabled'] = true
53 gitlab_rails['gitlab_email_from'] = 'mzh_love_linux@163.com'
54 # gitlab_rails['gitlab_email_display_name'] = 'GitLab'
55 # gitlab_rails['gitlab_email_reply_to'] = 'mzh_love_linux@163.com'
56 # gitlab_rails['gitlab_email_subject_suffix'] = '[GitLab]'使用命令修改:
sh
[root@hellogitlab ~]# sed -i "52s@^# gitlab_rails\['gitlab_email_enabled'\] = true@gitlab_rails\['gitlab_email_enabled'\] = true@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "53s@^# gitlab_rails\['gitlab_email_from'\] = 'example\@example.com'@gitlab_rails\['gitlab_email_from'\] = 'mzh_love_linux\@163.com'@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "54s@^# gitlab_rails\['gitlab_email_display_name'\] = 'Example'@gitlab_rails\['gitlab_email_display_name'\] = 'GitLab'@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "55s@^# gitlab_rails\['gitlab_email_reply_to'\] = 'noreply\@example.com'@gitlab_rails\['gitlab_email_reply_to'\] = 'mzh_love_linux\@163.com'@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "56s@^# gitlab_rails\['gitlab_email_subject_suffix'\] = ''@gitlab_rails\['gitlab_email_subject_suffix'\] = '[GitLab]'@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '51,56p'
51 ### Email Settings
52 gitlab_rails['gitlab_email_enabled'] = true
53 gitlab_rails['gitlab_email_from'] = 'mzh_love_linux@163.com'
54 gitlab_rails['gitlab_email_display_name'] = 'GitLab'
55 gitlab_rails['gitlab_email_reply_to'] = 'mzh_love_linux@163.com'
56 gitlab_rails['gitlab_email_subject_suffix'] = '[GitLab]'禁止用户创建顶层组
禁止用户创建顶层组(Disallow users creating top-level groups):
- 59 # gitlab_rails['gitlab_default_can_create_group'] = true ---> gitlab_rails['gitlab_default_can_create_group'] = false
使用命令修改:
sh
[root@hellogitlab ~]# sed -i "59s@# gitlab_rails\['gitlab_default_can_create_group'\] = true@gitlab_rails\['gitlab_default_can_create_group'\] = false@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '59p'
59 gitlab_rails['gitlab_default_can_create_group'] = false禁止用户修改用户名
参考： https://docs.gitlab.com/ee/administration/user_settings.html#disallow-users-changing-usernames
禁止用户修改用户名(Disallow users changing usernames):
- 60 # gitlab_rails['gitlab_username_changing_enabled'] = true ---> gitlab_rails['gitlab_username_changing_enabled'] = false
使用命令修改:
sh
[root@hellogitlab ~]# sed -i "60s@# gitlab_rails\['gitlab_username_changing_enabled'\] = true@gitlab_rails\['gitlab_username_changing_enabled'\] = false@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '60p'
60 gitlab_rails['gitlab_username_changing_enabled'] = falseGitLab trusted_proxies可信代理配置
将IP子网段添加到可信代理中:
- 113 # gitlab_rails['trusted_proxies'] = [] ---> gitlab_rails['trusted_proxies'] = ['192.168.1.0/24']
使用命令修改:
sh
[root@hellogitlab ~]# sed -i "113s@^# gitlab_rails\['trusted_proxies'\] = \[\]@gitlab_rails['trusted_proxies'] = \['192.168.1.0/24'\]@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '113p'
113 gitlab_rails['trusted_proxies'] = ['192.168.56.0/24']git仓库存储目录配置
git仓库存储目录默认为/var/opt/gitlab/git-data ，由于git仓库存储数据比较多，最好将存储目录设置LVM或者支持NFS协议(network file system protocol)的NAS或SAN网络存储设备对应的卷的路径，便于后面扩容。
注意
git仓库存储目录必须是目录，不能是软链接 ！！
修改git_data_dirs的配置:
380 # git_data_dirs({
381 # "default" => {
382 # "path" => "/mnt/nfs-01/git-data"
383 # }
384 # })修改为:
380 git_data_dirs({
381 "default" => {
382 "path" => "/home/git/git-data"
383 }
384 })使用命令修改:
sh
[root@hellogitlab ~]# sed -i "380s@^# git_data_dirs@git_data_dirs@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "381s@^# \"default@ \"default@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "382s@^# \"path\" => \"/mnt/nfs-01/git-data\"@ \"path\" => \"/home/git/git-data\"@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "383s@^# }@ }@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "384s@^# })@})@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '380,384p'
380 git_data_dirs({
381 "default" => {
382 "path" => "/home/git/git-data"
383 }
384 })创建仓库存储目录:
sh
[root@hellogitlab ~]# useradd -d /home/git -s /sbin/nologin git
[root@hellogitlab ~]# ls -lah /home/git/
total 12K
drwx------ 2 git git 62 Aug 18 11:25 .
drwxr-xr-x. 4 root root 35 Aug 18 11:25 ..
-rw-r--r-- 1 git git 18 Oct 31 2018 .bash_logout
-rw-r--r-- 1 git git 193 Oct 31 2018 .bash_profile
-rw-r--r-- 1 git git 231 Oct 31 2018 .bashrc
[root@hellogitlab ~]# cat /etc/passwd|grep git
git:x:1001:1001::/home/git:/sbin/nologin
[root@hellogitlab ~]# id git
uid=1001(git) gid=1001(git) groups=1001(git)
[root@hellogitlab ~]# ls -lad /home/git/
drwx------. 4 git git 111 Jun 22 19:45 /home/git/
[root@hellogitlab ~]# ls -lad /home/git/git-data/
drwxr-xr-x. 2 root root 6 Jun 22 19:45 /home/git/git-data/
[root@hellogitlab ~]# chown git:root /home/git/git-data/
[root@hellogitlab ~]# ls -lad /home/git/git-data/
drwxr-xr-x. 2 git root 6 Jun 22 19:45 /home/git/git-data/SMTP外部邮箱设置
参考： https://docs.gitlab.com/omnibus/settings/smtp.html
我们使用外部邮箱发送邮件通知。
SMTP的原始信息:
507 ### GitLab email server settings
508 ###! Docs: https://docs.gitlab.com/omnibus/settings/smtp.html
509 ###! **Use smtp instead of sendmail/postfix.**
510
511 # gitlab_rails['smtp_enable'] = true
512 # gitlab_rails['smtp_address'] = "smtp.server"
513 # gitlab_rails['smtp_port'] = 465
514 # gitlab_rails['smtp_user_name'] = "smtp user"
515 # gitlab_rails['smtp_password'] = "smtp password"
516 # gitlab_rails['smtp_domain'] = "example.com"
517 # gitlab_rails['smtp_authentication'] = "login"
518 # gitlab_rails['smtp_enable_starttls_auto'] = true
519 # gitlab_rails['smtp_tls'] = false修改为:
507 ### GitLab email server settings
508 ###! Docs: https://docs.gitlab.com/omnibus/settings/smtp.html
509 ###! **Use smtp instead of sendmail/postfix.**
510
511 gitlab_rails['smtp_enable'] = true
512 gitlab_rails['smtp_address'] = "smtp.163.com"
513 gitlab_rails['smtp_port'] = 465
514 gitlab_rails['smtp_user_name'] = "mzh_love_linux@163.com"
515 gitlab_rails['smtp_password'] = "authCode" # <--- 说明：先在邮箱设置中开启客户端授权码，防止密码泄露，此处填写网易邮箱的授权码，不要填写真实密码
516 gitlab_rails['smtp_domain'] = "163.com"
517 gitlab_rails['smtp_authentication'] = "login"
518 gitlab_rails['smtp_enable_starttls_auto'] = true
519 gitlab_rails['smtp_tls'] = true使用命令修改:
[root@hellogitlab ~]# sed -i "511s@# gitlab_rails\['smtp_enable'\] = true@gitlab_rails\['smtp_enable'\] = true@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "512s@# gitlab_rails\['smtp_address'\] = \"smtp.server\"@gitlab_rails\['smtp_address'\] = \"smtp.163.com\"@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "513s@# gitlab_rails\['smtp_port'\] = 465@gitlab_rails\['smtp_port'\] = 465@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "514s@# gitlab_rails\['smtp_user_name'\] = \"smtp user\"@gitlab_rails\['smtp_user_name'\] = \"mzh_love_linux\@163.com\"@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "515s@# gitlab_rails\['smtp_password'\] = \"smtp password\"@gitlab_rails\['smtp_password'\] = \"authCode\"@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "516s@# gitlab_rails\['smtp_domain'\] = \"example.com\"@gitlab_rails\['smtp_domain'\] = \"163.com\"@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "517s@# gitlab_rails\['smtp_authentication'\] = \"login\"@gitlab_rails\['smtp_authentication'\] = \"login\"@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "518s@# gitlab_rails\['smtp_enable_starttls_auto'\] = true@gitlab_rails\['smtp_enable_starttls_auto'\] = true@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "519s@# gitlab_rails\['smtp_tls'\] = false@gitlab_rails\['smtp_tls'\] = true@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '511,519p'
511 gitlab_rails['smtp_enable'] = true
512 gitlab_rails['smtp_address'] = "smtp.163.com"
513 gitlab_rails['smtp_port'] = 465
514 gitlab_rails['smtp_user_name'] = "mzh_love_linux@163.com"
515 gitlab_rails['smtp_password'] = "authCode"
516 gitlab_rails['smtp_domain'] = "163.com"
517 gitlab_rails['smtp_authentication'] = "login"
518 gitlab_rails['smtp_enable_starttls_auto'] = true
519 gitlab_rails['smtp_tls'] = true说明
配置生效后，需要测试SMTP发送邮件是否成功！测试SMTP设置参考： https://docs.gitlab.com/omnibus/settings/smtp.html#testing-the-smtp-configuration
改变Git有用户和组信息
参考： https://docs.gitlab.com/omnibus/settings/configuration.html#changing-the-name-of-the-git-user--group
Git配置的原始信息:
653 # user['username'] = "git"
654 # user['group'] = "git"
655 # user['uid'] = nil
656 # user['gid'] = nil
657
658 ##! The shell for the git user
659 # user['shell'] = "/bin/sh"
660
661 ##! The home directory for the git user
662 # user['home'] = "/var/opt/gitlab"
663
664 # user['git_user_name'] = "GitLab"
665 # user['git_user_email'] = "gitlab@#{node['fqdn']}"
666我们修改为:
653 user['username'] = "git" # <-- 说明： 此行被修改
654 user['group'] = "git" # <-- 说明： 此行被修改
655 # user['uid'] = nil
656 # user['gid'] = nil
657
658 ##! The shell for the git user
659 # user['shell'] = "/bin/sh"
660
661 ##! The home directory for the git user
662 user['home'] = "/home/git" # <-- 说明： 此行被修改
663
664 # user['git_user_name'] = "GitLab"
665 # user['git_user_email'] = "mzh_love_linux@163.com" # <-- 说明： 此行被修改，邮箱地址是配置SMTP需要使用的邮箱地址
666使用命令修改:
sh
[root@hellogitlab ~]# sed -i "653s@^# user\['username'\]@user\['username'\]@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "654s@^# user\['group'\]@user\['group'\]@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "662s@^# user\['home'\] = \"/var/opt/gitlab\"@user\['home'\] = \"/home/git\"@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "665s@^# user\['git_user_email'\] = \"gitlab\@#{node\['fqdn'\]}\"@user\['git_user_email'\] = \"mzh_love_linux\@163.com\"@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '653,665p'
653 user['username'] = "git"
654 user['group'] = "git"
655 # user['uid'] = nil
656 # user['gid'] = nil
657
658 ##! The shell for the git user
659 # user['shell'] = "/bin/sh"
660
661 ##! The home directory for the git user
662 user['home'] = "/home/git"
663
664 # user['git_user_name'] = "GitLab"
665 user['git_user_email'] = "mzh_love_linux@163.com"设置非捆绑WEB服务器的用户名
参考： https://docs.gitlab.com/omnibus/settings/nginx.html#using-a-non-bundled-web-server
WEB SERVER配置的原始信息:
968 ##! When bundled nginx is disabled we need to add the external webserver user to
969 ##! the GitLab webserver group.
970 # web_server['external_users'] = []
971 # web_server['username'] = 'gitlab-www'
972 # web_server['group'] = 'gitlab-www'
973 # web_server['uid'] = nil
974 # web_server['gid'] = nil
975 # web_server['shell'] = '/bin/false'
976 # web_server['home'] = '/var/opt/gitlab/nginx'修改为:
970 web_server['external_users'] = ['nginx', 'root']
971 web_server['username'] = 'nginx'
972 web_server['group'] = 'nginx'
973 # web_server['uid'] = nil
974 # web_server['gid'] = nil
975 # web_server['shell'] = '/bin/false'
976 # web_server['home'] = '/var/opt/gitlab/nginx'使用命令修改:
sh
[root@hellogitlab ~]# sed -i "970s@^# web_server\['external_users'\] = \[\]@web_server\['external_users'\] = \['nginx', 'root'\]@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "971s@^# web_server\['username'\] = 'gitlab-www'@web_server\['username'\] = 'nginx'@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# sed -i "972s@^# web_server\['group'\] = 'gitlab-www'@web_server\['group'\] = 'nginx'@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '970,972p'
970 web_server['external_users'] = ['nginx', 'root']
971 web_server['username'] = 'nginx'
972 web_server['group'] = 'nginx'安装外部Nginx服务:
sh
[root@hellogitlab ~]# yum install nginx -y
[root@hellogitlab ~]# nginx -V
nginx version: nginx/1.12.2
built by gcc 4.8.5 20150623 (Red Hat 4.8.5-36) (GCC)
built with OpenSSL 1.0.2k-fips 26 Jan 2017
TLS SNI support enabled
configure arguments: --prefix=/usr/share/nginx --sbin-path=/usr/sbin/nginx --modules-path=/usr/lib64/nginx/modules --conf-path=/etc/nginx/nginx.conf --error-log-path=/var/log/nginx/error.log --http-log-path=/var/log/nginx/access.log --http-client-body-temp-path=/var/lib/nginx/tmp/client_body --http-proxy-temp-path=/var/lib/nginx/tmp/proxy --http-fastcgi-temp-path=/var/lib/nginx/tmp/fastcgi --http-uwsgi-temp-path=/var/lib/nginx/tmp/uwsgi --http-scgi-temp-path=/var/lib/nginx/tmp/scgi --pid-path=/run/nginx.pid --lock-path=/run/lock/subsys/nginx --user=nginx --group=nginx --with-file-aio --with-ipv6 --with-http_auth_request_module --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_addition_module --with-http_xslt_module=dynamic --with-http_image_filter_module=dynamic --with-http_geoip_module=dynamic --with-http_sub_module --with-http_dav_module --with-http_flv_module --with-http_mp4_module --with-http_gunzip_module --with-http_gzip_static_module --with-http_random_index_module --with-http_secure_link_module --with-http_degradation_module --with-http_slice_module --with-http_stub_status_module --with-http_perl_module=dynamic --with-mail=dynamic --with-mail_ssl_module --with-pcre --with-pcre-jit --with-stream=dynamic --with-stream_ssl_module --with-google_perftools_module --with-debug --with-cc-opt='-O2 -g -pipe -Wall -Wp,-D_FORTIFY_SOURCE=2 -fexceptions -fstack-protector-strong --param=ssp-buffer-size=4 -grecord-gcc-switches -specs=/usr/lib/rpm/redhat/redhat-hardened-cc1 -m64 -mtune=generic' --with-ld-opt='-Wl,-z,relro -specs=/usr/lib/rpm/redhat/redhat-hardened-ld -Wl,-E'
[root@hellogitlab ~]# nginx -v
nginx version: nginx/1.12.2
[root@hellogitlab ~]# cat /etc/passwd|grep nginx
nginx:x:997:994:Nginx web server:/var/lib/nginx:/sbin/nologin
[root@hellogitlab ~]# usermod -d /var/opt/gitlab/nginx nginx
[root@hellogitlab ~]# cat /etc/passwd|grep nginx
nginx:x:997:994:Nginx web server:/var/opt/gitlab/nginx:/sbin/nologin设置非捆绑WEB服务器为Nginx
关闭捆绑WEB服务器：
- 983 # nginx['enable'] = true --> nginx['enable'] = false
使用命令修改:
sh
[root@hellogitlab ~]# sed -i "983s@^# nginx\['enable'\] = true@nginx\['enable'\] = false@g" /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '983p'
983 nginx['enable'] = false配置GitLab的Nginx配置文件
参考： https://gitlab.com/gitlab-org/gitlab-recipes/tree/master/web-server/nginx
下载nginx的gitlab配置模板文件，注：下载单个文件时，应查看文件的raw文件::
sh
[root@hellogitlab ~]# wget https://gitlab.com/gitlab-org/gitlab-recipes/raw/master/web-server/nginx/gitlab-omnibus-nginx.conf你也可以通过点击下面的按钮进行下载。
download gitlab-omnibus-nginx.conf
将 gitlab-omnibus-nginx.conf移动到/etc/nginx/conf.d目录:
sh
[root@hellogitlab ~]# mv gitlab-omnibus-nginx.conf /etc/nginx/conf.d/
[root@hellogitlab ~]# ls -lah /etc/nginx/conf.d/
total 8.0K
drwxr-xr-x 2 root root 39 Aug 18 11:40 .
drwxr-xr-x 4 root root 4.0K Aug 18 11:36 ..
-rw-r--r-- 1 root root 2.1K Aug 18 11:40 gitlab-omnibus-nginx.conf并修改YOUR_SERVER_FQDN为域名:
- 31 server_name YOUR_SERVER_FQDN; ---> server_name hellogitlab.com;
使用命令修改:
sh
[root@hellogitlab ~]# sed -i "31s@server_name YOUR_SERVER_FQDN;@server_name hellogitlab.com;@g" /etc/nginx/conf.d/gitlab-omnibus-nginx.conf
[root@hellogitlab ~]# cat -n /etc/nginx/conf.d/gitlab-omnibus-nginx.conf|sed -n '31p'
31 server_name hellogitlab.com; ## Replace this with something like gitlab.example.com禁用/etc/nginx/nginx.conf 中的默认的80端口的server配置:
80端口的server的原始信息:
38 server {
39 listen 80 default_server;
40 listen [::]:80 default_server;
41 server_name _;
42 root /usr/share/nginx/html;
43
44 # Load configuration files for the default server block.
45 include /etc/nginx/default.d/*.conf;
46
47 location / {
48 }
49
50 error_page 404 /404.html;
51 location = /40x.html {
52 }
53
54 error_page 500 502 503 504 /50x.html;
55 location = /50x.html {
56 }
57 }修改为:
38 # server {
39 # listen 80 default_server;
40 # listen [::]:80 default_server;
41 # server_name _;
42 # root /usr/share/nginx/html;
43 #
44 # # Load configuration files for the default server block.
45 # include /etc/nginx/default.d/*.conf;
46 #
47 # location / {
48 # }
49 #
50 # error_page 404 /404.html;
51 # location = /40x.html {
52 # }
53 #
54 # error_page 500 502 503 504 /50x.html;
55 # location = /50x.html {
56 # }
57 # }使用命令修改:
sh
[root@hellogitlab ~]# sed -i "38,57s@^@# @g" /etc/nginx/nginx.conf
[root@hellogitlab ~]# cat -n /etc/nginx/nginx.conf|sed -n '38,57p'
38 # server {
39 # listen 80 default_server;
40 # listen [::]:80 default_server;
41 # server_name _;
42 # root /usr/share/nginx/html;
43 #
44 # # Load configuration files for the default server block.
45 # include /etc/nginx/default.d/*.conf;
46 #
47 # location / {
48 # }
49 #
50 # error_page 404 /404.html;
51 # location = /40x.html {
52 # }
53 #
54 # error_page 500 502 503 504 /50x.html;
55 # location = /50x.html {
56 # }
57 # }检查nginx配置是否正确:
sh
[root@hellogitlab ~]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful加载配置
使用gitlab-ctl reconfigure重新加载配置:
sh
[root@hellogitlab ~]# gitlab-ctl reconfigure
Starting Chef Client, version 13.6.4
resolving cookbooks for run list: ["gitlab"]
Synchronizing Cookbooks:
- postgresql (0.1.0)
- redis (0.1.0)
- package (0.1.0)
- gitlab (0.0.1)
- letsencrypt (0.1.0)
- nginx (0.1.0)
- runit (4.3.0)
- registry (0.1.0)
- gitaly (0.1.0)
- consul (0.1.0)
- mattermost (0.1.0)
- crond (0.1.0)
- acme (3.1.0)
- compat_resource (12.19.1)
Installing Cookbook Gems:
Compiling Cookbooks...
..... 执行剧本，省略
..... 执行剧本，省略
Recipe: <Dynamically Defined Resource>
* service[gitaly] action restart
- restart service service[gitaly]
Recipe: gitaly::enable
* runit_service[gitaly] action hup
- send hup to runit_service[gitaly]
Recipe: <Dynamically Defined Resource>
* service[gitlab-workhorse] action restart
- restart service service[gitlab-workhorse]
* service[node-exporter] action restart
- restart service service[node-exporter]
* service[gitlab-monitor] action restart
- restart service service[gitlab-monitor]
* service[redis-exporter] action restart
- restart service service[redis-exporter]
* service[prometheus] action restart
- restart service service[prometheus]
Recipe: gitlab::prometheus
* execute[reload prometheus] action run
- execute /opt/gitlab/bin/gitlab-ctl hup prometheus
Recipe: <Dynamically Defined Resource>
* service[alertmanager] action restart
- restart service service[alertmanager]
* service[postgres-exporter] action restart
- restart service service[postgres-exporter]
Running handlers:
Running handlers complete
Chef Client finished, 457/1201 resources updated in 03 minutes 40 seconds
gitlab Reconfigured!没有报错，看到"gitlab Reconfigured!"，说明加载配置成功！！

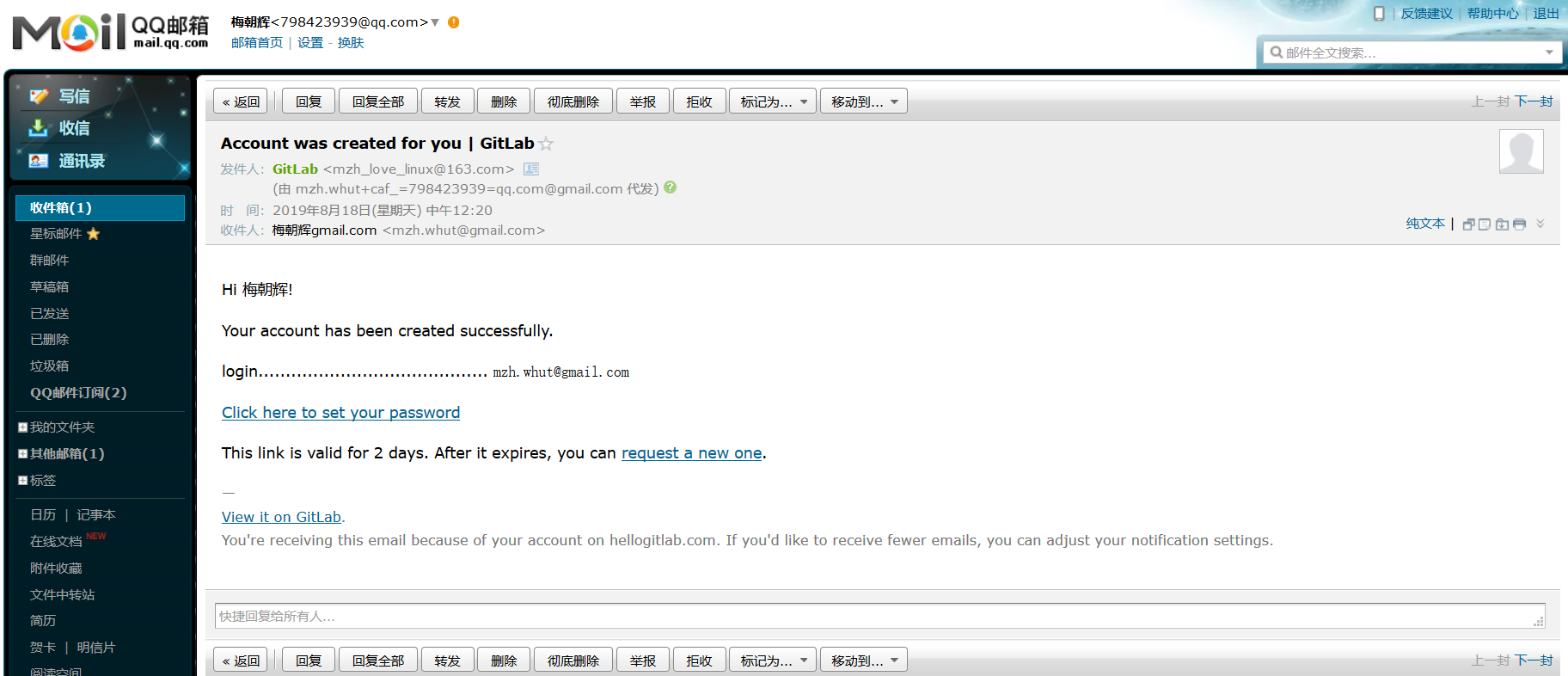

测试SMTP配置
运行gitlab-rails console进入到gitlab-rails控制台:
sh
[root@hellogitlab ~]# gitlab-rails console
-------------------------------------------------------------------------------------
GitLab: 11.10.0 (8a802d1c6b7)
GitLab Shell: 9.0.0
PostgreSQL: 9.6.11
-------------------------------------------------------------------------------------
Loading production environment (Rails 5.0.7.2)
irb(main):001:0>发送测试邮件:
sh
irb(main):002:0> Notify.test_email('798423939@qq.com', 'Message Subject by gitlab-rails', '<p style="color:red;">Message Body</p>').deliver_now
Notify#test_email: processed outbound mail in 497.2ms
Sent mail to 798423939@qq.com (2781.6ms)
Date: Sun, 18 Aug 2019 11:55:54 +0800
From: GitLab <mzh_love_linux@163.com>
Reply-To: GitLab <mzh_love_linux@163.com>
To: 798423939@qq.com
Message-ID: <5d58cc4aedc53_59db3fa38ffd65fc74929@hellogitlab.com.mail>
Subject: Message Subject by gitlab-rails
Mime-Version: 1.0
Content-Type: text/html;
charset=UTF-8
Content-Transfer-Encoding: 7bit
Auto-Submitted: auto-generated
X-Auto-Response-Suppress: All
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" "http://www.w3.org/TR/REC-html40/loose.dtd">
<html><body><p style="color: red;">Message Body</p></body></html>
=> #<Mail::Message:69971471528860, Multipart: false, Headers: <Date: Sun, 18 Aug 2019 11:55:54 +0800>, <From: GitLab <mzh_love_linux@163.com>>, <Reply-To: GitLab <mzh_love_linux@163.com>>, <To: 798423939@qq.com>, <Message-ID: <5d58cc4aedc53_59db3fa38ffd65fc74929@hellogitlab.com.mail>>, <Subject: Message Subject by gitlab-rails>, <Mime-Version: 1.0>, <Content-Type: text/html; charset=UTF-8>, <Content-Transfer-Encoding: 7bit>, <Auto-Submitted: auto-generated>, <X-Auto-Response-Suppress: All>>
# 退出命令行
irb(main):003:0> quit没有报异常，说明邮件发送成功！登陆QQ邮箱检查邮件信息，发现已经收到邮件！
启动GitLab和Nginx服务
启动GitLab和Nginx服务:
sh
[root@hellogitlab ~]# systemctl start gitlab-runsvdir
[root@hellogitlab ~]# gitlab-ctl start
ok: run: alertmanager: (pid 22117) 1042s
ok: run: gitaly: (pid 21983) 1050s
ok: run: gitlab-monitor: (pid 22047) 1048s
ok: run: gitlab-workhorse: (pid 22011) 1050s
ok: run: logrotate: (pid 21486) 1191s
ok: run: node-exporter: (pid 22026) 1049s
ok: run: postgres-exporter: (pid 22131) 1042s
ok: run: postgresql: (pid 21050) 1286s
ok: run: prometheus: (pid 22075) 1047s
ok: run: redis: (pid 20820) 1308s
ok: run: redis-exporter: (pid 22056) 1048s
ok: run: sidekiq: (pid 21407) 1203s
ok: run: unicorn: (pid 21351) 1209s
[root@hellogitlab ~]# systemctl start nginx
[root@hellogitlab ~]# netstat -tunlp|grep nginx
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 24963/nginx: master
tcp6 0 0 :::80 :::* LISTEN 24963/nginx: master注意
启动GitLab和Nginx服务前，先要使用systemctl start gitlab-runsvdir启动 runsv。
配置宿主机IP、域名绑定关系
配置C:\Windows\System32\drivers\etc\hosts文件，增加以下内容：
192.168.1.11 hellogitlab.com测试是否能够ping通hellogitlab.com:
sh
$ ping hellogitlab.com
正在 Ping hellogitlab.com [192.168.1.11] 具有 32 字节的数据:
来自 192.168.1.11 的回复: 字节=32 时间<1ms TTL=64
来自 192.168.1.11 的回复: 字节=32 时间<1ms TTL=64
来自 192.168.1.11 的回复: 字节=32 时间<1ms TTL=64
来自 192.168.1.11 的回复: 字节=32 时间<1ms TTL=64
192.168.1.11 的 Ping 统计信息:
数据包: 已发送 = 4，已接收 = 4，丢失 = 0 (0% 丢失)，
往返行程的估计时间(以毫秒为单位):
最短 = 0ms，最长 = 0ms，平均 = 0ms发现可以ping通过服务器，说明网络是通的。
关闭SELinux
查看SELinux的具体的工作状态:
sh
[root@hellogitlab ~]# getenforce
Disabled说明SELinux已经关闭！
访问GitLab
在Google浏览器中访问URL: http://hellogitlab.com/ ，可以看到GitLab页面了。
如果发现异常，可查看GitLab的错误日志文件/var/log/nginx/gitlab_error.log，另外检查SELinux是否关闭。
GitLab WEB界面配置

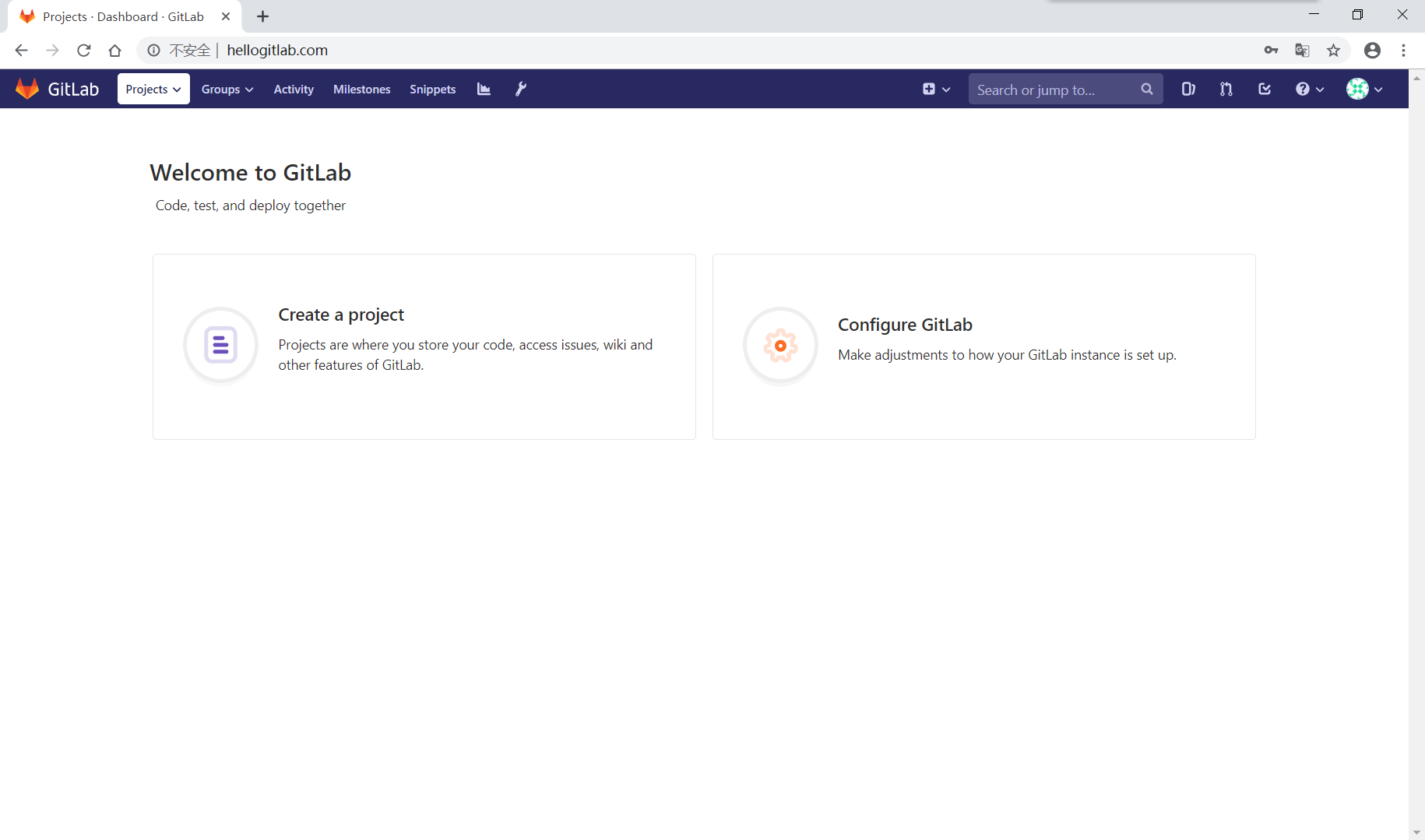

设置GitLab管理员root的密码为"1234567890"，并重新登陆，进入主页：

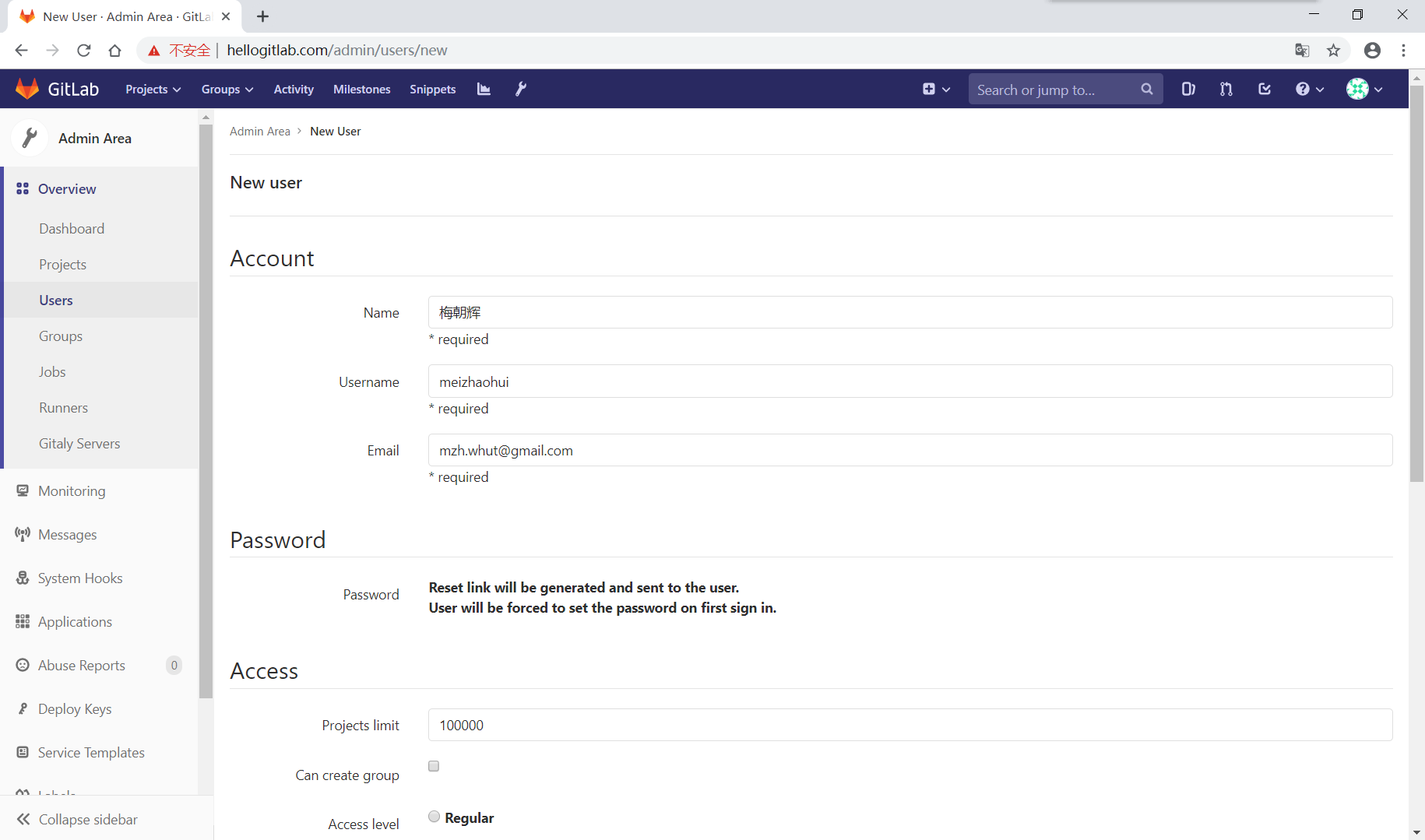

新建一个用户，并设置为管理员:
登陆邮箱查看邮件，验证账号：

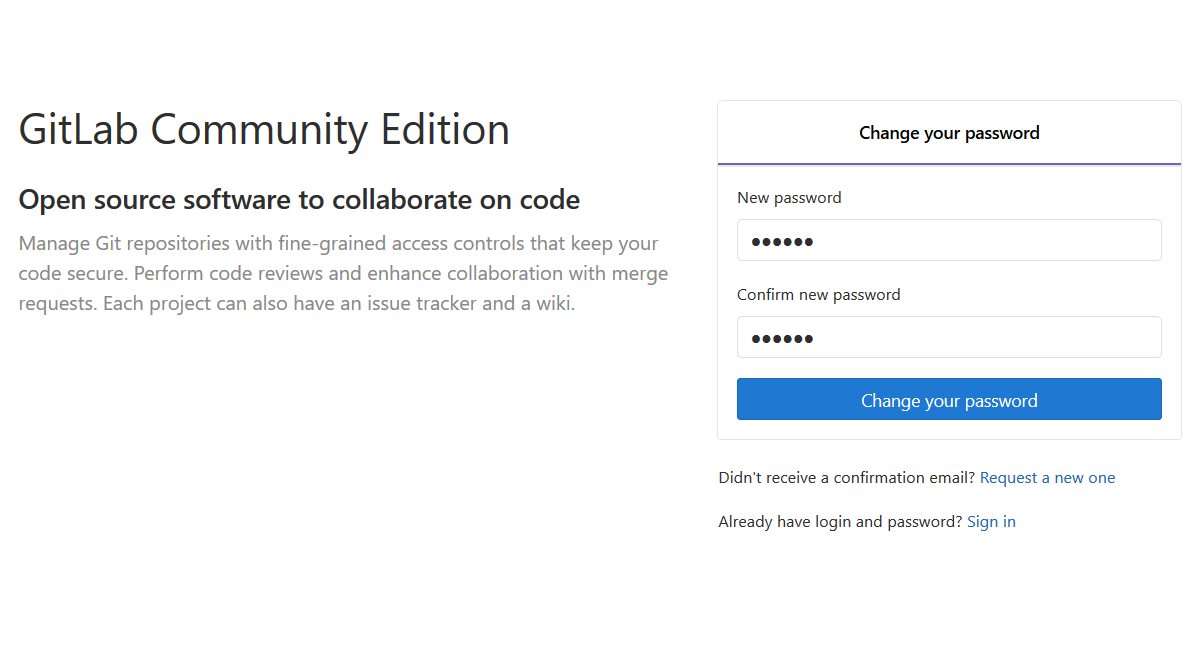

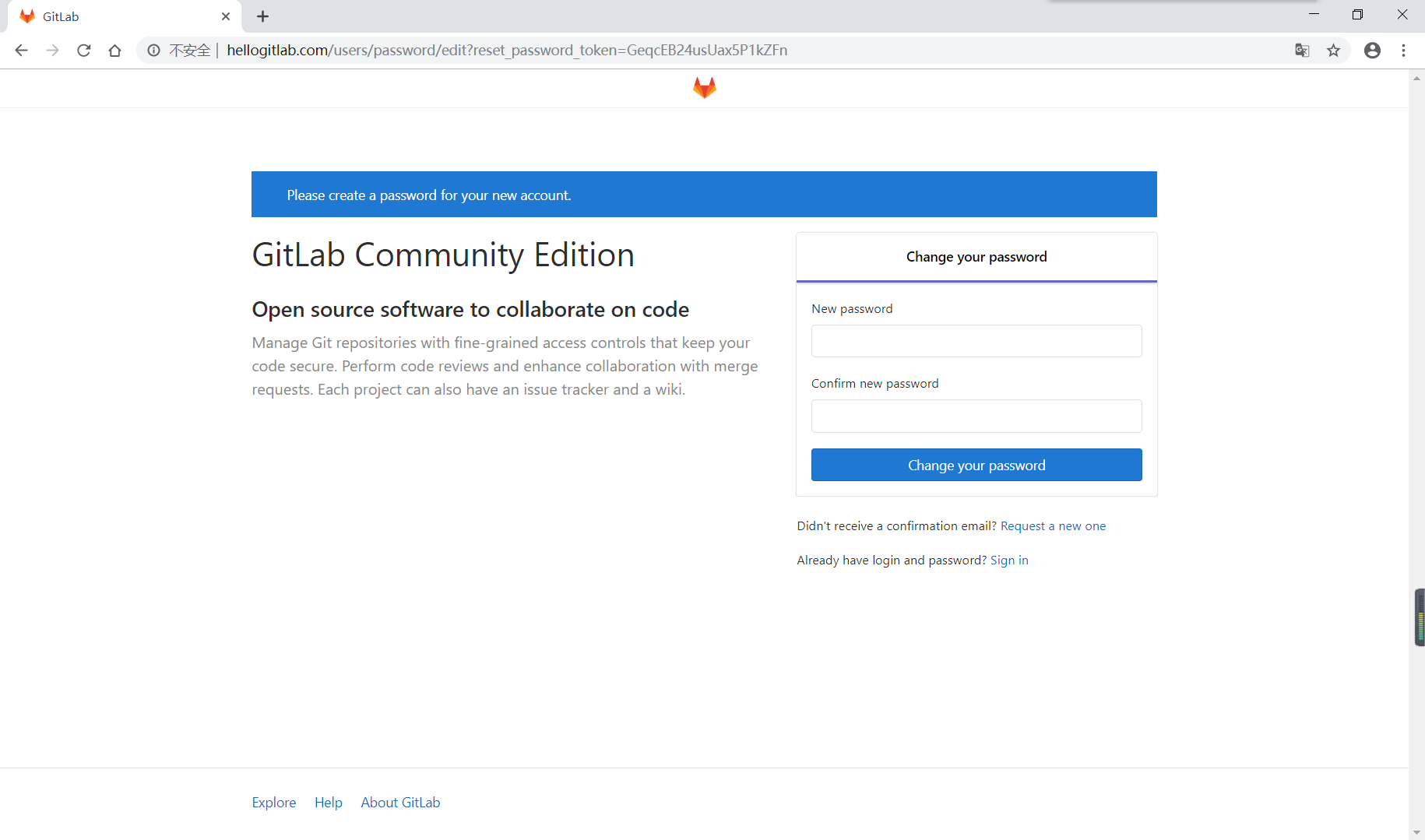

点击链接"Click here to set your password"重置密码:

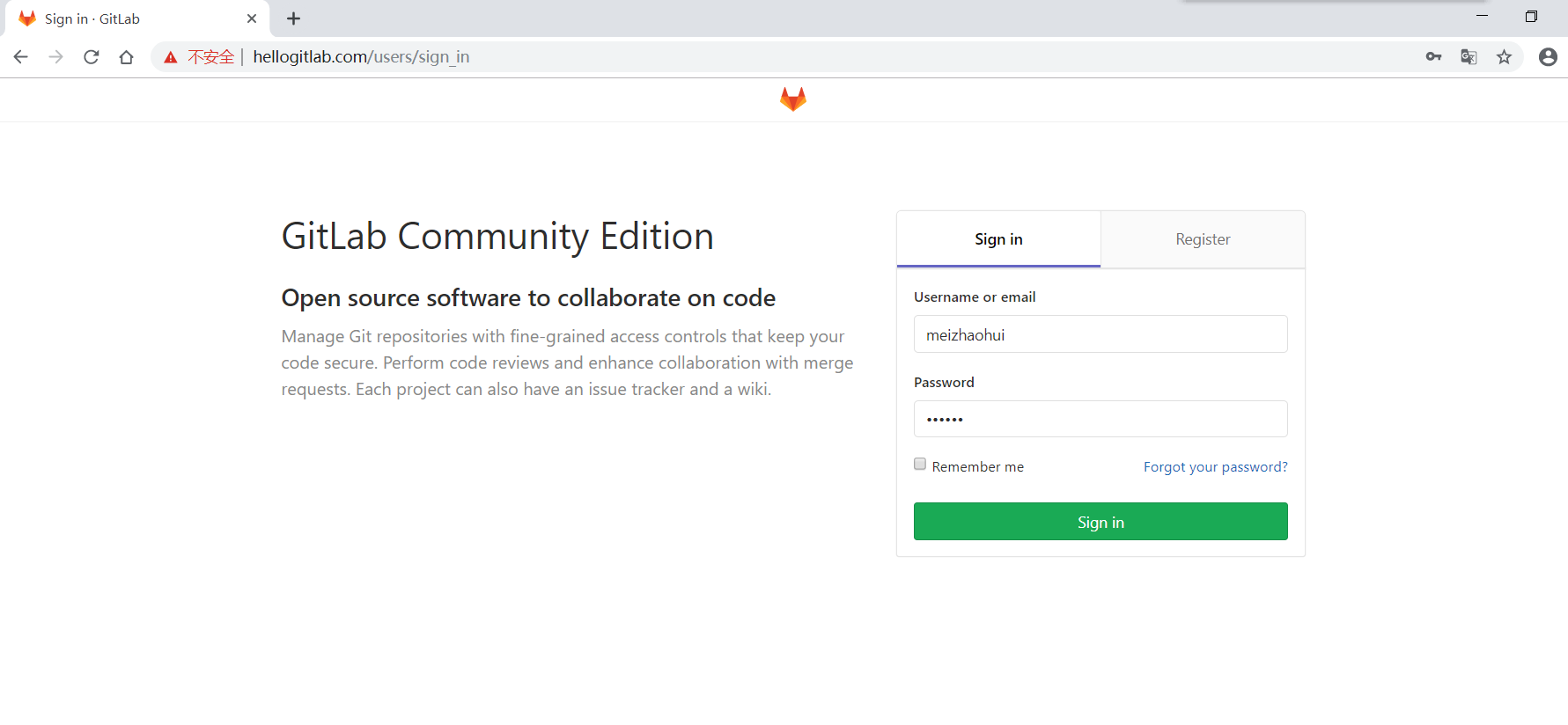

使用刚新建的管理员账号登陆：

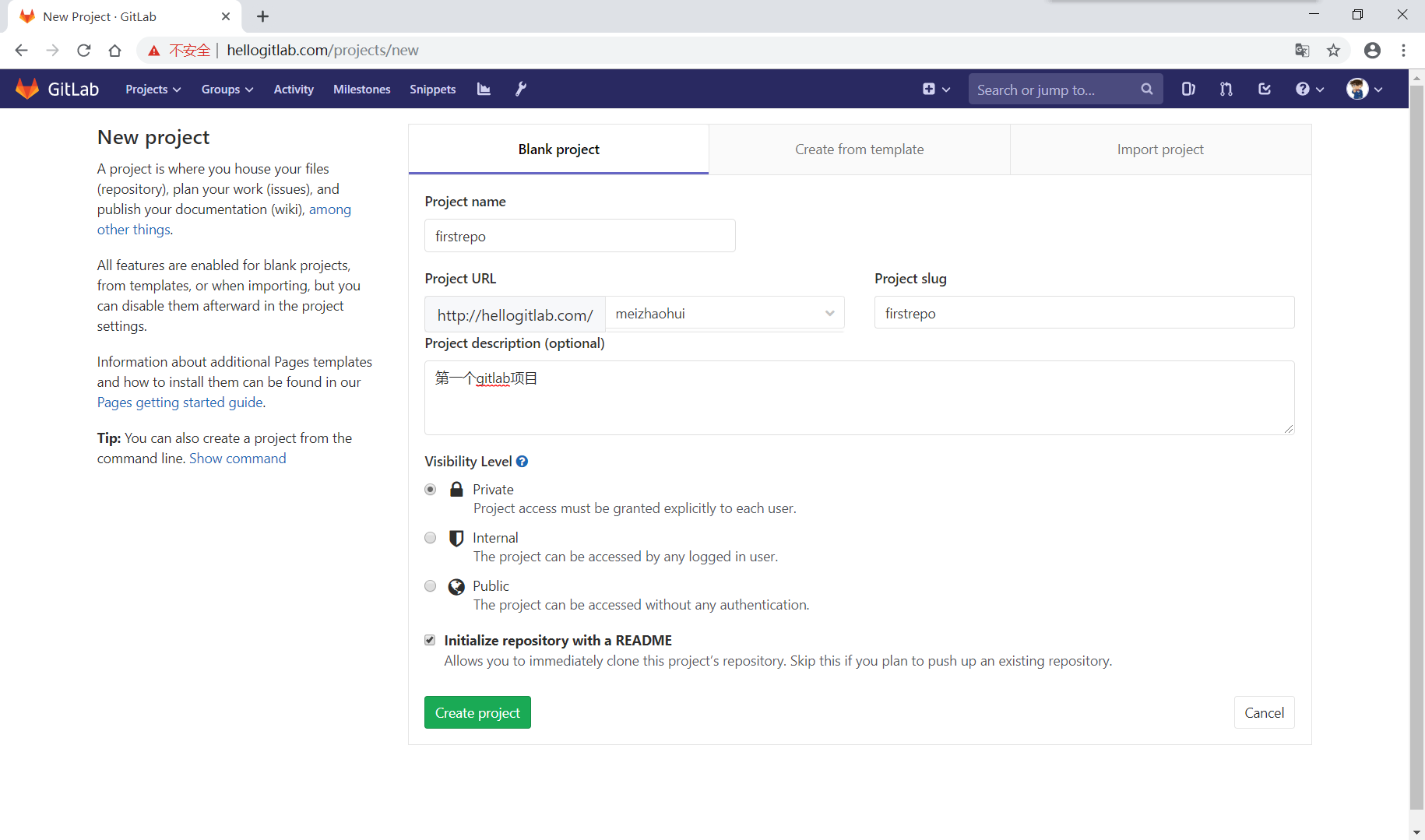

创建一个新的个人项目：
点击"Create project"创建项目。

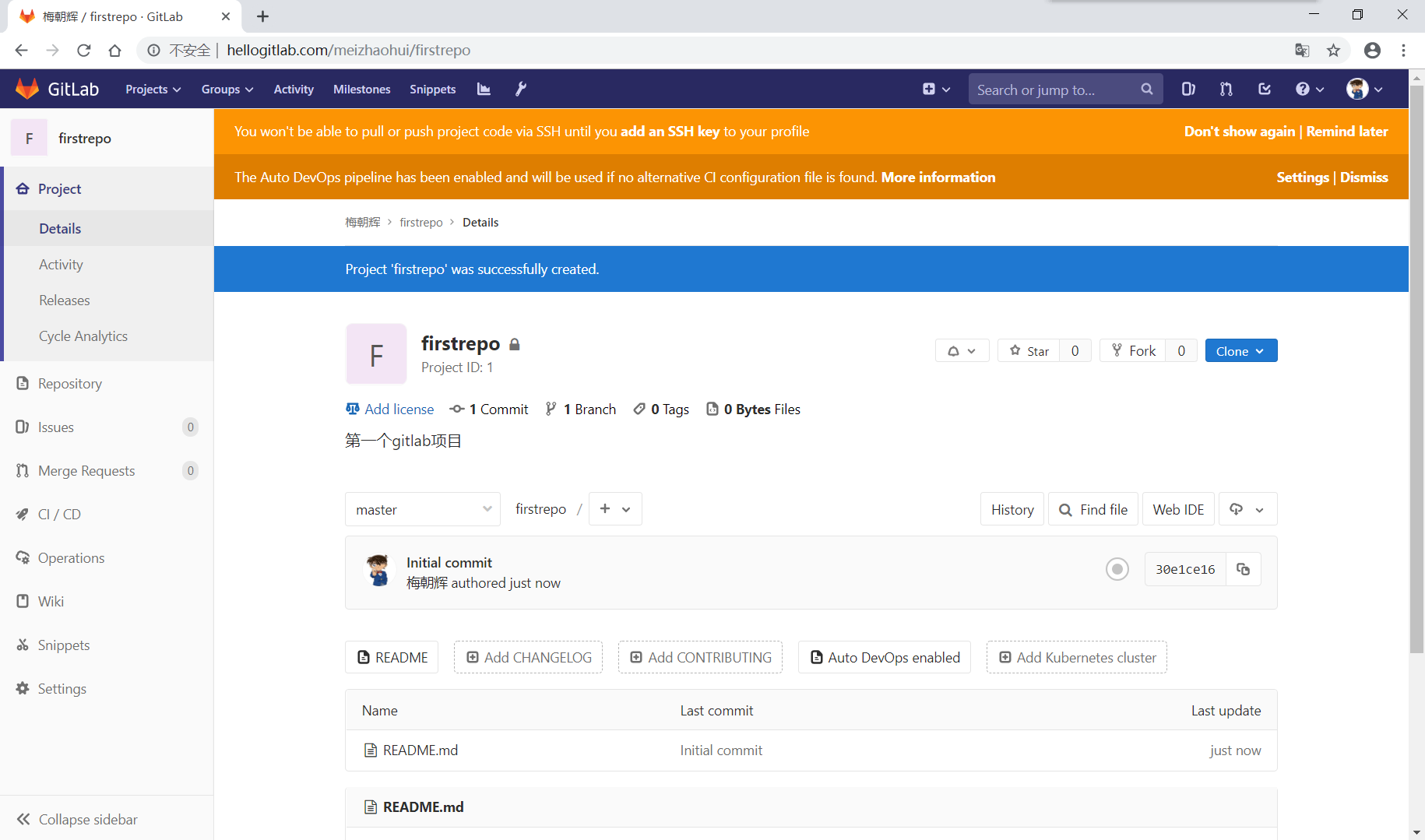

创建完成后，可以看到跳转到项目详情界面：
我们将宿主机上的个人公钥加到Gitlab上去，如果没有公钥，可以使用ssh-keygen -C your_email@example.com添加。
在WEB界面添加SSH KEY：
配置git环境:
sh
$ git config --global user.name "Zhaohui Mei"
$ git config --global user.email "mzh.whut@gmail.com"
$ git config --global --list
user.name=Zhaohui Mei
user.email=mzh.whut@gmail.com克隆下载项目文件:
sh
$ git clone git@hellogitlab.com:meizhaohui/firstrepo.git
Cloning into 'firstrepo'...
The authenticity of host 'hellogitlab.com (192.168.1.11)' can't be established.
ECDSA key fingerprint is SHA256:c3MxIn6mHOUu3SY/+PvOVFwQQrWTrzzuaNgoR5R4iHc.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'hellogitlab.com,192.168.1.11' (ECDSA) to the list of known hosts.
remote: Enumerating objects: 3, done.
remote: Counting objects: 100% (3/3), done.
remote: Total 3 (delta 0), reused 0 (delta 0)
Receiving objects: 100% (3/3), done.提交修改:
sh
$ cd firstrepo\
$ git diff
diff --git a/README.md b/README.md
index f3156d7..a8737ce 100644
--- a/README.md
+++ b/README.md
@@ -1,3 +1,4 @@
# firstrepo
-第一个gitlab项目
\ No newline at end of file
+第一个gitlab项目
+add by ssh method.
$ git add -A
$ git commit -m"通过SSH下载并提交修改"
[master 787a9ba] 通过SSH下载并提交修改
1 file changed, 2 insertions(+), 1 deletion(-)
$ git push origin master:master
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 12 threads
Compressing objects: 100% (2/2), done.
Writing objects: 100% (3/3), 343 bytes | 343.00 KiB/s, done.
Total 3 (delta 0), reused 0 (delta 0)
To hellogitlab.com:meizhaohui/firstrepo.git
30e1ce1..787a9ba master -> master可以发现合入成功！

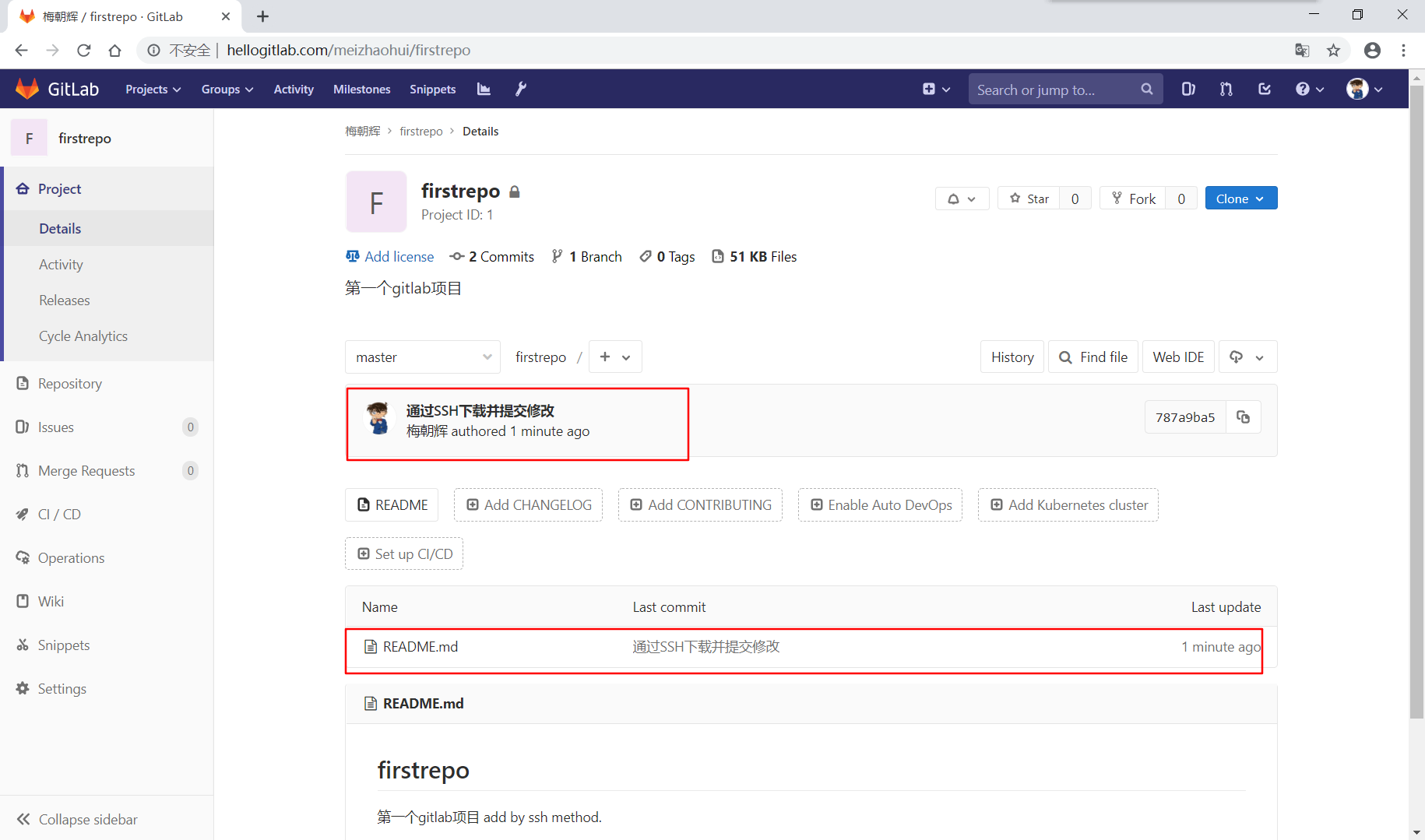

在WEB界面上查看刚才的提交:
通过http方式下载项目文件:
sh
$ git clone http://hellogitlab.com/meizhaohui/firstrepo.git http
Cloning into 'http'...
remote: Enumerating objects: 6, done.
remote: Counting objects: 100% (6/6), done.
remote: Compressing objects: 100% (3/3), done.
remote: Total 6 (delta 0), reused 0 (delta 0)

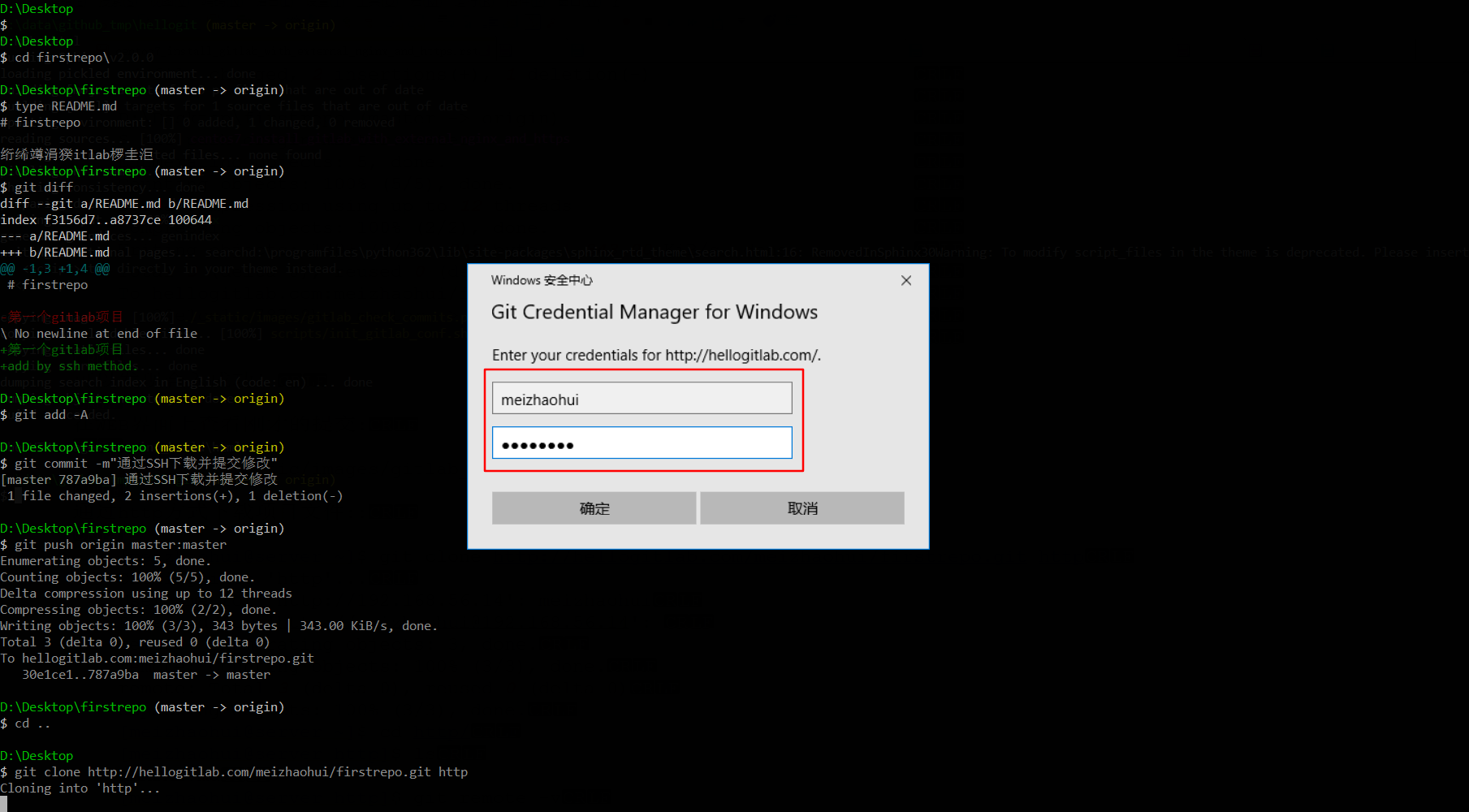

Unpacking objects: 100% (6/6), done.在克隆下载时，需要输入用户名和密码：
我们再次进行修改并提交:
sh
$ cd http\
$ git diff
diff --git a/README.md b/README.md
index a8737ce..80725a0 100644
--- a/README.md
+++ b/README.md
@@ -2,3 +2,4 @@
第一个gitlab项目
add by ssh method.
+add by http method.
$ git add -A
$ git commit -m"通过HTTP方式下载并提交修改"
[master a89dc8c] 通过HTTP方式下载并提交修改
1 file changed, 1 insertion(+)
$ git push origin master:master
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 12 threads
Compressing objects: 100% (2/2), done.
Writing objects: 100% (3/3), 360 bytes | 180.00 KiB/s, done.
Total 3 (delta 0), reused 0 (delta 0)
To http://hellogitlab.com/meizhaohui/firstrepo.git
787a9ba..a89dc8c master -> master可以发现通过http方式也可以合入修改！

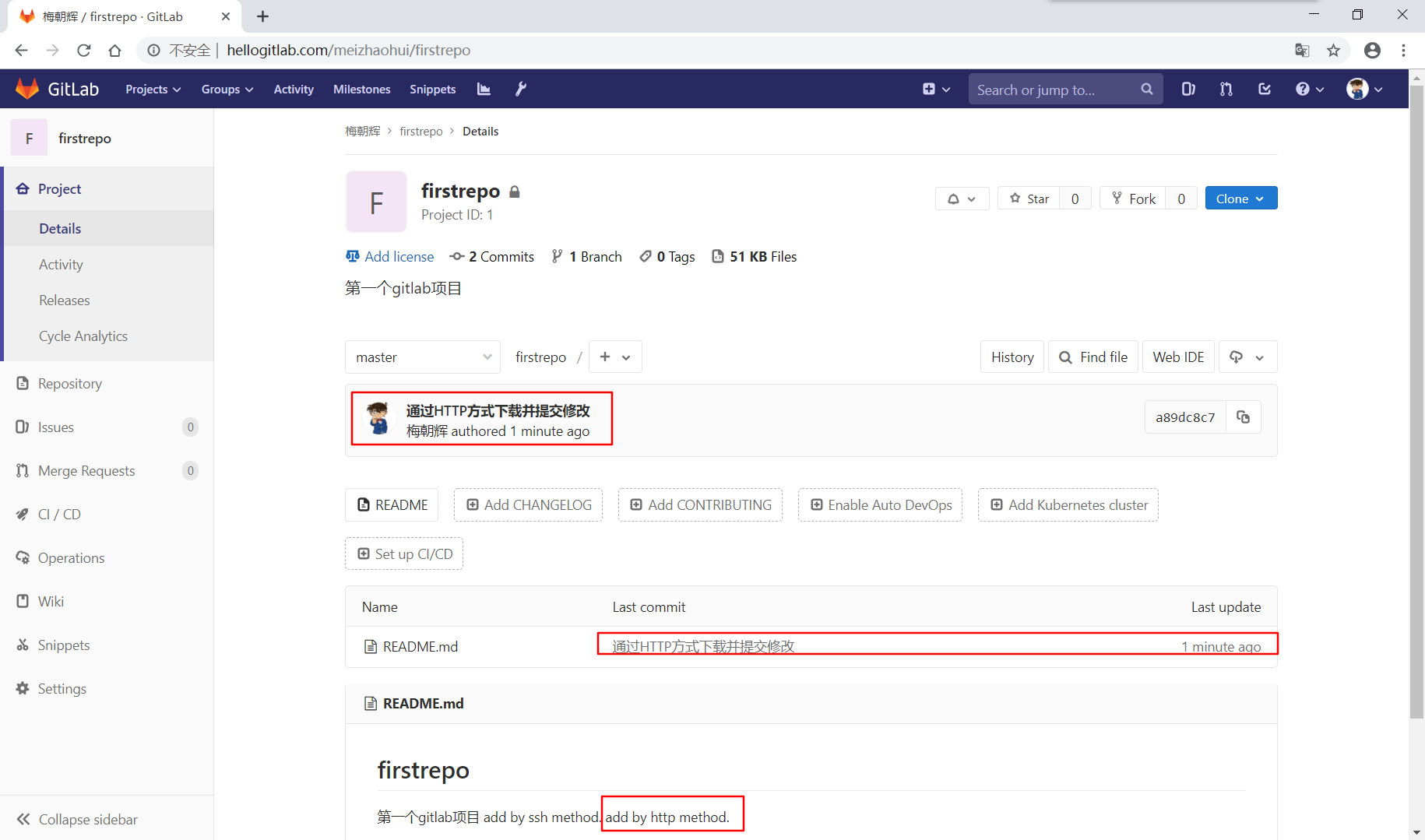

在WEB界面上查看刚才的提交:
GitLab HTTPS协议配置
下载配置文件
上述使用HTTP域名方式配置的GitLab正常可用，我们在此基础上配置HTTPS协议，使我们的GitLab更安全！
首先，我们下载gitlab-omnibus-ssl-nginx.conf配置文件:
sh
[root@hellogitlab ~]# wget https://gitlab.com/gitlab-org/gitlab-recipes/raw/master/web-server/nginx/gitlab-omnibus-ssl-nginx.conf
--2019-08-18 16:23:17-- https://gitlab.com/gitlab-org/gitlab-recipes/raw/master/web-server/nginx/gitlab-omnibus-ssl-nginx.conf
Resolving gitlab.com (gitlab.com)... 35.231.145.151
Connecting to gitlab.com (gitlab.com)|35.231.145.151|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 4695 (4.6K) [text/plain]
Saving to: ‘gitlab-omnibus-ssl-nginx.conf’
100%[====================================================================================================>] 4,695 --.-K/s in 0s
2019-08-18 16:23:20 (91.4 MB/s) - ‘gitlab-omnibus-ssl-nginx.conf’ saved [4695/4695]你也可以通过点击下面的按钮进行下载。
download gitlab-omnibus-ssl-nginx.conf
修改配置
将配置文件复制到/etc/nginx/conf.d/目录下:
sh
[root@hellogitlab ~]# cp gitlab-omnibus-ssl-nginx.conf /etc/nginx/conf.d/
[root@hellogitlab ~]# ls -lah /etc/nginx/conf.d/
total 16K
drwxr-xr-x 2 root root 76 Aug 18 16:35 .
drwxr-xr-x 4 root root 4.0K Aug 18 11:44 ..
-rw-r--r-- 1 root root 2.1K Aug 18 16:23 gitlab-omnibus-nginx.conf
-rw-r--r-- 1 root root 4.6K Aug 18 16:35 gitlab-omnibus-ssl-nginx.conf查看配置文件，我们关注35、46、52-54行：
我们将YOUR_SERVER_FQDN替换成域名地址hellogitlab.com:
sh
[root@hellogitlab ~]# sed -i 's/YOUR_SERVER_FQDN/hellogitlab.com/g' /etc/nginx/conf.d/gitlab-omnibus-ssl-nginx.conf
[root@hellogitlab ~]# cat -n /etc/nginx/conf.d/gitlab-omnibus-ssl-nginx.conf |sed -n '27,55p'
27 ## Redirects all HTTP traffic to the HTTPS host
28 server {
29 ## Either remove "default_server" from the listen line below,
30 ## or delete the /etc/nginx/sites-enabled/default file. This will cause gitlab
31 ## to be served if you visit any address that your server responds to, eg.
32 ## the ip address of the server (http://x.x.x.x/)
33 listen 0.0.0.0:80;
34 listen [::]:80 ipv6only=on default_server;
35 server_name hellogitlab.com; ## Replace this with something like gitlab.example.com
36 server_tokens off; ## Don't show the nginx version number, a security best practice
37 return 301 https://$http_host$request_uri;
38 access_log /var/log/nginx/gitlab_access.log;
39 error_log /var/log/nginx/gitlab_error.log;
40 }
41
42 ## HTTPS host
43 server {
44 listen 0.0.0.0:443 ssl;
45 listen [::]:443 ipv6only=on ssl default_server;
46 server_name hellogitlab.com; ## Replace this with something like gitlab.example.com
47 server_tokens off; ## Don't show the nginx version number, a security best practice
48 root /opt/gitlab/embedded/service/gitlab-rails/public;
49
50 ## Strong SSL Security
51 ## https://raymii.org/s/tutorials/Strong_SSL_Security_On_nginx.html & https://cipherli.st/
52 ssl on;
53 ssl_certificate /etc/nginx/ssl/gitlab.crt;
54 ssl_certificate_key /etc/nginx/ssl/gitlab.key;
55创建自签名证书
创建自签名证书存放目录，并创建证书:
sh
[root@hellogitlab ~]# mkdir /etc/nginx/ssl
[root@hellogitlab ~]# openssl req -x509 -nodes -days 1095 -newkey rsa:2048 -keyout /etc/nginx/ssl/gitlab.key -out /etc/nginx/ssl/gitlab.crt
Generating a 2048 bit RSA private key
...............................................................................+++
....................+++
writing new private key to '/etc/nginx/ssl/gitlab.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:hubei
Locality Name (eg, city) [Default City]:wuhan
Organization Name (eg, company) [Default Company Ltd]:IT
Organizational Unit Name (eg, section) []:HelloGitlab
Common Name (eg, your name or your server's hostname) []:hellogitlab.com
Email Address []:mzh.whut@gmail.com
[root@hellogitlab ~]# ls -lah /etc/nginx/ssl/
total 12K
drwxr-xr-x 2 root root 42 Aug 18 16:52 .
drwxr-xr-x 5 root root 4.0K Aug 18 16:51 ..
-rw-r--r-- 1 root root 1.4K Aug 18 16:52 gitlab.crt
-rw-r--r-- 1 root root 1.7K Aug 18 16:52 gitlab.key重新配置GitLab
先将http方式的配置文件备份:
sh
[root@hellogitlab ~]# mv /etc/nginx/conf.d/gitlab-omnibus-nginx.conf /etc/nginx/conf.d/gitlab-omnibus-nginx.conf.bak
[root@hellogitlab ~]# ls -lah /etc/nginx/conf.d/
total 16K
drwxr-xr-x 2 root root 80 Aug 18 16:55 .
drwxr-xr-x 5 root root 4.0K Aug 18 16:51 ..
-rw-r--r-- 1 root root 2.1K Aug 18 16:23 gitlab-omnibus-nginx.conf.bak
-rw-r--r-- 1 root root 4.6K Aug 18 16:43 gitlab-omnibus-ssl-nginx.conf停止GitLab和Nginx:
sh
[root@hellogitlab ~]# gitlab-ctl stop
ok: down: alertmanager: 0s, normally up
ok: down: gitaly: 0s, normally up
ok: down: gitlab-monitor: 0s, normally up
ok: down: gitlab-workhorse: 1s, normally up
ok: down: logrotate: 0s, normally up
ok: down: node-exporter: 1s, normally up
ok: down: postgres-exporter: 0s, normally up
ok: down: postgresql: 1s, normally up
ok: down: prometheus: 0s, normally up
ok: down: redis: 0s, normally up
ok: down: redis-exporter: 1s, normally up
ok: down: sidekiq: 0s, normally up
ok: down: unicorn: 0s, normally up
[root@hellogitlab ~]# systemctl stop gitlab-runsvdir
[root@hellogitlab ~]# systemctl stop nginx
[root@hellogitlab ~]# ps -ef|grep gitlab
root 20570 14345 0 17:08 pts/0 00:00:00 grep --color=auto gitlab
[root@hellogitlab ~]# ps -ef|grep nginx
root 20576 14345 0 17:08 pts/0 00:00:00 grep --color=auto nginx修改Gitlab配置文件/etc/gitlab/gitlab.rb，将13行的http://hellogitlab.com 替换成https://hellogitlab.com:
sh
[root@hellogitlab ~]# sed -i 's@http://hellogitlab.com@https://hellogitlab.com@g' /etc/gitlab/gitlab.rb
[root@hellogitlab ~]# cat -n /etc/gitlab/gitlab.rb|sed -n '13p'
13 external_url "https://hellogitlab.com"让配置生效:
sh
[root@hellogitlab ~]# gitlab-ctl reconfigure
Starting Chef Client, version 13.6.4
resolving cookbooks for run list: ["gitlab"]
Synchronizing Cookbooks:
- package (0.1.0)
- postgresql (0.1.0)
- redis (0.1.0)
- registry (0.1.0)
- mattermost (0.1.0)
- consul (0.1.0)
- gitaly (0.1.0)
- letsencrypt (0.1.0)
- nginx (0.1.0)
- runit (4.3.0)
- acme (3.1.0)
- crond (0.1.0)
- gitlab (0.0.1)
- compat_resource (12.19.1)
Installing Cookbook Gems:
Compiling Cookbooks...
...省略
...省略
Running handlers complete
Chef Client finished, 6/610 resources updated in 17 seconds
gitlab Reconfigured!启动GitLab和Nginx服务:
sh
[root@hellogitlab ~]# systemctl start gitlab-runsvdir
[root@hellogitlab ~]# gitlab-ctl start
ok: run: alertmanager: (pid 21555) 12s
ok: run: gitaly: (pid 21537) 13s
ok: run: gitlab-monitor: (pid 21549) 12s
ok: run: gitlab-workhorse: (pid 21541) 12s
ok: run: logrotate: (pid 21545) 12s
ok: run: node-exporter: (pid 21547) 12s
ok: run: postgres-exporter: (pid 21557) 12s
ok: run: postgresql: (pid 21539) 12s
ok: run: prometheus: (pid 21553) 12s
ok: run: redis: (pid 21535) 13s
ok: run: redis-exporter: (pid 21551) 12s
ok: run: sidekiq: (pid 21533) 13s
ok: run: unicorn: (pid 21543) 12s
[root@hellogitlab ~]# systemctl start nginx访问GitLab
在Google浏览器中访问URL:http://hellogitlab.com/ ，可以看到页面自动跳转到https://hellogitlab.com/了：

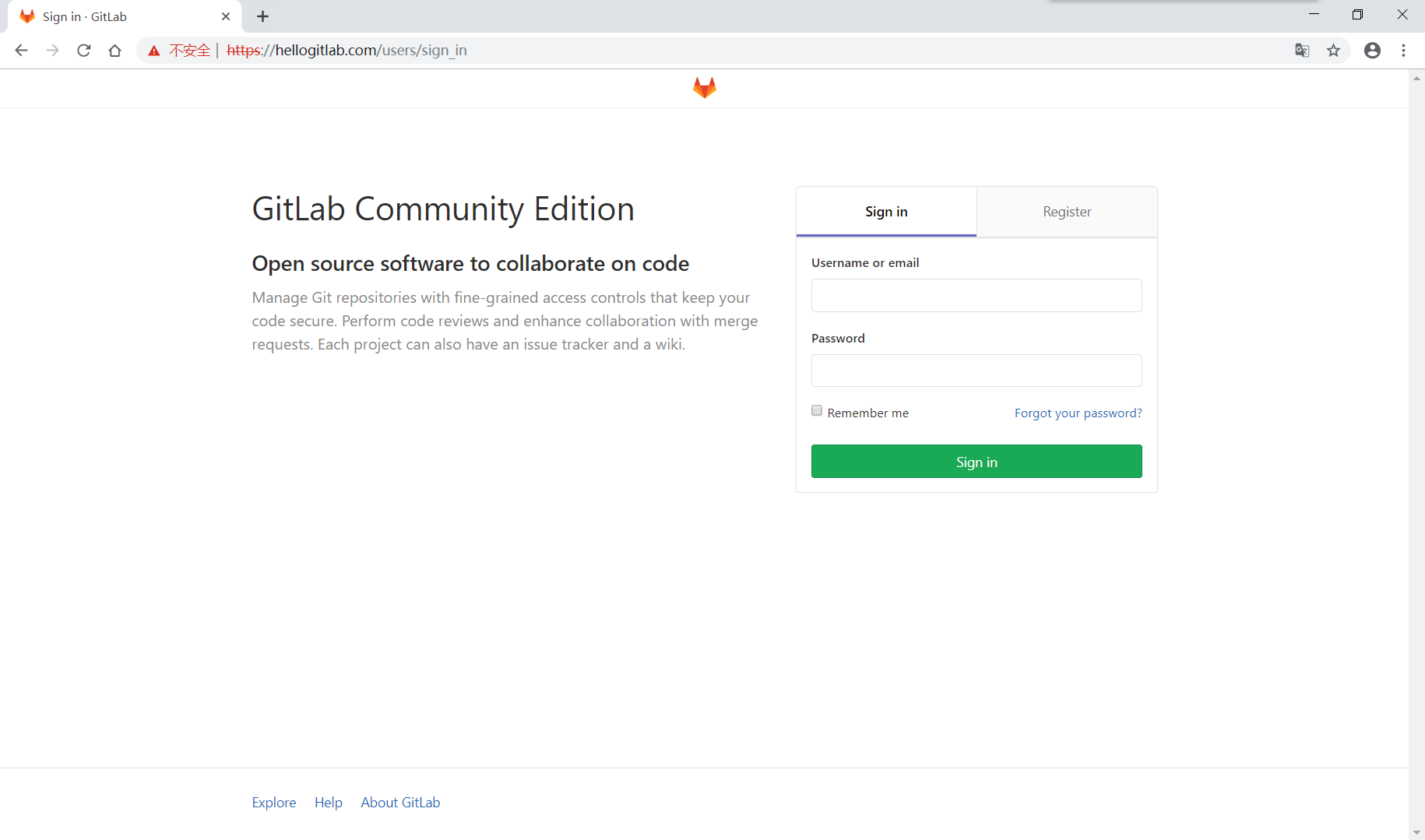

我们点击"高级"--"继续前往hellogitlab.com（不安全）"，可以看到打开了 https://hellogitlab.com/页面：

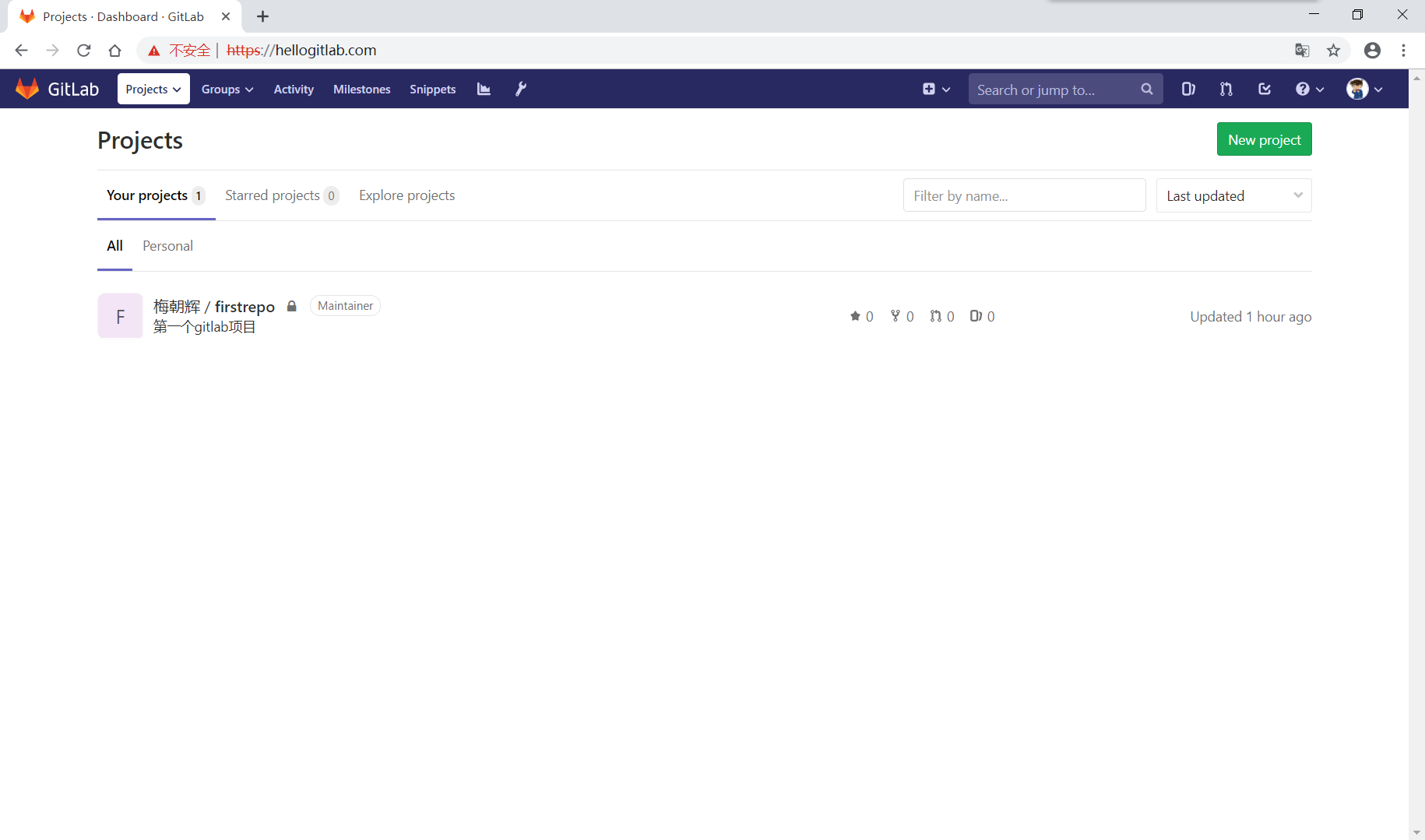

我们使用"meizhaohui"这个账号进行登陆，发现可以登陆上，登陆后的界面如下：

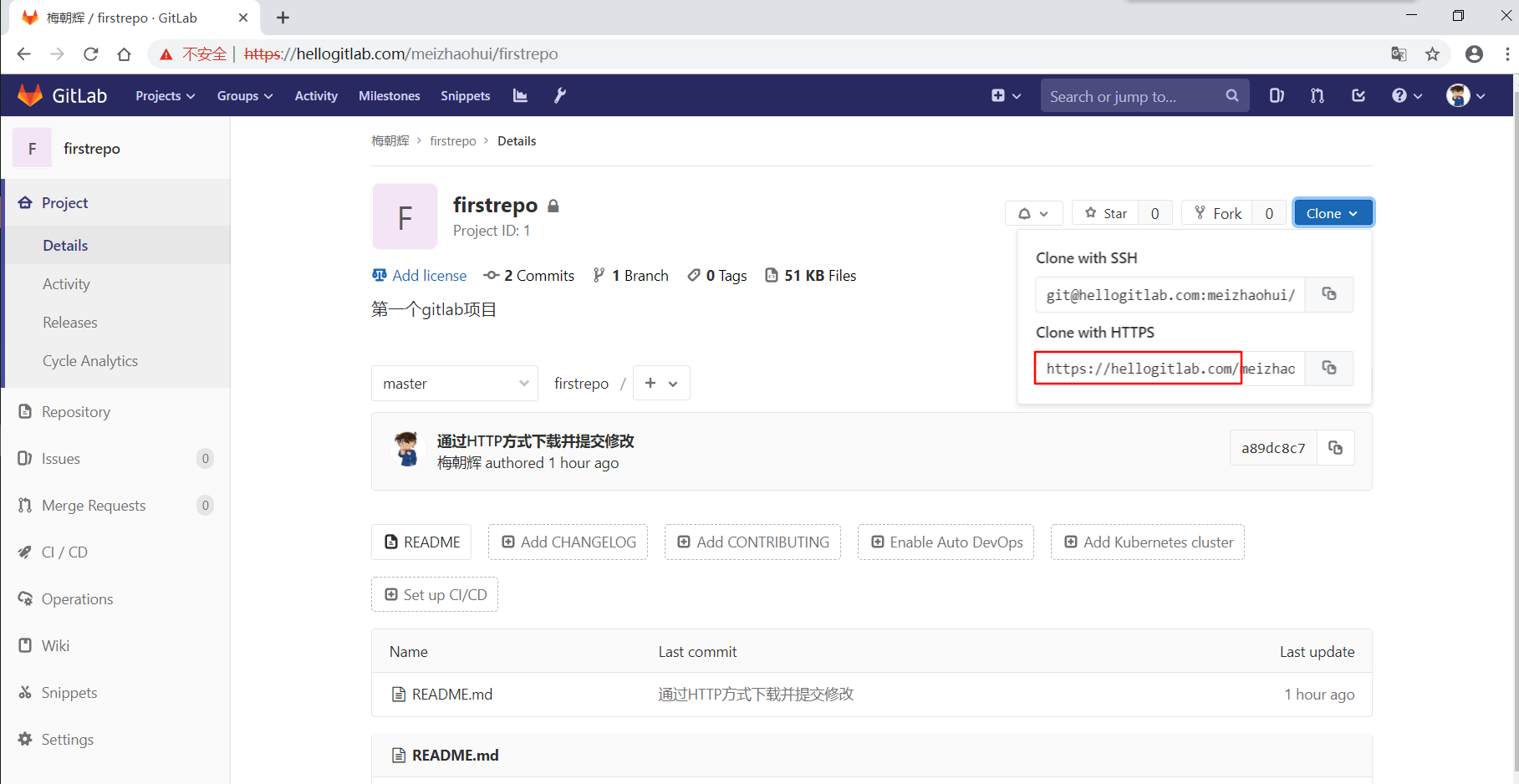

查看项目的详情界面，点击"clone"按钮，查看URL地址是否更新，可以发现URL已经变成https开头了：

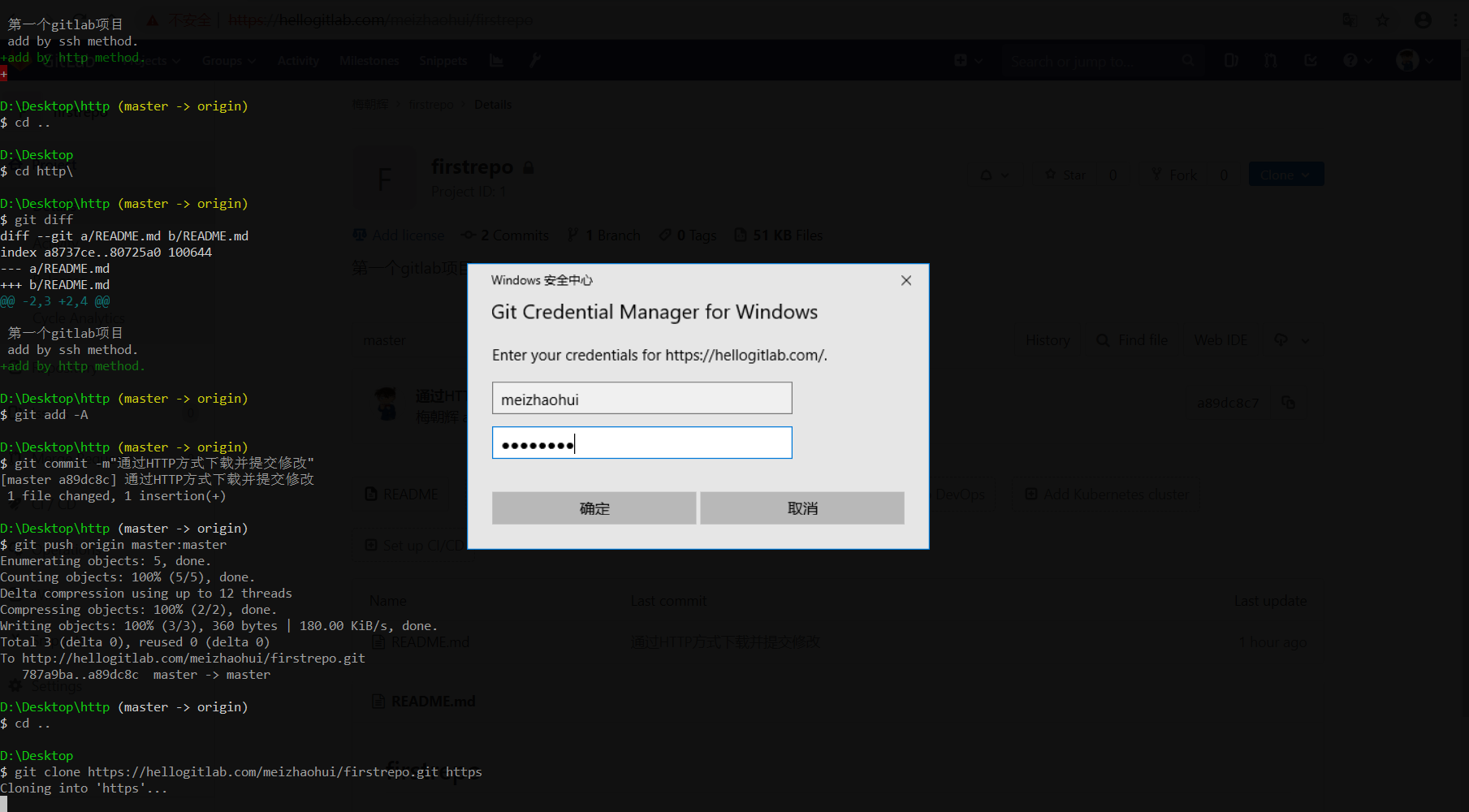

我们在宿主机上面使用https方式克隆下载仓库，也需要输入用户名和密码：
修改文件并提交:
sh
$ git clone https://hellogitlab.com/meizhaohui/firstrepo.git https
Cloning into 'https'...
remote: Enumerating objects: 9, done.
remote: Counting objects: 100% (9/9), done.
remote: Compressing objects: 100% (5/5), done.
remote: Total 9 (delta 1), reused 0 (delta 0)
Unpacking objects: 100% (9/9), done.
$ cd https
$ git diff
diff --git a/README.md b/README.md
index 80725a0..4d4a504 100644
--- a/README.md
+++ b/README.md
@@ -3,3 +3,4 @@
第一个gitlab项目
add by ssh method.
add by http method.
+add by https method.
$ git add -A
$ git commit -m"通过HTTPS方式下载并提交修改"
[master 6159214] 通过HTTPS方式下载并提交修改
1 file changed, 1 insertion(+)
$ git push origin master:master
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 12 threads
Compressing objects: 100% (2/2), done.
Writing objects: 100% (3/3), 341 bytes | 341.00 KiB/s, done.
Total 3 (delta 1), reused 0 (delta 0)
To https://hellogitlab.com/meizhaohui/firstrepo.git

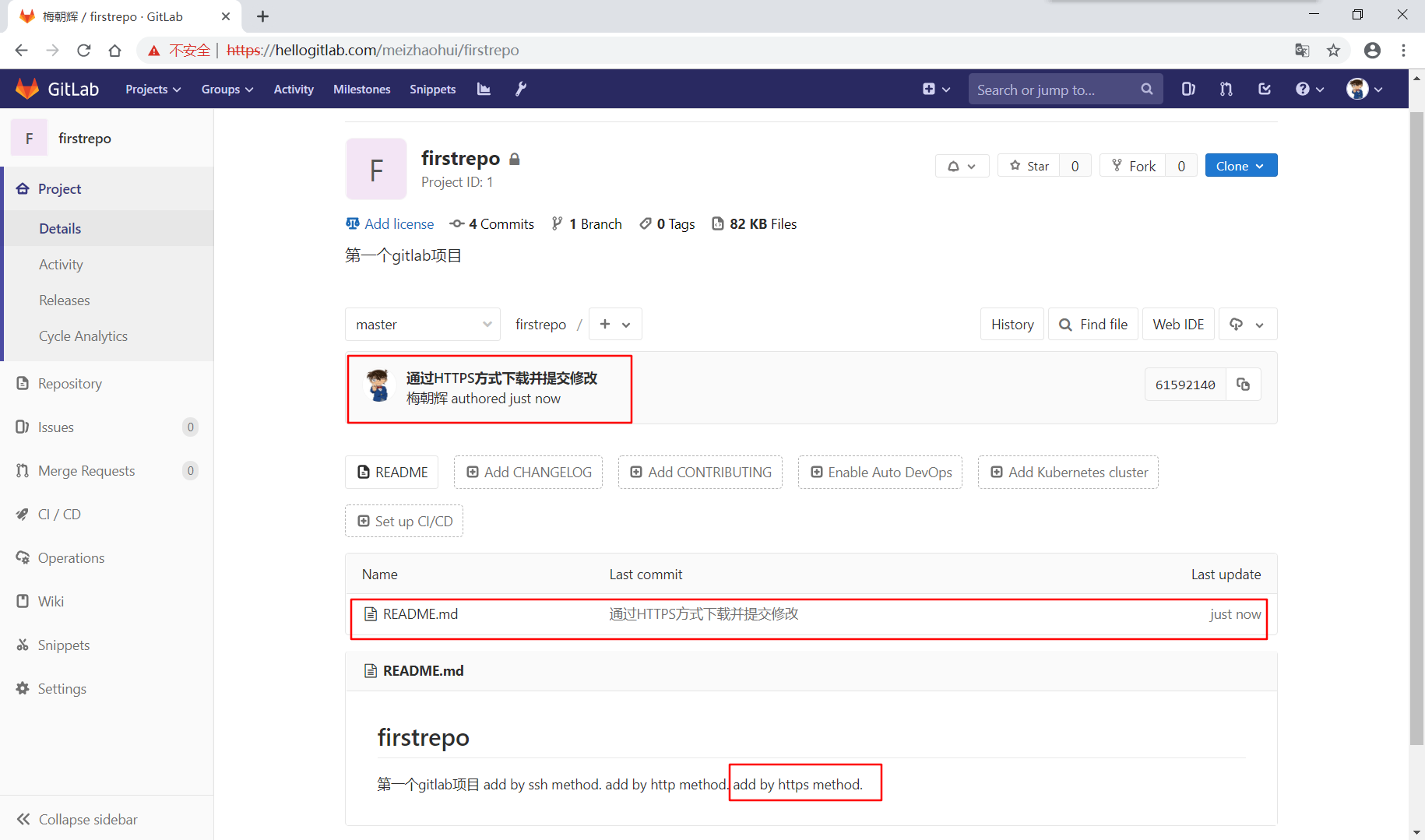

a89dc8c..6159214 master -> master在WEB界面上查看刚才的提交：
我们再在ssh方式下载的目录更新一下，看能否拉出最新的修改:
sh
$ cd ..\firstrepo\
$ git remote -v
origin git@hellogitlab.com:meizhaohui/firstrepo.git (fetch)
origin git@hellogitlab.com:meizhaohui/firstrepo.git (push)
$ git pull
remote: Enumerating objects: 8, done.
remote: Counting objects: 100% (8/8), done.
remote: Compressing objects: 100% (4/4), done.
remote: Total 6 (delta 1), reused 0 (delta 0)
Unpacking objects: 100% (6/6), done.
From hellogitlab.com:meizhaohui/firstrepo
787a9ba..6159214 master -> origin/master
Updating 787a9ba..6159214
Fast-forward
README.md | 2 ++
1 file changed, 2 insertions(+)
$ git log
commit 61592140da36857dd244b7e136b50fd292995419 (HEAD -> master, origin/master, origin/HEAD)
Author: Zhaohui Mei <mzh.whut@gmail.com>
Date: Sun Aug 18 17:29:37 2019 +0800
通过HTTPS方式下载并提交修改
commit a89dc8c7287ee51e91dee6bb20f56c4b1e19cb36
Author: Zhaohui Mei <mzh.whut@gmail.com>
Date: Sun Aug 18 16:00:38 2019 +0800
通过HTTP方式下载并提交修改
commit 787a9ba5201bdf5f4b51bf9a876820daadb63c54
Author: Zhaohui Mei <mzh.whut@gmail.com>
Date: Sun Aug 18 15:49:11 2019 +0800
通过SSH下载并提交修改
commit 30e1ce16b7e72bcceb5fc071a4f5d8927f2bccba
Author: 梅朝辉 <mzh.whut@gmail.com>
Date: Sun Aug 18 12:30:36 2019 +0800
Initial commit可以看到最新的修改都已经成功下载下来，说明配置没有问题！
我们再通过SSH方式提交一次修改，做最后的检查:
sh
$ git diff
diff --git a/README.md b/README.md
index 4d4a504..ccd2cd5 100644
--- a/README.md
+++ b/README.md
@@ -4,3 +4,4 @@
add by ssh method.
add by http method.
add by https method.
+add by ssh method again.
$ git add -A
$ git commit -m"配置HTTPS传输后，通过SSH方式提交修改"
[master 24c6584] 配置HTTPS传输后，通过SSH方式提交修改
1 file changed, 1 insertion(+)
$ git push origin master:master
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 12 threads
Compressing objects: 100% (2/2), done.
Writing objects: 100% (3/3), 363 bytes | 363.00 KiB/s, done.
Total 3 (delta 1), reused 0 (delta 0)
To hellogitlab.com:meizhaohui/firstrepo.git

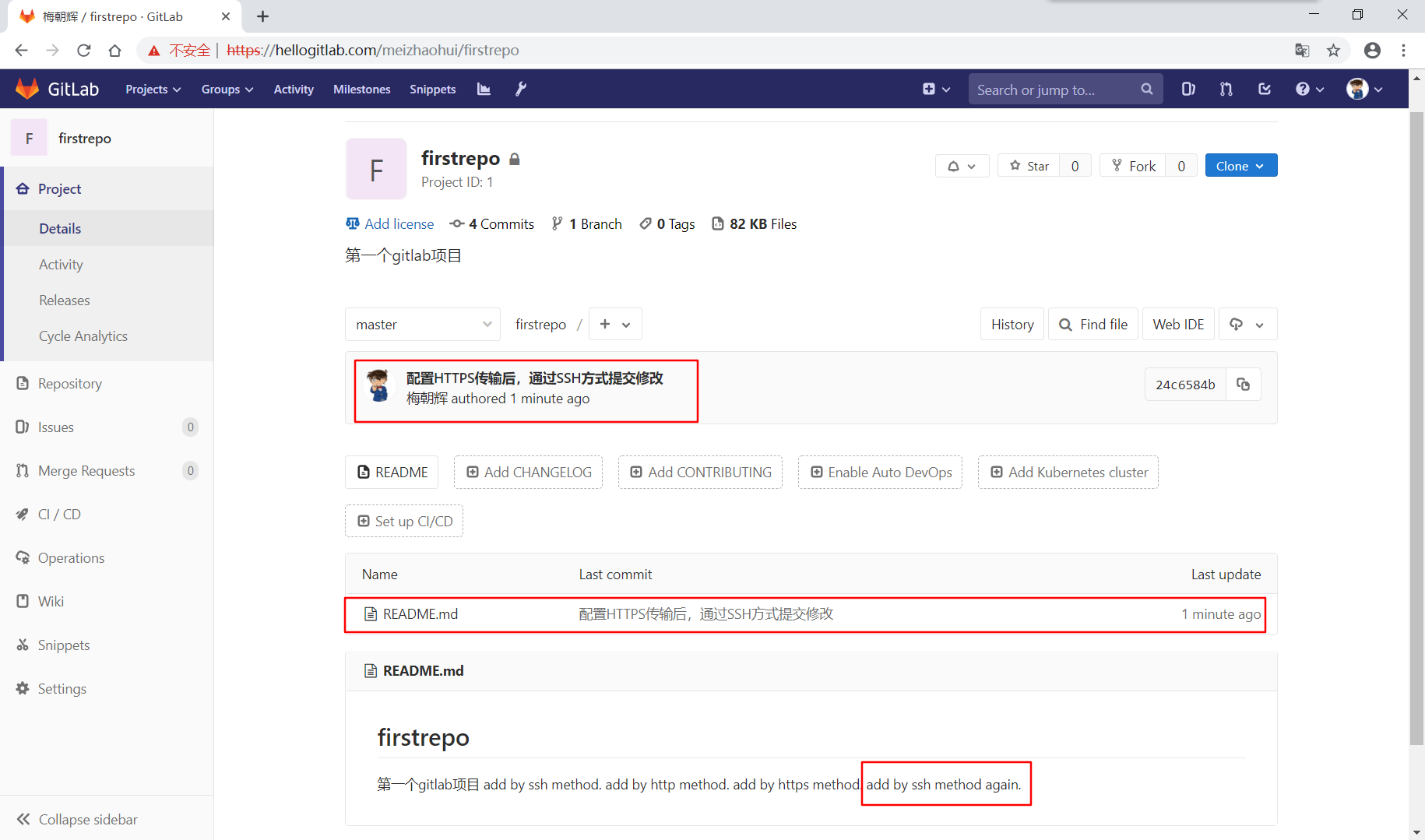

6159214..24c6584 master -> master发现可以正常提交，并且在WEB界面上面可以看到提交的更新：
GitLab汉化
上述的操作可以确定HTTPS协议的GitLab已经配置好了！现在做最后的优化，进行GitLab汉化。
你可以通过下面这个命令下载汉化包:
sh
$ git clone https://gitlab.com/xhang/gitlab.git -b 11-10-stable-zh我使用之前下载的汉化包直接上传到服务器上:
sh
[root@hellogitlab ~]# ls -lah gitlab-11-10-stable-zh.tar.gz
-rw-r--r-- 1 root root 60M Jun 29 18:35 gitlab-11-10-stable-zh.tar.gz
[root@hellogitlab ~]# tar -zxvf gitlab-11-10-stable-zh.tar.gz
[root@hellogitlab ~]# ls -ld gitlab-11-10-stable-zh
drwxrwxr-x 28 root root 4096 Jun 13 10:13 gitlab-11-10-stable-zh停止GitLab和Nginx服务:
sh
[root@hellogitlab ~]# gitlab-ctl stop
ok: down: alertmanager: 0s, normally up
ok: down: gitaly: 1s, normally up
ok: down: gitlab-monitor: 0s, normally up
ok: down: gitlab-workhorse: 0s, normally up
ok: down: logrotate: 1s, normally up
ok: down: node-exporter: 0s, normally up
ok: down: postgres-exporter: 1s, normally up
ok: down: postgresql: 0s, normally up
ok: down: prometheus: 0s, normally up
ok: down: redis: 0s, normally up
ok: down: redis-exporter: 0s, normally up
ok: down: sidekiq: 0s, normally up
ok: down: unicorn: 0s, normally up
[root@hellogitlab ~]# systemctl stop gitlab-runsvdir
[root@hellogitlab ~]# systemctl stop nginx
[root@hellogitlab ~]# ps -ef|grep gitlab
root 27234 14345 0 17:51 pts/0 00:00:00 grep --color=auto gitlab
[root@hellogitlab ~]# ps -ef|grep nginx
root 27240 14345 0 17:51 pts/0 00:00:00 grep --color=auto nginx说明GitLab相关服务已经停止。
备份/opt/gitlab/embedded/service/gitlab-rails/文件夹，防止后续操作失败导致GitLab无法运行:
sh
[root@hellogitlab ~]# cp -rf /opt/gitlab/embedded/service/gitlab-rails/ /opt/gitlab/embedded/service/gitlab-rails.bak
[root@hellogitlab ~]# ls -lad /opt/gitlab/embedded/service/gitlab-rails*
drwxr-xr-x 24 root root 4096 Aug 18 11:45 /opt/gitlab/embedded/service/gitlab-rails
drwxr-xr-x 24 root root 4096 Aug 18 17:52 /opt/gitlab/embedded/service/gitlab-rails.bak
[root@hellogitlab ~]# du -sh /opt/gitlab/embedded/service/gitlab-rails*
253M /opt/gitlab/embedded/service/gitlab-rails
253M /opt/gitlab/embedded/service/gitlab-rails.bak去除cp的别名，复制gitlab汉化包中的文件到/opt/gitlab/embedded/service/gitlab-rails/目录下:
sh
[root@hellogitlab ~]# alias cp
alias cp='cp -i'
[root@hellogitlab ~]# unalias cp
[root@hellogitlab ~]# ls
anaconda-ks.cfg gitlab-11-10-stable-zh gitlab-omnibus-nginx.conf readme.txt
centos7_mini_init.sh gitlab-11-10-stable-zh.tar.gz gitlab-omnibus-ssl-nginx.conf
[root@hellogitlab ~]# cp -rf gitlab-11-10-stable-zh/* /opt/gitlab/embedded/service/gitlab-rails/
cp: cannot overwrite non-directory ‘/opt/gitlab/embedded/service/gitlab-rails/log’ with directory ‘gitlab-11-10-stable-zh/log’
cp: cannot overwrite non-directory ‘/opt/gitlab/embedded/service/gitlab-rails/tmp’ with directory ‘gitlab-11-10-stable-zh/tmp’使配置生效:
sh
[root@hellogitlab ~]# systemctl start gitlab-runsvdir
[root@hellogitlab ~]# gitlab-ctl reconfigure
...... 执行剧本，忽略
Running handlers:
Running handlers complete
Chef Client finished, 5/609 resources updated in 51 seconds
gitlab Reconfigured!启动GitLab和Nginx服务:
sh
[root@hellogitlab ~]# systemctl start gitlab-runsvdir
[root@hellogitlab ~]# gitlab-ctl start
ok: run: alertmanager: (pid 27460) 134s
ok: run: gitaly: (pid 27472) 134s
ok: run: gitlab-monitor: (pid 27464) 134s
ok: run: gitlab-workhorse: (pid 27474) 134s
ok: run: logrotate: (pid 27476) 134s
ok: run: node-exporter: (pid 27478) 134s
ok: run: postgres-exporter: (pid 27462) 134s
ok: run: postgresql: (pid 27482) 134s
ok: run: prometheus: (pid 27480) 134s
ok: run: redis: (pid 27470) 134s
ok: run: redis-exporter: (pid 27484) 134s
ok: run: sidekiq: (pid 27468) 134s
ok: run: unicorn: (pid 27466) 134s

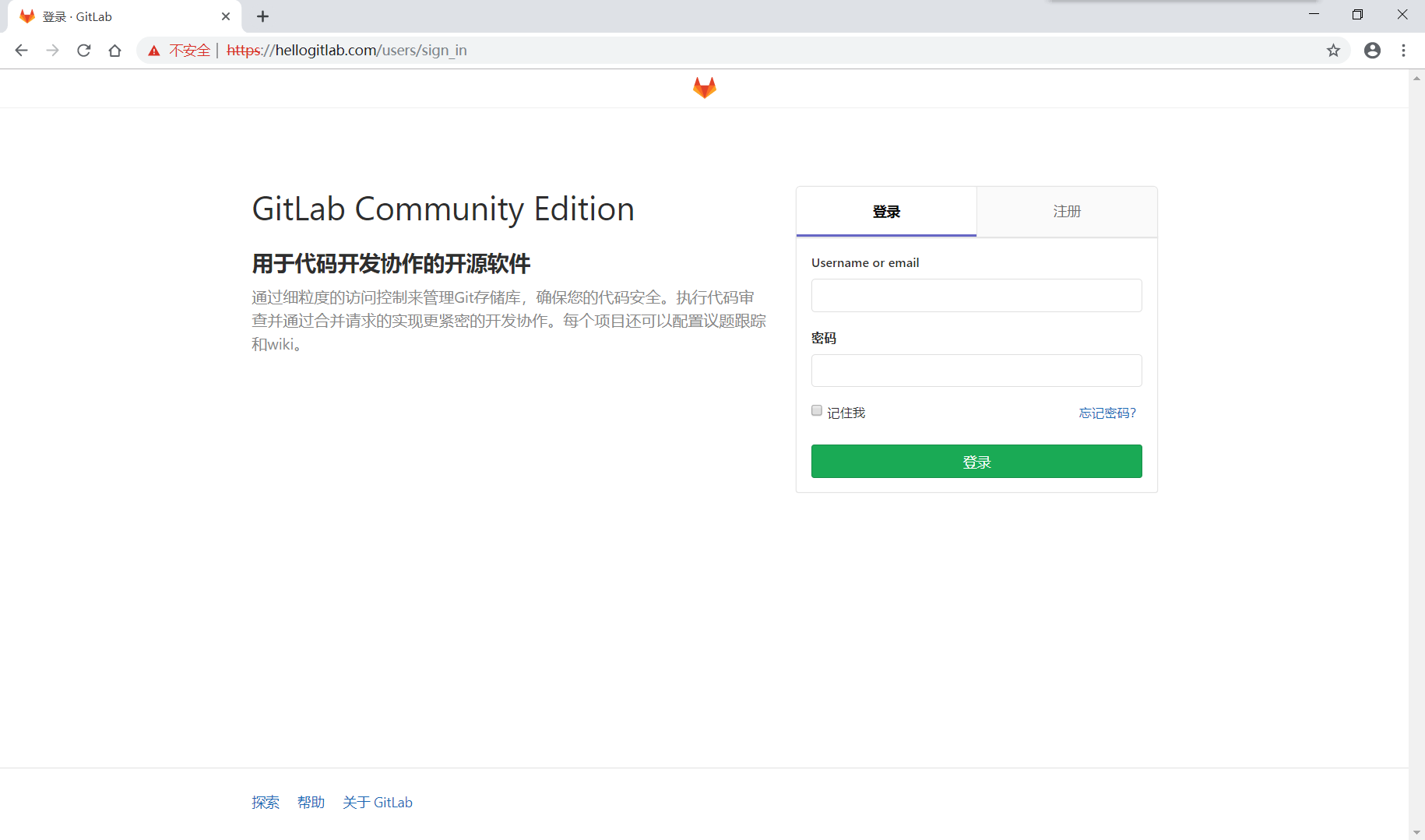

[root@hellogitlab ~]# systemctl start nginx重新访问GitLab，可以看到中文页面了:
正常登陆。在"偏好"中设置"语言"是"简体中文"，重新登陆即可。

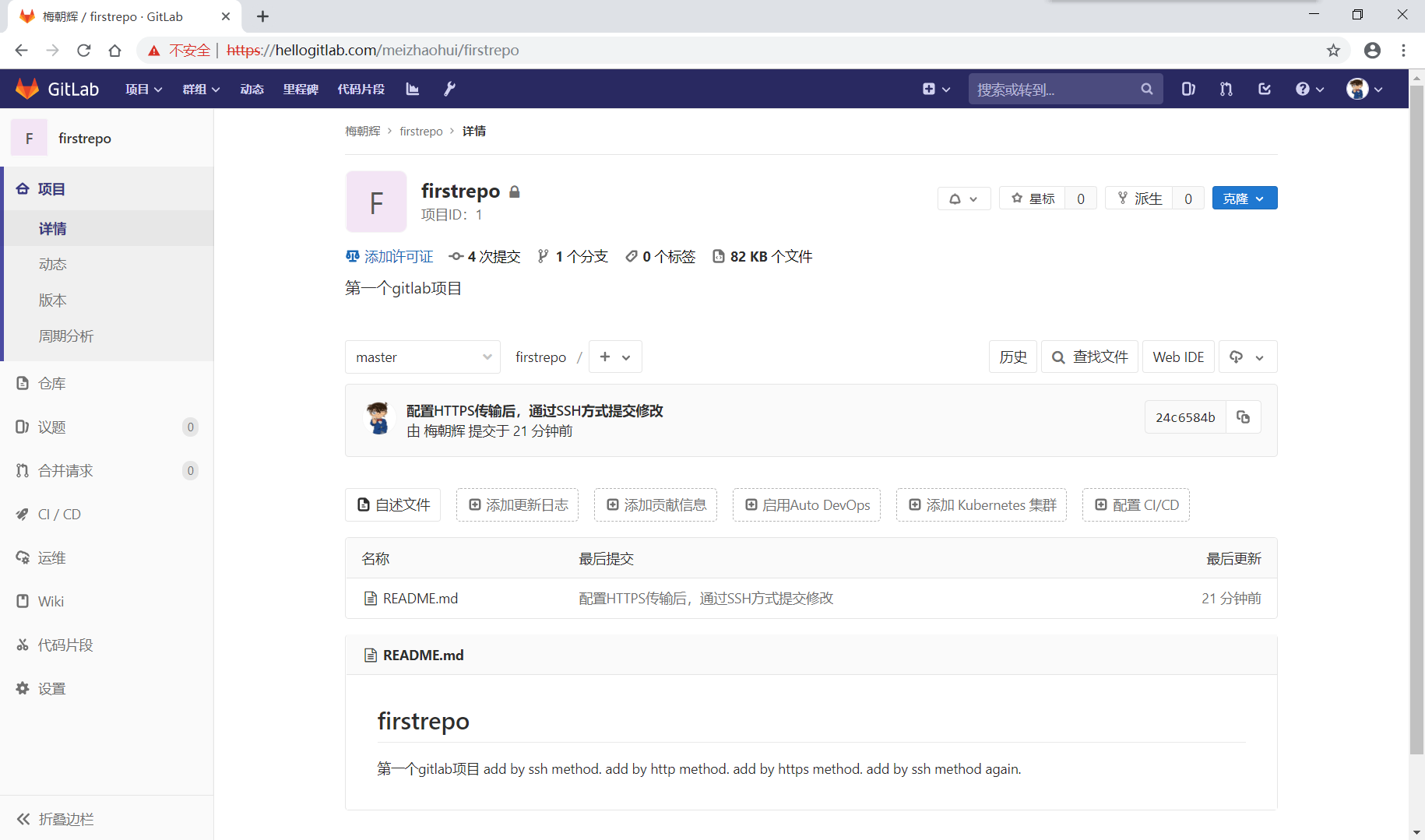

再次查看项目详情页面：
GitLab常用命令
- 启动服务：
gitlab-ctl start - 查看状态：
gitlab-ctl status - 停掉服务：
gitlab-ctl stop - 重启服务：
gitlab-ctl restart - 让配置生效：
gitlab-ctl reconfigure - 查看GitLab版本：
cat /opt/gitlab/embedded/service/gitlab-rails/VERSION
初始化HTTPS方式GitLab配置文件的脚本
download init_gitlab_https_conf.sh
脚本内容如下:
sh
#!/bin/bash
# Filename: init_GITLAB_CONF.sh
# Author: Zhaohui Mei
# Date: 2019-08-18
# Email: mzh_love_linux@163.com
# Function:
# Function 1: Install the GitLab 11.10
# Function 2: Configure the GitLab /etc/gitlab/gitlab.rb
################################################################################
################################################################################
# Define the key information that need to use
TIMEZONE="Asia/Shanghai"
GITLAB_CONF="/etc/gitlab/gitlab.rb"
DOMAIN_NAME="hellogitlab.com"
SMTP_EMAIL_FROM="mzh_love_linux@163.com"
SMTP_HOST_ADDRESS="smtp.163.com"
SMTP_DOMAIN="163.com"
SMTP_HOST_POST=465
SMTP_AUTH_CODE="authCode" # is not the password
SMTP_EMAIL_DISPLAY_NAME="GitLab"
SMTP_EMAIL_SUBJECT_SUFFIX="[GitLab]"
GIT_HOME="/home/git"
GIT_DATA_ROOT_DIR="/home/git/git-data"
IP=$(ip a show|grep 192|awk -F'[ /]+' '{print $3}')
TRUSTED_PROXY=$(echo ${IP}|awk -F'.' '{print $1"."$2"."$3".0"}')
################################################################################
################################################################################
### Check the GitLab version
### [root@localhost ~]# cat /opt/gitlab/embedded/service/gitlab-rails/VERSION
### 11.10.0
export LANG="zh_CN.UTF-8"
echo -e "1) Install Dependencies"
yum install curl policycoreutils-python openssh-server deltarpm -y
################################################################################
################################################################################
echo -e "2) Add the Gitlab-ce yum repo"
cat > /etc/yum.repos.d/gitlab-ce.repo << EOF
[gitlab-ce]
name=Gitlab CE Repository
baseurl=https://mirrors.tuna.tsinghua.edu.cn/gitlab-ce/yum/el\$releasever/
gpgcheck=0
enabled=1
EOF
################################################################################
################################################################################
echo -e "3) Install Gitlab 11.10.0"
yum install gitlab-ce-11.10.0 -y
################################################################################
################################################################################
echo -e "4) Check Gitlab version"
cat /opt/gitlab/embedded/service/gitlab-rails/VERSION
################################################################################
################################################################################
echo -e "5) backup gitlab configuration"
NOW_TIME=$(date +"%Y%m%d-%H%M%S")
cp "${GITLAB_CONF}" "${GITLAB_CONF}".${NOW_TIME}.bak
################################################################################
################################################################################
echo -e "6) Add tinghua yum repo and Install git"
yum install epel-release -y
yum install https://centos7.iuscommunity.org/ius-release.rpm -y
# replace the yum repo to tsinghua repo
cp /etc/yum.repos.d/epel.repo /etc/yum.repos.d/epel.repo.original
cp /etc/yum.repos.d/ius.repo /etc/yum.repos.d/ius.repo.original
cat > /etc/yum.repos.d/epel.repo << EOF
[epel]
name=Extra Packages for Enterprise Linux 7 - \$basearch
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/7/\$basearch
#mirrorlist=https://mirrors.fedoraproject.org/metalink?repo=epel-7&arch=\$basearch
failovermethod=priority
enabled=1
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
[epel-debuginfo]
name=Extra Packages for Enterprise Linux 7 - \$basearch - Debug
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/7/\$basearch/debug
#mirrorlist=https://mirrors.fedoraproject.org/metalink?repo=epel-debug-7&arch=\$basearch
failovermethod=priority
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
gpgcheck=1
[epel-source]
name=Extra Packages for Enterprise Linux 7 - \$basearch - Source
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/7/SRPMS
#mirrorlist=https://mirrors.fedoraproject.org/metalink?repo=epel-source-7&arch=\$basearch
failovermethod=priority
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
gpgcheck=1
EOF
cat > /etc/yum.repos.d/ius.repo << EOF
[ius]
name = IUS for Enterprise Linux 7 - \$basearch
baseurl = https://mirrors.tuna.tsinghua.edu.cn/ius/7/\$basearch/
enabled = 1
repo_gpgcheck = 0
gpgcheck = 1
gpgkey = file:///etc/pki/rpm-gpg/RPM-GPG-KEY-IUS-7
[ius-debuginfo]
name = IUS for Enterprise Linux 7 - \$basearch - Debug
baseurl = https://mirrors.tuna.tsinghua.edu.cn/ius/7/\$basearch/debug/
enabled = 0
repo_gpgcheck = 0
gpgcheck = 1
gpgkey = file:///etc/pki/rpm-gpg/RPM-GPG-KEY-IUS-7
[ius-source]
name = IUS for Enterprise Linux 7 - Source
baseurl = https://mirrors.tuna.tsinghua.edu.cn/ius/7/src/
enabled = 0
repo_gpgcheck = 0
gpgcheck = 1
gpgkey = file:///etc/pki/rpm-gpg/RPM-GPG-KEY-IUS-7
EOF
yum install git2u-2.16.5 -y && git --version
################################################################################
################################################################################
echo -e "7) Install Nginx"
yum install nginx -y && nginx -V
################################################################################
################################################################################
echo -e "8) Create git data root folder and set the permission"
if test -d "${GIT_DATA_ROOT_DIR}" ; then
echo "The Folder ${GIT_DATA_ROOT_DIR} exist"
else
mkdir -p "${GIT_DATA_ROOT_DIR}"
fi
chown -R git:root "${GIT_DATA_ROOT_DIR}"
################################################################################
################################################################################
echo -e "9) Create the IP / Domain map file"
echo -e "${IP}\t${DOMAIN_NAME}" >> /etc/hosts
################################################################################
################################################################################
echo -e "10) Modify the Nginx configuration"
wget https://gitlab.com/gitlab-org/gitlab-recipes/raw/master/web-server/nginx/gitlab-omnibus-ssl-nginx.conf
mv gitlab-omnibus-ssl-nginx.conf /etc/nginx/conf.d/gitlab-omnibus-ssl-nginx.conf
ls -lah /etc/nginx/conf.d/
sed -i 's/YOUR_SERVER_FQDN/hellogitlab.com/g' /etc/nginx/conf.d/gitlab-omnibus-ssl-nginx.conf
cat -n /etc/nginx/conf.d/gitlab-omnibus-ssl-nginx.conf
# forbiden the default 80 server
sed -i "38,57s@^@# @g" /etc/nginx/nginx.conf
cat -n /etc/nginx/nginx.conf|sed -n '38,57p'
################################################################################
################################################################################
echo -e "11) Create self ssl files"
mkdir -p /etc/nginx/ssl
echo -e "Create OpenSSL configuration"
cat > req.conf << EOF
# The default config file : /etc/pki/tls/openssl.cnf
# set prompt = no will read config data from file directly.
[ req ]
distinguished_name = req_distinguished_name
prompt = no
[ req_distinguished_name ]
countryName = CN
stateOrProvinceName = hubei
localityName = wuhan
0.organizationName = IT
organizationalUnitName = ${DOMAIN_NAME}
commonName = ${DOMAIN_NAME}
emailAddress = ${SMTP_EMAIL_FROM}
EOF
echo -e "Create self CA"
openssl req -x509 -nodes -days 1095 -config req.conf -newkey rsa:2048 -keyout /etc/nginx/ssl/gitlab.key -out /etc/nginx/ssl/gitlab.crt
echo -e "Check Nginx configuration"
nginx -t
################################################################################
################################################################################
echo -e "11) firewall allow 80 and 443 port"
port_80=$(firewall-cmd --list-all|grep ' ports'|grep 80|wc -l)
port_443=$(firewall-cmd --list-all|grep ' ports'|grep 443|wc -l)
if [[ "${port_80}" -eq 0 ]]; then
firewall-cmd --zone=public --add-port=80/tcp --permanent
fi
if [[ "${port_443}" -eq 0 ]]; then
firewall-cmd --zone=public --add-port=443/tcp --permanent
fi
firewall-cmd --reload
firewall-cmd --list-all
################################################################################
################################################################################
# Set the gitlab configuration
echo -e "Step 1: set external url"
sed -i "13s@external_url 'http://gitlab.example.com'@external_url \"https://${DOMAIN_NAME}\"@g" "${GITLAB_CONF}"
echo -e "Step 2: set Time Zone ans Sync Time to time5.aliyun.com IP:182.92.12.11"
sed -i "49s@^# gitlab_rails\['time_zone'\] = 'UTC'@gitlab_rails\['time_zone'\] = '${TIMEZONE}'@g" "${GITLAB_CONF}"
yum install ntp -y && ntpdate 182.92.12.11 && echo "Time Sync Done!"
echo "Step 3: Email Setting"
sed -i "52s@^# gitlab_rails\['gitlab_email_enabled'\] = true@gitlab_rails\['gitlab_email_enabled'\] = true@g" "${GITLAB_CONF}"
sed -i "53s/^# gitlab_rails\['gitlab_email_from'\] = 'example@example.com'/gitlab_rails\['gitlab_email_from'\] = '${SMTP_EMAIL_FROM}'/g" "${GITLAB_CONF}"
sed -i "54s@^# gitlab_rails\['gitlab_email_display_name'\] = 'Example'@gitlab_rails\['gitlab_email_display_name'\] = '${SMTP_EMAIL_DISPLAY_NAME}'@g" "${GITLAB_CONF}"
sed -i "55s/^# gitlab_rails\['gitlab_email_reply_to'\] = 'noreply@example.com'/gitlab_rails\['gitlab_email_reply_to'\] = '${SMTP_EMAIL_FROM}'/g" "${GITLAB_CONF}"
sed -i "56s@^# gitlab_rails\['gitlab_email_subject_suffix'\] = ''@gitlab_rails\['gitlab_email_subject_suffix'\] = '${SMTP_EMAIL_SUBJECT_SUFFIX}'@g" "${GITLAB_CONF}"
echo -e "Step 4: Disallow users creating top-level groups"
sed -i "59s@# gitlab_rails\['gitlab_default_can_create_group'\] = true@gitlab_rails\['gitlab_default_can_create_group'\] = false@g" "${GITLAB_CONF}"
echo -e "Step 5: Disallow users changing usernames"
sed -i "60s@# gitlab_rails\['gitlab_username_changing_enabled'\] = true@gitlab_rails\['gitlab_username_changing_enabled'\] = false@g" "${GITLAB_CONF}"
echo -e "Step 6: Configuring GitLab trusted_proxies"
sed -i "113s@^# gitlab_rails\['trusted_proxies'\] = \[\]@gitlab_rails['trusted_proxies'] = \['${TRUSTED_PROXY}/24'\]@g" "${GITLAB_CONF}"
echo -e "Step 7: Git data dirs Settings"
sed -i "380s@^# git_data_dirs@git_data_dirs@g" "${GITLAB_CONF}"
sed -i "381s@^# \"default@ \"default@g" "${GITLAB_CONF}"
sed -i "382s@^# \"path\" => \"/mnt/nfs-01/git-data\"@ \"path\" => \"${GIT_DATA_ROOT_DIR}\"@g" "${GITLAB_CONF}"
sed -i "383s@^# }@ }@g" "${GITLAB_CONF}"
sed -i "384s@^# })@})@g" "${GITLAB_CONF}"
echo -e "Step 8: SMTP settings"
sed -i "511s@# gitlab_rails\['smtp_enable'\] = true@gitlab_rails\['smtp_enable'\] = true@g" "${GITLAB_CONF}"
sed -i "512s/# gitlab_rails\['smtp_address'\] = \"smtp.server\"/gitlab_rails\['smtp_address'\] = \"${SMTP_HOST_ADDRESS}\"/g" "${GITLAB_CONF}"
sed -i "513s@# gitlab_rails\['smtp_port'\] = 465@gitlab_rails\['smtp_port'\] = ${SMTP_HOST_POST}@g" "${GITLAB_CONF}"
sed -i "514s/# gitlab_rails\['smtp_user_name'\] = \"smtp user\"/gitlab_rails\['smtp_user_name'\] = \"${SMTP_EMAIL_FROM}\"/g" "${GITLAB_CONF}"
sed -i "515s@# gitlab_rails\['smtp_password'\] = \"smtp password\"@gitlab_rails\['smtp_password'\] = \"${SMTP_AUTH_CODE}\"@g" "${GITLAB_CONF}"
sed -i "516s@# gitlab_rails\['smtp_domain'\] = \"example.com\"@gitlab_rails\['smtp_domain'\] = \"${SMTP_DOMAIN}\"@g" "${GITLAB_CONF}"
sed -i "517s@# gitlab_rails\['smtp_authentication'\] = \"login\"@gitlab_rails\['smtp_authentication'\] = \"login\"@g" "${GITLAB_CONF}"
sed -i "518s@# gitlab_rails\['smtp_enable_starttls_auto'\] = true@gitlab_rails\['smtp_enable_starttls_auto'\] = true@g" "${GITLAB_CONF}"
sed -i "519s@# gitlab_rails\['smtp_tls'\] = false@gitlab_rails\['smtp_tls'\] = true@g" "${GITLAB_CONF}"
echo -e "Step 9: GitLab User Settings"
sed -i "653s@^# user\['username'\]@user\['username'\]@g" "${GITLAB_CONF}"
sed -i "654s@^# user\['group'\]@user\['group'\]@g" "${GITLAB_CONF}"
sed -i "662s@^# user\['home'\] = \"/var/opt/gitlab\"@user\['home'\] = \"${GIT_HOME}\"@g" "${GITLAB_CONF}"
sed -i "665s/^# user\['git_user_email'\] = \"gitlab@#{node\['fqdn'\]}\"/user\['git_user_email'\] = \"${SMTP_EMAIL_FROM}\"/g" "${GITLAB_CONF}"
echo -e "Step 10: Set the username of the non-bundled web-server user"
sed -i "970s@^# web_server\['external_users'\] = \[\]@web_server\['external_users'\] = \['nginx', 'root'\]@g" "${GITLAB_CONF}"
sed -i "971s@^# web_server\['username'\] = 'gitlab-www'@web_server\['username'\] = 'nginx'@g" "${GITLAB_CONF}"
sed -i "972s@^# web_server\['group'\] = 'gitlab-www'@web_server\['group'\] = 'nginx'@g" "${GITLAB_CONF}"
echo -e "Step 11: Disable bundled Nginx"
sed -i "983s@^# nginx\['enable'\] = true@nginx\['enable'\] = false@g" "${GITLAB_CONF}"
echo -e "OK. Great Done!!!"
################################################################################
################################################################################
echo -e "You can run the command to test the configuration"
echo -e "Start the gitlab: gitlab-ctl reconfigure"
echo -e "Start the gitlab-runsvdir: systemctl start gitlab-runsvdir"
echo -e "Start the gitlab: gitlab-ctl start"
echo -e "Start the nginx: systemctl start nginx"
echo -e "You can set the Chinese i18n by yourself"
