virtualbox命令行工具VBoxManage的使用

1. 概述

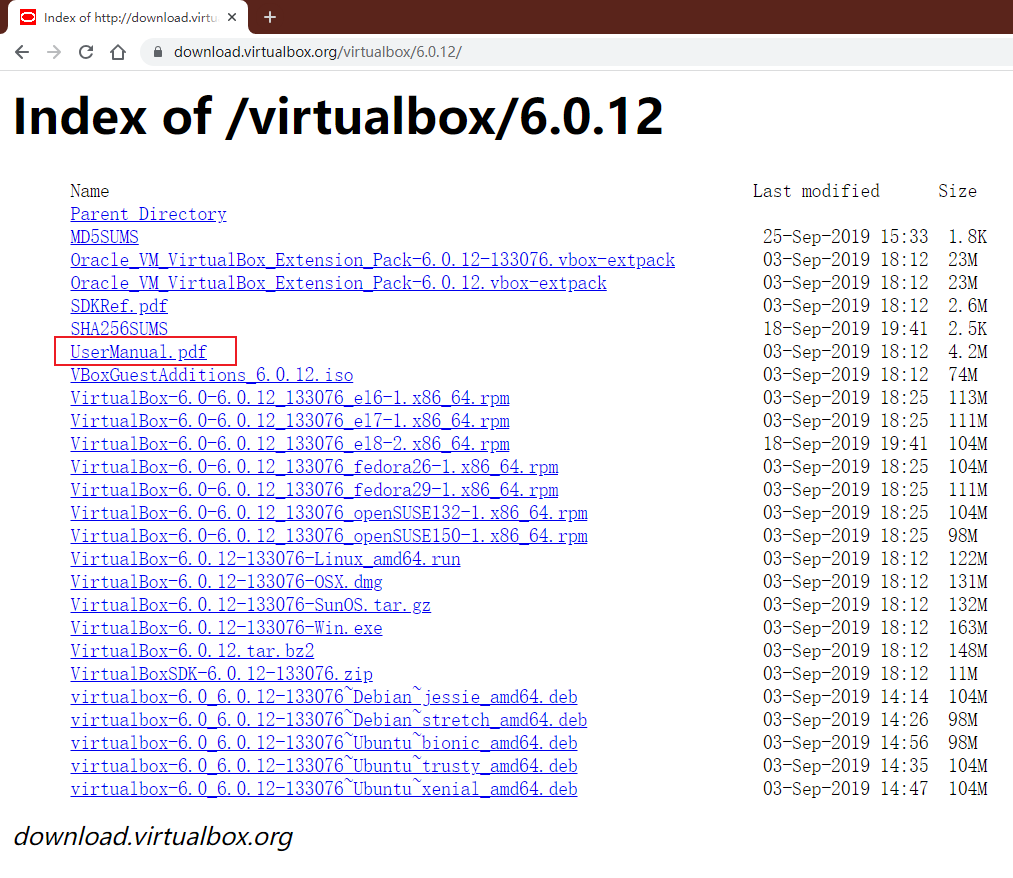

我使用的VirtualBox版本是6.0.12,因此在 https://download.virtualbox.org/virtualbox/6.0.12/ 下载相应的用户手册UserManual.pdf:

你可以根据你使用的版本,下载相应的用户手册。

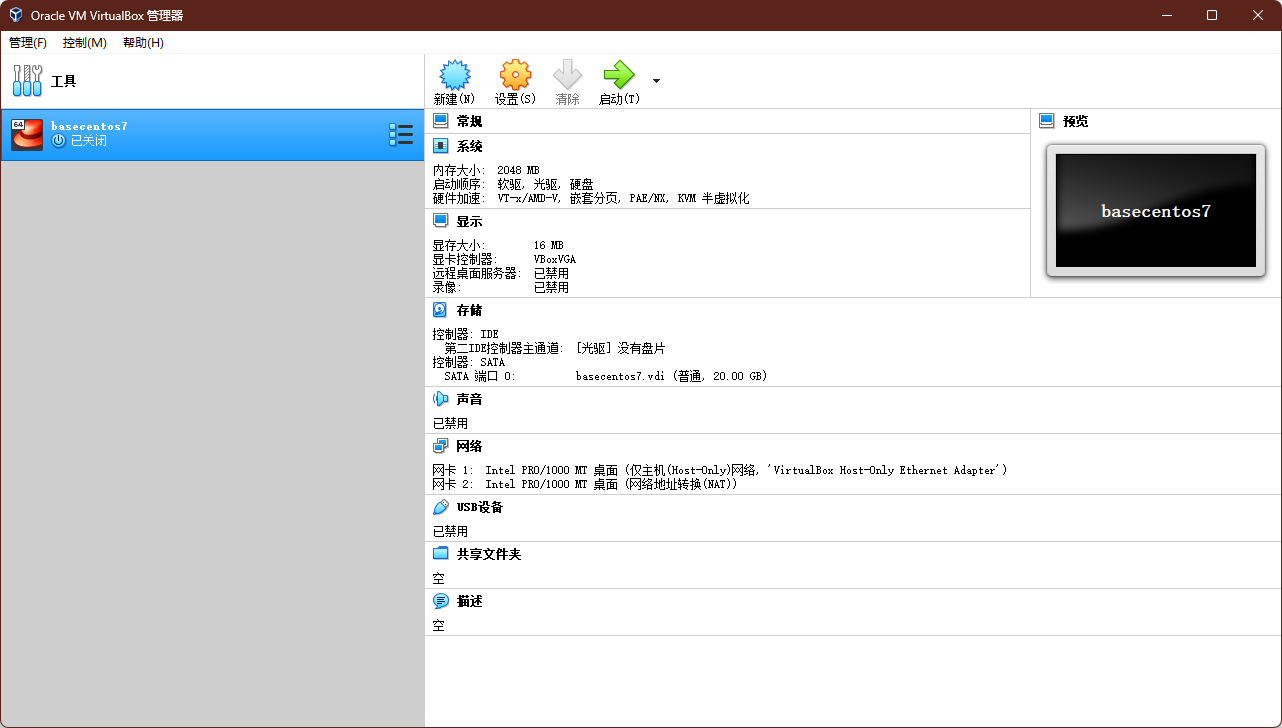

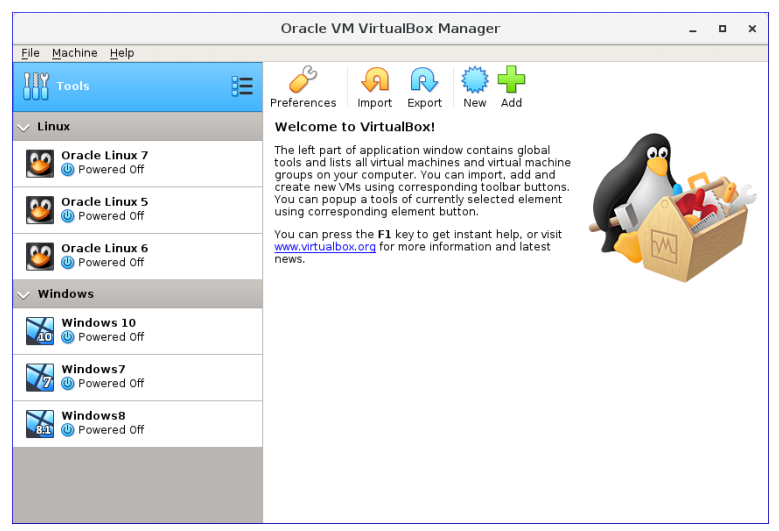

  • 通常情况下,我们可以通过VirtualBox GUI界面来创建虚拟机,并对虚拟机进行一系列操作。
  • 通过使用命令行,可以让我操作VirtualBox更方便。

1.1 准备工作

将VirtualBox的安装目录加入到PATH环境变量中。如我的VirtualBox安装路径是D:\ProgramFiles\Oracle\VirtualBox,将该路径加入到PATH环境变量后,打开命令行就可以使用VBoxManage命令了。

1.2 查看帮助信息

使用VBoxManage --help就可以查看VirtualBox命令行的帮助信息,可以看到输出内容非常多:

sh
$ VBoxManage --help
Oracle VM VirtualBox Command Line Management Interface Version 6.0.12
(C) 2005-2019 Oracle Corporation
All rights reserved.

Usage:

  VBoxManage [<general option>] <command>


General Options:

  [-v|--version]            print version number and exit
  [-q|--nologo]             suppress the logo
  [--settingspw <pw>]       provide the settings password
  [--settingspwfile <file>] provide a file containing the settings password
  [@<response-file>]        load arguments from the given response file (bourne style)


Commands:

  list [--long|-l] [--sorted|-s]          vms|runningvms|ostypes|hostdvds|hostfloppies|
                            intnets|bridgedifs|hostonlyifs|natnets|dhcpservers|
                            hostinfo|hostcpuids|hddbackends|hdds|dvds|floppies|
                            usbhost|usbfilters|systemproperties|extpacks|
                            groups|webcams|screenshotformats|cloudproviders|
                            cloudprofiles

  showvminfo                <uuid|vmname> [--details]
                            [--machinereadable]
  showvminfo                <uuid|vmname> --log <idx>

  registervm                <filename>

  unregistervm              <uuid|vmname> [--delete]

  createvm                  --name <name>
                            [--groups <group>, ...]
                            [--ostype <ostype>]
                            [--register]
                            [--basefolder <path>]
                            [--uuid <uuid>]
                            [--default]

  modifyvm                  <uuid|vmname>
                            [--name <name>]
                            [--groups <group>, ...]
                            [--description <desc>]
                            [--ostype <ostype>]
                            [--iconfile <filename>]
                            [--memory <memorysize in MB>]
                            [--pagefusion on|off]
                            [--vram <vramsize in MB>]
                            [--acpi on|off]
                            [--pciattach 03:04.0]
                            [--pciattach 03:04.0@02:01.0]
                            [--pcidetach 03:04.0]
                            [--ioapic on|off]
                            [--hpet on|off]
                            [--triplefaultreset on|off]
                            [--apic on|off]
                            [--x2apic on|off]
                            [--paravirtprovider none|default|legacy|minimal|
                                                hyperv|kvm]
                            [--paravirtdebug <key=value> [,<key=value> ...]]
                            [--hwvirtex on|off]
                            [--nestedpaging on|off]
                            [--largepages on|off]
                            [--vtxvpid on|off]
                            [--vtxux on|off]
                            [--pae on|off]
                            [--longmode on|off]
                            [--ibpb-on-vm-exit on|off]
                            [--ibpb-on-vm-entry on|off]
                            [--spec-ctrl on|off]
                            [--l1d-flush-on-sched on|off]
                            [--l1d-flush-on-vm-entry on|off]
                            [--mds-clear-on-sched on|off]
                            [--mds-clear-on-vm-entry on|off]
                            [--nested-hw-virt on|off]
                            [--cpu-profile "host|Intel 80[86|286|386]"]
                            [--cpuid-portability-level <0..3>
                            [--cpuid-set <leaf[:subleaf]> <eax> <ebx> <ecx> <edx>]
                            [--cpuid-remove <leaf[:subleaf]>]
                            [--cpuidremoveall]
                            [--hardwareuuid <uuid>]
                            [--cpus <number>]
                            [--cpuhotplug on|off]
                            [--plugcpu <id>]
                            [--unplugcpu <id>]
                            [--cpuexecutioncap <1-100>]
                            [--rtcuseutc on|off]
                            [--graphicscontroller none|vboxvga|vmsvga|vboxsvga]
                            [--monitorcount <number>]
                            [--accelerate3d on|off]
                            [--accelerate2dvideo on|off]
                            [--firmware bios|efi|efi32|efi64]
                            [--chipset ich9|piix3]
                            [--bioslogofadein on|off]
                            [--bioslogofadeout on|off]
                            [--bioslogodisplaytime <msec>]
                            [--bioslogoimagepath <imagepath>]
                            [--biosbootmenu disabled|menuonly|messageandmenu]
                            [--biosapic disabled|apic|x2apic]
                            [--biossystemtimeoffset <msec>]
                            [--biospxedebug on|off]
                            [--boot<1-4> none|floppy|dvd|disk|net>]
                            [--nic<1-N> none|null|nat|bridged|intnet|hostonly|
                                        generic|natnetwork]
                            [--nictype<1-N> Am79C970A|Am79C973|
                                            82540EM|82543GC|82545EM|
                                            virtio]
                            [--cableconnected<1-N> on|off]
                            [--nictrace<1-N> on|off]
                            [--nictracefile<1-N> <filename>]
                            [--nicproperty<1-N> name=[value]]
                            [--nicspeed<1-N> <kbps>]
                            [--nicbootprio<1-N> <priority>]
                            [--nicpromisc<1-N> deny|allow-vms|allow-all]
                            [--nicbandwidthgroup<1-N> none|<name>]
                            [--bridgeadapter<1-N> none|<devicename>]
                            [--hostonlyadapter<1-N> none|<devicename>]
                            [--intnet<1-N> <network name>]
                            [--nat-network<1-N> <network name>]
                            [--nicgenericdrv<1-N> <driver>
                            [--natnet<1-N> <network>|default]
                            [--natsettings<1-N> [<mtu>],[<socksnd>],
                                                [<sockrcv>],[<tcpsnd>],
                                                [<tcprcv>]]
                            [--natpf<1-N> [<rulename>],tcp|udp,[<hostip>],
                                          <hostport>,[<guestip>],<guestport>]
                            [--natpf<1-N> delete <rulename>]
                            [--nattftpprefix<1-N> <prefix>]
                            [--nattftpfile<1-N> <file>]
                            [--nattftpserver<1-N> <ip>]
                            [--natbindip<1-N> <ip>
                            [--natdnspassdomain<1-N> on|off]
                            [--natdnsproxy<1-N> on|off]
                            [--natdnshostresolver<1-N> on|off]
                            [--nataliasmode<1-N> default|[log],[proxyonly],
                                                         [sameports]]
                            [--macaddress<1-N> auto|<mac>]
                            [--mouse ps2|usb|usbtablet|usbmultitouch]
                            [--keyboard ps2|usb
                            [--uart<1-N> off|<I/O base> <IRQ>]
                            [--uartmode<1-N> disconnected|
                                             server <pipe>|
                                             client <pipe>|
                                             tcpserver <port>|
                                             tcpclient <hostname:port>|
                                             file <file>|
                                             <devicename>]
                            [--uarttype<1-N> 16450|16550A|16750
                            [--lpt<1-N> off|<I/O base> <IRQ>]
                            [--lptmode<1-N> <devicename>]
                            [--guestmemoryballoon <balloonsize in MB>]
                            [--audio none|null|dsound]
                            [--audioin on|off]
                            [--audioout on|off]
                            [--audiocontroller ac97|hda|sb16]
                            [--audiocodec stac9700|ad1980|stac9221|sb16]
                            [--clipboard disabled|hosttoguest|guesttohost|
                                         bidirectional]
                            [--draganddrop disabled|hosttoguest|guesttohost|
                                         bidirectional]
                            [--vrde on|off]
                            [--vrdeextpack default|<name>
                            [--vrdeproperty <name=[value]>]
                            [--vrdeport <hostport>]
                            [--vrdeaddress <hostip>]
                            [--vrdeauthtype null|external|guest]
                            [--vrdeauthlibrary default|<name>
                            [--vrdemulticon on|off]
                            [--vrdereusecon on|off]
                            [--vrdevideochannel on|off]
                            [--vrdevideochannelquality <percent>]
                            [--usbohci on|off]
                            [--usbehci on|off]
                            [--usbxhci on|off]
                            [--usbrename <oldname> <newname>]
                            [--snapshotfolder default|<path>]
                            [--teleporter on|off]
                            [--teleporterport <port>]
                            [--teleporteraddress <address|empty>
                            [--teleporterpassword <password>]
                            [--teleporterpasswordfile <file>|stdin]
                            [--tracing-enabled on|off]
                            [--tracing-config <config-string>]
                            [--tracing-allow-vm-access on|off]
                            [--usbcardreader on|off]
                            [--autostart-enabled on|off]
                            [--autostart-delay <seconds>]
                            [--recording on|off]
                            [--recordingscreens all|<screen ID> [<screen ID> ...]]
                            [--recordingfile <filename>]
                            [--recordingvideores <width> <height>]
                            [--recordingvideorate <rate>]
                            [--recordingvideofps <fps>]
                            [--recordingmaxtime <s>]
                            [--recordingmaxsize <MB>]
                            [--recordingopts <key=value> [,<key=value> ...]]
                            [--defaultfrontend default|<name>]

  clonevm                   <uuid|vmname>
                            [--snapshot <uuid>|<name>]
                            [--mode machine|machineandchildren|all]
                            [--options link|keepallmacs|keepnatmacs|
                                       keepdisknames|keephwuuids]
                            [--name <name>]
                            [--groups <group>, ...]
                            [--basefolder <basefolder>]
                            [--uuid <uuid>]
                            [--register]

  movevm                    <uuid|vmname>
                            --type basic
                            [--folder <path>]

  import                    <ovfname/ovaname>
                            [--dry-run|-n]
                            [--options keepallmacs|keepnatmacs|importtovdi]
                            [more options]
                            (run with -n to have options displayed
                             for a particular OVF)

  export                    <machines> --output|-o <name>.<ovf/ova/tar.gz>
                            [--legacy09|--ovf09|--ovf10|--ovf20|--opc10]
                            [--manifest]
                            [--iso]
                            [--options manifest|iso|nomacs|nomacsbutnat]
                            [--vsys <number of virtual system>]
                                    [--vmname <name>]
                                    [--product <product name>]
                                    [--producturl <product url>]
                                    [--vendor <vendor name>]
                                    [--vendorurl <vendor url>]
                                    [--version <version info>]
                                    [--description <description info>]
                                    [--eula <license text>]
                                    [--eulafile <filename>]
                            [--cloud <number of virtual system>]
                                    [--vmname <name>]
                                    [--cloudprofile <cloud profile name>]
                                    [--cloudshape <shape>]
                                    [--clouddomain <domain>]
                                    [--clouddisksize <disk size in GB>]
                                    [--cloudbucket <bucket name>]
                                    [--cloudocivcn <OCI vcn id>]
                                    [--cloudocisubnet <OCI subnet id>]
                                    [--cloudkeepobject <true/false>]
                                    [--cloudlaunchinstance <true/false>]
                                    [--cloudpublicip <true/false>]

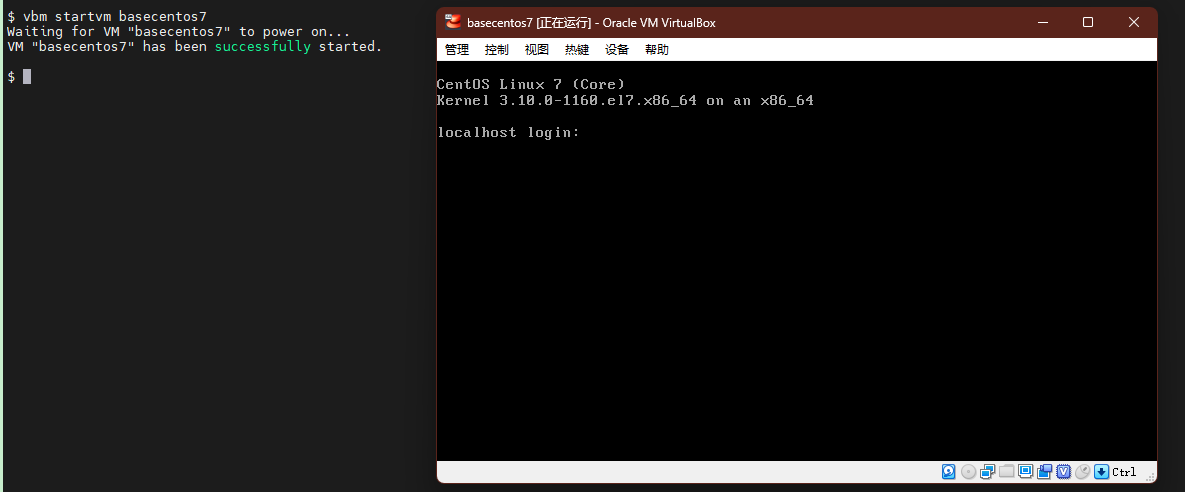

  startvm                   <uuid|vmname>...
                            [--type gui|sdl|headless|separate]
                            [-E|--putenv <NAME>[=<VALUE>]]

  controlvm                 <uuid|vmname>
                            pause|resume|reset|poweroff|savestate|
                            acpipowerbutton|acpisleepbutton|
                            keyboardputscancode <hex> [<hex> ...]|
                            keyboardputstring <string1> [<string2> ...]|
                            keyboardputfile <filename>|
                            setlinkstate<1-N> on|off |
                            nic<1-N> null|nat|bridged|intnet|hostonly|generic|
                                     natnetwork [<devicename>] |
                            nictrace<1-N> on|off |
                            nictracefile<1-N> <filename> |
                            nicproperty<1-N> name=[value] |
                            nicpromisc<1-N> deny|allow-vms|allow-all |
                            natpf<1-N> [<rulename>],tcp|udp,[<hostip>],
                                        <hostport>,[<guestip>],<guestport> |
                            natpf<1-N> delete <rulename> |
                            guestmemoryballoon <balloonsize in MB> |
                            usbattach <uuid>|<address>
                                      [--capturefile <filename>] |
                            usbdetach <uuid>|<address> |
                            audioin on|off |
                            audioout on|off |
                            clipboard disabled|hosttoguest|guesttohost|
                                      bidirectional |
                            draganddrop disabled|hosttoguest|guesttohost|
                                      bidirectional |
                            vrde on|off |
                            vrdeport <port> |
                            vrdeproperty <name=[value]> |
                            vrdevideochannelquality <percent> |
                            setvideomodehint <xres> <yres> <bpp>
                                            [[<display>] [<enabled:yes|no> |
                                              [<xorigin> <yorigin>]]] |
                            setscreenlayout <display> on|primary <xorigin> <yorigin> <xres> <yres> <bpp> | off
                            screenshotpng <file> [display] |
                            recording on|off |
                            recording screens all|none|<screen>,[<screen>...] |
                            recording filename <file> |
                            recording videores <width>x<height> |
                            recording videorate <rate> |
                            recording videofps <fps> |
                            recording maxtime <s> |
                            recording maxfilesize <MB> |
                            setcredentials <username>
                                           --passwordfile <file> | <password>
                                           <domain>
                                           [--allowlocallogon <yes|no>] |
                            teleport --host <name> --port <port>
                                     [--maxdowntime <msec>]
                                     [--passwordfile <file> |
                                      --password <password>] |
                            plugcpu <id> |
                            unplugcpu <id> |
                            cpuexecutioncap <1-100>
                            webcam <attach [path [settings]]> | <detach [path]> | <list>
                            addencpassword <id>
                                           <password file>|-
                                           [--removeonsuspend <yes|no>]
                            removeencpassword <id>
                            removeallencpasswords
                            changeuartmode<1-N> disconnected|
                                                server <pipe>|
                                                client <pipe>|
                                                tcpserver <port>|
                                                tcpclient <hostname:port>|
                                                file <file>|
                                                <devicename>]

  discardstate              <uuid|vmname>

  adoptstate                <uuid|vmname> <state_file>

  snapshot                  <uuid|vmname>
                            take <name> [--description <desc>] [--live]
                                 [--uniquename Number,Timestamp,Space,Force] |
                            delete <uuid|snapname> |
                            restore <uuid|snapname> |
                            restorecurrent |
                            edit <uuid|snapname>|--current
                                 [--name <name>]
                                 [--description <desc>] |
                            list [--details|--machinereadable] |
                            showvminfo <uuid|snapname>

  closemedium               [disk|dvd|floppy] <uuid|filename>
                            [--delete]

  storageattach             <uuid|vmname>
                            --storagectl <name>
                            [--port <number>]
                            [--device <number>]
                            [--type dvddrive|hdd|fdd]
                            [--medium none|emptydrive|additions|
                                      <uuid|filename>|host:<drive>|iscsi]
                            [--mtype normal|writethrough|immutable|shareable|
                                     readonly|multiattach]
                            [--comment <text>]
                            [--setuuid <uuid>]
                            [--setparentuuid <uuid>]
                            [--passthrough on|off]
                            [--tempeject on|off]
                            [--nonrotational on|off]
                            [--discard on|off]
                            [--hotpluggable on|off]
                            [--bandwidthgroup <name>]
                            [--forceunmount]
                            [--server <name>|<ip>]
                            [--target <target>]
                            [--tport <port>]
                            [--lun <lun>]
                            [--encodedlun <lun>]
                            [--username <username>]
                            [--password <password>]
                            [--passwordfile <file>]
                            [--initiator <initiator>]
                            [--intnet]

  storagectl                <uuid|vmname>
                            --name <name>
                            [--add ide|sata|scsi|floppy|sas|usb|pcie]
                            [--controller LSILogic|LSILogicSAS|BusLogic|
                                          IntelAHCI|PIIX3|PIIX4|ICH6|I82078|
                            [             USB|NVMe]
                            [--portcount <1-n>]
                            [--hostiocache on|off]
                            [--bootable on|off]
                            [--rename <name>]
                            [--remove]

  bandwidthctl              <uuid|vmname>
                            add <name> --type disk|network
                                --limit <megabytes per second>[k|m|g|K|M|G] |
                            set <name>
                                --limit <megabytes per second>[k|m|g|K|M|G] |
                            remove <name> |
                            list [--machinereadable]
                            (limit units: k=kilobit, m=megabit, g=gigabit,
                                          K=kilobyte, M=megabyte, G=gigabyte)

  showmediuminfo            [disk|dvd|floppy] <uuid|filename>

  createmedium              [disk|dvd|floppy] --filename <filename>
                            [--size <megabytes>|--sizebyte <bytes>]
                            [--diffparent <uuid>|<filename>
                            [--format VDI|VMDK|VHD] (default: VDI)
                            [--variant Standard,Fixed,Split2G,Stream,ESX,
                                       Formatted]

  modifymedium              [disk|dvd|floppy] <uuid|filename>
                            [--type normal|writethrough|immutable|shareable|
                                    readonly|multiattach]
                            [--autoreset on|off]
                            [--property <name=[value]>]
                            [--compact]
                            [--resize <megabytes>|--resizebyte <bytes>]
                            [--move <path>]
                            [--setlocation <path>]
                            [--description <description string>]
  clonemedium               [disk|dvd|floppy] <uuid|inputfile> <uuid|outputfile>
                            [--format VDI|VMDK|VHD|RAW|<other>]
                            [--variant Standard,Fixed,Split2G,Stream,ESX]
                            [--existing]

  mediumproperty            [disk|dvd|floppy] set <uuid|filename>
                            <property> <value>

                            [disk|dvd|floppy] get <uuid|filename>
                            <property>

                            [disk|dvd|floppy] delete <uuid|filename>
                            <property>

  encryptmedium             <uuid|filename>
                            [--newpassword <file>|-]
                            [--oldpassword <file>|-]
                            [--cipher <cipher identifier>]
                            [--newpasswordid <password identifier>]

  checkmediumpwd            <uuid|filename>
                            <pwd file>|-

  convertfromraw            <filename> <outputfile>
                            [--format VDI|VMDK|VHD]
                            [--variant Standard,Fixed,Split2G,Stream,ESX]
                            [--uuid <uuid>]
  convertfromraw            stdin <outputfile> <bytes>
                            [--format VDI|VMDK|VHD]
                            [--variant Standard,Fixed,Split2G,Stream,ESX]
                            [--uuid <uuid>]

  getextradata              global|<uuid|vmname>
                            <key>|[enumerate]

  setextradata              global|<uuid|vmname>
                            <key>
                            [<value>] (no value deletes key)

  setproperty               machinefolder default|<folder> |
                            hwvirtexclusive on|off |
                            vrdeauthlibrary default|<library> |
                            websrvauthlibrary default|null|<library> |
                            vrdeextpack null|<library> |
                            autostartdbpath null|<folder> |
                            loghistorycount <value>
                            defaultfrontend default|<name>
                            logginglevel <log setting>
                            proxymode system|noproxy|manual
                            proxyurl <url>

  usbfilter                 add <index,0-N>
                            --target <uuid|vmname>|global
                            --name <string>
                            --action ignore|hold (global filters only)
                            [--active yes|no] (yes)
                            [--vendorid <XXXX>] (null)
                            [--productid <XXXX>] (null)
                            [--revision <IIFF>] (null)
                            [--manufacturer <string>] (null)
                            [--product <string>] (null)
                            [--remote yes|no] (null, VM filters only)
                            [--serialnumber <string>] (null)
                            [--maskedinterfaces <XXXXXXXX>]

  usbfilter                 modify <index,0-N>
                            --target <uuid|vmname>|global
                            [--name <string>]
                            [--action ignore|hold] (global filters only)
                            [--active yes|no]
                            [--vendorid <XXXX>|""]
                            [--productid <XXXX>|""]
                            [--revision <IIFF>|""]
                            [--manufacturer <string>|""]
                            [--product <string>|""]
                            [--remote yes|no] (null, VM filters only)
                            [--serialnumber <string>|""]
                            [--maskedinterfaces <XXXXXXXX>]

  usbfilter                 remove <index,0-N>
                            --target <uuid|vmname>|global

  sharedfolder              add <uuid|vmname>
                            --name <name> --hostpath <hostpath>
                            [--transient] [--readonly] [--automount]

  sharedfolder              remove <uuid|vmname>
                            --name <name> [--transient]

  guestproperty             get <uuid|vmname>
                            <property> [--verbose]

  guestproperty             set <uuid|vmname>
                            <property> [<value> [--flags <flags>]]

  guestproperty             delete|unset <uuid|vmname>
                            <property>

  guestproperty             enumerate <uuid|vmname>
                            [--patterns <patterns>]

  guestproperty             wait <uuid|vmname> <patterns>
                            [--timeout <msec>] [--fail-on-timeout]

  guestcontrol              <uuid|vmname> [--verbose|-v] [--quiet|-q]
                              [--username <name>] [--domain <domain>]
                              [--passwordfile <file> | --password <password>]

                              run [common-options]
                              [--exe <path to executable>] [--timeout <msec>]
                              [-E|--putenv <NAME>[=<VALUE>]] [--unquoted-args]
                              [--ignore-operhaned-processes] [--profile]
                              [--no-wait-stdout|--wait-stdout]
                              [--no-wait-stderr|--wait-stderr]
                              [--dos2unix] [--unix2dos]
                              -- <program/arg0> [argument1] ... [argumentN]]

                              start [common-options]
                              [--exe <path to executable>] [--timeout <msec>]
                              [-E|--putenv <NAME>[=<VALUE>]] [--unquoted-args]
                              [--ignore-operhaned-processes] [--profile]
                              -- <program/arg0> [argument1] ... [argumentN]]

                              copyfrom [common-options]
                              [--follow] [-R|--recursive]
                              <guest-src0> [guest-src1 [...]] <host-dst>

                              copyfrom [common-options]
                              [--follow] [-R|--recursive]
                              [--target-directory <host-dst-dir>]
                              <guest-src0> [guest-src1 [...]]

                              copyto [common-options]
                              [--follow] [-R|--recursive]
                              <host-src0> [host-src1 [...]] <guest-dst>

                              copyto [common-options]
                              [--follow] [-R|--recursive]
                              [--target-directory <guest-dst>]
                              <host-src0> [host-src1 [...]]

                              mkdir|createdir[ectory] [common-options]
                              [--parents] [--mode <mode>]
                              <guest directory> [...]

                              rmdir|removedir[ectory] [common-options]
                              [-R|--recursive]
                              <guest directory> [...]

                              removefile|rm [common-options] [-f|--force]
                              <guest file> [...]

                              mv|move|ren[ame] [common-options]
                              <source> [source1 [...]] <dest>

                              mktemp|createtemp[orary] [common-options]
                              [--secure] [--mode <mode>] [--tmpdir <directory>]
                              <template>

                              stat [common-options]
                              <file> [...]

  guestcontrol              <uuid|vmname> [--verbose|-v] [--quiet|-q]

                              list <all|sessions|processes|files> [common-opts]

                              closeprocess [common-options]
                              <   --session-id <ID>
                                | --session-name <name or pattern>
                              <PID1> [PID1 [...]]

                              closesession [common-options]
                              <  --all | --session-id <ID>
                                | --session-name <name or pattern> >

                              updatega|updateguestadditions|updateadditions
                              [--source <guest additions .ISO>]
                              [--wait-start] [common-options]
                              [-- [<argument1>] ... [<argumentN>]]

                              watch [common-options]

  metrics                   list [*|host|<vmname> [<metric_list>]]
                                                 (comma-separated)

  metrics                   setup
                            [--period <seconds>] (default: 1)
                            [--samples <count>] (default: 1)
                            [--list]
                            [*|host|<vmname> [<metric_list>]]

  metrics                   query [*|host|<vmname> [<metric_list>]]

  metrics                   enable
                            [--list]
                            [*|host|<vmname> [<metric_list>]]

  metrics                   disable
                            [--list]
                            [*|host|<vmname> [<metric_list>]]

  metrics                   collect
                            [--period <seconds>] (default: 1)
                            [--samples <count>] (default: 1)
                            [--list]
                            [--detach]
                            [*|host|<vmname> [<metric_list>]]

  natnetwork                add --netname <name>
                            --network <network>
                            [--enable|--disable]
                            [--dhcp on|off]
                            [--port-forward-4 <rule>]
                            [--loopback-4 <rule>]
                            [--ipv6 on|off]
                            [--port-forward-6 <rule>]
                            [--loopback-6 <rule>]

  natnetwork                remove --netname <name>

  natnetwork                modify --netname <name>
                            [--network <network>]
                            [--enable|--disable]
                            [--dhcp on|off]
                            [--port-forward-4 <rule>]
                            [--loopback-4 <rule>]
                            [--ipv6 on|off]
                            [--port-forward-6 <rule>]
                            [--loopback-6 <rule>]

  natnetwork                start --netname <name>

  natnetwork                stop --netname <name>

  natnetwork                list [<pattern>]

  hostonlyif                ipconfig <name>
                            [--dhcp |
                            --ip<ipv4> [--netmask<ipv4> (def: 255.255.255.0)] |
                            --ipv6<ipv6> [--netmasklengthv6<length> (def: 64)]]
                            create |
                            remove <name>

  dhcpserver                add|modify --netname <network_name> |
                                       --ifname <hostonly_if_name>
                            [--ip <ip_address>
                            --netmask <network_mask>
                            --lowerip <lower_ip>
                            --upperip <upper_ip>]
                            [--enable | --disable]
                            [--options [--vm <name> --nic <1-N>]
                             --id <number> [--value <string> | --remove]]
                             (multiple options allowed after --options)

  dhcpserver                remove --netname <network_name> |
                                   --ifname <hostonly_if_name>

  usbdevsource              add <source name>
                            --backend <backend>
                            --address <address>
  usbdevsource              remove <source name>

 Medium content access:

  VBoxManage mediumio <[--disk=uuid|filename] | [--dvd=uuid|filename] |
      [--floppy=uuid|filename]> [--password-file-|filename] formatfat [--quick]

  VBoxManage mediumio <[--disk=uuid|filename] | [--dvd=uuid|filename] |
      [--floppy=uuid|filename]> [--password-file-|filename] cat [--hex]
      [--offset=byte-offset] [--size=bytes] [--output=-|filename]

  VBoxManage mediumio <[--disk=uuid|filename] | [--dvd=uuid|filename] |
      [--floppy=uuid|filename]> [--password-file-|filename] stream
      [--format=image-format] [--variant=image-variant] [--output=-|filename]

 Introspection and guest debugging:

  VBoxManage debugvm <uuid|vmname> dumpvmcore [--filename=name]

  VBoxManage debugvm <uuid|vmname> info <item> [args...]

  VBoxManage debugvm <uuid|vmname> injectnmi

  VBoxManage debugvm <uuid|vmname> log [[--release] | [--debug]]
      [group-settings...]

  VBoxManage debugvm <uuid|vmname> logdest [[--release] | [--debug]]
      [destinations...]

  VBoxManage debugvm <uuid|vmname> logflags [[--release] | [--debug]] [flags...]

  VBoxManage debugvm <uuid|vmname> osdetect

  VBoxManage debugvm <uuid|vmname> osinfo

  VBoxManage debugvm <uuid|vmname> osdmesg [--lines=lines]

  VBoxManage debugvm <uuid|vmname> getregisters [--cpu=id] [reg-set.reg-name...]

  VBoxManage debugvm <uuid|vmname> setregisters [--cpu=id]
      [reg-set.reg-name=value...]

  VBoxManage debugvm <uuid|vmname> show [[--human-readable] | [--sh-export] |
      [--sh-eval] | [--cmd-set]] [settings-item...]

  VBoxManage debugvm <uuid|vmname> stack [--cpu=id]

  VBoxManage debugvm <uuid|vmname> statistics [--reset] [--descriptions]
      [--pattern=pattern]

 Extension package management:

  VBoxManage extpack install [--replace] <tarball>

  VBoxManage extpack uninstall [--force] <name>

  VBoxManage extpack cleanup

 Unattended guest OS installation:

  VBoxManage unattended detect <--iso=install-iso> [--machine-readable]

  VBoxManage unattended install <uuid|vmname> <--iso=install-iso> [--user=login]
      [--password=password] [--password-file=file] [--full-user-name=name]
      [--key=product-key] [--install-additions] [--no-install-additions]
      [--additions-iso=add-iso] [--install-txs] [--no-install-txs]
      [--validation-kit-iso=testing-iso] [--locale=ll_CC] [--country=CC]
      [--time-zone=tz] [--hostname=fqdn]
      [--package-selection-adjustment=keyword] [--dry-run]
      [--auxiliary-base-path=path] [--image-index=number]
      [--script-template=file] [--post-install-template=file]
      [--post-install-command=command]
      [--extra-install-kernel-parameters=params] [--language=lang]
      [--start-vm=session-type]

$

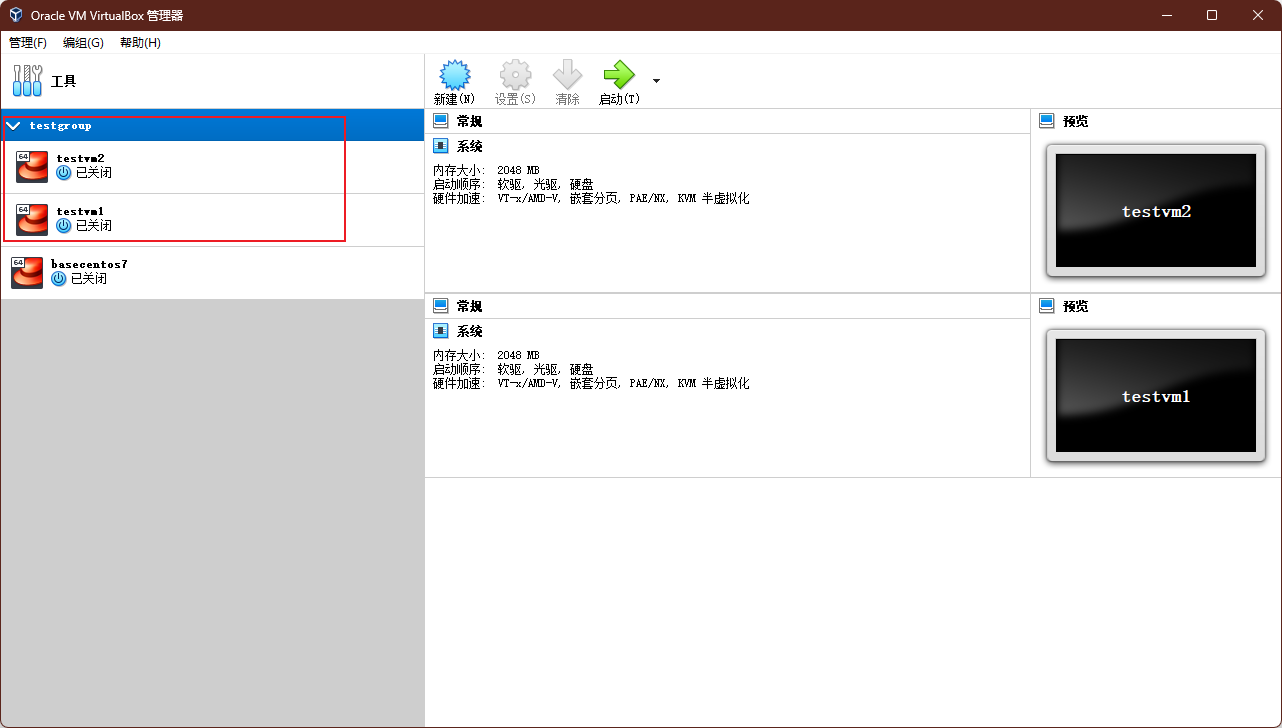

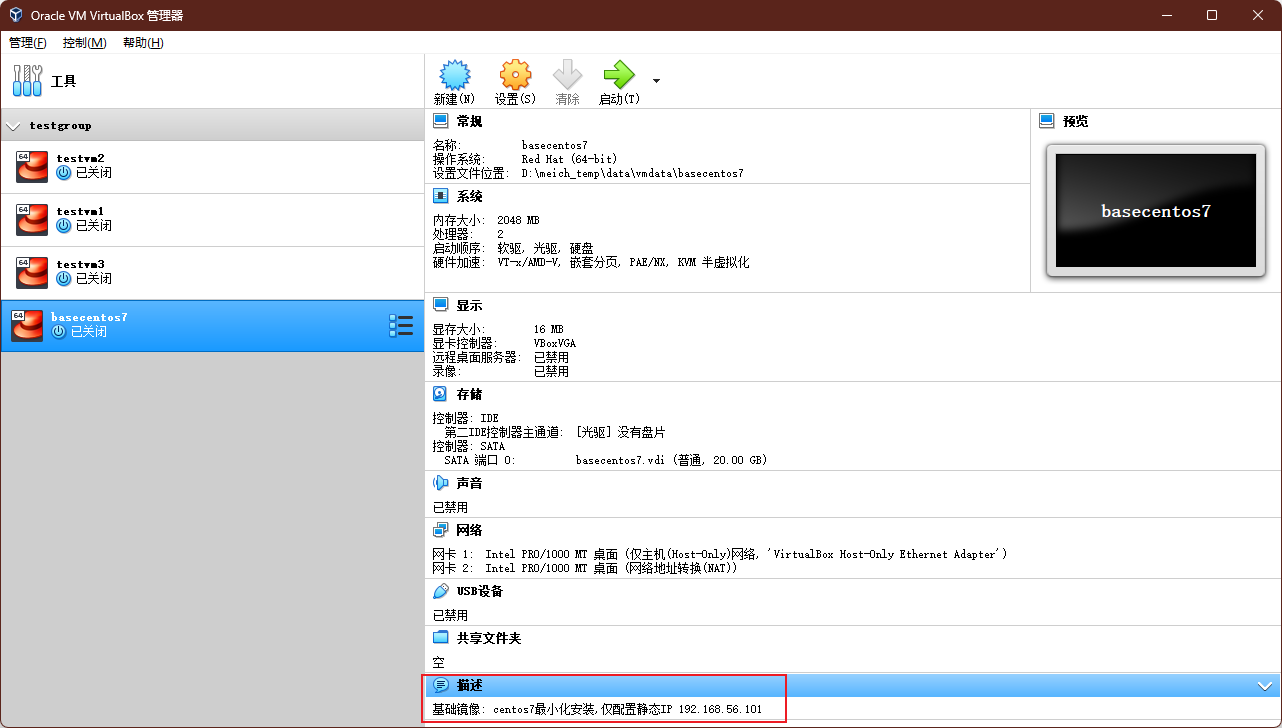

1.3 虚拟机组

虚拟机组就是将某些虚拟机存放到一个组中,便于管理。

就像上图中一下,有两个虚拟机组,一个存放Linux操作系统的虚拟机,一个存放Windows操作系统的虚拟机。

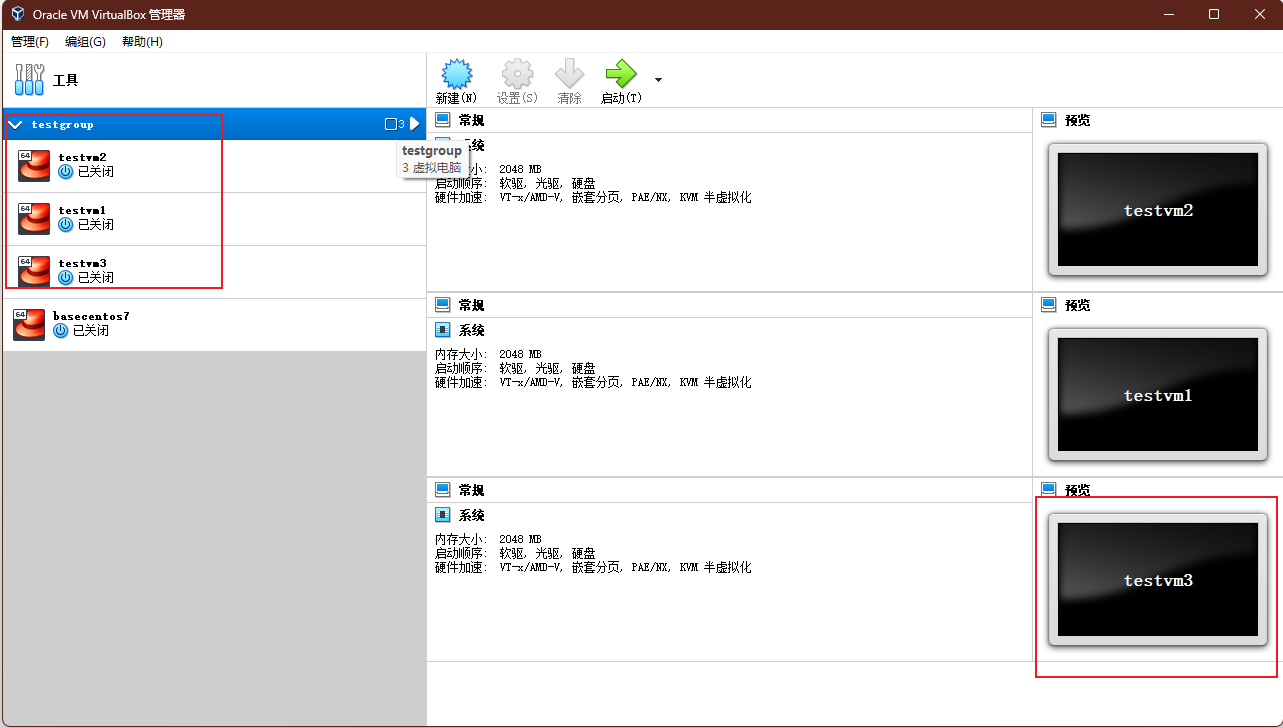

有几种方式创建虚拟机组:

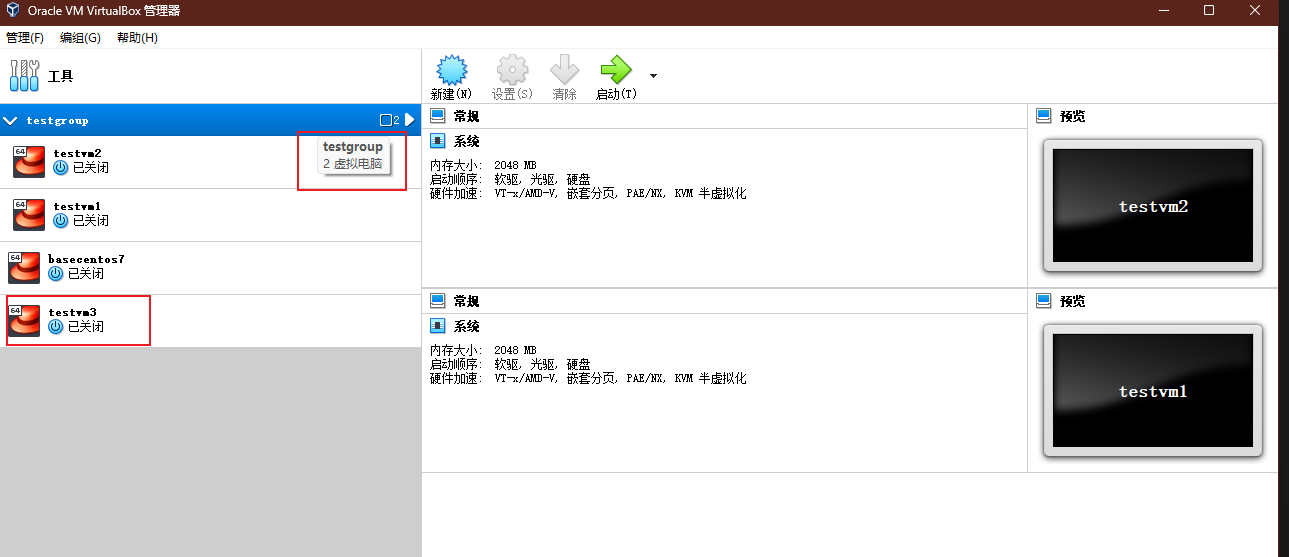

  • 将一个虚拟机拖动到另外一个虚拟机上。
  • 选择多个虚拟机,然后选择【编组】。
  • 通过命令行设置虚拟机组。

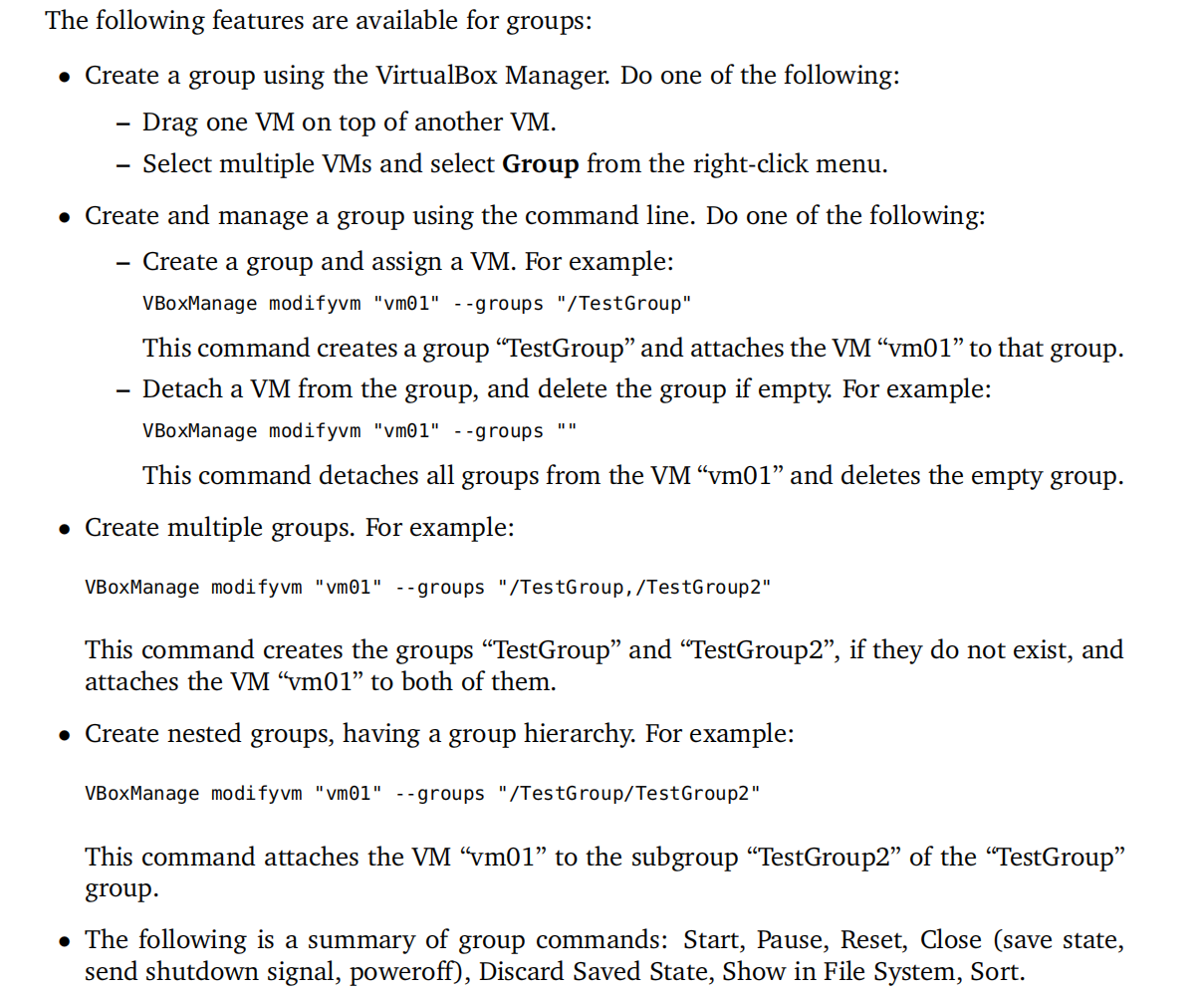

详细可参考手册1.10节:

2. 命令行基本使用

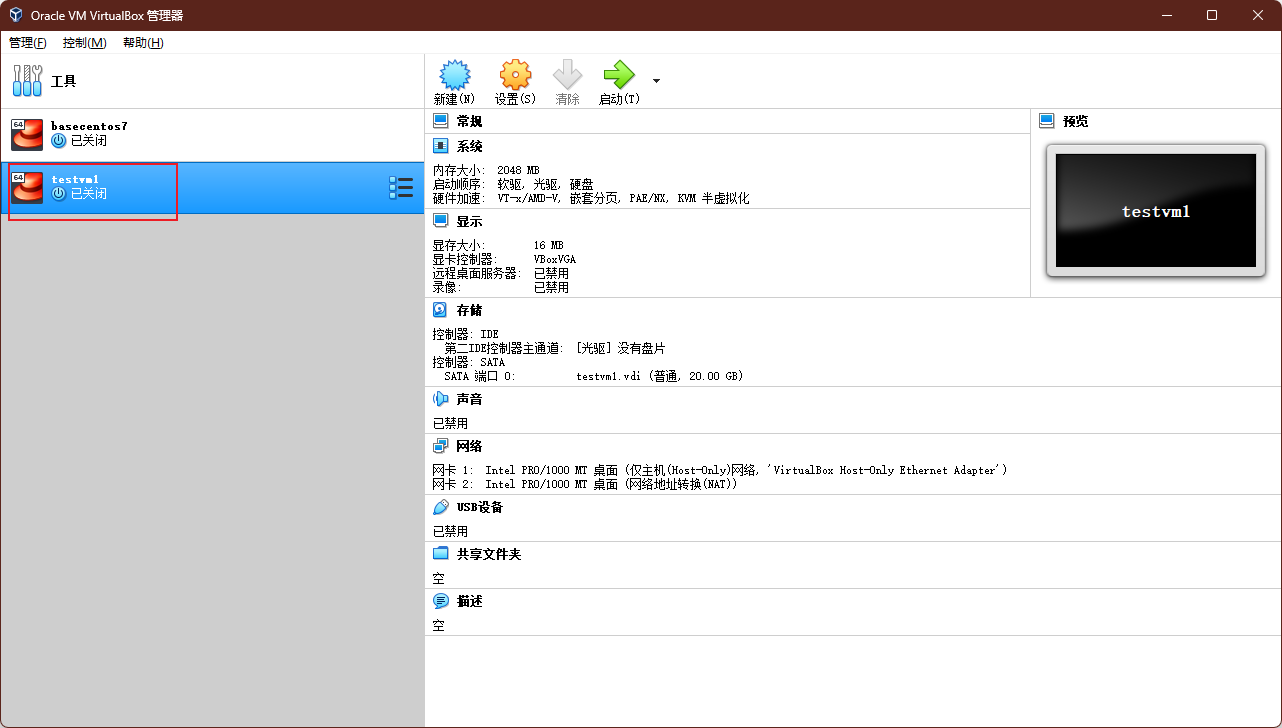

我之前创建了一个虚拟机basecentos7

2.1 查看注册了哪些虚拟机

8.4 VBoxManage list

The list command gives relevant information about your system and information about Oracle

VM VirtualBox’s current settings.

The following subcommands are available with VBoxManage list:

vms: Lists all virtual machines currently registered with Oracle VM VirtualBox. By default

this displays a compact list with each VM’s name and UUID. If you also specify --long or

-l, this will be a detailed list as with the showvminfo command, see chapter 8.5, VBox

Manage showvminfo, page 133.

即:

  • VBoxManage list vms可以列出当前在VirtualBox中注册的虚拟机。只显示每个虚拟机的nameUUID属性。
  • 如果指定--long-l参数,则显示虚拟机详细信息。

实际执行一下:

sh
# 查看注册虚拟机
$ VBoxManage list vms
"basecentos7" {04503e84-4597-494d-bdf7-ceb80acd96bd}

# 查看注册虚拟机详情,此处只列出前4行
$ VBoxManage list vms -l|head -n 4
Name:                        basecentos7
Groups:                      /
Guest OS:                    Red Hat (64-bit)
UUID:                        04503e84-4597-494d-bdf7-ceb80acd96bd
$

2.1.1 查看单个虚拟机详情

也可以通过showvminfo来查看虚拟机详情信息。

sh
# 查看帮助信息
$ vbm help showvminfo
Oracle VM VirtualBox Command Line Management Interface Version 6.0.12
(C) 2005-2019 Oracle Corporation
All rights reserved.

Usage:

VBoxManage showvminfo       <uuid|vmname> [--details]
                            [--machinereadable]
VBoxManage showvminfo       <uuid|vmname> --log <idx>

# 查看basecentos7虚拟机的详细信息
$ vbm showvminfo basecentos7
Name:                        basecentos7
Groups:                      /
Guest OS:                    Red Hat (64-bit)
UUID:                        04503e84-4597-494d-bdf7-ceb80acd96bd
Config file:                 D:\meich_temp\data\vmdata\basecentos7\basecentos7.vbox
Snapshot folder:             D:\meich_temp\data\vmdata\basecentos7\Snapshots
Log folder:                  D:\meich_temp\data\vmdata\basecentos7\Logs
Hardware UUID:               04503e84-4597-494d-bdf7-ceb80acd96bd
Memory size                  2048MB
Page Fusion:                 disabled
VRAM size:                   16MB
CPU exec cap:                100%
HPET:                        disabled
CPUProfile:                  host
Chipset:                     piix3
Firmware:                    BIOS
Number of CPUs:              1
PAE:                         enabled
Long Mode:                   enabled
Triple Fault Reset:          disabled
APIC:                        enabled
X2APIC:                      enabled
Nested VT-x/AMD-V:           disabled
CPUID Portability Level:     0
CPUID overrides:             None
Boot menu mode:              message and menu
Boot Device 1:               Floppy
Boot Device 2:               DVD
Boot Device 3:               HardDisk
Boot Device 4:               Not Assigned
ACPI:                        enabled
IOAPIC:                      enabled
BIOS APIC mode:              APIC
Time offset:                 0ms
RTC:                         UTC
Hardw. virt.ext:             enabled
Nested Paging:               enabled
Large Pages:                 enabled
VT-x VPID:                   enabled
VT-x unr. exec.:             enabled
Paravirt. Provider:          Default
Effective Paravirt. Prov.:   KVM
State:                       powered off (since 2023-11-24T13:51:25.000000000)
Monitor count:               1
3D Acceleration:             disabled
2D Video Acceleration:       disabled
Teleporter Enabled:          disabled
Teleporter Port:             0
Teleporter Address:
Teleporter Password:
Tracing Enabled:             disabled
Allow Tracing to Access VM:  disabled
Tracing Configuration:
Autostart Enabled:           disabled
Autostart Delay:             0
Default Frontend:
Storage Controller Name (0):            IDE
Storage Controller Type (0):            PIIX4
Storage Controller Instance Number (0): 0
Storage Controller Max Port Count (0):  2
Storage Controller Port Count (0):      2
Storage Controller Bootable (0):        on
Storage Controller Name (1):            SATA
Storage Controller Type (1):            IntelAhci
Storage Controller Instance Number (1): 0
Storage Controller Max Port Count (1):  30
Storage Controller Port Count (1):      1
Storage Controller Bootable (1):        on
IDE (1, 0): Empty
SATA (0, 0): D:\meich_temp\data\vmdata\basecentos7\basecentos7.vdi (UUID: 9e158dcc-2e24-442a-80d2-4762d5588ddf)
NIC 1:                       MAC: 08002774DC60, Attachment: Host-only Interface 'VirtualBox Host-Only Ethernet Adapter', Cable connected: on, Trace: off (file: none), Type: 82540EM, Reported speed: 0 Mbps, Boot priority: 0, Promisc Policy: deny, Bandwidth group: none
NIC 2:                       MAC: 0800273FCD77, Attachment: NAT, Cable connected: on, Trace: off (file: none), Type: 82540EM, Reported speed: 0 Mbps, Boot priority: 0, Promisc Policy: deny, Bandwidth group: none
NIC 2 Settings:  MTU: 0, Socket (send: 64, receive: 64), TCP Window (send:64, receive: 64)
NIC 3:                       disabled
NIC 4:                       disabled
NIC 5:                       disabled
NIC 6:                       disabled
NIC 7:                       disabled
NIC 8:                       disabled
Pointing Device:             PS/2 Mouse
Keyboard Device:             PS/2 Keyboard
UART 1:                      disabled
UART 2:                      disabled
UART 3:                      disabled
UART 4:                      disabled
LPT 1:                       disabled
LPT 2:                       disabled
Audio:                       disabled
Audio playback:              enabled
Audio capture:               disabled
Clipboard Mode:              disabled
Drag and drop Mode:          disabled
VRDE:                        disabled
OHCI USB:                    disabled
EHCI USB:                    disabled
xHCI USB:                    disabled

USB Device Filters:

<none>

Bandwidth groups:  <none>

Shared folders:<none>

Capturing:                   not active
Capture audio:               not active
Capture screens:             0
Capture file:                D:\meich_temp\data\vmdata\basecentos7\basecentos7.webm
Capture dimensions:          1024x768
Capture rate:                512kbps
Capture FPS:                 25kbps
Capture options:

Guest:

Configured memory balloon size: 0MB

2.2 设置快捷命令

感觉手敲VBoxManage命令有点长,我设置一个快捷命令,后续都使用快捷命令来操作。

sh
alias vbm='VBoxManage'

可以将该快捷命令加入到~/.bashrc配置文件中,然后重新加载配置文件,后面就可以一直使用该快捷命令了。

使用快捷命令查看注册虚拟机:

sh
$ vbm list vms
"basecentos7" {04503e84-4597-494d-bdf7-ceb80acd96bd}

2.3 启动虚拟机

可以使用startvm来启动虚拟机,默认是GUI模式;也可以使用headless无头模式后台启动。

gui

Starts a VM showing a GUI window. This is the default.

headless

Starts a VM without a window for remote display only

查看starvm的帮助信息:

sh
$ vbm help startvm
Oracle VM VirtualBox Command Line Management Interface Version 6.0.12
(C) 2005-2019 Oracle Corporation
All rights reserved.

Usage:

VBoxManage startvm          <uuid|vmname>...
                            [--type gui|sdl|headless|separate]
                            [-E|--putenv <NAME>[=<VALUE>]]

2.3.1 GUI模式启动虚拟机

启动basecentos7虚拟机:

sh
$ vbm startvm basecentos7
Waiting for VM "basecentos7" to power on...
VM "basecentos7" has been successfully started.

效果图:

此时可以看到,启动了basecentos7虚拟机,窗口自动启动,并显示在登录界面。

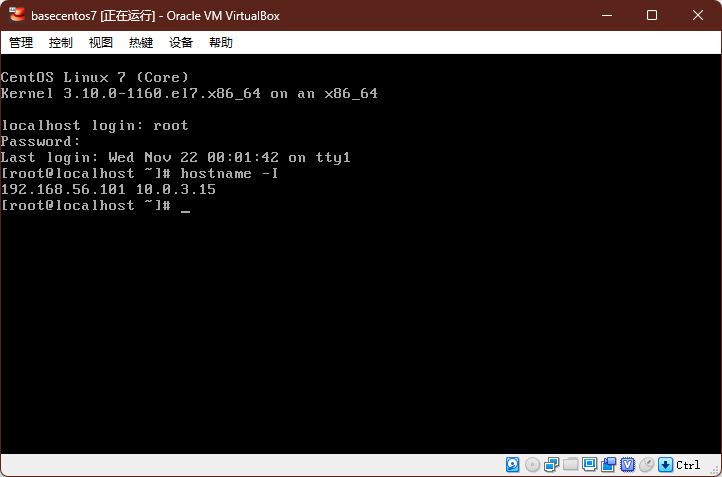

使用root账号登录后,查看虚拟机IP信息:

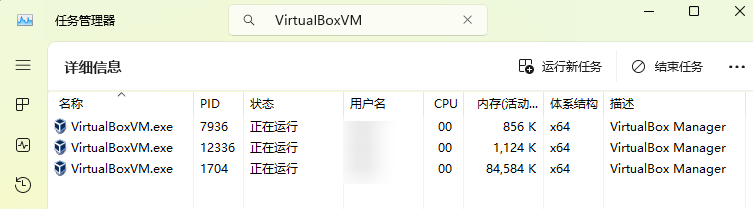

在任务管理器可以看到此时有三个VirtualBoxVM.exe的进程:

使用shutdown -h now命令将虚拟机关机。

2.3.2 无头模式启动虚拟机

无头模式启动basecentos7虚拟机:

sh
$ vbm startvm basecentos7 --type headless
Waiting for VM "basecentos7" to power on...
VM "basecentos7" has been successfully started.

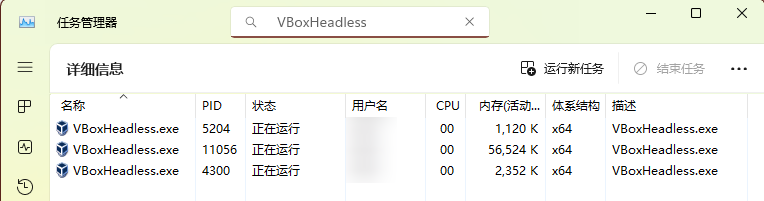

此时,没有弹出新的窗口。在任务管理器可以看到此时有三个VBoxHeadless.exe的进程:

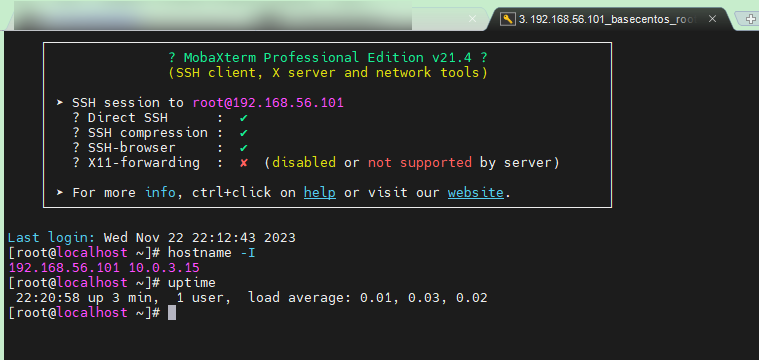

此时,可以通过mobaxterm远程连接到虚拟机:

通过GUI模式和无头模式对比内存使用量:

进程GUI模式(KB)无头模式(KB)
进程18561120
进程211242352
进程38458456524
总内存8656459996
下降内存大小26568-
下降内存百分比30.69%-

可以看到内存下降百分比达到30.69%,由于我大部分都是在终端远程连接到虚拟机,所以使用无头模式可以节约内存。

2.4 显示正在运行的虚拟机

  • 可以使用VBoxManage list runningvms来显示正在运行的虚拟机。

如上一节中我们启动了basecentos7虚拟机,现在查看一下:

sh
$ vbm list runningvms
"basecentos7" {04503e84-4597-494d-bdf7-ceb80acd96bd}

可以看到显示出正在运行的虚拟机是basecentos7

2.5 克隆虚拟机

查看克隆虚拟机使用的命令帮助信息:

sh
$ vbm help clonevm
Oracle VM VirtualBox Command Line Management Interface Version 6.0.12
(C) 2005-2019 Oracle Corporation
All rights reserved.

Usage:

VBoxManage clonevm          <uuid|vmname>
                            [--snapshot <uuid>|<name>]
                            [--mode machine|machineandchildren|all]
                            [--options link|keepallmacs|keepnatmacs|
                                       keepdisknames|keephwuuids]
                            [--name <name>]
                            [--groups <group>, ...]
                            [--basefolder <basefolder>]
                            [--uuid <uuid>]
                            [--register]

参数说明:

  • --snapshot,指定从虚拟机的哪个快照克隆,默认从当前状态克隆虚拟机。
  • --mode, 指定克隆模式,默认使用machine模式,不克隆虚拟机的任何快照。
  • --options,选项,指定如何来创建新的虚拟机。
    • link,创建一个链接克隆。
    • keepallmacs ,保持所有MAC地址。如果你不指定--options keepnatmacs,默认行为是为所有虚拟网卡重新生成新的MAC地址。
    • keepnatmacs ,当虚拟机网卡网络类型是NAT,保持所有MAC地址。如果你不指定--options keepallmacs,默认行为是为所有虚拟网卡重新生成新的MAC地址。
    • keepdisknames ,克隆时保留磁盘镜像名称。默认行为是重新命名磁盘镜像名称。你可以使用keephwuuids选项来保留硬件ID信息。
    • keephwuuids,保留硬件ID信息。默认行为是重新生成硬件UUID值。
  • --name, 指定新的虚拟机的名称,默认是name Clone
  • --register,自动注册新创建的虚拟机到VirtualBox中。你也可以通过使用registervm来手动注册。
  • --basefolder,指定新的虚拟机配置文件存放在哪个目录。一般可以不用修改,保持默认即可。
  • --uuid,指定虚拟机的UUID值,请确保UUID值唯一。默认情况下,会自动生成新的UUID值。

通常情况下,需要通过克隆虚拟机来新建一个虚拟机。希望自动从当前状态克隆、自动重新生成MAC地址、自动注册虚拟机、自动生成UUID值,因此,只需要指定--name--register两个参数就行了。

2.5.1 克隆正在运行的虚拟机

警告

正在运行的虚拟机不能克隆。

上一节中basecentos7虚拟机正在运行,尝试克隆一下,克隆新的虚拟机命令为testvm1:

sh
$ vbm clonevm basecentos7 --name "testvm1" --register
0%...
Progress state: VBOX_E_INVALID_OBJECT_STATE
VBoxManage.exe: error: Clone VM failed
VBoxManage.exe: error: Failed to lock source media 'basecentos7\basecentos7.vdi'
VBoxManage.exe: error: Details: code VBOX_E_INVALID_OBJECT_STATE (0x80bb0007), component MediumWrap, interface IMedium
VBoxManage.exe: error: Context: "enum RTEXITCODE __cdecl handleCloneVM(struct HandlerArg *)" at line 609 of file VBoxManageMisc.cpp

可以看到克隆报错了。

2.5.2 克隆已经关机的虚拟机

远程登录到basecentos7虚拟机,并使用shutdown -h now命令关机。

虚拟机关机后,再执行克隆操作:

sh
# 查看正在运行的虚拟机,可以看到没有正在运行的虚拟机
$ vbm list runningvms

# 克隆虚拟机,可以看到克隆成功
$ vbm clonevm basecentos7 --name "testvm1" --register
0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
Machine has been successfully cloned as "testvm1"

# 查看当前注册了的虚拟机
$ vbm list vms
"basecentos7" {04503e84-4597-494d-bdf7-ceb80acd96bd}
"testvm1" {6938489f-41aa-4982-903d-9fe0ea6d36f8}

此时查看virutalBox界面:

可以看到刚才克隆的testvm1虚拟机。

相同的方式,我们再克隆一台testvm2虚拟机出来。

sh
# 克隆虚拟机,可以看到克隆成功
$ vbm clonevm basecentos7 --name "testvm2" --register
0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
Machine has been successfully cloned as "testvm2"

# 查看当前注册了的虚拟机
$ vbm list vms
"basecentos7" {04503e84-4597-494d-bdf7-ceb80acd96bd}
"testvm1" {6938489f-41aa-4982-903d-9fe0ea6d36f8}
"testvm2" {b2c3364f-c077-4c2d-afd6-aafecbefa020}

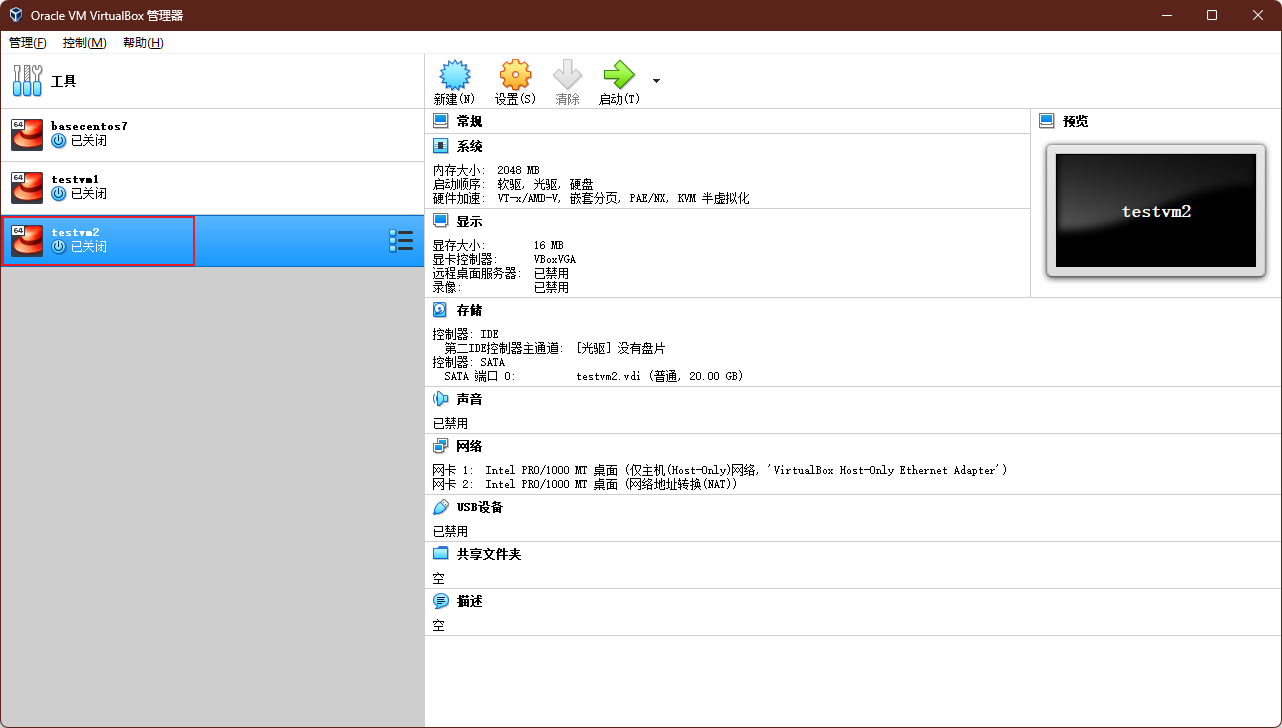

此时查看virutalBox界面:

可以看到刚才克隆的testvm2虚拟机。

2.5.3 克隆虚拟机时设置虚拟机组

为了测试克隆时自动创建虚拟机组,我们选中testvmtestvm2虚拟机,并右键,选择【编组】,并重命名组名为testgroup

编组后显示如下:

此时,创建虚拟机testvm3,并指定虚拟机组为/testgroup:

sh
$ vbm clonevm basecentos7 --name "testvm3" --register --groups "/testgroup"
0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
Machine has been successfully cloned as "testvm3"

此时,可以看到testvm3并没有自动加入到/testgroup组中:

通过modifyvm命令将其加入到/testgroup组中:

sh
$ vbm modifyvm testvm3 --groups=/testgroup

此时在virtualBox GUI界面没有自动刷新,没有正常将testvm3虚拟机放到/testgroup组中。

关闭virtualBox 界面,重新打开,此时可以看到testvm3虚拟机已经在/testgroup组中了:

这是一个bug,对应的issue问题单 GUI: VM grouping not updating automatically if changed via VBoxManage, 该问题已经在 VirtualBox 7.0.6 and 6.1.42 中解决,由于我的版本是6.0.12,因此还有该问题。

此时查看testvm3的信息,也可以看到对应的group组信息不是默认的/组了:

sh
$ vbm showvminfo testvm3|head -n 4
Name:                        testvm3
Groups:                      /testgroup
Guest OS:                    Red Hat (64-bit)
UUID:                        9c08154f-62e6-4f8e-a23f-75e84297e703

2.6 修改虚拟机设置

查看modifyvm帮助信息:

sh
$ vbm help modifyvm
Oracle VM VirtualBox Command Line Management Interface Version 6.0.12
(C) 2005-2019 Oracle Corporation
All rights reserved.

Usage:

VBoxManage modifyvm         <uuid|vmname>
                            [--name <name>]
                            [--groups <group>, ...]
                            [--description <desc>]
                            [--ostype <ostype>]
                            [--iconfile <filename>]
                            [--memory <memorysize in MB>]
                            [--pagefusion on|off]
                            [--vram <vramsize in MB>]
                            [--acpi on|off]
                            [--pciattach 03:04.0]
                            [--pciattach 03:04.0@02:01.0]
                            [--pcidetach 03:04.0]
                            [--ioapic on|off]
                            [--hpet on|off]
                            [--triplefaultreset on|off]
                            [--apic on|off]
                            [--x2apic on|off]
                            [--paravirtprovider none|default|legacy|minimal|
                                                hyperv|kvm]
                            [--paravirtdebug <key=value> [,<key=value> ...]]
                            [--hwvirtex on|off]
                            [--nestedpaging on|off]
                            [--largepages on|off]
                            [--vtxvpid on|off]
                            [--vtxux on|off]
                            [--pae on|off]
                            [--longmode on|off]
                            [--ibpb-on-vm-exit on|off]
                            [--ibpb-on-vm-entry on|off]
                            [--spec-ctrl on|off]
                            [--l1d-flush-on-sched on|off]
                            [--l1d-flush-on-vm-entry on|off]
                            [--mds-clear-on-sched on|off]
                            [--mds-clear-on-vm-entry on|off]
                            [--nested-hw-virt on|off]
                            [--cpu-profile "host|Intel 80[86|286|386]"]
                            [--cpuid-portability-level <0..3>
                            [--cpuid-set <leaf[:subleaf]> <eax> <ebx> <ecx> <edx>]
                            [--cpuid-remove <leaf[:subleaf]>]
                            [--cpuidremoveall]
                            [--hardwareuuid <uuid>]
                            [--cpus <number>]
                            [--cpuhotplug on|off]
                            [--plugcpu <id>]
                            [--unplugcpu <id>]
                            [--cpuexecutioncap <1-100>]
                            [--rtcuseutc on|off]
                            [--graphicscontroller none|vboxvga|vmsvga|vboxsvga]
                            [--monitorcount <number>]
                            [--accelerate3d on|off]
                            [--accelerate2dvideo on|off]
                            [--firmware bios|efi|efi32|efi64]
                            [--chipset ich9|piix3]
                            [--bioslogofadein on|off]
                            [--bioslogofadeout on|off]
                            [--bioslogodisplaytime <msec>]
                            [--bioslogoimagepath <imagepath>]
                            [--biosbootmenu disabled|menuonly|messageandmenu]
                            [--biosapic disabled|apic|x2apic]
                            [--biossystemtimeoffset <msec>]
                            [--biospxedebug on|off]
                            [--boot<1-4> none|floppy|dvd|disk|net>]
                            [--nic<1-N> none|null|nat|bridged|intnet|hostonly|
                                        generic|natnetwork]
                            [--nictype<1-N> Am79C970A|Am79C973|
                                            82540EM|82543GC|82545EM|
                                            virtio]
                            [--cableconnected<1-N> on|off]
                            [--nictrace<1-N> on|off]
                            [--nictracefile<1-N> <filename>]
                            [--nicproperty<1-N> name=[value]]
                            [--nicspeed<1-N> <kbps>]
                            [--nicbootprio<1-N> <priority>]
                            [--nicpromisc<1-N> deny|allow-vms|allow-all]
                            [--nicbandwidthgroup<1-N> none|<name>]
                            [--bridgeadapter<1-N> none|<devicename>]
                            [--hostonlyadapter<1-N> none|<devicename>]
                            [--intnet<1-N> <network name>]
                            [--nat-network<1-N> <network name>]
                            [--nicgenericdrv<1-N> <driver>
                            [--natnet<1-N> <network>|default]
                            [--natsettings<1-N> [<mtu>],[<socksnd>],
                                                [<sockrcv>],[<tcpsnd>],
                                                [<tcprcv>]]
                            [--natpf<1-N> [<rulename>],tcp|udp,[<hostip>],
                                          <hostport>,[<guestip>],<guestport>]
                            [--natpf<1-N> delete <rulename>]
                            [--nattftpprefix<1-N> <prefix>]
                            [--nattftpfile<1-N> <file>]
                            [--nattftpserver<1-N> <ip>]
                            [--natbindip<1-N> <ip>
                            [--natdnspassdomain<1-N> on|off]
                            [--natdnsproxy<1-N> on|off]
                            [--natdnshostresolver<1-N> on|off]
                            [--nataliasmode<1-N> default|[log],[proxyonly],
                                                         [sameports]]
                            [--macaddress<1-N> auto|<mac>]
                            [--mouse ps2|usb|usbtablet|usbmultitouch]
                            [--keyboard ps2|usb
                            [--uart<1-N> off|<I/O base> <IRQ>]
                            [--uartmode<1-N> disconnected|
                                             server <pipe>|
                                             client <pipe>|
                                             tcpserver <port>|
                                             tcpclient <hostname:port>|
                                             file <file>|
                                             <devicename>]
                            [--uarttype<1-N> 16450|16550A|16750
                            [--lpt<1-N> off|<I/O base> <IRQ>]
                            [--lptmode<1-N> <devicename>]
                            [--guestmemoryballoon <balloonsize in MB>]
                            [--audio none|null|dsound]
                            [--audioin on|off]
                            [--audioout on|off]
                            [--audiocontroller ac97|hda|sb16]
                            [--audiocodec stac9700|ad1980|stac9221|sb16]
                            [--clipboard disabled|hosttoguest|guesttohost|
                                         bidirectional]
                            [--draganddrop disabled|hosttoguest|guesttohost|
                                         bidirectional]
                            [--vrde on|off]
                            [--vrdeextpack default|<name>
                            [--vrdeproperty <name=[value]>]
                            [--vrdeport <hostport>]
                            [--vrdeaddress <hostip>]
                            [--vrdeauthtype null|external|guest]
                            [--vrdeauthlibrary default|<name>
                            [--vrdemulticon on|off]
                            [--vrdereusecon on|off]
                            [--vrdevideochannel on|off]
                            [--vrdevideochannelquality <percent>]
                            [--usbohci on|off]
                            [--usbehci on|off]
                            [--usbxhci on|off]
                            [--usbrename <oldname> <newname>]
                            [--snapshotfolder default|<path>]
                            [--teleporter on|off]
                            [--teleporterport <port>]
                            [--teleporteraddress <address|empty>
                            [--teleporterpassword <password>]
                            [--teleporterpasswordfile <file>|stdin]
                            [--tracing-enabled on|off]
                            [--tracing-config <config-string>]
                            [--tracing-allow-vm-access on|off]
                            [--usbcardreader on|off]
                            [--autostart-enabled on|off]
                            [--autostart-delay <seconds>]
                            [--recording on|off]
                            [--recordingscreens all|<screen ID> [<screen ID> ...]]
                            [--recordingfile <filename>]
                            [--recordingvideores <width> <height>]
                            [--recordingvideorate <rate>]
                            [--recordingvideofps <fps>]
                            [--recordingmaxtime <s>]
                            [--recordingmaxsize <MB>]
                            [--recordingopts <key=value> [,<key=value> ...]]
                            [--defaultfrontend default|<name>]

可以看到modifyvm修改虚拟机的选项非常多,我们不一一测试实践。

2.6.1 增加虚拟机CPU核心数

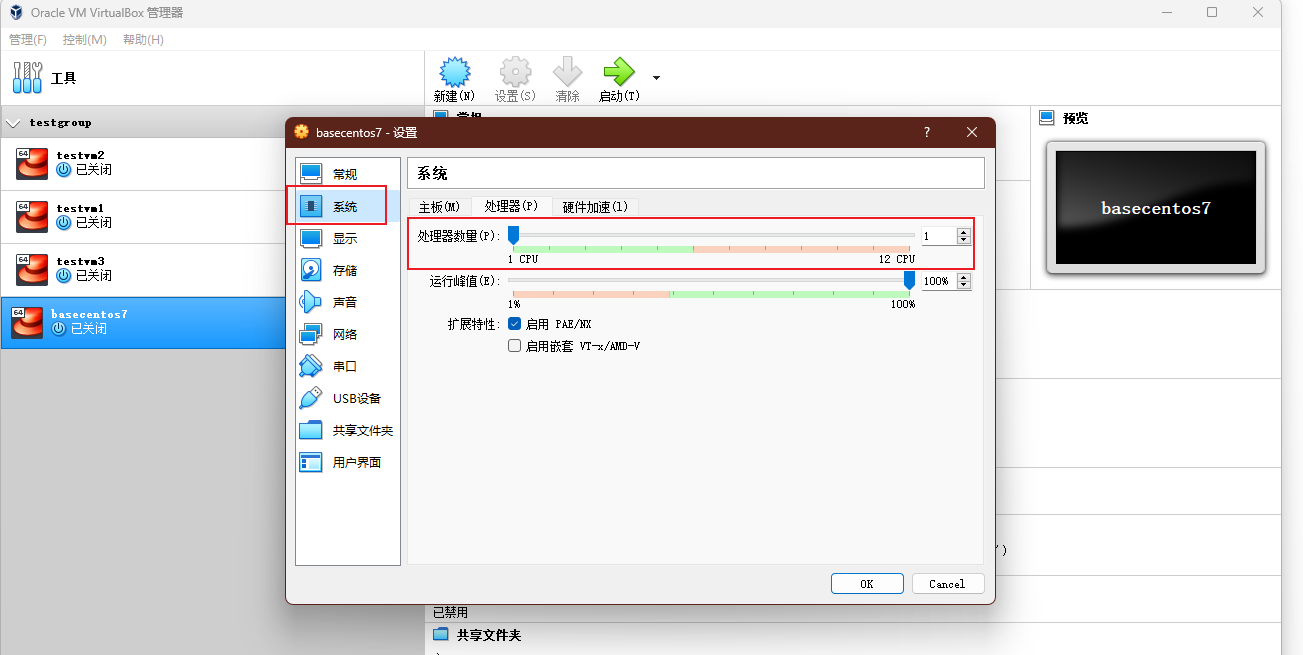

在部署 Kubernetes 时,通常需要配置2CPU的虚拟机。我配置的模板basecentos7的CPU核心数是1:

可以看到basecentos7的CPU核心数是1。可以在GUI界面将处理器数量调整为2。但为了测试命令行,我直接在命令行进行修改。

  • 查看修改前虚拟机CPU核心数
sh
$ vbm showvminfo basecentos7|grep -i cpus
Number of CPUs:              1

可以看到是1个CPU核心。

  • 使用modifyvm修改:
sh
$ vbm modifyvm basecentos7 --cpus 2
  • 再次查看修改前虚拟机CPU核心数
sh
$ vbm showvminfo basecentos7|grep -i cpus
Number of CPUs:              2

可以看到是2个CPU核心,已经修改成功了。

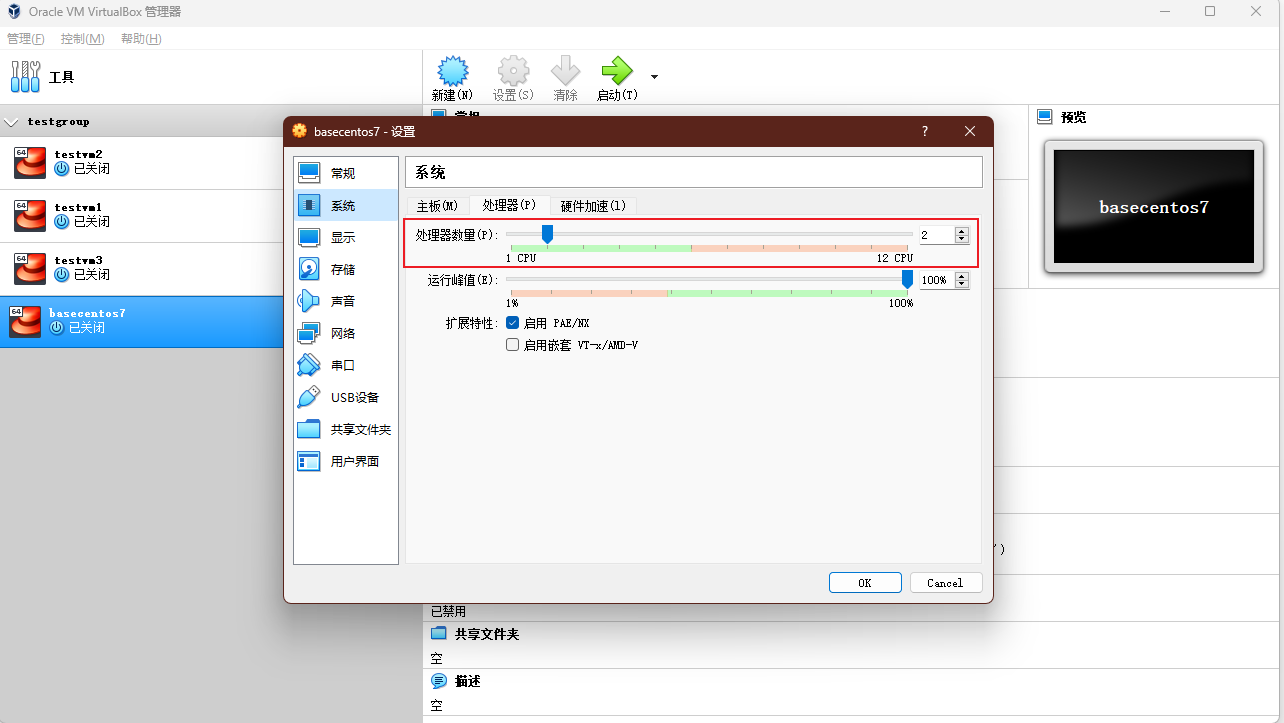

重新在界面上查看,可以看到处理器数量已经变成了2:

相同方式,将testvm1testvm2testvm3三个虚拟机的处理器数量修改为2。

sh
$ vbm modifyvm testvm1 --cpus 2
$ vbm modifyvm testvm2 --cpus 2
$ vbm modifyvm testvm3 --cpus 2

2.6.2 修改虚拟机说明信息

  • --description 参数可以用来修改虚拟机说明信息。

现在来修改basecentos7的描述信息为"基础镜像: centos7最小化安装,仅配置静态IP 192.168.56.101":

sh
$ vbm modifyvm basecentos7 --description "基础镜像: centos7最小化安装,仅配置静态IP 192.168.56.101"

修改后,查看虚拟机信息:

可以看到,描述信息已经正常显示了。

为了避免在命令行显示描述信息乱码,我们就描述信息修改为英文的。

sh
# 再次修改虚拟机说明
$ vbm modifyvm basecentos7 --description "Base image: centos7 Minimize installation. Only config the static IP 192.168.56.101"

# 查看修改后的描述信息
$ vbm showvminfo basecentos7|grep -A1 Description
Description:
Base image: centos7 Minimize installation. Only config the static IP 192.168.56.101

此时在界面上也可以看到描述发生了变化。

2.6.3 修改虚拟机内存

假如我想将testvm1作为Ansible控制节点,或者作为 Kubernetes 的主节点,希望将该虚拟机内存调大一些。将2GB=2048MB调整到4GB=4096MB,则按以下方法调整。

调整前,查看虚拟机内存信息:

sh
$ vbm showvminfo testvm1 |grep "Memory size"
Memory size                  2048MB

修改内存值,默认以MB为单位:

sh
$ vbm modifyvm testvm1 --memory 4096

再次查看虚拟机内存信息:

sh
$ vbm showvminfo testvm1 |grep "Memory size"
Memory size                  4096MB

可以看到内存信息已经调整成功。

2.7 快照管理

可以使用VBoxManage help snapshot查看快照相关的帮助信息:

sh
$ vbm help snapshot
Oracle VM VirtualBox Command Line Management Interface Version 6.0.12
(C) 2005-2019 Oracle Corporation
All rights reserved.

Usage:

VBoxManage snapshot         <uuid|vmname>
                            take <name> [--description <desc>] [--live]
                                 [--uniquename Number,Timestamp,Space,Force] |
                            delete <uuid|snapname> |
                            restore <uuid|snapname> |
                            restorecurrent |
                            edit <uuid|snapname>|--current
                                 [--name <name>]
                                 [--description <desc>] |
                            list [--details|--machinereadable] |
                            showvminfo <uuid|snapname>
$

2.7.1 获取虚拟机快照信息

  • 使用VBoxManage snapshot <vm> list来获取虚拟机的快照信息。

查看testvm1的快照信息:

sh
$ vbm snapshot testvm1 list
This machine does not have any snapshots

可以看到,此时没有任何快照。

2.7.2 创建快照

  • 使用VBoxManage snapshot <vm> take来创建虚拟机的快照。
    • <name>,需要指定快照名称。
    • --description <desc>,快照的描述信息。
    • --live,不停止虚拟机创建关照。

最好是关机后再进行虚拟机的快照创建。

sh
$ vbm snapshot testvm1 take "1_os_init" --description  "Minimize installation"
0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
Snapshot taken. UUID: 31863d6f-8d58-4d58-aa2e-01aed147602c

查看刚才创建的快照:

sh
$ vbm snapshot testvm1 list
   Name: 1_os_init (UUID: 31863d6f-8d58-4d58-aa2e-01aed147602c) *
   Description:
Minimize installation

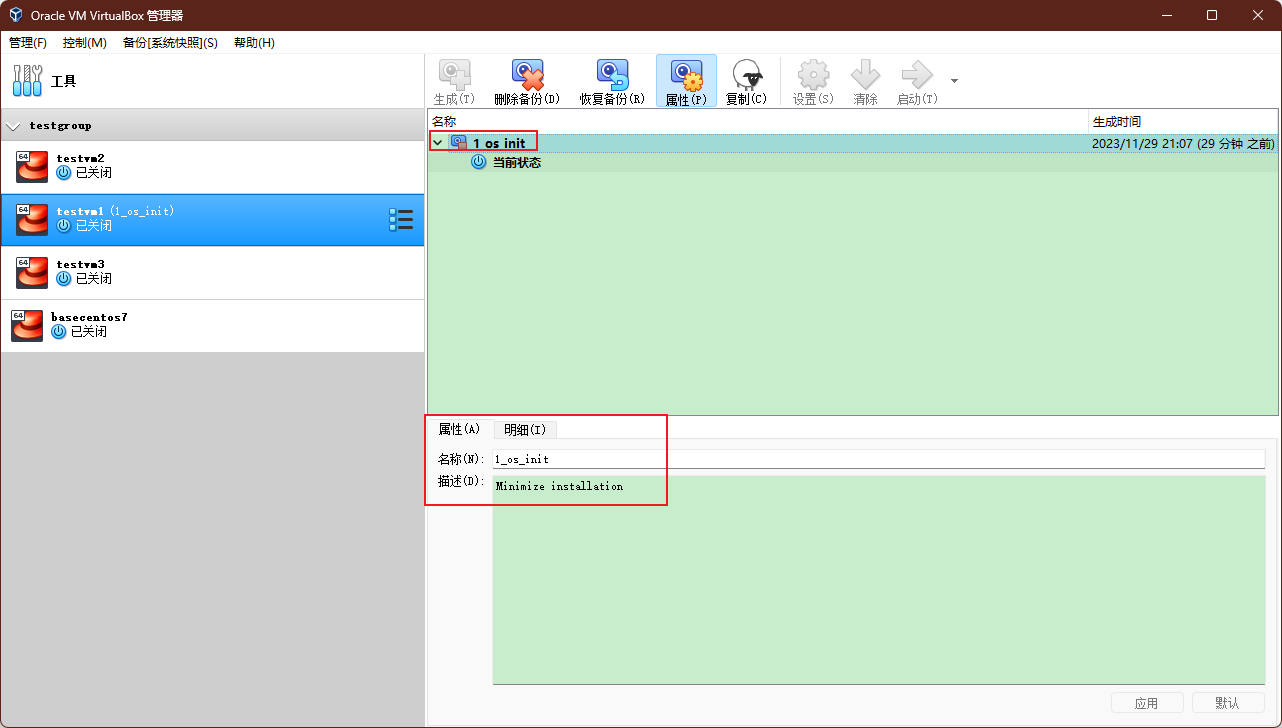

在VirtualBox界面上也可以看到刚创建的快照:

2.7.3 修改快照信息

  • 使用VBoxManage snapshot <vm> edit来修改虚拟机的快照信息。

如修改1_os_init快照名称:

sh
# 将testvm1虚拟机的1_os_init名称修改为0_os_init
$ vbm snapshot testvm1 edit 1_os_init --name "0_os_init"

# 再次查看快照信息
$ vbm snapshot testvm1 list
   Name: 0_os_init (UUID: 31863d6f-8d58-4d58-aa2e-01aed147602c) *
   Description:
Minimize installation

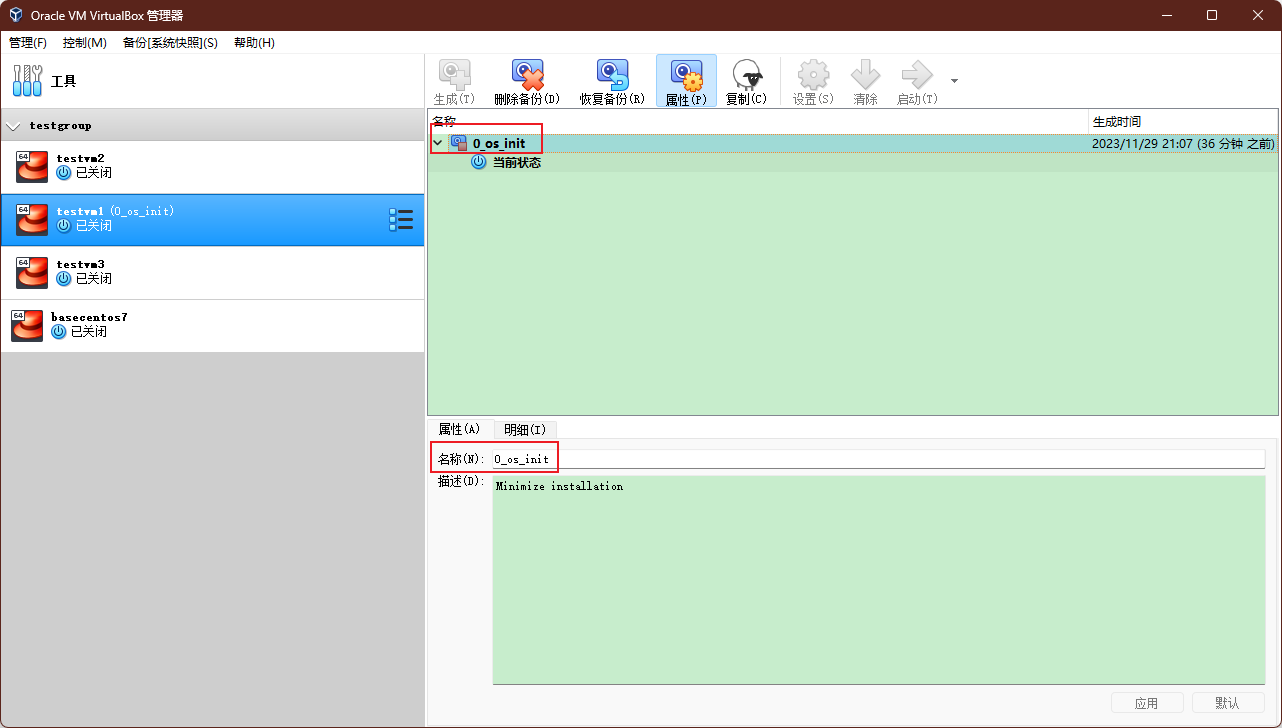

在VirtualBox界面上也可以看到快照的名称发生了变化:

2.7.4 删除快照

  • 使用VBoxManage snapshot <vm> delete来删除虚拟机的快照。

如将0_os_init快照删除:

sh
# 将testvm1虚拟机的名称为0_os_init快照删除
$ vbm snapshot testvm1 delete "0_os_init"
0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
Deleting snapshot '0_os_init' (31863d6f-8d58-4d58-aa2e-01aed147602c)

# 再次查看快照信息
$ vbm snapshot testvm1 list
This machine does not have any snapshots

可以看到,快照已经删除了。

3. 综合应用

3.1 修改虚拟机IP

到目前为止,我已经在VirtualBox中创建了4个虚拟机了,包括:

  • basecentos7,配置了静态IP,对应IP: 192.168.56.101。
  • testvm1,从basecentos7克隆来的,对应IP: 192.168.56.101。
  • testvm2,也是从basecentos7克隆来的,对应IP: 192.168.56.101。
  • testvm3,也是从basecentos7克隆来的,对应IP: 192.168.56.101。

如果我要修改新克隆的testvm1的IP,该怎么做:

可以看到克隆虚拟机后,这四台虚拟机的IP都是一样的。可以在克隆完成每台新的虚拟机出来后,远程连接到192.168.56.101服务器,然后手动修改/etc/sysconfig/network-scripts/ifcfg-enp0s3配置文件中IPADDR=192.168.56.101这一行内容,如修改为IPADDR=192.168.56.110,然后重启虚拟机,这时该虚拟机的IP就是192.168.56.110

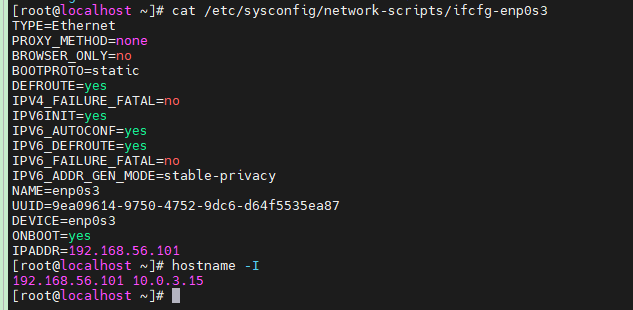

我先用终端工具连接到192.168.56.101主机:

另一种方式,就是使用ssh直接执行bash -s命令来调用脚本,自动帮修改虚拟机IP信息。

我们先来编写一个change_ip.sh脚本,用来修改新克隆虚拟机的IP。

sh
#!/bin/bash
# filename: change_ip.sh
# author:   meizhaohui
configfile=/etc/sysconfig/network-scripts/ifcfg-enp0s3
IP=$1
echo "待分配IP:${IP}"
echo "IP 修改前配置文件内容:"
cat "${configfile}"
sed -i "s/192.168.56.101/$IP/g" "${configfile}"
echo -e "\n=========================\n"
echo "IP 修改后配置文件内容:"
cat "${configfile}"
echo "重启虚拟机。请使用新IP($IP)重新登陆。"
shutdown -r now

注,脚本参考:ssh登录远程主机,让远程主机执行脚本文件,并传参

然后,在脚本所在目录执行以下命令:

sh
cat change_ip.sh |ssh root@192.168.56.101 "bash -s" "192.168.56.110"

命令中:

  • "192.168.56.110"是传递给change_ip.sh脚本的参数。
  • ssh root@192.168.56.101表示通过ssh连接到192.168.56.101主机。
  • "bash -s"表示需要在远程主机执行的命令,此处就是执行change_ip.sh脚本。

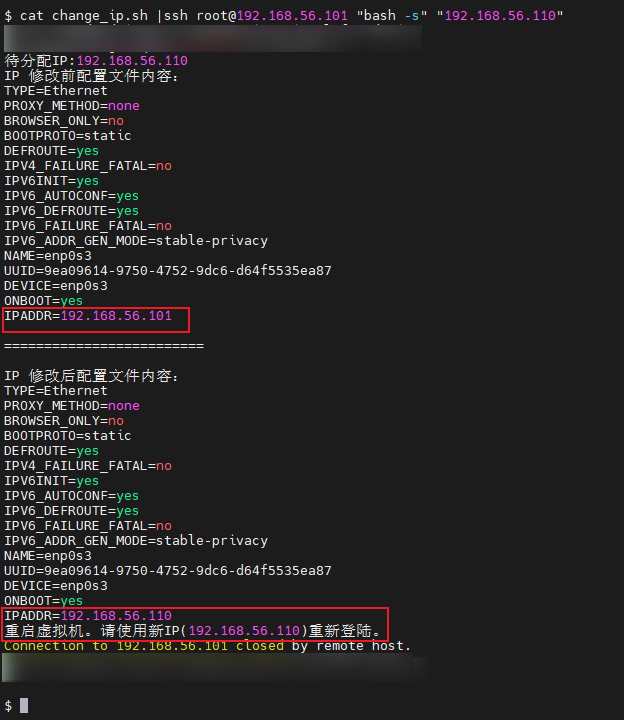

我们实际执行下:

sh
$ cat change_ip.sh |ssh root@192.168.56.101 "bash -s" "192.168.56.110"
待分配IP:192.168.56.110
IP 修改前配置文件内容:
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s3
UUID=9ea09614-9750-4752-9dc6-d64f5535ea87
DEVICE=enp0s3
ONBOOT=yes
IPADDR=192.168.56.101

=========================

IP 修改后配置文件内容:
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s3
UUID=9ea09614-9750-4752-9dc6-d64f5535ea87
DEVICE=enp0s3
ONBOOT=yes
IPADDR=192.168.56.110
重启虚拟机。请使用新IP(192.168.56.110)重新登陆。
Connection to 192.168.56.101 closed by remote host.
$

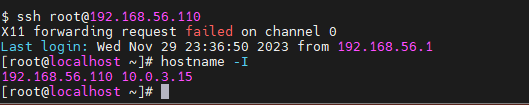

可以看到,远程主机IP修改成功。实际验证一下:

sh
$ ssh root@192.168.56.110
X11 forwarding request failed on channel 0
Last login: Wed Nov 29 23:36:50 2023 from 192.168.56.1
[root@localhost ~]# hostname -I
192.168.56.110 10.0.3.15
[root@localhost ~]#

可以看到,成功登陆!!

注意,上面修改虚拟机IP的命令,是需要克隆后的虚拟机正常开机,然后才能执行脚本。

3.2 从任意虚拟机克隆并设置新IP

假设我现在想对上面修改的192.168.56.110这台主机进行克隆,新的虚拟机名称是ansible-master,并设置新的IP为192.168.56.120

为了让克隆操作进行得更顺利,我们先将192.168.56.110这台主机,也就是testvm1虚拟机关机。

sh
[root@localhost ~]# shutdown -h now
Connection to 192.168.56.110 closed by remote host.
Connection to 192.168.56.110 closed.

此时,应编写一个更加通用的脚本,来操作VBoxManage命令来克隆虚拟机,并用上一节的方法设置IP。

即需要做以下事项:

  • vbm clonevm克隆虚拟机,并设置虚拟机名称。
  • vbm startvm "ansible-master" --type headless无头模式启动ansible-master虚拟机。
  • 修改change_ip.sh脚本,使其更通用,因为待克隆的虚拟机初始IP并不是都是IPADDR=192.168.56.101这样的配置。
  • 调用cat change_ip.sh |ssh root@192.168.56.110 "bash -s" "192.168.56.120"命令,设置ansible-master虚拟机的IP。

编写一个clone_vm.sh脚本,内容如下:

sh
#!/bin/bash
# filename: clone_vm.sh
# author:   meizhaohui
old_vmname=$1
new_vmname=$2
old_ip=$3
new_ip=$4
isrunning_flag=$(VBoxManage list runningvms|grep -c "${old_vmname}")
if [[ "${isrunning_flag}" -gt 0 ]]; then
    echo "${old_vmname} 虚拟机正在运行,禁止克隆,请退出"
    exit 1
else
    echo "${old_vmname} 虚拟机未运行,开始克隆"
fi
VBoxManage clonevm "${old_vmname}" --name "${new_vmname}" --register && echo "虚拟机 ${new_vmname} 克隆成功" || exit 2
echo "启动虚拟机 ${new_vmname}"
VBoxManage startvm "${new_vmname}" --type headless
sleep 60
# cat change_ip.sh |ssh root@192.168.56.110 "bash -s" "192.168.56.120"
cat change_ip.sh |ssh root@${old_ip} "bash -s" "${new_ip}"

然后再对change_ip.sh进行优化:

sh
#!/bin/bash
# filename: change_ip.sh
# author:   meizhaohui
configfile=/etc/sysconfig/network-scripts/ifcfg-enp0s3
IP=$1
echo "待分配IP:${IP}"
echo "IP 修改前配置文件内容:"
cat "${configfile}"
sed -i "s/^IPADDR=.*$/IPADDR=$IP/g" "${configfile}"
echo -e "\n=========================\n"
echo "IP 修改后配置文件内容:"
cat "${configfile}"
echo "重启虚拟机。请使用新IP($IP)重新登陆。"
shutdown -r now

执行克隆脚本:

sh
$ sh clone_vm.sh testvm1 "ansible-master" 192.168.56.110 192.168.56.120

中间会暂停60秒钟,让虚拟机完全启动成功。

执行过程:

sh
$ sh clone_vm.sh testvm1 "ansible-master" 192.168.56.110 192.168.56.120
testvm1 虚拟机未运行,开始克隆
0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
Machine has been successfully cloned as "ansible-master"
虚拟机 ansible-master 克隆成功
启动虚拟机 ansible-master
Waiting for VM "ansible-master" to power on...
VM "ansible-master" has been successfully started.
stty: standard input: Inappropriate ioctl for device
X11 forwarding request failed on channel 0
待分配IP:192.168.56.120
IP 修改前配置文件内容:
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s3
UUID=9ea09614-9750-4752-9dc6-d64f5535ea87
DEVICE=enp0s3
ONBOOT=yes
IPADDR=192.168.56.110

=========================

IP 修改后配置文件内容:
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s3
UUID=9ea09614-9750-4752-9dc6-d64f5535ea87
DEVICE=enp0s3
ONBOOT=yes
IPADDR=192.168.56.120
重启虚拟机。请使用新IP(192.168.56.120)重新登陆。
Connection to 192.168.56.110 closed by remote host.
stty: standard input: Inappropriate ioctl for device

可以看到,虚拟机IP修改成功。修改为192.168.56.120了。

然后使用ssh远程连接一下:

sh
$ ssh root@192.168.56.120
Warning: Permanently added '192.168.56.120' (RSA) to the list of known hosts.
root@192.168.56.120's password:
X11 forwarding request failed on channel 0
Last login: Wed Nov 29 23:50:33 2023 from 192.168.56.1
[root@localhost ~]# hostname -I
192.168.56.120 10.0.3.15
[root@localhost ~]# uptime
 00:23:17 up 4 min,  1 user,  load average: 0.01, 0.04, 0.03
[root@localhost ~]#

可以看到,能够正常登陆,并执行命令。

在VirtualBox 界面也可以看到ansible-master虚拟机正常在运行:

本首页参考 https://notes.fe-mm.com/ 配置而成
