CentOS 7 搭建CA认证中心实现https认证

本文讲解在CentOS7中搭建CA认证中心,实现Httpd和Nginx的https认证。

如果你想直接制作自签名证书,可以直接查看自签名证书

实验环境

  • server服务端: 操作系统为CentOS 7.6,IP:192.168.56.14, git:2.16.5。
  • client客户端: 操作系统为CentOS 7.6,IP:192.168.56.15, git:2.16.5。

查看server服务端信息:

sh
[root@server ~]# cat /etc/centos-release
CentOS Linux release 7.6.1810 (Core)
[root@server ~]# ip a show|grep 192
inet 192.168.56.14/24 brd 192.168.56.255 scope global noprefixroute enp0s3
[root@server ~]# git --version
git version 2.16.5

查看client客户端信息:

sh
[root@client ~]# cat /etc/centos-release
CentOS Linux release 7.6.1810 (Core)
[root@client ~]# ip a show |grep 192
    inet 192.168.56.15/24 brd 192.168.56.255 scope global noprefixroute enp0s3
[root@client ~]# git --version
git version 2.16.5

CA认证中心简介

  • 所谓CA(Certificate Authority)认证中心,它是采用PKI(Public Key Infrastructure)公开密钥基础架构技术,专门提供网络身份认证服务,CA可以是民间团体,也可以是政府机构。负责签发和管理数字证书,且具有权威性和公正性的第三方信任机构,它的作用就像我们现实生活中颁发证件的公司,如护照办理机构。目前国内的CA认证中心主要分为区域性CA认证中心和行业性CA认证中心。
  • CA负责数字证书的批审、发放、归档、撤销等功能,CA颁发的数字证书拥有CA的数字签名。
  • 数字证书在用户公钥后附加了用户信息及CA的签名。公钥是密钥对的一部分,另一部分是私钥。公钥公之于众,谁都可以使用。私钥只有自己知道。由公钥加密的信息只能由与之相对应的私钥解密。为确保只有某个人才能阅读自己的信件,发送者要用收件人的公钥加密信件;收件人便可用自己的私钥解密信件。同样,为证实发件人的身份,发送者要用自己的私钥对信件进行签名;收件人可使用发送者的公钥对签名进行验证,以确认发送者的身份。
  • 作用:保密性:只有收件人才能阅读信息;认证性:确认信息发送者的身份; 完整性:信息在传递过程中不会被篡改; 不可抵赖性:发送者不能否认已发送的信息。
  • 端口: https协议一般使用443端口,也可以使用别的端口。
  • 证书请求文件: CSRCerificate Signing Request的英文缩写,即证书请求文件,也就是证书申请者在申请数字证书时由CSP(加密服务提供者)在生成私钥的同时也生成证书请求文件,证书申请者只要把CSR文件提交给证书颁发机构后,证书颁发机构使用其根证书的私钥签名就生成了证书文件,也就是颁发给用户的证书

在server服务端搭建CA认证中心

  • 配置一个自己的CA认证中心,把FALSE改成TRUE,把本机变成CA认证中心

修改/etc/pki/tls/openssl.cnf文件第172行:

sh
[root@localhost ~]# sed -i '172s/basicConstraints=CA:FALSE/basicConstraints=CA:TRUE/g' /etc/pki/tls/openssl.cnf

修改完成后, /etc/pki/tls/openssl.cnf 文件第172行处附近的内容如下:

sh
[root@server ~]# cat -n /etc/pki/tls/openssl.cnf |head -n 172|tail -n 8
   165  [ usr_cert ]
   166
   167  # These extensions are added when 'ca' signs a request.
   168
   169  # This goes against PKIX guidelines but some CAs do it and some software
   170  # requires this to avoid interpreting an end user certificate as a CA.
   171
   172  basicConstraints=CA:TRUE
  • 配置认证中心,生成私钥与根证书

使用/etc/pki/tls/misc/CA -newca命令生成私钥和根证书:

sh
[root@server ~]# /etc/pki/tls/misc/CA -newca
CA certificate filename (or enter to create)   <--说明:按回车

Making CA certificate ...
Generating a 2048 bit RSA private key
..................................................................................................................+++
.+++
writing new private key to '/etc/pki/CA/private/./cakey.pem'
Enter PEM pass phrase:    <--说明: 输入密码保护密钥 hellogit
Verifying - Enter PEM pass phrase:   <--说明: 再次输入密码保护密钥 hellogit
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN  <--说明: 国家地区名称
State or Province Name (full name) []:hubei  <--说明: 省份名称
Locality Name (eg, city) [Default City]:wuhan  <--说明: 地市名称
Organization Name (eg, company) [Default Company Ltd]:IT   <--说明: 组织名称,可以理解为公司的部门
Organizational Unit Name (eg, section) []:hopewait    <--说明: 组织单位名称
Common Name (eg, your name or your server's hostname) []:192.168.56.14 <--说明: 通用名,因为没有域名,这里用IP代替,有域名的话,可以使用域名
Email Address []:mzh.whut@gmail.com

Please enter the following 'extra' attributes  # 添加一个额外的属性,让客户端发送CA证书,请求文件时要输入密码
to be sent with your certificate request
A challenge password []:      <--说明: 回车
An optional company name []:      <--说明: 回车
Using configuration from /etc/pki/tls/openssl.cnf  <--说明:  CA服务器的配置文件
Enter pass phrase for /etc/pki/CA/private/./cakey.pem:   <--说明:  输入保护CA密钥的密码 hellogit
Check that the request matches the signature
Signature ok
Certificate Details:    <--说明:  CA认证中心的详情
        Serial Number:
            a0:10:ec:4f:f7:db:f9:1f
        Validity
            Not Before: Jun  4 22:43:41 2019 GMT
            Not After : Jun  3 22:43:41 2022 GMT
        Subject:
            countryName               = CN
            stateOrProvinceName       = hubei
            organizationName          = IT
            organizationalUnitName    = hopewait
            commonName                = 192.168.56.14
            emailAddress              = mzh.whut@gmail.com
        X509v3 extensions:
            X509v3 Subject Key Identifier:
                DF:1A:24:4F:9E:B4:BC:B4:2E:D3:B1:AD:1C:B3:79:9D:4A:B1:35:65
            X509v3 Authority Key Identifier:
                keyid:DF:1A:24:4F:9E:B4:BC:B4:2E:D3:B1:AD:1C:B3:79:9D:4A:B1:35:65

            X509v3 Basic Constraints:
                CA:TRUE
Certificate is to be certified until Jun  3 22:43:41 2022 GMT (1095 days)

Write out database with 1 new entries
Data Base Updated
[root@server ~]#

这里配置了CA认证中心,在里面就生成了CA认证根证书的私钥,在配置完结束之后,就会生成一个根证书,这个根证书中有这证书的公钥。

到此CA认证中心就搭建好了。

  • CA认证根证书文件/etc/pki/CA/cacert.pem

查看/etc/pki/CA/cacert.pem文件内容:

sh
[root@server ~]# cat -n /etc/pki/CA/cacert.pem
     1  Certificate:
     2      Data:
     3          Version: 3 (0x2)
     4          Serial Number:
     5              a0:10:ec:4f:f7:db:f9:1f
     6      Signature Algorithm: sha256WithRSAEncryption
     7          Issuer: C=CN, ST=hubei, O=IT, OU=hopewait, CN=192.168.56.14/emailAddress=mzh.whut@gmail.com  <--说明:  CA认证中心信息
     8          Validity
     9              Not Before: Jun  4 22:43:41 2019 GMT
    10              Not After : Jun  3 22:43:41 2022 GMT
    11          Subject: C=CN, ST=hubei, O=IT, OU=hopewait, CN=192.168.56.14/emailAddress=mzh.whut@gmail.com
    12          Subject Public Key Info:   <--说明:  CA认证中心公钥信息
    13              Public Key Algorithm: rsaEncryption
    14                  Public-Key: (2048 bit)
    15                  Modulus:
    16                      00:ad:2b:62:4e:10:6c:fe:dd:5b:16:1b:dd:ed:e4:
    17                      89:9e:14:d6:e3:6f:a9:56:1c:84:53:4c:12:58:7b:
    18                      43:09:8c:aa:76:d7:5c:8d:90:9f:1a:75:1c:c4:92:
    19                      32:63:bb:ae:3f:51:46:8c:13:17:a7:b6:3a:29:58:
    20                      17:14:5d:fa:a8:8c:66:8e:92:3e:43:72:cf:41:e9:
    21                      f3:7d:d0:5d:3a:75:de:14:80:c7:db:35:f5:fa:41:
    22                      fd:24:11:44:e6:7f:aa:bd:b3:bf:c3:ac:f2:9c:a6:
    23                      48:de:09:d7:72:34:04:44:87:3e:65:27:31:94:3c:
    24                      5a:6d:d9:1e:67:03:05:94:42:33:3e:cc:38:fc:84:
    25                      21:13:47:3e:f0:37:21:7d:cc:c5:54:21:06:9f:44:
    26                      92:20:dd:5e:57:06:ec:33:08:d4:91:99:17:fa:de:
    27                      c4:2e:0b:32:ea:b5:5b:a3:54:6a:ac:2e:e6:4a:ba:
    28                      e3:2f:6c:b3:f1:04:3f:19:6c:7a:97:ab:72:e6:e7:
    29                      1a:88:f7:d2:ba:d4:b3:33:90:1f:f6:3e:f4:fc:6a:
    30                      84:53:24:2b:2f:46:65:ce:1e:86:2c:a6:02:ae:6f:
    31                      5d:b8:cc:b7:31:d4:53:20:97:7a:a1:b2:d6:a1:4a:
    32                      aa:31:e6:13:4a:6c:09:07:98:c5:5d:44:ae:e9:97:
    33                      33:47
    34                  Exponent: 65537 (0x10001)
    35          X509v3 extensions:
    36              X509v3 Subject Key Identifier:
    37                  DF:1A:24:4F:9E:B4:BC:B4:2E:D3:B1:AD:1C:B3:79:9D:4A:B1:35:65
    38              X509v3 Authority Key Identifier:
    39                  keyid:DF:1A:24:4F:9E:B4:BC:B4:2E:D3:B1:AD:1C:B3:79:9D:4A:B1:35:65
    40
    41              X509v3 Basic Constraints:
    42                  CA:TRUE
    43      Signature Algorithm: sha256WithRSAEncryption
    44           48:43:57:30:c2:22:93:3f:85:53:09:5f:8c:fe:91:5e:c4:04:
    45           fe:16:9b:72:18:6f:6f:71:e4:9a:28:a7:c8:0f:66:95:d1:ca:
    46           16:c4:b0:14:ad:c4:16:76:fa:89:77:55:f5:af:e2:ab:9e:3d:
    47           30:7c:41:08:e5:09:11:f0:89:b8:7e:86:04:5e:1f:94:48:4e:
    48           95:14:1c:f5:d5:58:f7:61:23:f7:c4:44:9c:aa:ac:82:fa:71:
    49           64:b2:e8:ba:6e:90:12:25:af:40:5f:87:ee:b4:98:be:67:66:
    50           43:8b:08:49:8f:1a:ba:6f:1b:2a:e9:5e:ba:0e:25:24:cf:25:
    51           70:d7:77:ba:1b:40:94:a4:2d:fe:ab:2e:07:3c:bd:71:4d:f2:
    52           96:ec:35:0b:1f:c9:3f:83:17:75:b9:b2:28:ac:97:03:75:be:
    53           bf:06:ad:42:e2:aa:1a:b5:fe:3f:b9:41:c1:10:83:b3:28:5f:
    54           e8:12:7a:af:81:fe:65:8e:6e:2f:a7:b8:38:83:c3:ef:5f:75:
    55           d5:c6:6e:dc:6f:6f:32:e6:b3:95:92:14:1f:76:c1:44:f1:cd:
    56           a7:97:9e:47:09:c5:5d:fb:ee:cd:0d:14:60:9a:23:fe:ba:dd:
    57           86:6e:01:b4:6a:56:f0:07:3d:4b:de:3e:23:b2:8f:15:f8:87:
    58           53:1b:9b:5a
    59  -----BEGIN CERTIFICATE-----
    60  MIIDwzCCAqugAwIBAgIJAKAQ7E/32/kfMA0GCSqGSIb3DQEBCwUAMHgxCzAJBgNV
    61  BAYTAkNOMQ4wDAYDVQQIDAVodWJlaTELMAkGA1UECgwCSVQxETAPBgNVBAsMCGhv
    62  cGV3YWl0MRYwFAYDVQQDDA0xOTIuMTY4LjU2LjE0MSEwHwYJKoZIhvcNAQkBFhJt
    63  emgud2h1dEBnbWFpbC5jb20wHhcNMTkwNjA0MjI0MzQxWhcNMjIwNjAzMjI0MzQx
    64  WjB4MQswCQYDVQQGEwJDTjEOMAwGA1UECAwFaHViZWkxCzAJBgNVBAoMAklUMREw
    65  DwYDVQQLDAhob3Bld2FpdDEWMBQGA1UEAwwNMTkyLjE2OC41Ni4xNDEhMB8GCSqG
    66  SIb3DQEJARYSbXpoLndodXRAZ21haWwuY29tMIIBIjANBgkqhkiG9w0BAQEFAAOC
    67  AQ8AMIIBCgKCAQEArStiThBs/t1bFhvd7eSJnhTW42+pVhyEU0wSWHtDCYyqdtdc
    68  jZCfGnUcxJIyY7uuP1FGjBMXp7Y6KVgXFF36qIxmjpI+Q3LPQenzfdBdOnXeFIDH
    69  2zX1+kH9JBFE5n+qvbO/w6zynKZI3gnXcjQERIc+ZScxlDxabdkeZwMFlEIzPsw4
    70  /IQhE0c+8DchfczFVCEGn0SSIN1eVwbsMwjUkZkX+t7ELgsy6rVbo1RqrC7mSrrj
    71  L2yz8QQ/GWx6l6ty5ucaiPfSutSzM5Af9j70/GqEUyQrL0Zlzh6GLKYCrm9duMy3
    72  MdRTIJd6obLWoUqqMeYTSmwJB5jFXUSu6ZczRwIDAQABo1AwTjAdBgNVHQ4EFgQU
    73  3xokT560vLQu07GtHLN5nUqxNWUwHwYDVR0jBBgwFoAU3xokT560vLQu07GtHLN5
    74  nUqxNWUwDAYDVR0TBAUwAwEB/zANBgkqhkiG9w0BAQsFAAOCAQEASENXMMIikz+F
    75  UwlfjP6RXsQE/habchhvb3HkmiinyA9mldHKFsSwFK3EFnb6iXdV9a/iq549MHxB
    76  COUJEfCJuH6GBF4flEhOlRQc9dVY92Ej98REnKqsgvpxZLLoum6QEiWvQF+H7rSY
    77  vmdmQ4sISY8aum8bKuleug4lJM8lcNd3uhtAlKQt/qsuBzy9cU3yluw1Cx/JP4MX
    78  dbmyKKyXA3W+vwatQuKqGrX+P7lBwRCDsyhf6BJ6r4H+ZY5uL6e4OIPD71911cZu
    79  3G9vMuazlZIUH3bBRPHNp5eeRwnFXfvuzQ0UYJoj/rrdhm4BtGpW8Ac9S94+I7KP
    80  FfiHUxubWg==
    81  -----END CERTIFICATE-----
[root@server ~]#
  • CA查看根证书的私钥/etc/pki/CA/private/cakey.pem

查看根证书的私钥/etc/pki/CA/private/cakey.pem文件内容:

sh
[root@server ~]# ls -lah /etc/pki/CA/private/cakey.pem
-rw-r--r--. 1 root root 1.8K Jun  5 06:43 /etc/pki/CA/private/cakey.pem
[root@server ~]# cat -n /etc/pki/CA/private/cakey.pem
     1  -----BEGIN ENCRYPTED PRIVATE KEY-----
     2  MIIFDjBABgkqhkiG9w0BBQ0wMzAbBgkqhkiG9w0BBQwwDgQI45aQOAFPXeUCAggA
     3  MBQGCCqGSIb3DQMHBAjgODWRTTP6hgSCBMgqNsO7bZFjYXn9GXkIV4bMs0TL8dRR
     4  vxWPEy3+6lri3rQfB3Tmwg5jGWHC2o0p7vF+8g1XexSqogzVuuKQrF1Ez7CO0fnp
     5  tNm5jMaQvhivtHzl8PWk7ohpW7aq87eUZGNxDmwvqL3Le2Fm7bkBdUYXidWOZhiD
     6  To+WeI3IuszFBesNbkPtdRRTIBoG2bNWTp5NVxlMOMyyBCN6Fx71cEfhRf509Rzh
     7  1wTBpJQlLVAepqFQxsRnn7VqrcU0Sd05Ln/xO/8603J/UryceqN6Qj+mhrEBOwIi
     8  EgoVvOebSjj82wZRy3PXrEX/e9iYeWeEp7J3XZY7veRx2aooL03WBKsboOO0wWlC
     9  RziJGu2hwDVr0lrVh0sAzhuLN60hYKFD5pyEu8KOo++GLosIInstE/sEeyKaq9BF
    10  cIbeRgBsIK0mwzW/bA2MG5NpY9rees1VQBCmmC0qFygkB+aLObjjX9XxlHiJ0Nf1
    11  b+3QOvCJFXzfYP2czgMx25htNHg/M34JFTo7urhr7TPLku8GzifEqyB95zz6j4Os
    12  YD7kGo142p+iMr+4fTCtS74j/gO9gl59UN4jACBsXXj6qt8vzsAWOS4tXyhpoRIV
    13  OfQxMJLECakj5+BO8yzrMmlZuhIXCI9TguhJRYaocRSt9X3Tt6aTcE2KEp3SWPys
    14  w7epy5ioCjbp10JMbLym8wTRzySxkCnHJLJKztjYYPvIz2343j6y1Ofng4eZhqor
    15  1ZUemlJbBGrQX/dVBQ3m4YgI3+zEijKZ6SvEOuV4+8IjunEWtH/LW8B9EyaV+MnR
    16  OjzIrvmgKUQ8qcT8X9sm/KfcaRCHo3hepqKIVbJlXjBJ4m327BFy9hR4wo30i9Tk
    17  x/TM3ZbYR0m+8RxLBvNYsFiWbTxHPfZagdY0RiINXa/qZ7327t8zeEyrfQQyX9HB
    18  IToQQXD2nCW/EjtKyPemnvQ3UNEGSTPulS+OPdGHSbBllsK1aMJaJfcXp6JhbOzH
    19  JXmMl+ZurubRJk2TWKGjAub1jU9mOhsK8Ty8f1rVEcrlgcPzJMeD+8PdBB4a5C1M
    20  Vq8EvOq6LBcI6fUbgMWq8Vn1msoneILpfgf6m7EnUDkDbfCIOsjDix7FVG8cakES
    21  cs5JKeqI9V7S4UBHrmZwxrc20sqLj3m9c9eYXXWzdA/9xkUWRJcxd6MdIRoN0eX4
    22  qXsl7qHegyjIc8eJpESi6zrVWPc97gh8SsCvpN2gLPmgmHSbjBIlWUJgoUIyywsp
    23  A6UC8GcEhYwfTQp6udpxERM/Wr0fW0qizaxBje2L1vfgB3iC8b9cnZEA+Ln7Uxo5
    24  ZAvtDJzjYw9g2FuVtnwygK8ycAsE3682Zn7TReHc0q+WW8gRmmkH8BHtBFikDLKp
    25  9lT9uci7iqoFUr+EWPydqr+UYRJn+nrZ1Sgd18Q5gj/v0+NrGQBxNlwmaey1+xxK
    26  IkGWQbxn58TtongUXp+c0c6YTiyiV9LzPJKGZkJtkbvCXNfzB0w/Qnn46HuR82Lg
    27  EoSKlAwgLQJ1cviJT+9csoqfM/sT8dKwpR6dplvov7w030CpmyjoJKSSTBu41GMO
    28  8buXuIk2kp+Npn4q9CuQPmm9iLi9THhDvKZEk7vhvPxP3IcVjx5I8affbyJGoLBx
    29  GBA=
    30  -----END ENCRYPTED PRIVATE KEY-----

在client客户端安装Apache WEB服务

安装Apachewsgi支持:

sh
[root@client ~]# yum install httpd -y
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
 * base: mirrors.163.com
 * centos-sclo-rh: mirrors.163.com
 * extras: mirrors.163.com
 * updates: mirrors.aliyun.com
Resolving Dependencies
--> Running transaction check
---> Package httpd.x86_64 0:2.4.6-89.el7.centos will be installed
--> Finished Dependency Resolution

Dependencies Resolved

====================================================================================================================================
 Package                    Arch                        Version                                  Repository                    Size
====================================================================================================================================
Installing:
 httpd                      x86_64                      2.4.6-89.el7.centos                      updates                      2.7 M

Transaction Summary
====================================================================================================================================
Install  1 Package

Total download size: 2.7 M
Installed size: 9.4 M
Downloading packages:
httpd-2.4.6-89.el7.centos.x86_64.rpm                                                                         | 2.7 MB  00:00:01
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : httpd-2.4.6-89.el7.centos.x86_64                                                                                 1/1
  Verifying  : httpd-2.4.6-89.el7.centos.x86_64                                                                                 1/1

Installed:
  httpd.x86_64 0:2.4.6-89.el7.centos

Complete!
[root@client ~]#

    [root@client ~]# yum install python36u-mod_wsgi httpd-devel -y
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
 * base: mirrors.163.com
 * centos-sclo-rh: mirrors.163.com
 * extras: mirrors.163.com
 * updates: mirrors.aliyun.com
Resolving Dependencies
--> Running transaction check
---> Package httpd-devel.x86_64 0:2.4.6-89.el7.centos will be installed
---> Package python36u-mod_wsgi.x86_64 0:4.6.2-1.ius.el7 will be installed
--> Finished Dependency Resolution

Dependencies Resolved

====================================================================================================================================
 Package                             Arch                    Version                                 Repository                Size
====================================================================================================================================
Installing:
 httpd-devel                         x86_64                  2.4.6-89.el7.centos                     updates                  196 k
 python36u-mod_wsgi                  x86_64                  4.6.2-1.ius.el7                         ius                      473 k

Transaction Summary
====================================================================================================================================
Install  2 Packages

Total download size: 669 k
Installed size: 1.8 M
Downloading packages:
(1/2): httpd-devel-2.4.6-89.el7.centos.x86_64.rpm                                                            | 196 kB  00:00:00
(2/2): python36u-mod_wsgi-4.6.2-1.ius.el7.x86_64.rpm                                                         | 473 kB  00:00:03
------------------------------------------------------------------------------------------------------------------------------------
Total                                                                                               182 kB/s | 669 kB  00:00:03
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : python36u-mod_wsgi-4.6.2-1.ius.el7.x86_64                                                                        1/2
  Installing : httpd-devel-2.4.6-89.el7.centos.x86_64                                                                           2/2
  Verifying  : httpd-devel-2.4.6-89.el7.centos.x86_64                                                                           1/2
  Verifying  : python36u-mod_wsgi-4.6.2-1.ius.el7.x86_64                                                                        2/2

Installed:
  httpd-devel.x86_64 0:2.4.6-89.el7.centos                        python36u-mod_wsgi.x86_64 0:4.6.2-1.ius.el7

Complete!

修改httpd的配置文件/etc/httpd/conf/httpd.conf,修改ServerName:

sh
[root@client ~]# sed -i '95s/#ServerName www.example.com:80/ServerName 192.168.56.15:80/g' /etc/httpd/conf/httpd.conf
[root@client ~]# cat -n /etc/httpd/conf/httpd.conf|head -n 95|tail -n 1
95  ServerName 192.168.56.15:80

设置开机启动并启动httpd服务:

sh
[root@client ~]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.
[root@client ~]# systemctl start httpd
[root@client ~]# systemctl status httpd
 httpd.service - The Apache HTTP Server
   Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled)
   Active: active (running) since Wed 2019-06-05 20:37:42 CST; 5s ago
     Docs: man:httpd(8)
           man:apachectl(8)
 Main PID: 13453 (httpd)
   Status: "Processing requests..."
    Tasks: 6
   Memory: 22.7M
   CGroup: /system.slice/httpd.service
           ├─13453 /usr/sbin/httpd -DFOREGROUND
           ├─13454 /usr/sbin/httpd -DFOREGROUND
           ├─13455 /usr/sbin/httpd -DFOREGROUND
           ├─13456 /usr/sbin/httpd -DFOREGROUND
           ├─13457 /usr/sbin/httpd -DFOREGROUND
           └─13458 /usr/sbin/httpd -DFOREGROUND

Jun 05 20:37:25 client.hopewait systemd[1]: Starting The Apache HTTP Server...
Jun 05 20:37:42 client.hopewait systemd[1]: Started The Apache HTTP Server.

防火墙开放80端口:

sh
[root@client ~]# firewall-cmd --zone=public --add-port=80/tcp --permanent
success
[root@client ~]# firewall-cmd --reload
success
[root@client ~]# firewall-cmd --list-all
public (active)
  target: default
  icmp-block-inversion: no
  interfaces: enp0s3 enp0s8
  sources:
  services: ssh dhcpv6-client
  ports: 8140/tcp 53/tcp 11211/tcp 80/tcp
  protocols:
  masquerade: no
  forward-ports:
  source-ports:
  icmp-blocks:
  rich rules:

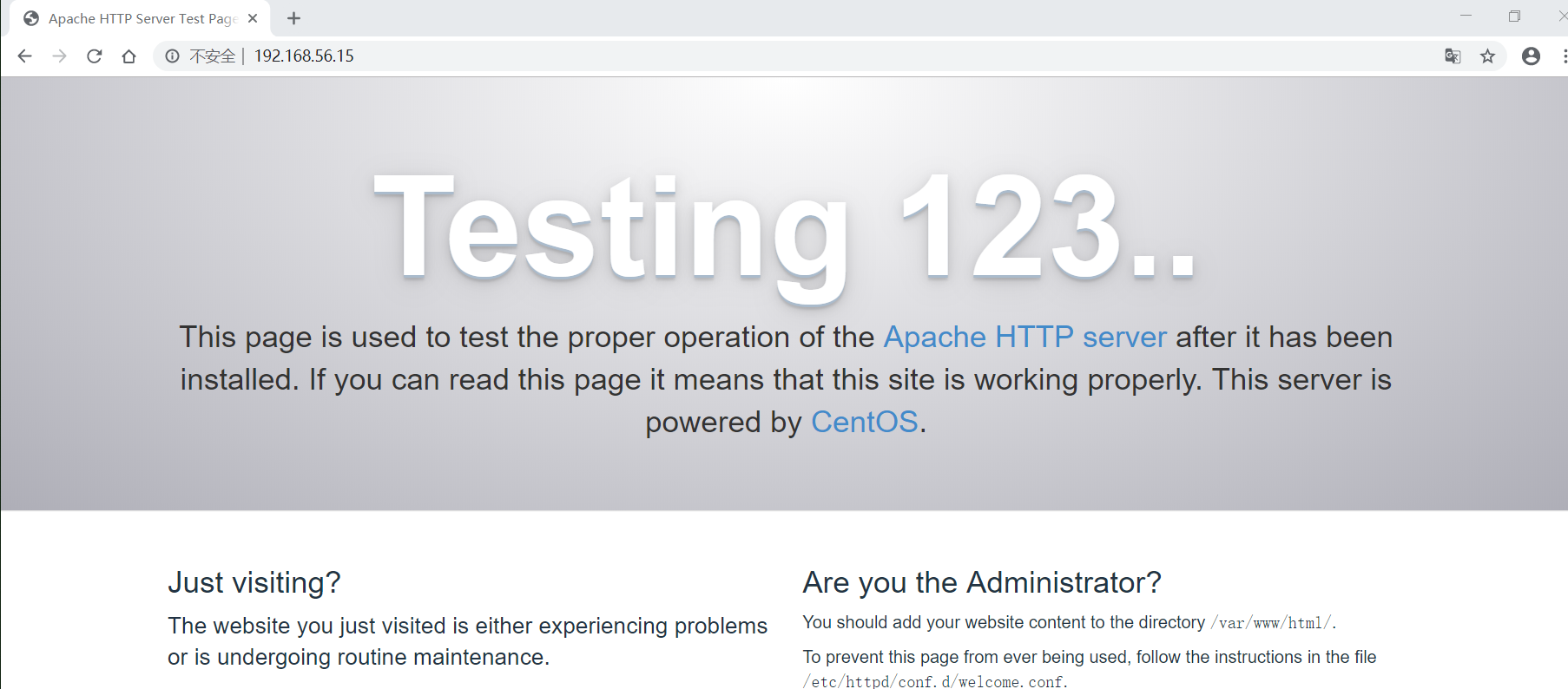

在浏览器中访问链接http://192.168.56.15/,则可以看到httpd的测试页:

httpd_test

现在我们能够正常访问httpd的服务,能正常访问80端口,我们在Client客户端配置CA证书,使httpd提供https加密服务。

在client客户端生成请求证书文件

生成一个私钥密码:

sh
[root@client ~]# mkdir cafiles
[root@client ~]# openssl genrsa -des3 -out ~/cafiles/server.key
Generating RSA private key, 2048 bit long modulus
...............+++
.................................+++
e is 65537 (0x10001)
Enter pass phrase for /root/cafiles/server.key:    <--说明:  输入保护私钥的密码clientca
Verifying - Enter pass phrase for /root/cafiles/server.key:   <--说明:  再次输入保护私钥的密码clientca
[root@client ~]# ls -lah ~/cafiles
total 8.0K
drwxr-xr-x.  2 root root   24 Jun  5 20:58 .
dr-xr-x---. 14 root root 4.0K Jun  5 20:58 ..
-rw-r--r--.  1 root root 1.8K Jun  5 20:59 server.key

查看私钥文件内容:

sh
[root@client ~]# cat cafiles/server.key
-----BEGIN RSA PRIVATE KEY-----
Proc-Type: 4,ENCRYPTED
DEK-Info: DES-EDE3-CBC,E38009EB74CF6AE9  <--说明:  这个地方进行了加密

I22V4W17mIUr5NAj4gQv5kID6QyFr2AUTOdzcyfeA9rT1FXzAV/r+29aZopcs8Bt
sHcoR/ZOXidyNQDqlEw5Wbu8UAcA/HZyqOpIsjNQlJnaUpHCc8ATQNo3E0HfDS4W
hLuStGZcoT4AsTbnaHEzkdN8X+ancBmQ2tLz0Hcc/LbTyZKycEXH1kE+PZauLroi
LK+hl279E4NjeHnjx6jOTe2ebhWjmDfW66U+aZD3Gxfyx7qalR/UclKi54Uy17kQ
uSslWWnzUVZoInuJs1fzMSA1iWkrPFPn8R9oOUWYCnyjNKBabmvQqLJbteA22OoJ
1ZlYrNoommCoOpNV9h8VO9B71Czh6Nf+rtNJ84c1tgUlGgdwGhDriXc+q8OpThqd
ELlmNUg+3LKJo21ZMNiX9LLCoaQnealYFI2N3u+vq0l9x4T5deghx3kMova2VF4Y
ng/NYPsfN7OlmJI/9dgzKJGCM+hESMB/99Xz0pNOUmK4IR+V8RAHLVd+yGE0JpV8
qZvZRT2RAiWLpY5Rx7G1u8CPnHJB1BocFbZ4L8/udreObso2HGWt+Kw0Y3rDr2mM
Exr7ZLkD1JsJzCLdC6Y+iQjw0/WyhoXBowyRtbvyvGEPVdU2lVUy7NzmnX7BIo+g
Kdej+II23ctZuaDPHl0fVhkgZBHg0hUsGjO0HbZzXRx95QJjtKGRzzkcBgJ+HbRX
RsK493ak3qhOb+w+0zb8Cgr/U6F6ALy9czUsgKVwzjpQmaF7ekOcMx/o872Pj89U
CcPavtZGjqAFpwnwPS3iRPR2Fxddhb6zqtfKN5IJqcvh5xHUtcSd4rUjjFtGI6sc
ozW8Rz0H7EMiBpxLAUGeNqoh2cfYGPcpzIlqc1pIPGY2NJf9GmlnfMKwo3OGaLFE
Or2UpvAzCuGQXwc1gNdTGLsmB7Ih8iLQdSuuMVh/cVWfmOX5ahpcd+SLl3rYwSHK
X9qvEq23jCwSbX1KcVncHFnkTyji7UMveFwsZArYA/zOIN61rXHgT2MvOZje6aR/
+i8e4buaZ1aMFM1enfRufJaq2ppW7de8sENnBnHt1U0pIAW6wTW9a3JQGKIvhf+F
rk2FN5w40IGHVCY2P5Wmn+3sfHrDD01rwaAojT9jV3YMfiQx3jnLjunbVbevb0Hn
hb3Hks3qYS3HDjU1pu+BUSUUQOgLkmp/g6ehxTbvHg8rXT75q/X04b+dw/oEVfdB
5ZDSVcoUNJZ3VjjxCfpgOim7t0qvqoRN6JQOq3kBH/CsJfAE++JfcmSrlyOnmAck
+uixe+wBSkTDs9N/22I7lBEDyli4DErlZdEBY2rRnfIH+guTmM8uG+P3wjIsX+M5
xJmBfc8qSno6IZQVxCDyRdIqpJmXYcjSNhWCcEWSUdvumkYFr8wvF/ljS1JIhI2I
OiyF9OuYwY2ny0LPRkrB0iD9CLGdP/H++NxOKaSgblBlTOYr2lyKAw3oqxtw4Hxl
dt+MMJozi78nEaAw5B49ezqWHe+ChkQcsAwJ3VfqIRPNSyv+Ji/E4Xsu3FNZTYRb
psll9JhUhSinvJ0qkCpRl/5FdbZYTDi7uXXVMoOENdprdMjg+THsXCvHs2sAE45y
-----END RSA PRIVATE KEY-----

生成请求文件:

sh
[root@client ~]# openssl req -new -key ~/cafiles/server.key -out ~/cafiles/server.csr
Enter pass phrase for /root/cafiles/server.key:    <--说明:  输入保护私钥的密码clientca
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN   <--说明: 国家地区名称,与前面的CA设置保持一致
State or Province Name (full name) []:hubei   <--说明: 省份名称,与前面的CA设置保持一致
Locality Name (eg, city) [Default City]:wuhan   <--说明: 地市名称,与前面的CA设置保持一致
Organization Name (eg, company) [Default Company Ltd]:IT  <--说明: 组织名称,可以理解为公司的部门,与前面的CA设置保持一致
Organizational Unit Name (eg, section) []:hopewait     <--说明:  输入组织单位名称,与前面的CA设置保持一致
Common Name (eg, your name or your server's hostname) []:192.168.56.15   <--说明:  输入通用名,与通过URL访问web的地址设置保持一致,有域名用域名,没域名用IP地址
Email Address []:mzh.whut@gmail.com    <--说明:  输入邮箱,可以与前面的CA设置不一致

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:  <--说明:  回车
An optional company name []:  <--说明:  回车
[root@client ~]#

查看刚生成的请求文件:

sh
[root@client ~]# ls -lah ~/cafiles/
total 12K
drwxr-xr-x.  2 root root   42 Jun  5 21:05 .
dr-xr-x---. 14 root root 4.0K Jun  5 20:58 ..
-rw-r--r--.  1 root root 1.1K Jun  5 21:05 server.csr
-rw-r--r--.  1 root root 1.8K Jun  5 20:59 server.key
[root@client ~]# cat -n ~/cafiles/server.csr
     1  -----BEGIN CERTIFICATE REQUEST-----
     2  MIICzjCCAbYCAQAwgYgxCzAJBgNVBAYTAkNOMQ4wDAYDVQQIDAVodWJlaTEOMAwG
     3  A1UEBwwFd3VoYW4xCzAJBgNVBAoMAklUMREwDwYDVQQLDAhob3Bld2FpdDEWMBQG
     4  A1UEAwwNMTkyLjE2OC41Ni4xNTEhMB8GCSqGSIb3DQEJARYSbXpoLndodXRAZ21h
     5  aWwuY29tMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA2SPcNRvB8QBX
     6  6ey05Wjf3P4AmXISwAYnt3DWw0WfmO8vXl5t0g5DAHoqQdK5hcL2DAAxHaTR2w+5
     7  JsGKwGmrQulCrX3jmDcalKM2cUn3GoCZ0oHVTgV2iYDBoWTRn7yT4IIjGSGzFzf5
     8  stGj1S8mK+X+F2TgairevZanZ08Qh3/Bm37vfI3FudiPq7A+AqyACtnEjGgnQCgG
     9  XnsnmqsJpR15mRz93JpqZ/WTJrh/2pO9bWxGDM5vuZWr9T+1VMZr9R4RQqOqwopf
    10  eBnZqEcE9lDf8/DeklbAIviXJLK3S9qbsspXbLchc4MUWnsSBOPBsdig9dQY7Vx5
    11  s5sG1LqBZwIDAQABoAAwDQYJKoZIhvcNAQELBQADggEBAG5vN/IhhzbDvHgTdfhT
    12  pgNqWmg4XCV1agh7m6CKcg+LcJLPixbW6EA/NU9QX4ARZJp501t7v/bFPiQ1/uEm
    13  IrQqRnM4xGCdpVaY4Y1J21i8t1YoRZAOST9xgQe5nTwq2U1A1wyFJkKYgTFB5ou1
    14  UlI4wELnYTUcrOr4V/4b3DTEZNNfCk6oWv4guQI9UpC+i9FNQb/NkcePkNsQeE4n
    15  q1uM07C05+KMd/Lem6fLUlIDHlpI0iyhuQcSM1TJ1fKmF5uRQHTxIHnI5qqKbP5P
    16  tPW9DLv577wM7W4jIUbEhYkKPLRFLFobITMQu9nDUyF3WEbFbMHvippnu7nxRvb2
    17  OWQ=
    18  -----END CERTIFICATE REQUEST-----
[root@client ~]#

在client客户端将请求证书文件发送给server服务端

使用scp将请求证书文件发送到服务端:

sh
[root@client ~]# scp ~/cafiles/server.csr root@192.168.56.14:/tmp
root@192.168.56.14's password:  <--说明:  输入服务端root账号密码
server.csr                                                                                        100% 1050   460.4KB/s   00:00
[root@client ~]#

在server服务端对用户的请求文件进行CA签名

查看用户的请求文件是否发送过来:

sh
[root@server ~]#  ls -lah /tmp/server.csr
-rw-r--r--. 1 root root 1.1K Jun  5 21:12 /tmp/server.csr

说明请求文件发送到服务端了。

  • CA认证中心进行CA签名,使用CA认证中心的私钥/etc/pki/CA/private/cakey.pem以及CA根证书/etc/pki/CA/cacert.pem对用户的请求文件server.csr进行签名。
  • days参数控制证书有效期,可以设置为365*2=730天,2年!

CA认证中心对用户请求文件进行签名:

sh
[root@server ~]# openssl ca -keyfile /etc/pki/CA/private/cakey.pem -cert /etc/pki/CA/cacert.pem -days 730 -in /tmp/server.csr -out /tmp/server.crt
Using configuration from /etc/pki/tls/openssl.cnf
Enter pass phrase for /etc/pki/CA/private/cakey.pem:    <--说明: 输入CA中心保护密钥的密码hellogit
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number:
            a0:10:ec:4f:f7:db:f9:20
        Validity
            Not Before: Jun  5 13:21:44 2019 GMT
            Not After : Jun  4 13:21:44 2021 GMT
        Subject:
            countryName               = CN
            stateOrProvinceName       = hubei
            organizationName          = IT
            organizationalUnitName    = hopewait
            commonName                = 192.168.56.15
            emailAddress              = mzh.whut@gmail.com
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:TRUE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                5D:39:25:F3:C3:DB:13:ED:6F:9C:C3:30:E8:5C:59:46:1D:6E:37:58
            X509v3 Authority Key Identifier:
                keyid:DF:1A:24:4F:9E:B4:BC:B4:2E:D3:B1:AD:1C:B3:79:9D:4A:B1:35:65

Certificate is to be certified until Jun  4 13:21:44 2021 GMT (730 days)
Sign the certificate? [y/n]:y    <--说明: 是否注册证书,输入y
1 out of 1 certificate requests certified, commit? [y/n]y   <--说明: 是否确认注册证书,输入y
Write out database with 1 new entries
Data Base Updated
[root@server ~]#

将CA中心的签名文件发送给用户:

sh
[root@server ~]# ls -lah /tmp/server.c*
-rw-r--r--. 1 root root 4.6K Jun  5 21:21 /tmp/server.crt
-rw-r--r--. 1 root root 1.1K Jun  5 21:12 /tmp/server.csr
[root@server ~]# scp /tmp/server.crt root@192.168.56.15:/root/cafiles/
The authenticity of host '192.168.56.15 (192.168.56.15)' can't be established.
ECDSA key fingerprint is SHA256:7rw7b1vOEC5UmjDAbdIJ6SCK4aoGk5e+48vi3ubjdjE.
ECDSA key fingerprint is MD5:96:39:70:28:72:73:f5:34:61:6f:b6:37:da:90:58:48.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.56.15' (ECDSA) to the list of known hosts.
root@192.168.56.15's password:
server.crt                                                                                        100% 4617     2.8MB/s   00:00
[root@server ~]#

在client客户端使用CA中心颁发的证书文件配置https httpd web服务

查看CA中心发送过来的证书文件server.crt:

sh
[root@client ~]# ls -lah ~/cafiles/
total 20K
drwxr-xr-x.  2 root root   60 Jun  5 21:28 .
dr-xr-x---. 14 root root 4.0K Jun  5 20:58 ..
-rw-r--r--.  1 root root 4.6K Jun  5 21:28 server.crt
-rw-r--r--.  1 root root 1.1K Jun  5 21:05 server.csr
-rw-r--r--.  1 root root 1.8K Jun  5 20:59 server.key
[root@client ~]#

说明已经有了证书文件。

安装mod_ssl模块:

sh
[root@client ~]# yum install mod_ssl -y
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
 * base: mirrors.163.com
 * centos-sclo-rh: mirrors.163.com
 * extras: mirrors.huaweicloud.com
 * updates: mirrors.163.com
Resolving Dependencies
--> Running transaction check
---> Package mod_ssl.x86_64 1:2.4.6-89.el7.centos will be installed
--> Finished Dependency Resolution

Dependencies Resolved

====================================================================================================================================
 Package                     Arch                       Version                                   Repository                   Size
====================================================================================================================================
Installing:
 mod_ssl                     x86_64                     1:2.4.6-89.el7.centos                     updates                     112 k

Transaction Summary
====================================================================================================================================
Install  1 Package

Total download size: 112 k
Installed size: 224 k
Downloading packages:
mod_ssl-2.4.6-89.el7.centos.x86_64.rpm                                                                       | 112 kB  00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : 1:mod_ssl-2.4.6-89.el7.centos.x86_64                                                                             1/1
  Verifying  : 1:mod_ssl-2.4.6-89.el7.centos.x86_64                                                                             1/1

Installed:
  mod_ssl.x86_64 1:2.4.6-89.el7.centos

Complete!
[root@client ~]#

复制server.key和server.crt文件到etc/httpd/conf.d/目录下:

sh
[root@client ~]# cp ~/cafiles/server.key /etc/httpd/conf.d/
[root@client ~]# cp ~/cafiles/server.crt /etc/httpd/conf.d/
[root@client ~]# ls -lah /etc/httpd/conf.d/
total 40K
drwxr-xr-x. 2 root root  134 Jun  5 22:03 .
drwxr-xr-x. 5 root root   92 Jun  5 20:32 ..
-rw-r--r--. 1 root root 2.9K Apr 24 21:45 autoindex.conf
-rw-r--r--. 1 root root  366 Apr 24 21:46 README
-rw-r--r--. 1 root root 4.6K Jun  5 22:03 server.crt
-rw-r--r--. 1 root root 1.8K Jun  5 22:03 server.key
-rw-r--r--. 1 root root 9.3K Jun  5 21:58 ssl.conf
-rw-r--r--. 1 root root 1.3K Apr 24 21:44 userdir.conf
-rw-r--r--. 1 root root  824 Apr 24 21:44 welcome.conf
[root@client ~]#

修改httpd的ssl配置文件/etc/httpd/conf.d/ssl.conf:

sh
[root@client ~]# cat -n /etc/httpd/conf.d/ssl.conf|head -n 108|tail -n 14     <--说明:  配置文件原始内容
    95  #   Server Certificate:
    96  # Point SSLCertificateFile at a PEM encoded certificate.  If
    97  # the certificate is encrypted, then you will be prompted for a
    98  # pass phrase.  Note that a kill -HUP will prompt again.  A new
    99  # certificate can be generated using the genkey(1) command.
   100  SSLCertificateFile /etc/pki/tls/certs/localhost.crt     <--说明:  配置文件原始内容
   101
   102  #   Server Private Key:
   103  #   If the key is not combined with the certificate, use this
   104  #   directive to point at the key file.  Keep in mind that if
   105  #   you've both a RSA and a DSA private key you can configure
   106  #   both in parallel (to also allow the use of DSA ciphers, etc.)
   107  SSLCertificateKeyFile /etc/pki/tls/private/localhost.key      <--说明:  配置文件原始内容
   108
[root@client ~]#
 <--说明:  替换配置文件的内容
[root@client ~]# sed -i '100s@SSLCertificateFile /etc/pki/tls/certs/localhost.crt@SSLCertificateFile /etc/httpd/conf.d/server.crt@g' /etc/httpd/conf.d/ssl.conf
[root@client ~]# sed -i '107s@SSLCertificateKeyFile /etc/pki/tls/private/localhost.key@SSLCertificateKeyFile /etc/httpd/conf.d/server.key@g' /etc/httpd/conf.d/ssl.conf
[root@client ~]# cat -n /etc/httpd/conf.d/ssl.conf|head -n 108|tail -n 14    <--说明:  配置文件修改后的内容
    95  #   Server Certificate:
    96  # Point SSLCertificateFile at a PEM encoded certificate.  If
    97  # the certificate is encrypted, then you will be prompted for a
    98  # pass phrase.  Note that a kill -HUP will prompt again.  A new
    99  # certificate can be generated using the genkey(1) command.
   100  SSLCertificateFile /etc/httpd/conf.d/server.crt      <--说明:  配置文件修改后的内容,指向CA中心颁发证书的路径
   101
   102  #   Server Private Key:
   103  #   If the key is not combined with the certificate, use this
   104  #   directive to point at the key file.  Keep in mind that if
   105  #   you've both a RSA and a DSA private key you can configure
   106  #   both in parallel (to also allow the use of DSA ciphers, etc.)
   107  SSLCertificateKeyFile /etc/httpd/conf.d/server.key    <--说明:  配置文件修改后的内容,自己的私钥文件的路径
   108
[root@client ~]#

奇怪的是,如果不将ca证书文件从~/cafiles复制到/etc/httpd/conf.d/目录下,启动httpd会失败,并报"SSLCertificateFile: file '/root/cafiles/server.crt' does not exist or is empty"异常。

重启httpd服务:

sh
[root@client ~]# systemctl restart httpd
Enter SSL pass phrase for 192.168.56.15:443 (RSA) : ********  <--说明:  需要输入保护私钥的密码clientca
[root@client ~]#

查看httpd服务启用的端口号:

sh
[root@client ~]# netstat -tunlp|grep httpd
tcp6       0      0 :::80                   :::*                    LISTEN      14217/httpd
tcp6       0      0 :::443                  :::*                    LISTEN      14217/httpd
[root@client ~]#

发现已经开启了443端口,说明可以使用https协议。

防火墙开放443端口:

sh
[root@client ~]# firewall-cmd --zone=public  --add-port=443/tcp --permanent
success
[root@client ~]# firewall-cmd --reload
success
[root@client ~]# firewall-cmd --list-all
public (active)
  target: default
  icmp-block-inversion: no
  interfaces: enp0s3 enp0s8
  sources:
  services: ssh dhcpv6-client
  ports: 8140/tcp 53/tcp 11211/tcp 80/tcp 443/tcp
  protocols:
  masquerade: no
  forward-ports:
  source-ports:
  icmp-blocks:
  rich rules:

[root@client ~]#

在浏览器中访问https://192.168.56.15/,可以正常访问,说明配置正常。

Enter PEM pass phrase处理

解决每次重启httpd服务提示"Enter PEM pass phrase"需要输入保护私钥的密码的问题:

sh
[root@client ~]# openssl rsa -in ~/cafiles/server.key -out ~/cafiles/server.key.unsecure  <-- 说明: 从server.key中剥离密码
Enter pass phrase for /root/cafiles/server.key:  <--说明:  需要输入保护私钥的密码clientca
writing RSA key
[root@client ~]# ls -lah ~/cafiles/
total 24K
drwxr-xr-x.  2 root root   87 Jun  5 22:25 .
dr-xr-x---. 14 root root 4.0K Jun  5 22:08 ..
-rw-r--r--.  1 root root 4.6K Jun  5 21:28 server.crt
-rw-r--r--.  1 root root 1.1K Jun  5 21:05 server.csr
-rw-r--r--.  1 root root 1.8K Jun  5 20:59 server.key
-rw-r--r--.  1 root root 1.7K Jun  5 22:25 server.key.unsecure
[root@client ~]# cp ~/cafiles/server.key.unsecure /etc/httpd/conf.d/
[root@client ~]# ls -lah /etc/httpd/conf.d/server.*
-rw-r--r--. 1 root root 4.6K Jun  5 22:03 /etc/httpd/conf.d/server.crt
-rw-r--r--. 1 root root 1.8K Jun  5 22:03 /etc/httpd/conf.d/server.key
-rw-r--r--. 1 root root 1.7K Jun  5 22:26 /etc/httpd/conf.d/server.key.unsecure
[root@client ~]#

修改配置文件/etc/httpd/conf.d/ssl.conf中的server.keyserver.key.unsecure,修改后显示如下 :

sh
[root@client ~]# cat -n /etc/httpd/conf.d/ssl.conf|head -n 108|tail -n 14
    95  #   Server Certificate:
    96  # Point SSLCertificateFile at a PEM encoded certificate.  If
    97  # the certificate is encrypted, then you will be prompted for a
    98  # pass phrase.  Note that a kill -HUP will prompt again.  A new
    99  # certificate can be generated using the genkey(1) command.
   100  SSLCertificateFile /etc/httpd/conf.d/server.crt
   101
   102  #   Server Private Key:
   103  #   If the key is not combined with the certificate, use this
   104  #   directive to point at the key file.  Keep in mind that if
   105  #   you've both a RSA and a DSA private key you can configure
   106  #   both in parallel (to also allow the use of DSA ciphers, etc.)
   107  SSLCertificateKeyFile /etc/httpd/conf.d/server.key.unsecure    <--说明:   修改此处
   108
[root@client ~]#

重启httpd服务:

sh
[root@client ~]# systemctl restart httpd  <--说明:  不再需要输入保护私钥的密码!!!
[root@client ~]#

远程访问https web服务

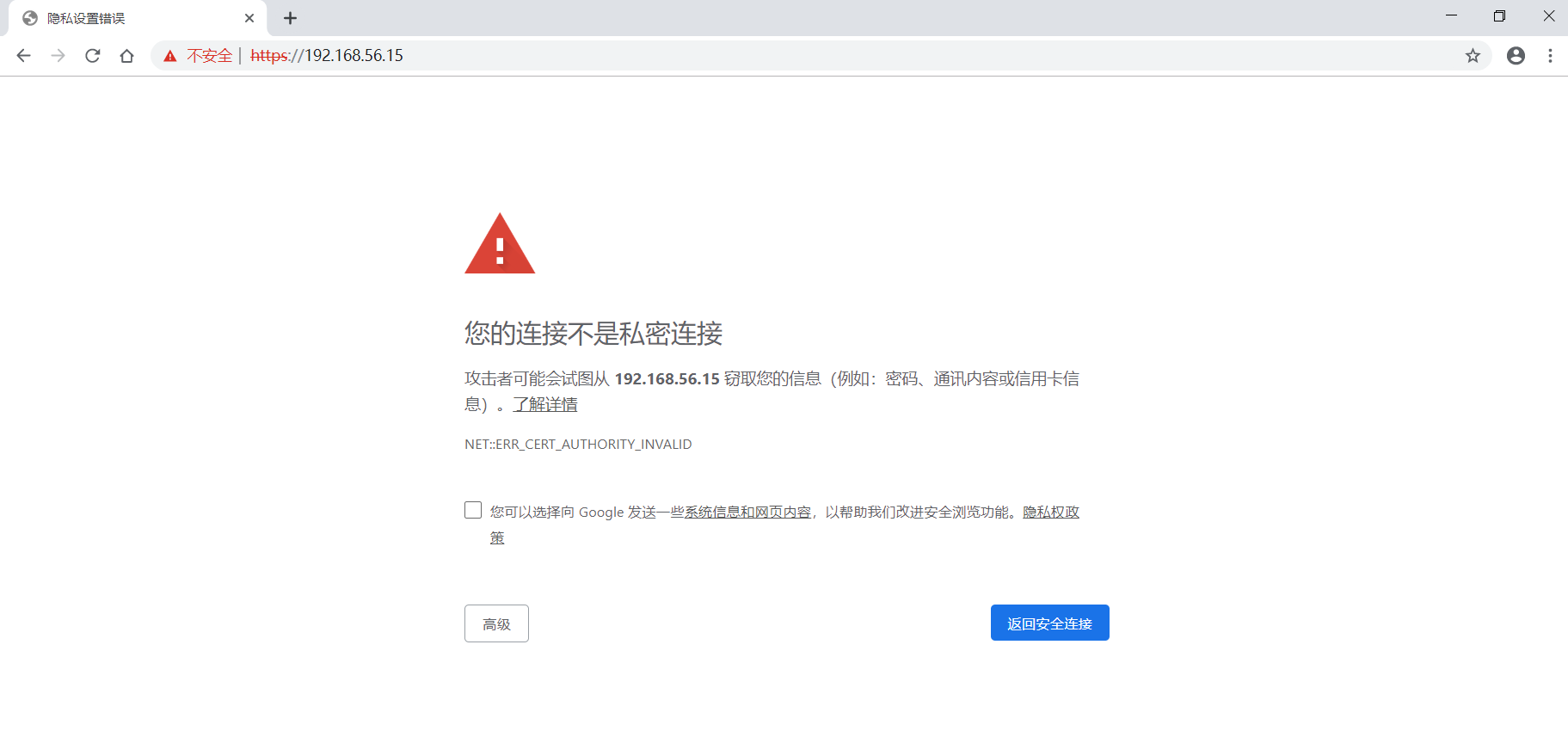

在Google浏览器中打开https://192.168.56.15/链接,显示如下图:

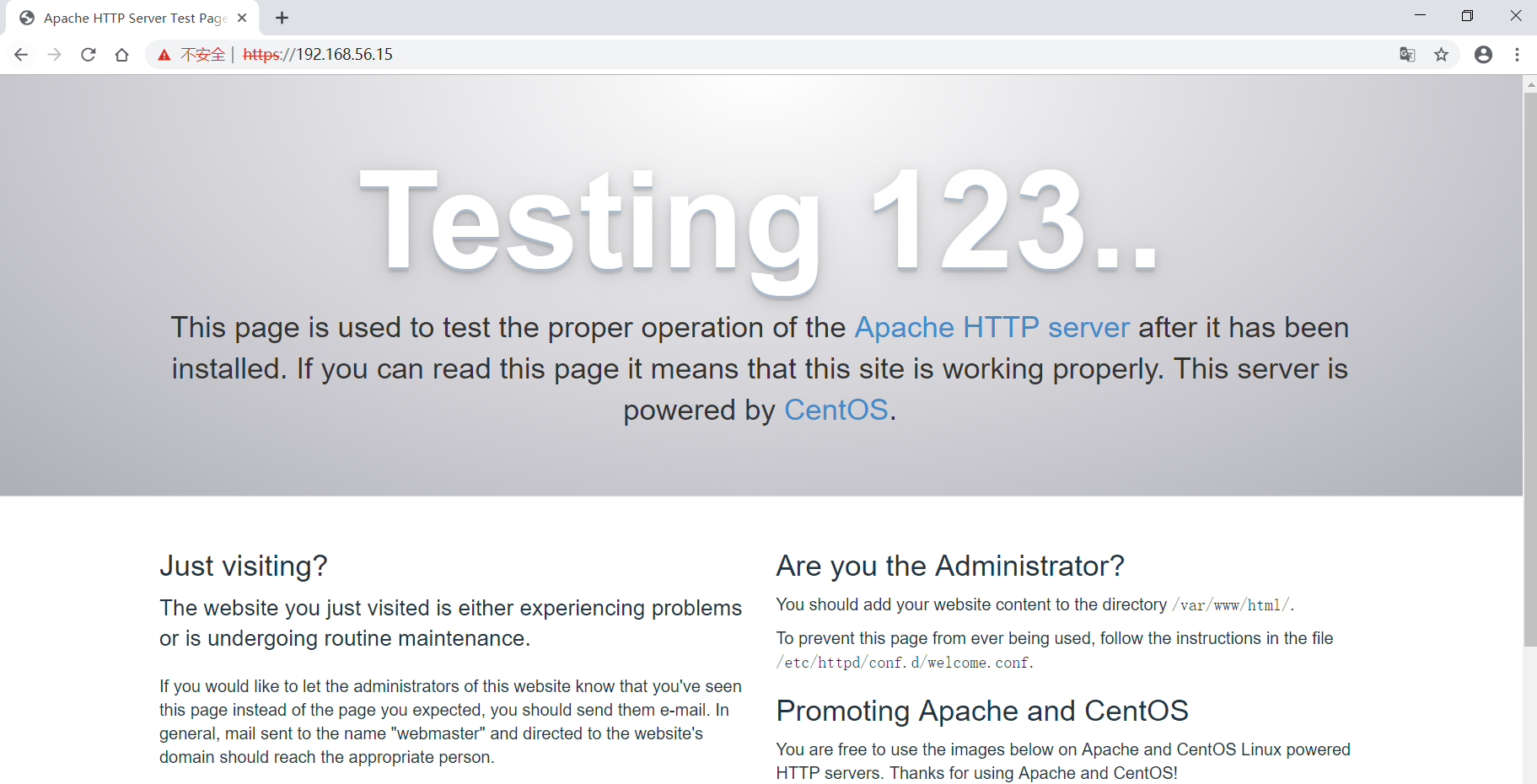

点击"高级" --> "继续前往192.168.56.15(不安全)",则会正常显示页面:

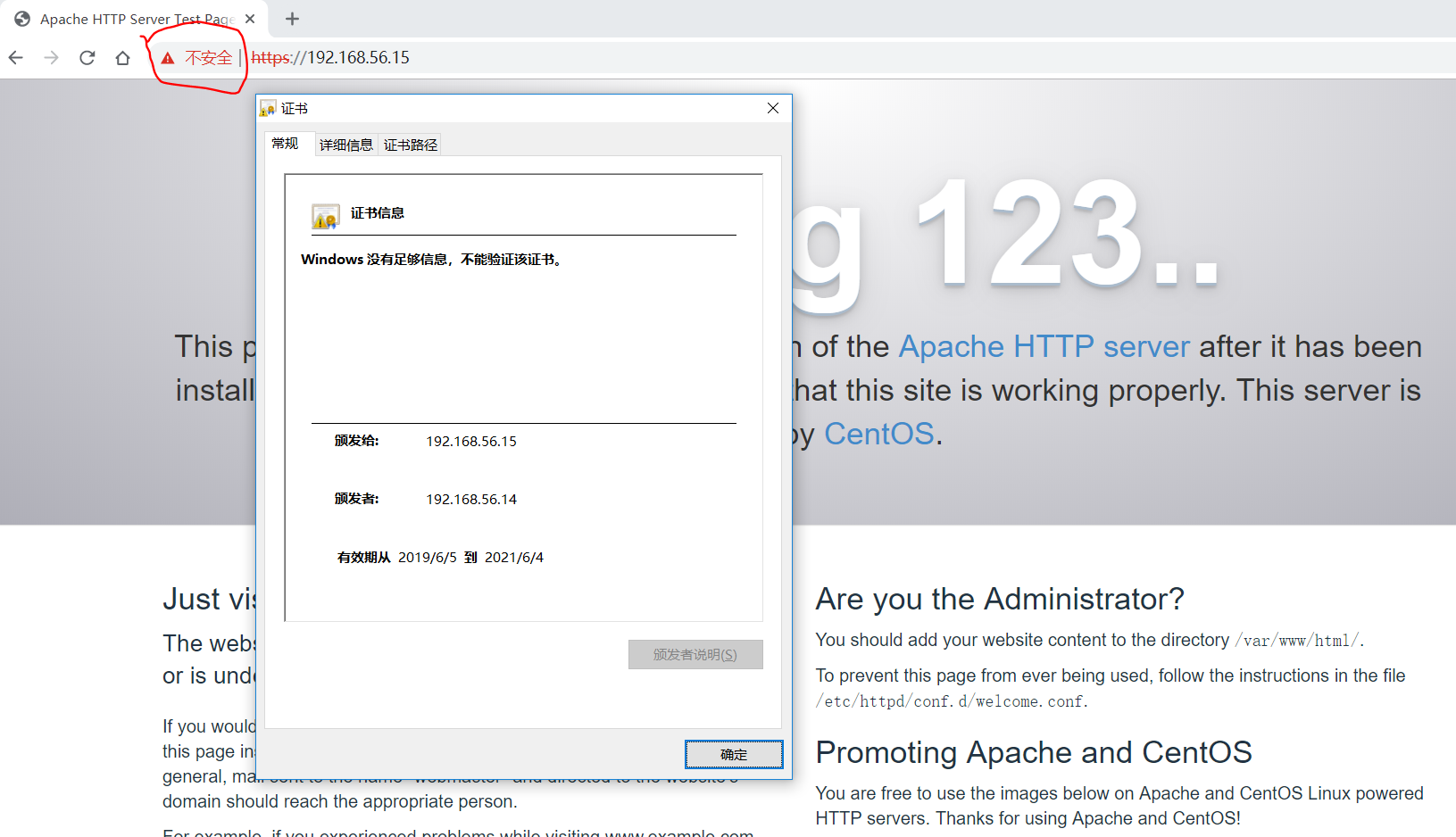

点击Google地址栏"不安全" --> "证书(无效)",则会正常显示页面,可以看到证书有效期是2年:

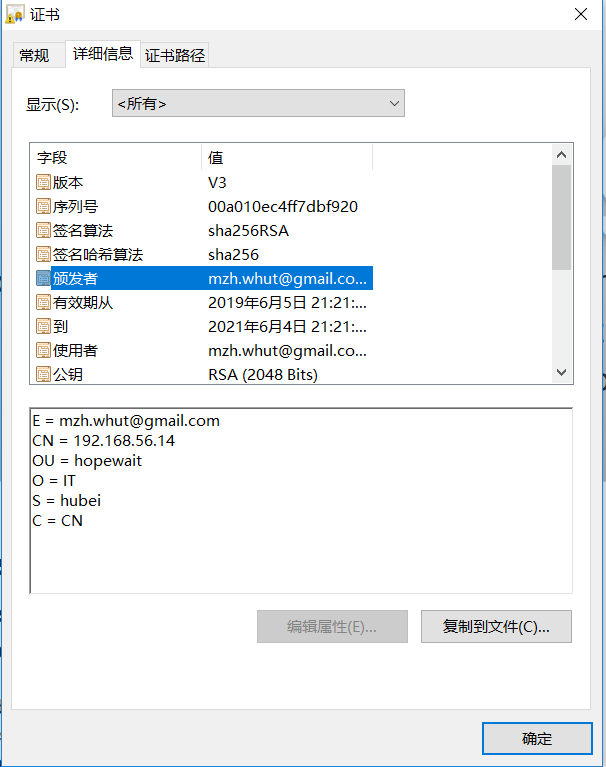

点击"证书" --> "详细信息",可以看到颁发者就是我们的CA中心,则会正常显示页面:


在client客户端使用CA中心颁发的证书文件配置https nginx web服务

为避免nginx测试与httpd冲突,先停止httpd服务,并移除开机自启:

sh
[root@client ~]# systemctl stop httpd
[root@client ~]# systemctl status httpd
 httpd.service - The Apache HTTP Server
   Loaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled)
   Active: inactive (dead) since Wed 2019-06-05 22:52:06 CST; 5s ago
     Docs: man:httpd(8)
           man:apachectl(8)
  Process: 14547 ExecStop=/bin/kill -WINCH ${MAINPID} (code=exited, status=0/SUCCESS)
  Process: 14506 ExecStart=/usr/sbin/httpd $OPTIONS -DFOREGROUND (code=exited, status=0/SUCCESS)
 Main PID: 14506 (code=exited, status=0/SUCCESS)
   Status: "Total requests: 10; Current requests/sec: 0; Current traffic:   0 B/sec"

Jun 05 22:31:04 client.hopewait systemd[1]: Starting The Apache HTTP Server...
Jun 05 22:31:04 client.hopewait systemd[1]: Started The Apache HTTP Server.
Jun 05 22:52:05 client.hopewait systemd[1]: Stopping The Apache HTTP Server...
Jun 05 22:52:06 client.hopewait systemd[1]: Stopped The Apache HTTP Server.
[root@client ~]# systemctl disable httpd
Removed symlink /etc/systemd/system/multi-user.target.wants/httpd.service.
[root@client ~]#

安装nginx-1.12.2这个版本中nginx.conf文本已经配置好了模板:

sh
# 安装YUM源
[root@client ~]# yum install https://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm
[root@client ~]# rpm -ivh https://centos7.iuscommunity.org/ius-release.rpm

# 更新epel为清华大学开源软件镜像站的源
参考 https://mirror.tuna.tsinghua.edu.cn/help/epel/
可使用以下三个命令进行更新
[root@client ~]# sed -i 's@^#baseurl@baseurl@g' /etc/yum.repos.d/epel.repo
[root@client ~]# sed -i 's@^metalink@#metalink@g' /etc/yum.repos.d/epel.repo
[root@client ~]# sed -i 's@http://download.fedoraproject.org/pub@https://mirrors.tuna.tsinghua.edu.cn@g' /etc/yum.repos.d/epel.repo


# 查看nginx info页
[root@client ~]# yum info nginx
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
 * base: mirror.jdcloud.com
 * centos-sclo-rh: mirror.jdcloud.com
 * epel: mirrors.tuna.tsinghua.edu.cn
 * extras: mirror.jdcloud.com
 * updates: mirror.jdcloud.com
Available Packages
Name        : nginx
Arch        : x86_64
Epoch       : 1
Version     : 1.12.2
Release     : 3.el7
Size        : 531 k
Repo        : epel/x86_64
Summary     : A high performance web server and reverse proxy server
URL         : http://nginx.org/
License     : BSD
Description : Nginx is a web server and a reverse proxy server for HTTP, SMTP, POP3 and
            : IMAP protocols, with a strong focus on high concurrency, performance and low
            : memory usage.

# 安装
[root@client ~]# yum install nginx-1.12.2
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
 * base: mirror.jdcloud.com
 * centos-sclo-rh: mirror.jdcloud.com
 * epel: mirrors.tuna.tsinghua.edu.cn
 * extras: mirror.jdcloud.com
 * updates: mirror.jdcloud.com
Resolving Dependencies
--> Running transaction check
---> Package nginx.x86_64 1:1.12.2-3.el7 will be installed
--> Processing Dependency: nginx-all-modules = 1:1.12.2-3.el7 for package: 1:nginx-1.12.2-3.el7.x86_64
--> Processing Dependency: nginx-filesystem = 1:1.12.2-3.el7 for package: 1:nginx-1.12.2-3.el7.x86_64
--> Processing Dependency: nginx-filesystem for package: 1:nginx-1.12.2-3.el7.x86_64
--> Processing Dependency: libprofiler.so.0()(64bit) for package: 1:nginx-1.12.2-3.el7.x86_64
--> Running transaction check
---> Package gperftools-libs.x86_64 0:2.6.1-1.el7 will be installed
---> Package nginx-all-modules.noarch 1:1.12.2-3.el7 will be installed
--> Processing Dependency: nginx-mod-http-geoip = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-http-image-filter = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-http-perl = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-http-xslt-filter = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-mail = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-stream = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
---> Package nginx-filesystem.noarch 1:1.12.2-3.el7 will be installed
--> Running transaction check
---> Package nginx-mod-http-geoip.x86_64 1:1.12.2-3.el7 will be installed
---> Package nginx-mod-http-image-filter.x86_64 1:1.12.2-3.el7 will be installed
---> Package nginx-mod-http-perl.x86_64 1:1.12.2-3.el7 will be installed
---> Package nginx-mod-http-xslt-filter.x86_64 1:1.12.2-3.el7 will be installed
---> Package nginx-mod-mail.x86_64 1:1.12.2-3.el7 will be installed
---> Package nginx-mod-stream.x86_64 1:1.12.2-3.el7 will be installed
--> Finished Dependency Resolution

Dependencies Resolved

====================================================================================================================================
 Package                                      Arch                    Version                           Repository             Size
====================================================================================================================================
Installing:
 nginx                                        x86_64                  1:1.12.2-3.el7                    epel                  531 k
Installing for dependencies:
 gperftools-libs                              x86_64                  2.6.1-1.el7                       base                  272 k
 nginx-all-modules                            noarch                  1:1.12.2-3.el7                    epel                   16 k
 nginx-filesystem                             noarch                  1:1.12.2-3.el7                    epel                   17 k
 nginx-mod-http-geoip                         x86_64                  1:1.12.2-3.el7                    epel                   23 k
 nginx-mod-http-image-filter                  x86_64                  1:1.12.2-3.el7                    epel                   27 k
 nginx-mod-http-perl                          x86_64                  1:1.12.2-3.el7                    epel                   36 k
 nginx-mod-http-xslt-filter                   x86_64                  1:1.12.2-3.el7                    epel                   26 k
 nginx-mod-mail                               x86_64                  1:1.12.2-3.el7                    epel                   54 k
 nginx-mod-stream                             x86_64                  1:1.12.2-3.el7                    epel                   76 k

Transaction Summary
====================================================================================================================================
Install  1 Package (+9 Dependent packages)

Total download size: 1.1 M
Installed size: 3.2 M
Is this ok [y/d/N]: y
Downloading packages:
(1/10): nginx-all-modules-1.12.2-3.el7.noarch.rpm                                                            |  16 kB  00:00:01
(2/10): gperftools-libs-2.6.1-1.el7.x86_64.rpm                                                               | 272 kB  00:00:02
(3/10): nginx-filesystem-1.12.2-3.el7.noarch.rpm                                                             |  17 kB  00:00:03
(4/10): nginx-1.12.2-3.el7.x86_64.rpm                                                                        | 531 kB  00:00:04
(5/10): nginx-mod-http-geoip-1.12.2-3.el7.x86_64.rpm                                                         |  23 kB  00:00:00
(6/10): nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64.rpm                                                   |  26 kB  00:00:00
(7/10): nginx-mod-mail-1.12.2-3.el7.x86_64.rpm                                                               |  54 kB  00:00:00
(8/10): nginx-mod-http-perl-1.12.2-3.el7.x86_64.rpm                                                          |  36 kB  00:00:00
(9/10): nginx-mod-http-image-filter-1.12.2-3.el7.x86_64.rpm                                                  |  27 kB  00:00:00
(10/10): nginx-mod-stream-1.12.2-3.el7.x86_64.rpm                                                            |  76 kB  00:00:00
------------------------------------------------------------------------------------------------------------------------------------
Total                                                                                               203 kB/s | 1.1 MB  00:00:05
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Warning: RPMDB altered outside of yum.
  Installing : 1:nginx-filesystem-1.12.2-3.el7.noarch                                                                          1/10
  Installing : gperftools-libs-2.6.1-1.el7.x86_64                                                                              2/10
  Installing : 1:nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64                                                                3/10
  Installing : 1:nginx-mod-http-perl-1.12.2-3.el7.x86_64                                                                       4/10
  Installing : 1:nginx-mod-http-image-filter-1.12.2-3.el7.x86_64                                                               5/10
  Installing : 1:nginx-mod-mail-1.12.2-3.el7.x86_64                                                                            6/10
  Installing : 1:nginx-mod-stream-1.12.2-3.el7.x86_64                                                                          7/10
Installing : 1:nginx-mod-http-geoip-1.12.2-3.el7.x86_64                                                                      8/10
Installing : 1:nginx-all-modules-1.12.2-3.el7.noarch                                                                         9/10
  Installing : 1:nginx-1.12.2-3.el7.x86_64                                                                                    10/10
  Verifying  : 1:nginx-all-modules-1.12.2-3.el7.noarch                                                                         1/10
  Verifying  : 1:nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64                                                                2/10
  Verifying  : 1:nginx-mod-http-perl-1.12.2-3.el7.x86_64                                                                       3/10
  Verifying  : 1:nginx-mod-http-image-filter-1.12.2-3.el7.x86_64                                                               4/10
  Verifying  : gperftools-libs-2.6.1-1.el7.x86_64                                                                              5/10
  Verifying  : 1:nginx-1.12.2-3.el7.x86_64                                                                                     6/10
  Verifying  : 1:nginx-filesystem-1.12.2-3.el7.noarch                                                                          7/10
  Verifying  : 1:nginx-mod-mail-1.12.2-3.el7.x86_64                                                                            8/10
Verifying  : 1:nginx-mod-stream-1.12.2-3.el7.x86_64                                                                          9/10
Verifying  : 1:nginx-mod-http-geoip-1.12.2-3.el7.x86_64                                                                     10/10

Installed:
  nginx.x86_64 1:1.12.2-3.el7

Dependency Installed:
  gperftools-libs.x86_64 0:2.6.1-1.el7                                 nginx-all-modules.noarch 1:1.12.2-3.el7
  nginx-filesystem.noarch 1:1.12.2-3.el7                               nginx-mod-http-geoip.x86_64 1:1.12.2-3.el7
  nginx-mod-http-image-filter.x86_64 1:1.12.2-3.el7                    nginx-mod-http-perl.x86_64 1:1.12.2-3.el7
  nginx-mod-http-xslt-filter.x86_64 1:1.12.2-3.el7                     nginx-mod-mail.x86_64 1:1.12.2-3.el7
  nginx-mod-stream.x86_64 1:1.12.2-3.el7

Complete!


查看nginx版本信息:

sh
[root@client ~]# nginx -v
nginx version: nginx/1.12.2
[root@client ~]# nginx -V
nginx version: nginx/1.12.2
built by gcc 4.8.5 20150623 (Red Hat 4.8.5-36) (GCC)
built with OpenSSL 1.0.2k-fips  26 Jan 2017
TLS SNI support enabled
configure arguments: --prefix=/usr/share/nginx --sbin-path=/usr/sbin/nginx --modules-path=/usr/lib64/nginx/modules --conf-path=/etc/nginx/nginx.conf --error-log-path=/var/log/nginx/error.log --http-log-path=/var/log/nginx/access.log --http-client-body-temp-path=/var/lib/nginx/tmp/client_body --http-proxy-temp-path=/var/lib/nginx/tmp/proxy --http-fastcgi-temp-path=/var/lib/nginx/tmp/fastcgi --http-uwsgi-temp-path=/var/lib/nginx/tmp/uwsgi --http-scgi-temp-path=/var/lib/nginx/tmp/scgi --pid-path=/run/nginx.pid --lock-path=/run/lock/subsys/nginx --user=nginx --group=nginx --with-file-aio --with-ipv6 --with-http_auth_request_module --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_addition_module --with-http_xslt_module=dynamic --with-http_image_filter_module=dynamic --with-http_geoip_module=dynamic --with-http_sub_module --with-http_dav_module --with-http_flv_module --with-http_mp4_module --with-http_gunzip_module --with-http_gzip_static_module --with-http_random_index_module --with-http_secure_link_module --with-http_degradation_module --with-http_slice_module --with-http_stub_status_module --with-http_perl_module=dynamic --with-mail=dynamic --with-mail_ssl_module --with-pcre --with-pcre-jit --with-stream=dynamic --with-stream_ssl_module --with-google_perftools_module --with-debug --with-cc-opt='-O2 -g -pipe -Wall -Wp,-D_FORTIFY_SOURCE=2 -fexceptions -fstack-protector-strong --param=ssp-buffer-size=4 -grecord-gcc-switches -specs=/usr/lib/rpm/redhat/redhat-hardened-cc1 -m64 -mtune=generic' --with-ld-opt='-Wl,-z,relro -specs=/usr/lib/rpm/redhat/redhat-hardened-ld -Wl,-E'
[root@client ~]#
  • 确认一下nginx安装时已编译http_ssl模块,也就是执行nginx -V命令查看是否存在 --with-http_ssl_module。一般都会有的,如果没有,则需要重新编译nginx将该模块加入。

查看nginx.conf配置文件的原始内容:

sh
[root@client ~]# cat -n /etc/nginx/nginx.conf
     1  # For more information on configuration, see:
     2  #   * Official English Documentation: http://nginx.org/en/docs/
     3  #   * Official Russian Documentation: http://nginx.org/ru/docs/
     4
     5  user nginx;
     6  worker_processes auto;
     7  error_log /var/log/nginx/error.log;
     8  pid /run/nginx.pid;
     9
    10  # Load dynamic modules. See /usr/share/nginx/README.dynamic.
    11  include /usr/share/nginx/modules/*.conf;
    12
    13  events {
    14      worker_connections 1024;
    15  }
    16
    17  http {
    18      log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    19                        '$status $body_bytes_sent "$http_referer" '
    20                        '"$http_user_agent" "$http_x_forwarded_for"';
    21
    22      access_log  /var/log/nginx/access.log  main;
    23
    24      sendfile            on;
    25      tcp_nopush          on;
    26      tcp_nodelay         on;
    27      keepalive_timeout   65;
    28      types_hash_max_size 2048;
    29
    30      include             /etc/nginx/mime.types;
    31      default_type        application/octet-stream;
    32
    33      # Load modular configuration files from the /etc/nginx/conf.d directory.
    34      # See http://nginx.org/en/docs/ngx_core_module.html#include
    35      # for more information.
    36      include /etc/nginx/conf.d/*.conf;
    37
    38      server {
    39          listen       80 default_server;
    40          listen       [::]:80 default_server;
    41          server_name  _;
    42          root         /usr/share/nginx/html;
    43
    44          # Load configuration files for the default server block.
    45          include /etc/nginx/default.d/*.conf;
    46
    47          location / {
    48          }
    49
    50          error_page 404 /404.html;
    51              location = /40x.html {
    52          }
    53
    54          error_page 500 502 503 504 /50x.html;
    55              location = /50x.html {
    56          }
    57      }
    58
    59  # Settings for a TLS enabled server.
    60  #
    61  #    server {
    62  #        listen       443 ssl http2 default_server;
    63  #        listen       [::]:443 ssl http2 default_server;
    64  #        server_name  _;
    65  #        root         /usr/share/nginx/html;
    66  #
    67  #        ssl_certificate "/etc/pki/nginx/server.crt";
    68  #        ssl_certificate_key "/etc/pki/nginx/private/server.key";
    69  #        ssl_session_cache shared:SSL:1m;
    70  #        ssl_session_timeout  10m;
    71  #        ssl_ciphers HIGH:!aNULL:!MD5;
    72  #        ssl_prefer_server_ciphers on;
    73  #
    74  #        # Load configuration files for the default server block.
    75  #        include /etc/nginx/default.d/*.conf;
    76  #
    77  #        location / {
    78  #        }
    79  #
    80  #        error_page 404 /404.html;
    81  #            location = /40x.html {
    82  #        }
    83  #
    84  #        error_page 500 502 503 504 /50x.html;
    85  #            location = /50x.html {
    86  #        }
    87  #    }
    88
    89  }
    90

可以看到nginx针对普通的80端口以及TLS加密服务的443端口已经给出了配置示例。

nginx设置为开机启动,并启动nginx:

sh
[root@client ~]# systemctl enable nginx
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.
[root@client ~]# systemctl start nginx
[root@client ~]# systemctl status nginx
 nginx.service - The nginx HTTP and reverse proxy server
   Loaded: loaded (/usr/lib/systemd/system/nginx.service; enabled; vendor preset: disabled)
   Active: active (running) since Thu 2019-06-06 21:49:30 CST; 7s ago
  Process: 13765 ExecStart=/usr/sbin/nginx (code=exited, status=0/SUCCESS)
  Process: 13763 ExecStartPre=/usr/sbin/nginx -t (code=exited, status=0/SUCCESS)
  Process: 13761 ExecStartPre=/usr/bin/rm -f /run/nginx.pid (code=exited, status=0/SUCCESS)
 Main PID: 13767 (nginx)
    Tasks: 2
   Memory: 6.4M
   CGroup: /system.slice/nginx.service
           ├─13767 nginx: master process /usr/sbin/nginx
           └─13768 nginx: worker process

Jun 06 21:49:29 client.hopewait systemd[1]: Starting The nginx HTTP and reverse proxy server...
Jun 06 21:49:29 client.hopewait nginx[13763]: nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
Jun 06 21:49:29 client.hopewait nginx[13763]: nginx: configuration file /etc/nginx/nginx.conf test is successful
Jun 06 21:49:30 client.hopewait systemd[1]: Failed to read PID from file /run/nginx.pid: Invalid argument
Jun 06 21:49:30 client.hopewait systemd[1]: Started The nginx HTTP and reverse proxy server.
[root@client ~]#

查看nginx启动的端口,并检查防火墙是否开放该端口:

sh
[root@client ~]# netstat -tunlp|grep nginx
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      13767/nginx: master
tcp6       0      0 :::80                   :::*                    LISTEN      13767/nginx: master
[root@client ~]# firewall-cmd --list-all
public (active)
  target: default
  icmp-block-inversion: no
  interfaces: enp0s3 enp0s8
  sources:
  services: ssh dhcpv6-client
  ports: 8140/tcp 53/tcp 11211/tcp 80/tcp 443/tcp
  protocols:
  masquerade: no
  forward-ports:
  source-ports:
  icmp-blocks:
  rich rules:
[root@client ~]#

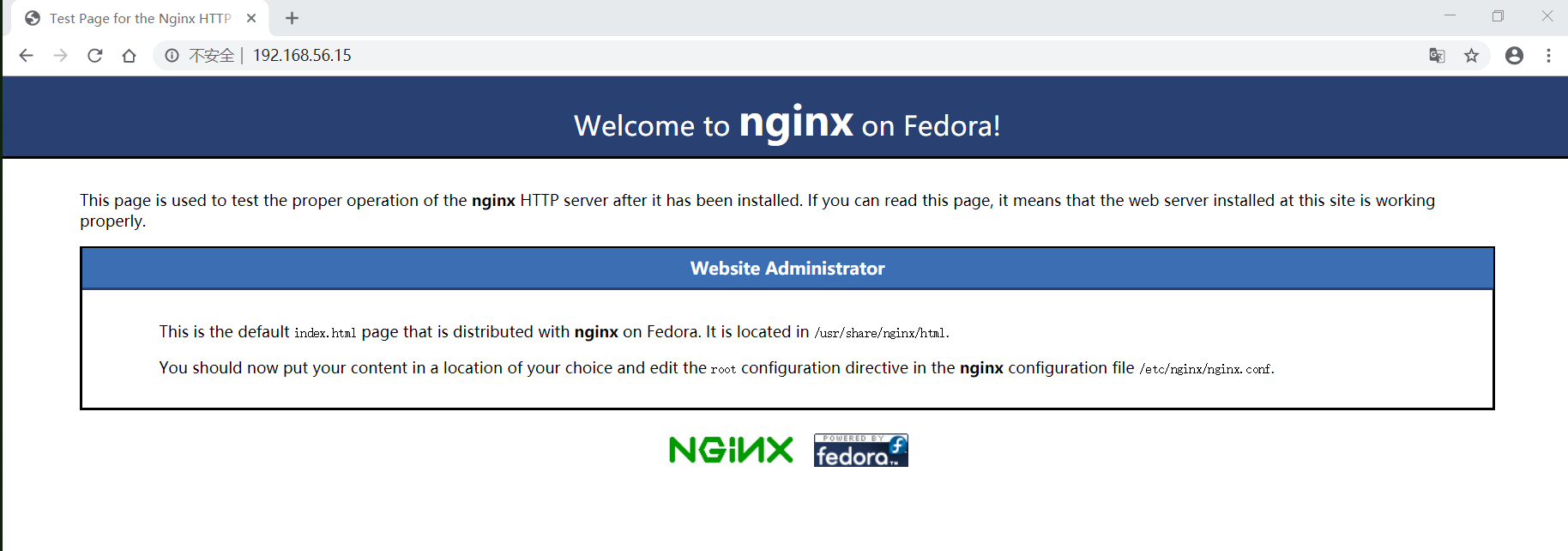

可以看到nginx当前启动的是80端口,我们使用google浏览器打开http://192.168.56.15/链接:


我们将CA证书应用到nginx中,修改nginx的配置文件/etc/nginx/nginx.conf, 将38-57行80端口部分注释掉,61-87行部分取消注释:

sh
[root@client ~]# cp /etc/nginx/nginx.conf /etc/nginx/nginx.conf.bak
[root@client ~]# sed  -i '38,57s/^/#/g' /etc/nginx/nginx.conf
[root@client ~]# sed -i '60,87s/^#//g' /etc/nginx/nginx.conf
# 替换后文件内容如下

[root@client ~]# cat -n /etc/nginx/nginx.conf|sed -n '38,90p'
    38  #    server {
    39  #        listen       80 default_server;
    40  #        listen       [::]:80 default_server;
    41  #        server_name  _;
    42  #        root         /usr/share/nginx/html;
    43  #
    44  #        # Load configuration files for the default server block.
    45  #        include /etc/nginx/default.d/*.conf;
    46  #
    47  #        location / {
    48  #        }
    49  #
    50  #        error_page 404 /404.html;
    51  #            location = /40x.html {
    52  #        }
    53  #
    54  #        error_page 500 502 503 504 /50x.html;
    55  #            location = /50x.html {
    56  #        }
    57  #    }
    58
    59  # Settings for a TLS enabled server.
    60
    61      server {
    62          listen       443 ssl http2 default_server;
    63          listen       [::]:443 ssl http2 default_server;
    64          server_name  _;
    65          root         /usr/share/nginx/html;
    66
    67          ssl_certificate "/etc/pki/nginx/server.crt";
    68          ssl_certificate_key "/etc/pki/nginx/private/server.key";
    69          ssl_session_cache shared:SSL:1m;
    70          ssl_session_timeout  10m;
    71          ssl_ciphers HIGH:!aNULL:!MD5;
    72          ssl_prefer_server_ciphers on;
    73
    74          # Load configuration files for the default server block.
    75          include /etc/nginx/default.d/*.conf;
    76
    77          location / {
    78          }
    79
    80          error_page 404 /404.html;
    81              location = /40x.html {
    82          }
    83
    84          error_page 500 502 503 504 /50x.html;
    85              location = /50x.html {
    86          }
    87      }
    88
    89  }
    90
[root@client ~]#

替换掉64行的server_name指定具体的IP地址192.168.56.15:

sh
[root@client ~]# sed -i '64s@server_name  _;@server_name 192.168.56.15;@g' /etc/nginx/nginx.conf

再把67-68两行替换成我们之前配置的CA认证文件以及自己的私钥地址:

sh
[root@client ~]# sed -i '67s@ssl_certificate "/etc/pki/nginx/server.crt"@ssl_certificate "/root/cafiles/server.crt"@g' /etc/nginx/nginx.conf
[root@client ~]# sed -i '68s@ssl_certificate_key "/etc/pki/nginx/private/server.key"@ssl_certificate_key "/root/cafiles/server.key.unsecure"@g' /etc/nginx/nginx.conf

查看文件59-90行:

sh
[root@client ~]# cat -n /etc/nginx/nginx.conf|sed -n '59,90p'
    59  # Settings for a TLS enabled server.
    60
    61      server {
    62          listen       443 ssl http2 default_server;
    63          listen       [::]:443 ssl http2 default_server;
    64          server_name 192.168.56.15;
    65          root         /usr/share/nginx/html;
    66
    67          ssl_certificate "/root/cafiles/server.crt";
    68          ssl_certificate_key "/root/cafiles/server.key.unsecure";
    69          ssl_session_cache shared:SSL:1m;
    70          ssl_session_timeout  10m;
    71          ssl_ciphers HIGH:!aNULL:!MD5;
    72          ssl_prefer_server_ciphers on;
    73
    74          # Load configuration files for the default server block.
    75          include /etc/nginx/default.d/*.conf;
    76
    77          location / {
    78          }
    79
    80          error_page 404 /404.html;
    81              location = /40x.html {
    82          }
    83
    84          error_page 500 502 503 504 /50x.html;
    85              location = /50x.html {
    86          }
    87      }
    88
    89  }
    90

重启nginx服务,发现启动不了:

sh
[root@client ~]# systemctl start nginx
Job for nginx.service failed because the control process exited with error code. See "systemctl status nginx.service" and "journalctl -xe" for details.
    [root@client ~]# systemctl status nginx
 nginx.service - The nginx HTTP and reverse proxy server
       Loaded: loaded (/usr/lib/systemd/system/nginx.service; enabled; vendor preset: disabled)
       Active: failed (Result: exit-code) since Thu 2019-06-06 22:23:10 CST; 8s ago
      Process: 13765 ExecStart=/usr/sbin/nginx (code=exited, status=0/SUCCESS)
      Process: 13943 ExecStartPre=/usr/sbin/nginx -t (code=exited, status=1/FAILURE)
      Process: 13942 ExecStartPre=/usr/bin/rm -f /run/nginx.pid (code=exited, status=0/SUCCESS)
     Main PID: 13767 (code=exited, status=0/SUCCESS)

    Jun 06 22:23:10 client.hopewait systemd[1]: Starting The nginx HTTP and reverse proxy server...
    Jun 06 22:23:10 client.hopewait nginx[13943]: nginx: [emerg] BIO_new_file("/root/cafiles/server.crt") failed (SSL: error:02...m lib)
    Jun 06 22:23:10 client.hopewait nginx[13943]: nginx: configuration file /etc/nginx/nginx.conf test failed
    Jun 06 22:23:10 client.hopewait systemd[1]: nginx.service: control process exited, code=exited status=1
    Jun 06 22:23:10 client.hopewait systemd[1]: Failed to start The nginx HTTP and reverse proxy server.
    Jun 06 22:23:10 client.hopewait systemd[1]: Unit nginx.service entered failed state.
    Jun 06 22:23:10 client.hopewait systemd[1]: nginx.service failed.
    Hint: Some lines were ellipsized, use -l to show in full.
    [root@client ~]# systemctl status nginx -l
 nginx.service - The nginx HTTP and reverse proxy server
       Loaded: loaded (/usr/lib/systemd/system/nginx.service; enabled; vendor preset: disabled)
       Active: failed (Result: exit-code) since Thu 2019-06-06 22:23:10 CST; 30s ago
      Process: 13765 ExecStart=/usr/sbin/nginx (code=exited, status=0/SUCCESS)
      Process: 13943 ExecStartPre=/usr/sbin/nginx -t (code=exited, status=1/FAILURE)
      Process: 13942 ExecStartPre=/usr/bin/rm -f /run/nginx.pid (code=exited, status=0/SUCCESS)
     Main PID: 13767 (code=exited, status=0/SUCCESS)

    Jun 06 22:23:10 client.hopewait systemd[1]: Starting The nginx HTTP and reverse proxy server...
    Jun 06 22:23:10 client.hopewait nginx[13943]: nginx: [emerg] BIO_new_file("/root/cafiles/server.crt") failed (SSL: error:0200100D:system library:fopen:Permission denied:fopen('/root/cafiles/server.crt','r') error:2006D002:BIO routines:BIO_new_file:system lib)
    Jun 06 22:23:10 client.hopewait nginx[13943]: nginx: configuration file /etc/nginx/nginx.conf test failed
    Jun 06 22:23:10 client.hopewait systemd[1]: nginx.service: control process exited, code=exited status=1
    Jun 06 22:23:10 client.hopewait systemd[1]: Failed to start The nginx HTTP and reverse proxy server.
    Jun 06 22:23:10 client.hopewait systemd[1]: Unit nginx.service entered failed state.
    Jun 06 22:23:10 client.hopewait systemd[1]: nginx.service failed.

后又将nginx.conf中证书配置处还原初始状态,并复制证书和私钥到相应的位置:

sh
[root@client ~]# cat -n /etc/nginx/nginx.conf|sed -n '59,90p'
    59  # Settings for a TLS enabled server.
    60
    61      server {
    62          listen       443 ssl http2 default_server;
    63          listen       [::]:443 ssl http2 default_server;
    64          server_name  192.168.56.15;
    65          root         /usr/share/nginx/html;
    66
    67          ssl_certificate "/etc/pki/nginx/server.crt";
    68          ssl_certificate_key "/etc/pki/nginx/private/server.key";
    69          ssl_session_cache shared:SSL:1m;
    70          ssl_session_timeout  10m;
    71          ssl_ciphers HIGH:!aNULL:!MD5;
    72          ssl_prefer_server_ciphers on;
    73
    74          # Load configuration files for the default server block.
    75          include /etc/nginx/default.d/*.conf;
    76
    77          location / {
    78          }
    79
    80          error_page 404 /404.html;
    81              location = /40x.html {
    82          }
    83
    84          error_page 500 502 503 504 /50x.html;
    85              location = /50x.html {
    86          }
    87      }
    88
    89  }
    90
[root@client ~]#

注意

如果不进行复制,nginx读取不到/root/cafiles/目录中的文件,则无法启动nginx服务。

复制证书文件到/etc/pki/nginx目录下,复制私钥到/etc/pki/nginx/private目录下:

sh
[root@client ~]# mkdir -p /etc/pki/nginx/private
[root@client ~]# cp cafiles/server.crt /etc/pki/nginx/server.crt
[root@client ~]# cp cafiles/server.key.unsecure  /etc/pki/nginx/private/server.key
[root@client ~]# ls -lah /etc/pki/nginx/
total 12K
drwxr-xr-x.  3 root root   57 Jun  6 22:30 .
drwxr-xr-x. 11 root root  129 Jun  6 22:29 ..
drwxr-xr-x.  2 root root   24 Jun  6 22:31 private
-rw-r--r--.  1 root root 4.6K Jun  6 22:30 server.crt
[root@client ~]# ls -lah /etc/pki/nginx/private/server.key
-rw-r--r--. 1 root root 1.7K Jun  6 22:31 /etc/pki/nginx/private/server.key

使用nginx -t检查一下nginx配置文件是否配置有误:

sh
[root@client ~]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

语法正确,启动nginx,发现可以正常启动:

sh
[root@client ~]# systemctl start nginx
[root@client ~]# netstat -tunlp|grep nginx
tcp        0      0 0.0.0.0:443             0.0.0.0:*               LISTEN      14060/nginx: master
tcp6       0      0 :::443                  :::*                    LISTEN      14060/nginx: master
[root@client ~]# ps -ef|grep nginx
root     14060     1  0 22:35 ?        00:00:00 nginx: master process /usr/sbin/nginx
nginx    14061 14060  0 22:35 ?        00:00:00 nginx: worker process
root     14066 11535  0 22:35 pts/0    00:00:00 grep --color=auto nginx

使用google浏览器打开https://192.168.56.15/链接:


nginx 80端口转443端口

重新修改nginx配置文件80端口部分:

sh
[root@client ~]# cat -n /etc/nginx/nginx.conf|sed -n '38,90p'
    38      server {
    39          listen       80;
    40  #        listen       [::]:80 default_server;
    41          server_name  192.168.56.15;
    42          rewrite ^(.*)$ https://${server_name}$1 permanent;      # <--说明:  此处进行端口转发
    43  #        root         /usr/share/nginx/html;
    44  #
    45  #        # Load configuration files for the default server block.
    46  #        include /etc/nginx/default.d/*.conf;
    47  #
    48  #        location / {
    49  #        }
    50  #
    51  #        error_page 404 /404.html;
    52  #            location = /40x.html {
    53  #        }
    54  #
    55  #        error_page 500 502 503 504 /50x.html;
    56  #            location = /50x.html {
    57  #        }
    58      }
    59
    60  # Settings for a TLS enabled server.
    61
    62      server {
    63          listen       443 ssl http2 default_server;
    64          listen       [::]:443 ssl http2 default_server;
    65          server_name 192.168.56.15;
    66          root         /usr/share/nginx/html;
    67
    68          ssl_certificate "/etc/pki/nginx/server.crt";
    69          ssl_certificate_key "/etc/pki/nginx/private/server.key";
    70          ssl_session_cache shared:SSL:1m;
    71          ssl_session_timeout  10m;
    72          ssl_ciphers HIGH:!aNULL:!MD5;
    73          ssl_prefer_server_ciphers on;
    74
    75          # Load configuration files for the default server block.
    76          include /etc/nginx/default.d/*.conf;
    77
    78          location / {
    79          }
    80
    81          error_page 404 /404.html;
    82              location = /40x.html {
    83          }
    84
    85          error_page 500 502 503 504 /50x.html;
    86              location = /50x.html {
    87          }
    88      }
    89
    90  }
[root@client ~]#
  • 使用rewrite ^(.*)$ https://${server_name}$1 permanent;进行端口转发。

使用google浏览器打开http://192.168.56.15/链接时,会自动跳转到 https://192.168.56.15/链接:


打开F12调试Network可以看到返回301重定向。

httpd 80端口转443端口

首先使用systemctl stop nginx停止nginx服务。

/etc/httpd/conf.d/目录下新增http2https.conf配置文件,配置文件内容如下:

sh
[root@client ~]# cat -n /etc/httpd/conf.d/http2https.conf
     1  <VirtualHost *:80>
     2      ServerName 192.168.56.15
     3      RewriteEngine on
     4      RewriteCond %{SERVER_PORT} !^443$
     5      RewriteRule ^/?(.*)$ https://%{SERVER_NAME}/$1 [L,R]
     6  </VirtualHost>
     7
[root@client ~]#

使用systemctl start httpd启动httpd web服务,则可以看到Apache的测试页。

自签名证书

以上证书的使用都是使用CA中心颁发的证书,使用两台服务器进行测试的。

下面我们仅在client服务器上面使用OpenSSL配置自签名证书,不需要CA中心,来达到https加密服务。自签名证书,用于自己测试,不需要CA签发。

先停止httpd服务:

sh
[root@client ~]# systemctl stop httpd
[root@client ~]# ps -ef|grep httpd
root     15656 14955  0 20:51 pts/0    00:00:00 grep --color=auto httpd

生成密钥和证书文件:

sh
[root@client ~]# openssl req -x509 -nodes -days 1095 -newkey rsa:2048 -keyout /etc/httpd/conf.d/self_ca.key -out /etc/httpd/conf.d/self_ca.crt
Generating a 2048 bit RSA private key
.........+++
..+++
writing new private key to '/etc/httpd/conf.d/self_ca.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:hubei
Locality Name (eg, city) [Default City]:wuhan
Organization Name (eg, company) [Default Company Ltd]:IT
Organizational Unit Name (eg, section) []:hopewait
Common Name (eg, your name or your server's hostname) []:192.168.56.15
Email Address []:mzh.whut@gmail.com
[root@client ~]# ls -lah /etc/httpd/conf.d/self_ca*
-rw-r--r-- 1 root root 1.4K Jun 13 20:59 /etc/httpd/conf.d/self_ca.crt
-rw-r--r-- 1 root root 1.7K Jun 13 20:59 /etc/httpd/conf.d/self_ca.key
[root@client ~]#

参数说明

-key 指定已有的秘钥文件生成秘钥请求,只与生成证书请求选项-new配合

-x509 说明生成自签名证

-newkey -newkey是与-key互斥的,-newkey是指在生成证书请求或者自签名证书的时候自动生成密钥,生成的密钥名称由-keyout参数指定。当指定newkey选项时,后面指定rsa:bits说明产生rsa密钥,位数由bits指定。如果没有指定选项-key和-newkey,默认自动生成秘钥

-out 指定生成的证书请求或者自签名证书名称

-nodes 如果指定-newkey自动生成秘钥,那么-nodes选项说明生成的秘钥不需要加密,即不需要输入passphase

-days -days n 指定自签名证书的有效期限。默认为30天

修改Apache的配置文件/etc/httpd/conf.d/ssl.conf的证书文件和密钥文件路径:

sh
[root@client ~]# cat -n /etc/httpd/conf.d/ssl.conf|sed -n '95,108p'
    95  #   Server Certificate:
    96  # Point SSLCertificateFile at a PEM encoded certificate.  If
    97  # the certificate is encrypted, then you will be prompted for a
    98  # pass phrase.  Note that a kill -HUP will prompt again.  A new
    99  # certificate can be generated using the genkey(1) command.
   100  SSLCertificateFile /etc/httpd/conf.d/self_ca.crt        <-- 说明:证书文件路径
   101
   102  #   Server Private Key:
   103  #   If the key is not combined with the certificate, use this
   104  #   directive to point at the key file.  Keep in mind that if
   105  #   you've both a RSA and a DSA private key you can configure
   106  #   both in parallel (to also allow the use of DSA ciphers, etc.)
   107  SSLCertificateKeyFile /etc/httpd/conf.d/self_ca.key       <-- 说明:密钥文件路径
   108
[root@client ~]#

重启httpd服务:

sh
[root@client ~]# httpd -t
Syntax OK
[root@client ~]# systemctl start httpd
[root@client ~]#

使用google浏览器打开http://192.168.56.15/链接时,会自动跳转到https://192.168.56.15/链接,此时查看证书的详情:


可以看到证书的颁发者和使用者都是192.168.56.15,有效期三年,也就是我们刚才的配置的自签名证书呢。

无论是通过配置OpenSSL配置CA中心颁发签名证书还是自签名证书,浏览器都认为证书是 不安全 的,推荐使用权威CA中心签发的证书。

使用配置文件设置DN数据

下面是一个GitLab中的示例:

sh
echo -e "11) Create self ssl files"
mkdir -p /etc/nginx/ssl
echo -e "Create OpenSSL configuration"
cat > req.conf << EOF
# The default config file : /etc/pki/tls/openssl.cnf
# set prompt = no will read config data from file directly.
[ req ]
distinguished_name     = req_distinguished_name
prompt                 = no

[ req_distinguished_name ]
countryName            = CN
stateOrProvinceName    = hubei
localityName           = wuhan
0.organizationName     = IT
organizationalUnitName = hellogitlab.com
commonName             = hellogitlab.com
emailAddress           = mzh.whut@gmail.com
EOF
echo -e "Create self CA"
openssl req -x509 -nodes -days 1095 -config req.conf -newkey rsa:2048 -keyout /etc/nginx/ssl/gitlab.key -out /etc/nginx/ssl/gitlab.crt

可参考: OpenSSL主配置文件openssl.cnf

如果自己有域名并解析到云服务器上,可以使用Let’s Encrypt CA中心颁发的证书来构建https服务。可参考https://letsencrypt.org/zh-cn/getting-started/https://certbot.eff.org/docs/using.html#where-are-my-certificates

使用Let’s Encrypt颁发证书

什么是Let’s Encrypt


Let's Encrypt是一个由非营利性组织,互联网安全研究小组(ISRG)提供的免费、自动化和开放的证书颁发机构(CA)。

简单的说,借助Let's Encrypt颁发的证书可以为我们的网站免费启用HTTPS(SSL/TLS)

Let's Encrypt免费证书的签发/续签都是脚本自动化的,官方提供了几种证书的申请方式方法, 点击此处快速浏览。官方推荐使用Certbot客户端来签发证书。

Let's Encrypt免费证书默认是90天有效期,后面我们需要设置自动续签证书。

下载Let's Encrypt脚本文件:

[root@hopewait ~]# git clone https://github.com/letsencrypt/letsencrypt
Cloning into 'letsencrypt'...
remote: Enumerating objects: 98, done.
remote: Counting objects: 100% (98/98), done.
remote: Compressing objects: 100% (72/72), done.
remote: Total 66231 (delta 52), reused 63 (delta 26), pack-reused 66133
Receiving objects: 100% (66231/66231), 21.66 MiB | 21.38 MiB/s, done.
Resolving deltas: 100% (48443/48443), done.

或者:git clone https://github.com/certbot/certbot.git

查看letsencrypt的版本:

[root@hopewait ~]# /root/letsencrypt/certbot-auto --version
certbot 0.35.1

获取帮助信息(帮助信息很长,可以将其重写向到文件中):

sh
[root@hopewait ~]# /root/letsencrypt/certbot-auto --help all
    usage:
      certbot-auto [SUBCOMMAND] [options] [-d DOMAIN] [-d DOMAIN] ...

    Certbot can obtain and install HTTPS/TLS/SSL certificates.  By default,
    it will attempt to use a webserver both for obtaining and installing the
    certificate. The most common SUBCOMMANDS and flags are:

    obtain, install, and renew certificates:
        (default) run   Obtain & install a certificate in your current webserver
        certonly        Obtain or renew a certificate, but do not install it
        renew           Renew all previously obtained certificates that are near expiry
        enhance         Add security enhancements to your existing configuration
       -d DOMAINS       Comma-separated list of domains to obtain a certificate for

      --apache          Use the Apache plugin for authentication & installation
      --standalone      Run a standalone webserver for authentication
      --nginx           Use the Nginx plugin for authentication & installation
      --webroot         Place files in a server's webroot folder for authentication
      --manual          Obtain certificates interactively, or using shell script hooks

       -n               Run non-interactively
      --test-cert       Obtain a test certificate from a staging server
      --dry-run         Test "renew" or "certonly" without saving any certificates to disk

    manage certificates:
        certificates    Display information about certificates you have from Certbot
        revoke          Revoke a certificate (supply --cert-path or --cert-name)
        delete          Delete a certificate

    manage your account with Let's Encrypt:
        register        Create a Let's Encrypt ACME account
        unregister      Deactivate a Let's Encrypt ACME account
        update_account  Update a Let's Encrypt ACME account
      --agree-tos       Agree to the ACME server's Subscriber Agreement
       -m EMAIL         Email address for important account notifications

    optional arguments:
      -h, --help            show this help message and exit
      -c CONFIG_FILE, --config CONFIG_FILE
                            path to config file (default: /etc/letsencrypt/cli.ini
                            and ~/.config/letsencrypt/cli.ini)
      -v, --verbose         This flag can be used multiple times to incrementally
                            increase the verbosity of output, e.g. -vvv. (default:
                            -2)
      --max-log-backups MAX_LOG_BACKUPS
                            Specifies the maximum number of backup logs that
                            should be kept by Certbot's built in log rotation.
                            Setting this flag to 0 disables log rotation entirely,
                            causing Certbot to always append to the same log file.
                            (default: 1000)
      -n, --non-interactive, --noninteractive
                            Run without ever asking for user input. This may
                            require additional command line flags; the client will
                            try to explain which ones are required if it finds one
                            missing (default: False)
      --force-interactive   Force Certbot to be interactive even if it detects
                            it's not being run in a terminal. This flag cannot be
                            used with the renew subcommand. (default: False)
      -d DOMAIN, --domains DOMAIN, --domain DOMAIN
                            Domain names to apply. For multiple domains you can
                            use multiple -d flags or enter a comma separated list
                            of domains as a parameter. The first domain provided
                            will be the subject CN of the certificate, and all
                            domains will be Subject Alternative Names on the
                            certificate. The first domain will also be used in
                            some software user interfaces and as the file paths
                            for the certificate and related material unless
                            otherwise specified or you already have a certificate
                            with the same name. In the case of a name collision it
                            will append a number like 0001 to the file path name.
                            (default: Ask)
      --eab-kid EAB_KID     Key Identifier for External Account Binding (default:
                            None)
      --eab-hmac-key EAB_HMAC_KEY
                            HMAC key for External Account Binding (default: None)
      --cert-name CERTNAME  Certificate name to apply. This name is used by
                            Certbot for housekeeping and in file paths; it doesn't
                            affect the content of the certificate itself. To see
                            certificate names, run 'certbot certificates'. When
                            creating a new certificate, specifies the new
                            certificate's name. (default: the first provided
                            domain or the name of an existing certificate on your
                            system for the same domains)
      --dry-run             Perform a test run of the client, obtaining test
                            (invalid) certificates but not saving them to disk.
                            This can currently only be used with the 'certonly'
                            and 'renew' subcommands. Note: Although --dry-run
                            tries to avoid making any persistent changes on a
                            system, it is not completely side-effect free: if used
                            with webserver authenticator plugins like apache and
                            nginx, it makes and then reverts temporary config
                            changes in order to obtain test certificates, and
                            reloads webservers to deploy and then roll back those
                            changes. It also calls --pre-hook and --post-hook
                            commands if they are defined because they may be
                            necessary to accurately simulate renewal. --deploy-
                            hook commands are not called. (default: False)
      --debug-challenges    After setting up challenges, wait for user input
                            before submitting to CA (default: False)
      --preferred-challenges PREF_CHALLS
                            A sorted, comma delimited list of the preferred
                            challenge to use during authorization with the most
                            preferred challenge listed first (Eg, "dns" or
                            "http,dns"). Not all plugins support all challenges.
                            See https://certbot.eff.org/docs/using.html#plugins
                            for details. ACME Challenges are versioned, but if you
                            pick "http" rather than "http-01", Certbot will select
                            the latest version automatically. (default: [])
      --user-agent USER_AGENT
                            Set a custom user agent string for the client. User
                            agent strings allow the CA to collect high level
                            statistics about success rates by OS, plugin and use
                            case, and to know when to deprecate support for past
                            Python versions and flags. If you wish to hide this
                            information from the Let's Encrypt server, set this to
                            "". (default: CertbotACMEClient/0.35.1 (certbot-auto;
                            CentOS Linux 7 (Core)) Authenticator/XXX Installer/YYY
                            (SUBCOMMAND; flags: FLAGS) Py/2.7.5). The flags
                            encoded in the user agent are: --duplicate, --force-
                            renew, --allow-subset-of-names, -n, and whether any
                            hooks are set.
      --user-agent-comment USER_AGENT_COMMENT
                            Add a comment to the default user agent string. May be
                            used when repackaging Certbot or calling it from
                            another tool to allow additional statistical data to
                            be collected. Ignored if --user-agent is set.
                            (Example: Foo-Wrapper/1.0) (default: None)

    automation:
      Flags for automating execution & other tweaks

      --keep-until-expiring, --keep, --reinstall
                            If the requested certificate matches an existing
                            certificate, always keep the existing one until it is
                            due for renewal (for the 'run' subcommand this means
                            reinstall the existing certificate). (default: Ask)
      --expand              If an existing certificate is a strict subset of the
                            requested names, always expand and replace it with the
                            additional names. (default: Ask)
      --version             show program's version number and exit
      --force-renewal, --renew-by-default
                            If a certificate already exists for the requested
                            domains, renew it now, regardless of whether it is
                            near expiry. (Often --keep-until-expiring is more
                            appropriate). Also implies --expand. (default: False)
      --renew-with-new-domains
                            If a certificate already exists for the requested
                            certificate name but does not match the requested
                            domains, renew it now, regardless of whether it is
                            near expiry. (default: False)
      --reuse-key           When renewing, use the same private key as the
                            existing certificate. (default: False)
      --allow-subset-of-names
                            When performing domain validation, do not consider it
                            a failure if authorizations can not be obtained for a
                            strict subset of the requested domains. This may be
                            useful for allowing renewals for multiple domains to
                            succeed even if some domains no longer point at this
                            system. This option cannot be used with --csr.
                            (default: False)
      --agree-tos           Agree to the ACME Subscriber Agreement (default: Ask)
      --duplicate           Allow making a certificate lineage that duplicates an
                            existing one (both can be renewed in parallel)
                            (default: False)
      --os-packages-only    (certbot-auto only) install OS package dependencies
                            and then stop (default: False)
      --no-self-upgrade     (certbot-auto only) prevent the certbot-auto script
                            from upgrading itself to newer released versions
                            (default: Upgrade automatically)
      --no-bootstrap        (certbot-auto only) prevent the certbot-auto script
                            from installing OS-level dependencies (default: Prompt
                            to install OS-wide dependencies, but exit if the user
                            says 'No')
      --no-permissions-check
                            (certbot-auto only) skip the check on the file system
                            permissions of the certbot-auto script (default:
                            False)
      -q, --quiet           Silence all output except errors. Useful for
                            automation via cron. Implies --non-interactive.
                            (default: False)

    security:
      Security parameters & server settings

      --rsa-key-size N      Size of the RSA key. (default: 2048)
      --must-staple         Adds the OCSP Must Staple extension to the
                            certificate. Autoconfigures OCSP Stapling for
                            supported setups (Apache version >= 2.3.3 ). (default:
                            False)
      --redirect            Automatically redirect all HTTP traffic to HTTPS for
                            the newly authenticated vhost. (default: Ask)
      --no-redirect         Do not automatically redirect all HTTP traffic to
                            HTTPS for the newly authenticated vhost. (default:
                            Ask)
      --hsts                Add the Strict-Transport-Security header to every HTTP
                            response. Forcing browser to always use SSL for the
                            domain. Defends against SSL Stripping. (default: None)
      --uir                 Add the "Content-Security-Policy: upgrade-insecure-
                            requests" header to every HTTP response. Forcing the
                            browser to use https:// for every http:// resource.
                            (default: None)
      --staple-ocsp         Enables OCSP Stapling. A valid OCSP response is
                            stapled to the certificate that the server offers
                            during TLS. (default: None)
      --strict-permissions  Require that all configuration files are owned by the
                            current user; only needed if your config is somewhere
                            unsafe like /tmp/ (default: False)
      --auto-hsts           Gradually increasing max-age value for HTTP Strict
                            Transport Security security header (default: False)

    testing:
      The following flags are meant for testing and integration purposes only.

      --test-cert, --staging
                            Use the staging server to obtain or revoke test
                            (invalid) certificates; equivalent to --server https
                            ://acme-staging-v02.api.letsencrypt.org/directory
                            (default: False)
      --debug               Show tracebacks in case of errors, and allow certbot-
                            auto execution on experimental platforms (default:
                            False)
      --no-verify-ssl       Disable verification of the ACME server's certificate.
                            (default: False)
      --http-01-port HTTP01_PORT
                            Port used in the http-01 challenge. This only affects
                            the port Certbot listens on. A conforming ACME server
                            will still attempt to connect on port 80. (default:
                            80)
      --http-01-address HTTP01_ADDRESS
                            The address the server listens to during http-01
                            challenge. (default: )
      --https-port HTTPS_PORT
                            Port used to serve HTTPS. This affects which port
                            Nginx will listen on after a LE certificate is
                            installed. (default: 443)
      --break-my-certs      Be willing to replace or renew valid certificates with
                            invalid (testing/staging) certificates (default:
                            False)

    paths:
      Flags for changing execution paths & servers

      --cert-path CERT_PATH
                            Path to where certificate is saved (with auth --csr),
                            installed from, or revoked. (default: None)
      --key-path KEY_PATH   Path to private key for certificate installation or
                            revocation (if account key is missing) (default: None)
      --fullchain-path FULLCHAIN_PATH
                            Accompanying path to a full certificate chain
                            (certificate plus chain). (default: None)
      --chain-path CHAIN_PATH
                            Accompanying path to a certificate chain. (default:
                            None)
      --config-dir CONFIG_DIR
                            Configuration directory. (default: /etc/letsencrypt)
      --work-dir WORK_DIR   Working directory. (default: /var/lib/letsencrypt)
      --logs-dir LOGS_DIR   Logs directory. (default: /var/log/letsencrypt)
      --server SERVER       ACME Directory Resource URI. (default:
                            https://acme-v02.api.letsencrypt.org/directory)

    manage:
      Various subcommands and flags are available for managing your
      certificates:

      certificates          List certificates managed by Certbot
      delete                Clean up all files related to a certificate
      renew                 Renew all certificates (or one specified with --cert-
                            name)
      revoke                Revoke a certificate specified with --cert-path or
                            --cert-name
      update_symlinks       Recreate symlinks in your /etc/letsencrypt/live/
                            directory

    run:
      Options for obtaining & installing certificates

    certonly:
      Options for modifying how a certificate is obtained

      --csr CSR             Path to a Certificate Signing Request (CSR) in DER or
                            PEM format. Currently --csr only works with the
                            'certonly' subcommand. (default: None)

    renew:
      The 'renew' subcommand will attempt to renew all certificates (or more
      precisely, certificate lineages) you have previously obtained if they are
      close to expiry, and print a summary of the results. By default, 'renew'
      will reuse the options used to create obtain or most recently successfully
      renew each certificate lineage. You can try it with `--dry-run` first. For
      more fine-grained control, you can renew individual lineages with the
      `certonly` subcommand. Hooks are available to run commands before and
      after renewal; see https://certbot.eff.org/docs/using.html#renewal for
      more information on these.

      --pre-hook PRE_HOOK   Command to be run in a shell before obtaining any
                            certificates. Intended primarily for renewal, where it
                            can be used to temporarily shut down a webserver that
                            might conflict with the standalone plugin. This will
                            only be called if a certificate is actually to be
                            obtained/renewed. When renewing several certificates
                            that have identical pre-hooks, only the first will be
                            executed. (default: None)
      --post-hook POST_HOOK
                            Command to be run in a shell after attempting to
                            obtain/renew certificates. Can be used to deploy
                            renewed certificates, or to restart any servers that
                            were stopped by --pre-hook. This is only run if an
                            attempt was made to obtain/renew a certificate. If
                            multiple renewed certificates have identical post-
                            hooks, only one will be run. (default: None)
      --deploy-hook DEPLOY_HOOK
                            Command to be run in a shell once for each
                            successfully issued certificate. For this command, the
                            shell variable $RENEWED_LINEAGE will point to the
                            config live subdirectory (for example,
                            "/etc/letsencrypt/live/example.com") containing the
                            new certificates and keys; the shell variable
                            $RENEWED_DOMAINS will contain a space-delimited list
                            of renewed certificate domains (for example,
                            "example.com www.example.com" (default: None)
      --disable-hook-validation
                            Ordinarily the commands specified for --pre-hook
                            /--post-hook/--deploy-hook will be checked for
                            validity, to see if the programs being run are in the
                            $PATH, so that mistakes can be caught early, even when
                            the hooks aren't being run just yet. The validation is
                            rather simplistic and fails if you use more advanced
                            shell constructs, so you can use this switch to
                            disable it. (default: False)
      --no-directory-hooks  Disable running executables found in Certbot's hook
                            directories during renewal. (default: False)
      --disable-renew-updates
                            Disable automatic updates to your server configuration
                            that would otherwise be done by the selected installer
                            plugin, and triggered when the user executes "certbot
                            renew", regardless of if the certificate is renewed.
                            This setting does not apply to important TLS
                            configuration updates. (default: False)
      --no-autorenew        Disable auto renewal of certificates. (default: True)

    certificates:
      List certificates managed by Certbot

    delete:
      Options for deleting a certificate

    revoke:
      Options for revocation of certificates

      --reason {unspecified,keycompromise,affiliationchanged,superseded,cessationofoperation}
                            Specify reason for revoking certificate. (default:
                            unspecified)
      --delete-after-revoke
                            Delete certificates after revoking them, along with
                            all previous and later versions of those certificates.
                            (default: None)
      --no-delete-after-revoke
                            Do not delete certificates after revoking them. This
                            option should be used with caution because the 'renew'
                            subcommand will attempt to renew undeleted revoked
                            certificates. (default: None)

    register:
  Options for account registration

      --register-unsafely-without-email
                            Specifying this flag enables registering an account
                            with no email address. This is strongly discouraged,
                            because in the event of key loss or account compromise
                            you will irrevocably lose access to your account. You
                            will also be unable to receive notice about impending
                            expiration or revocation of your certificates. Updates
                            to the Subscriber Agreement will still affect you, and
                            will be effective 14 days after posting an update to
                            the web site. (default: False)
      -m EMAIL, --email EMAIL
                            Email used for registration and recovery contact. Use
                            comma to register multiple emails, ex:
                            u1@example.com,u2@example.com. (default: Ask).
      --eff-email           Share your e-mail address with EFF (default: None)
      --no-eff-email        Don't share your e-mail address with EFF (default:
                            None)

    update_account:
      Options for account modification

    unregister:
      Options for account deactivation.

  --account ACCOUNT_ID  Account ID to use (default: None)

    install:
      Options for modifying how a certificate is deployed

    config_changes:
      Options for controlling which changes are displayed

      --num NUM             How many past revisions you want to be displayed
                            (default: None)

    rollback:
      Options for rolling back server configuration changes

      --checkpoints N       Revert configuration N number of checkpoints.
                            (default: 1)

    plugins:
      Options for for the "plugins" subcommand

      --init                Initialize plugins. (default: False)
      --prepare             Initialize and prepare plugins. (default: False)
      --authenticators      Limit to authenticator plugins only. (default: None)
      --installers          Limit to installer plugins only. (default: None)

    update_symlinks:
      Recreates certificate and key symlinks in /etc/letsencrypt/live, if you
      changed them by hand or edited a renewal configuration file

    enhance:
      Helps to harden the TLS configuration by adding security enhancements to
      already existing configuration.

    plugins:
      Plugin Selection: Certbot client supports an extensible plugins
      architecture. See 'certbot plugins' for a list of all installed plugins
      and their names. You can force a particular plugin by setting options
      provided below. Running --help <plugin_name> will list flags specific to
      that plugin.

      --configurator CONFIGURATOR
                            Name of the plugin that is both an authenticator and
                            an installer. Should not be used together with
                            --authenticator or --installer. (default: Ask)
      -a AUTHENTICATOR, --authenticator AUTHENTICATOR
                            Authenticator plugin name. (default: None)
      -i INSTALLER, --installer INSTALLER
                            Installer plugin name (also used to find domains).
                            (default: None)
      --apache              Obtain and install certificates using Apache (default:
                            False)
      --nginx               Obtain and install certificates using Nginx (default:
                            False)
      --standalone          Obtain certificates using a "standalone" webserver.
                            (default: False)
      --manual              Provide laborious manual instructions for obtaining a
                            certificate (default: False)
      --webroot             Obtain certificates by placing files in a webroot
                            directory. (default: False)
      --dns-cloudflare      Obtain certificates using a DNS TXT record (if you are
                            using Cloudflare for DNS). (default: False)
      --dns-cloudxns        Obtain certificates using a DNS TXT record (if you are
                            using CloudXNS for DNS). (default: False)
      --dns-digitalocean    Obtain certificates using a DNS TXT record (if you are
                            using DigitalOcean for DNS). (default: False)
      --dns-dnsimple        Obtain certificates using a DNS TXT record (if you are
                            using DNSimple for DNS). (default: False)
      --dns-dnsmadeeasy     Obtain certificates using a DNS TXT record (if you are
                            using DNS Made Easy for DNS). (default: False)
      --dns-gehirn          Obtain certificates using a DNS TXT record (if you are
                            using Gehirn Infrastracture Service for DNS).
                            (default: False)
      --dns-google          Obtain certificates using a DNS TXT record (if you are
                            using Google Cloud DNS). (default: False)
      --dns-linode          Obtain certificates using a DNS TXT record (if you are
                            using Linode for DNS). (default: False)
      --dns-luadns          Obtain certificates using a DNS TXT record (if you are
                            using LuaDNS for DNS). (default: False)
      --dns-nsone           Obtain certificates using a DNS TXT record (if you are
                            using NS1 for DNS). (default: False)
      --dns-ovh             Obtain certificates using a DNS TXT record (if you are
                            using OVH for DNS). (default: False)
      --dns-rfc2136         Obtain certificates using a DNS TXT record (if you are
                            using BIND for DNS). (default: False)
      --dns-route53         Obtain certificates using a DNS TXT record (if you are
                            using Route53 for DNS). (default: False)
      --dns-sakuracloud     Obtain certificates using a DNS TXT record (if you are
                            using Sakura Cloud for DNS). (default: False)

    apache:
      Apache Web Server plugin

      --apache-enmod APACHE_ENMOD
                            Path to the Apache 'a2enmod' binary (default: None)
      --apache-dismod APACHE_DISMOD
                            Path to the Apache 'a2dismod' binary (default: None)
      --apache-le-vhost-ext APACHE_LE_VHOST_EXT
                            SSL vhost configuration extension (default: -le-
                            ssl.conf)
      --apache-server-root APACHE_SERVER_ROOT
                            Apache server root directory (default: /etc/httpd)
      --apache-vhost-root APACHE_VHOST_ROOT
                            Apache server VirtualHost configuration root (default:
                            None)
      --apache-logs-root APACHE_LOGS_ROOT
                            Apache server logs directory (default: /var/log/httpd)
      --apache-challenge-location APACHE_CHALLENGE_LOCATION
                            Directory path for challenge configuration (default:
                            /etc/httpd/conf.d)
      --apache-handle-modules APACHE_HANDLE_MODULES
                            Let installer handle enabling required modules for you
                            (Only Ubuntu/Debian currently) (default: False)
      --apache-handle-sites APACHE_HANDLE_SITES
                            Let installer handle enabling sites for you (Only
                            Ubuntu/Debian currently) (default: False)
      --apache-ctl APACHE_CTL
                            Full path to Apache control script (default:
                            apachectl)

    manual:
      Authenticate through manual configuration or custom shell scripts. When
      using shell scripts, an authenticator script must be provided. The
      environment variables available to this script depend on the type of
      challenge. $CERTBOT_DOMAIN will always contain the domain being
      authenticated. For HTTP-01 and DNS-01, $CERTBOT_VALIDATION is the
      validation string, and $CERTBOT_TOKEN is the filename of the resource
      requested when performing an HTTP-01 challenge. An additional cleanup
      script can also be provided and can use the additional variable
      $CERTBOT_AUTH_OUTPUT which contains the stdout output from the auth
      script.

      --manual-auth-hook MANUAL_AUTH_HOOK
                            Path or command to execute for the authentication
                            script (default: None)
      --manual-cleanup-hook MANUAL_CLEANUP_HOOK
                            Path or command to execute for the cleanup script
                            (default: None)
      --manual-public-ip-logging-ok
                            Automatically allows public IP logging (default: Ask)

    nginx:
      Nginx Web Server plugin

      --nginx-server-root NGINX_SERVER_ROOT
                            Nginx server root directory. (default: /etc/nginx)
      --nginx-ctl NGINX_CTL
                            Path to the 'nginx' binary, used for 'configtest' and
                            retrieving nginx version number. (default: nginx)

    null:
      Null Installer

    standalone:
      Spin up a temporary webserver

    webroot:
      Place files in webroot directory

      --webroot-path WEBROOT_PATH, -w WEBROOT_PATH
                            public_html / webroot path. This can be specified
                            multiple times to handle different domains; each
                            domain will have the webroot path that preceded it.
                            For instance: `-w /var/www/example -d example.com -d
                            www.example.com -w /var/www/thing -d thing.net -d
                            m.thing.net` (default: Ask)
      --webroot-map WEBROOT_MAP
                            JSON dictionary mapping domains to webroot paths; this
                            implies -d for each entry. You may need to escape this
                            from your shell. E.g.: --webroot-map
                            '{"eg1.is,m.eg1.is":"/www/eg1/", "eg2.is":"/www/eg2"}'
                            This option is merged with, but takes precedence over,
                            -w / -d entries. At present, if you put webroot-map in
                            a config file, it needs to be on a single line, like:
                            webroot-map = {"example.com":"/var/www"}. (default:
                            {})

生成证书

创建证书文件,创建证书过程中会自动安装依赖包:

sh
[root@hopewait ~]# /root/letsencrypt/certbot-auto certonly --standalone --email mzh@hopewait.com -d hopewait.com -d www.hopewait.com
Bootstrapping dependencies for RedHat-based OSes... (you can skip this with --no-bootstrap)
yum is /usr/bin/yum
yum is hashed (/usr/bin/yum)
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
epel/x86_64/metalink                                                                                            |  18 kB  00:00:00
 * base: centos.sonn.com
 * epel: mirror.layeronline.com
 * extras: mirror.fileplanet.com
 * updates: mirror.fileplanet.com
base                                                                                                            | 3.6 kB  00:00:00
epel                                                                                                            | 5.3 kB  00:00:00
extras                                                                                                          | 3.4 kB  00:00:00
ius                                                                                                             | 1.3 kB  00:00:00
updates                                                                                                         | 3.4 kB  00:00:00
(1/2): epel/x86_64/updateinfo                                                                                   | 976 kB  00:00:00
(2/2): epel/x86_64/primary_db                                                                                   | 6.7 MB  00:00:00
Package gcc-4.8.5-36.el7_6.2.x86_64 already installed and latest version
Package 1:openssl-1.0.2k-16.el7_6.1.x86_64 already installed and latest version
Package 1:openssl-devel-1.0.2k-16.el7_6.1.x86_64 already installed and latest version
Package libffi-devel-3.0.13-18.el7.x86_64 already installed and latest version
Package ca-certificates-2018.2.22-70.0.el7_5.noarch already installed and latest version
Package python-devel-2.7.5-77.el7_6.x86_64 already installed and latest version
Resolving Dependencies
--> Running transaction check
---> Package augeas-libs.x86_64 0:1.4.0-6.el7_6.1 will be installed
---> Package mod_ssl.x86_64 1:2.4.6-89.el7.centos will be installed
---> Package python-tools.x86_64 0:2.7.5-77.el7_6 will be installed
--> Processing Dependency: tkinter = 2.7.5-77.el7_6 for package: python-tools-2.7.5-77.el7_6.x86_64
---> Package python-virtualenv.noarch 0:15.1.0-2.el7 will be installed
---> Package python2-pip.noarch 0:8.1.2-8.el7 will be installed
---> Package redhat-rpm-config.noarch 0:9.1.0-87.el7.centos will be installed
--> Processing Dependency: dwz >= 0.4 for package: redhat-rpm-config-9.1.0-87.el7.centos.noarch
--> Processing Dependency: zip for package: redhat-rpm-config-9.1.0-87.el7.centos.noarch
--> Processing Dependency: perl-srpm-macros for package: redhat-rpm-config-9.1.0-87.el7.centos.noarch
--> Running transaction check
---> Package dwz.x86_64 0:0.11-3.el7 will be installed
---> Package perl-srpm-macros.noarch 0:1-8.el7 will be installed
---> Package tkinter.x86_64 0:2.7.5-77.el7_6 will be installed
--> Processing Dependency: libtk8.5.so()(64bit) for package: tkinter-2.7.5-77.el7_6.x86_64
--> Processing Dependency: libtcl8.5.so()(64bit) for package: tkinter-2.7.5-77.el7_6.x86_64
--> Processing Dependency: libX11.so.6()(64bit) for package: tkinter-2.7.5-77.el7_6.x86_64
--> Processing Dependency: libTix.so()(64bit) for package: tkinter-2.7.5-77.el7_6.x86_64
---> Package zip.x86_64 0:3.0-11.el7 will be installed
--> Running transaction check
---> Package libX11.x86_64 0:1.6.5-2.el7 will be installed
--> Processing Dependency: libX11-common >= 1.6.5-2.el7 for package: libX11-1.6.5-2.el7.x86_64
--> Processing Dependency: libxcb.so.1()(64bit) for package: libX11-1.6.5-2.el7.x86_64
---> Package tcl.x86_64 1:8.5.13-8.el7 will be installed
---> Package tix.x86_64 1:8.4.3-12.el7 will be installed
---> Package tk.x86_64 1:8.5.13-6.el7 will be installed
--> Processing Dependency: libXft.so.2()(64bit) for package: 1:tk-8.5.13-6.el7.x86_64
--> Running transaction check
---> Package libX11-common.noarch 0:1.6.5-2.el7 will be installed
---> Package libXft.x86_64 0:2.3.2-2.el7 will be installed
--> Processing Dependency: fontconfig >= 2.2-1 for package: libXft-2.3.2-2.el7.x86_64
--> Processing Dependency: libfontconfig.so.1()(64bit) for package: libXft-2.3.2-2.el7.x86_64
--> Processing Dependency: libXrender.so.1()(64bit) for package: libXft-2.3.2-2.el7.x86_64
---> Package libxcb.x86_64 0:1.13-1.el7 will be installed
--> Processing Dependency: libXau.so.6()(64bit) for package: libxcb-1.13-1.el7.x86_64
--> Running transaction check
---> Package fontconfig.x86_64 0:2.13.0-4.3.el7 will be installed
--> Processing Dependency: fontpackages-filesystem for package: fontconfig-2.13.0-4.3.el7.x86_64
--> Processing Dependency: dejavu-sans-fonts for package: fontconfig-2.13.0-4.3.el7.x86_64
---> Package libXau.x86_64 0:1.0.8-2.1.el7 will be installed
---> Package libXrender.x86_64 0:0.9.10-1.el7 will be installed
--> Running transaction check
---> Package dejavu-sans-fonts.noarch 0:2.33-6.el7 will be installed
--> Processing Dependency: dejavu-fonts-common = 2.33-6.el7 for package: dejavu-sans-fonts-2.33-6.el7.noarch
---> Package fontpackages-filesystem.noarch 0:1.44-8.el7 will be installed
--> Running transaction check
---> Package dejavu-fonts-common.noarch 0:2.33-6.el7 will be installed
--> Finished Dependency Resolution

Dependencies Resolved

=======================================================================================================================================
 Package                                 Arch                   Version                                  Repository               Size
=======================================================================================================================================
Installing:
 augeas-libs                             x86_64                 1.4.0-6.el7_6.1                          updates                 355 k
 mod_ssl                                 x86_64                 1:2.4.6-89.el7.centos                    updates                 112 k
 python-tools                            x86_64                 2.7.5-77.el7_6                           updates                 856 k
 python-virtualenv                       noarch                 15.1.0-2.el7                             base                    1.7 M
 python2-pip                             noarch                 8.1.2-8.el7                              epel                    1.7 M
 redhat-rpm-config                       noarch                 9.1.0-87.el7.centos                      base                     81 k
Installing for dependencies:
 dejavu-fonts-common                     noarch                 2.33-6.el7                               base                     64 k
 dejavu-sans-fonts                       noarch                 2.33-6.el7                               base                    1.4 M
 dwz                                     x86_64                 0.11-3.el7                               base                     99 k
 fontconfig                              x86_64                 2.13.0-4.3.el7                           base                    254 k
 fontpackages-filesystem                 noarch                 1.44-8.el7                               base                    9.9 k
 libX11                                  x86_64                 1.6.5-2.el7                              base                    606 k
 libX11-common                           noarch                 1.6.5-2.el7                              base                    164 k
 libXau                                  x86_64                 1.0.8-2.1.el7                            base                     29 k
 libXft                                  x86_64                 2.3.2-2.el7                              base                     58 k
 libXrender                              x86_64                 0.9.10-1.el7                             base                     26 k
 libxcb                                  x86_64                 1.13-1.el7                               base                    214 k
 perl-srpm-macros                        noarch                 1-8.el7                                  base                    4.6 k
 tcl                                     x86_64                 1:8.5.13-8.el7                           base                    1.9 M
 tix                                     x86_64                 1:8.4.3-12.el7                           base                    254 k
 tk                                      x86_64                 1:8.5.13-6.el7                           base                    1.4 M
 tkinter                                 x86_64                 2.7.5-77.el7_6                           updates                 326 k
 zip                                     x86_64                 3.0-11.el7                               base                    260 k

Transaction Summary
=======================================================================================================================================
Install  6 Packages (+17 Dependent packages)

Total download size: 12 M
Installed size: 34 M
Is this ok [y/d/N]: y
Downloading packages:
(1/23): dejavu-fonts-common-2.33-6.el7.noarch.rpm                                                               |  64 kB  00:00:00
(2/23): fontpackages-filesystem-1.44-8.el7.noarch.rpm                                                           | 9.9 kB  00:00:00
(3/23): augeas-libs-1.4.0-6.el7_6.1.x86_64.rpm                                                                  | 355 kB  00:00:00
(4/23): dwz-0.11-3.el7.x86_64.rpm                                                                               |  99 kB  00:00:00
(5/23): fontconfig-2.13.0-4.3.el7.x86_64.rpm                                                                    | 254 kB  00:00:00
(6/23): libXau-1.0.8-2.1.el7.x86_64.rpm                                                                         |  29 kB  00:00:00
(7/23): libXft-2.3.2-2.el7.x86_64.rpm                                                                           |  58 kB  00:00:00
(8/23): libxcb-1.13-1.el7.x86_64.rpm                                                                            | 214 kB  00:00:00
(9/23): libXrender-0.9.10-1.el7.x86_64.rpm                                                                      |  26 kB  00:00:00
(10/23): perl-srpm-macros-1-8.el7.noarch.rpm                                                                    | 4.6 kB  00:00:00
(11/23): mod_ssl-2.4.6-89.el7.centos.x86_64.rpm                                                                 | 112 kB  00:00:00
(12/23): dejavu-sans-fonts-2.33-6.el7.noarch.rpm                                                                | 1.4 MB  00:00:00
(13/23): libX11-1.6.5-2.el7.x86_64.rpm                                                                          | 606 kB  00:00:00
(14/23): libX11-common-1.6.5-2.el7.noarch.rpm                                                                   | 164 kB  00:00:00
(15/23): python-virtualenv-15.1.0-2.el7.noarch.rpm                                                              | 1.7 MB  00:00:00
(16/23): tcl-8.5.13-8.el7.x86_64.rpm                                                                            | 1.9 MB  00:00:00
(17/23): redhat-rpm-config-9.1.0-87.el7.centos.noarch.rpm                                                       |  81 kB  00:00:00
(18/23): tix-8.4.3-12.el7.x86_64.rpm                                                                            | 254 kB  00:00:00
(19/23): zip-3.0-11.el7.x86_64.rpm                                                                              | 260 kB  00:00:00
(20/23): python-tools-2.7.5-77.el7_6.x86_64.rpm                                                                 | 856 kB  00:00:00
(21/23): tkinter-2.7.5-77.el7_6.x86_64.rpm                                                                      | 326 kB  00:00:00
(22/23): python2-pip-8.1.2-8.el7.noarch.rpm                                                                     | 1.7 MB  00:00:00
(23/23): tk-8.5.13-6.el7.x86_64.rpm                                                                             | 1.4 MB  00:00:00
---------------------------------------------------------------------------------------------------------------------------------------
Total                                                                                                   13 MB/s |  12 MB  00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : 1:tcl-8.5.13-8.el7.x86_64                                                                                          1/23
  Installing : fontpackages-filesystem-1.44-8.el7.noarch                                                                          2/23
  Installing : dejavu-fonts-common-2.33-6.el7.noarch                                                                              3/23
  Installing : dejavu-sans-fonts-2.33-6.el7.noarch                                                                                4/23
  Installing : fontconfig-2.13.0-4.3.el7.x86_64                                                                                   5/23
  Installing : dwz-0.11-3.el7.x86_64                                                                                              6/23
  Installing : libX11-common-1.6.5-2.el7.noarch                                                                                   7/23
  Installing : zip-3.0-11.el7.x86_64                                                                                              8/23
  Installing : libXau-1.0.8-2.1.el7.x86_64                                                                                        9/23
  Installing : libxcb-1.13-1.el7.x86_64                                                                                          10/23
  Installing : libX11-1.6.5-2.el7.x86_64                                                                                         11/23
  Installing : libXrender-0.9.10-1.el7.x86_64                                                                                    12/23
  Installing : libXft-2.3.2-2.el7.x86_64                                                                                         13/23
  Installing : 1:tk-8.5.13-6.el7.x86_64                                                                                          14/23
  Installing : 1:tix-8.4.3-12.el7.x86_64                                                                                         15/23
  Installing : tkinter-2.7.5-77.el7_6.x86_64                                                                                     16/23
  Installing : perl-srpm-macros-1-8.el7.noarch                                                                                   17/23
  Installing : redhat-rpm-config-9.1.0-87.el7.centos.noarch                                                                      18/23
  Installing : python-tools-2.7.5-77.el7_6.x86_64                                                                                19/23
  Installing : 1:mod_ssl-2.4.6-89.el7.centos.x86_64                                                                              20/23
  Installing : augeas-libs-1.4.0-6.el7_6.1.x86_64                                                                                21/23
  Installing : python-virtualenv-15.1.0-2.el7.noarch                                                                             22/23
  Installing : python2-pip-8.1.2-8.el7.noarch                                                                                    23/23
  Verifying  : 1:tcl-8.5.13-8.el7.x86_64                                                                                          1/23
  Verifying  : fontconfig-2.13.0-4.3.el7.x86_64                                                                                   2/23
  Verifying  : python-tools-2.7.5-77.el7_6.x86_64                                                                                 3/23
  Verifying  : libXrender-0.9.10-1.el7.x86_64                                                                                     4/23
  Verifying  : 1:tix-8.4.3-12.el7.x86_64                                                                                          5/23
  Verifying  : fontpackages-filesystem-1.44-8.el7.noarch                                                                          6/23
  Verifying  : tkinter-2.7.5-77.el7_6.x86_64                                                                                      7/23
  Verifying  : perl-srpm-macros-1-8.el7.noarch                                                                                    8/23
  Verifying  : dejavu-fonts-common-2.33-6.el7.noarch                                                                              9/23
  Verifying  : libxcb-1.13-1.el7.x86_64                                                                                          10/23
  Verifying  : libXft-2.3.2-2.el7.x86_64                                                                                         11/23
  Verifying  : redhat-rpm-config-9.1.0-87.el7.centos.noarch                                                                      12/23
  Verifying  : python2-pip-8.1.2-8.el7.noarch                                                                                    13/23
  Verifying  : 1:tk-8.5.13-6.el7.x86_64                                                                                          14/23
  Verifying  : libX11-1.6.5-2.el7.x86_64                                                                                         15/23
  Verifying  : dejavu-sans-fonts-2.33-6.el7.noarch                                                                               16/23
  Verifying  : python-virtualenv-15.1.0-2.el7.noarch                                                                             17/23
  Verifying  : libXau-1.0.8-2.1.el7.x86_64                                                                                       18/23
  Verifying  : zip-3.0-11.el7.x86_64                                                                                             19/23
  Verifying  : libX11-common-1.6.5-2.el7.noarch                                                                                  20/23
  Verifying  : dwz-0.11-3.el7.x86_64                                                                                             21/23
  Verifying  : augeas-libs-1.4.0-6.el7_6.1.x86_64                                                                                22/23
  Verifying  : 1:mod_ssl-2.4.6-89.el7.centos.x86_64                                                                              23/23

Installed:
  augeas-libs.x86_64 0:1.4.0-6.el7_6.1       mod_ssl.x86_64 1:2.4.6-89.el7.centos    python-tools.x86_64 0:2.7.5-77.el7_6
  python-virtualenv.noarch 0:15.1.0-2.el7    python2-pip.noarch 0:8.1.2-8.el7        redhat-rpm-config.noarch 0:9.1.0-87.el7.centos

Dependency Installed:
  dejavu-fonts-common.noarch 0:2.33-6.el7      dejavu-sans-fonts.noarch 0:2.33-6.el7            dwz.x86_64 0:0.11-3.el7
  fontconfig.x86_64 0:2.13.0-4.3.el7           fontpackages-filesystem.noarch 0:1.44-8.el7      libX11.x86_64 0:1.6.5-2.el7
  libX11-common.noarch 0:1.6.5-2.el7           libXau.x86_64 0:1.0.8-2.1.el7                    libXft.x86_64 0:2.3.2-2.el7
  libXrender.x86_64 0:0.9.10-1.el7             libxcb.x86_64 0:1.13-1.el7                       perl-srpm-macros.noarch 0:1-8.el7
  tcl.x86_64 1:8.5.13-8.el7                    tix.x86_64 1:8.4.3-12.el7                        tk.x86_64 1:8.5.13-6.el7
  tkinter.x86_64 0:2.7.5-77.el7_6              zip.x86_64 0:3.0-11.el7

Complete!
Creating virtual environment...
Installing Python packages...

Installation succeeded.
Saving debug log to /var/log/letsencrypt/letsencrypt.log
Plugins selected: Authenticator standalone, Installer None

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Please read the Terms of Service at
https://letsencrypt.org/documents/LE-SA-v1.2-November-15-2017.pdf. You must
agree in order to register with the ACME server at
https://acme-v02.api.letsencrypt.org/directory
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
(A)gree/(C)ancel: (A)gree/(C)ancel: A    <-- 说明: 此处输入A,表示同意

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Would you be willing to share your email address with the Electronic Frontier
Foundation, a founding partner of the Let's Encrypt project and the non-profit
organization that develops Certbot? We'd like to send you email about our work
encrypting the web, EFF news, campaigns, and ways to support digital freedom.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
(Y)es/(N)o: Y        <-- 说明: 此处输入Y,表示确认
Obtaining a new certificate
Performing the following challenges:
http-01 challenge for hopewait.com
http-01 challenge for www.hopewait.com
Waiting for verification...
Cleaning up challenges

IMPORTANT NOTES:
 - Congratulations! Your certificate and chain have been saved at:
   /etc/letsencrypt/live/hopewait.com/fullchain.pem
   Your key file has been saved at:
   /etc/letsencrypt/live/hopewait.com/privkey.pem
   Your cert will expire on 2019-09-14. To obtain a new or tweaked
   version of this certificate in the future, simply run certbot-auto
   again. To non-interactively renew *all* of your certificates, run
   "certbot-auto renew"
 - Your account credentials have been saved in your Certbot
   configuration directory at /etc/letsencrypt. You should make a
   secure backup of this folder now. This configuration directory will
   also contain certificates and private keys obtained by Certbot so
   making regular backups of this folder is ideal.
 - If you like Certbot, please consider supporting our work by:

   Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
   Donating to EFF:                    https://eff.org/donate-le

[root@hopewait ~]#

查看证书文件:

[root@hopewait ~]# ls -lah /etc/letsencrypt/live/hopewait.com
total 4.0K
drwxr-xr-x. 2 root root  93 Jun 17 06:49 .
drwx------. 3 root root  40 Jun 17 06:49 ..
lrwxrwxrwx. 1 root root  36 Jun 17 06:49 cert.pem -> ../../archive/hopewait.com/cert1.pem
lrwxrwxrwx. 1 root root  37 Jun 17 06:49 chain.pem -> ../../archive/hopewait.com/chain1.pem
lrwxrwxrwx. 1 root root  41 Jun 17 06:49 fullchain.pem -> ../../archive/hopewait.com/fullchain1.pem
lrwxrwxrwx. 1 root root  39 Jun 17 06:49 privkey.pem -> ../../archive/hopewait.com/privkey1.pem
-rw-r--r--. 1 root root 692 Jun 17 06:49 README

删除证书:

sh
[root@hopewait ~]# /root/letsencrypt/certbot-auto delete
Saving debug log to /var/log/letsencrypt/letsencrypt.log

Which certificate(s) would you like to delete?
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1: hopewait.com
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Select the appropriate numbers separated by commas and/or spaces, or leave input
blank to select all options shown (Enter 'c' to cancel): 1

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Deleted all files relating to certificate hopewait.com.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
[root@hopewait ~]# ls -lah /etc/letsencrypt/live/
total 4.0K
drwx------. 2 root root  20 Jun 17 22:18 .
drwxr-xr-x. 9 root root 108 Jun 17 22:18 ..
-rw-r--r--. 1 root root 740 Jun 17 06:49 README
[root@hopewait ~]#

即删除证书时,会将证书文件夹删除,并删除归档文件archive中的证书文件夹。

重新生成证书文件:

sh
[root@hopewait ~]# /root/letsencrypt/certbot-auto certonly --standalone --redirect --email mzh@hopewait.com -d hopewait.com -d www.hopewait.com
Saving debug log to /var/log/letsencrypt/letsencrypt.log
Plugins selected: Authenticator standalone, Installer None
Obtaining a new certificate

IMPORTANT NOTES:
 - Congratulations! Your certificate and chain have been saved at:
   /etc/letsencrypt/live/hopewait.com/fullchain.pem
   Your key file has been saved at:
   /etc/letsencrypt/live/hopewait.com/privkey.pem
   Your cert will expire on 2019-09-15. To obtain a new or tweaked
   version of this certificate in the future, simply run certbot-auto
   again. To non-interactively renew *all* of your certificates, run
   "certbot-auto renew"
 - If you like Certbot, please consider supporting our work by:

   Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
   Donating to EFF:                    https://eff.org/donate-le

[root@hopewait ~]# ls -lah /etc/letsencrypt/archive/
total 0
drwx------. 3 root root  26 Jun 17 22:25 .
drwxr-xr-x. 9 root root 108 Jun 17 22:25 ..
drwxr-xr-x. 2 root root  83 Jun 17 22:25 hopewait.com

[root@hopewait ~]# ls -lah /etc/letsencrypt/live/hopewait.com/
total 4.0K
drwxr-xr-x. 2 root root  93 Jun 17 22:25 .
drwx------. 3 root root  40 Jun 17 22:25 ..
lrwxrwxrwx. 1 root root  36 Jun 17 22:25 cert.pem -> ../../archive/hopewait.com/cert1.pem
lrwxrwxrwx. 1 root root  37 Jun 17 22:25 chain.pem -> ../../archive/hopewait.com/chain1.pem
lrwxrwxrwx. 1 root root  41 Jun 17 22:25 fullchain.pem -> ../../archive/hopewait.com/fullchain1.pem
lrwxrwxrwx. 1 root root  39 Jun 17 22:25 privkey.pem -> ../../archive/hopewait.com/privkey1.pem
-rw-r--r--. 1 root root 692 Jun 17 22:25 README

/etc/letsencrypt/live/hopewait.com/域名目录下有4个文件就是生成的密钥证书文件:

cert.pem     <-- 说明:letsencrypt服务器端颁发的证书文件
chain.pem     <-- 说明:根证书和中继证书
fullchain.pem     <-- 说明:Nginx所需要ssl_certificate文件
privkey.pem     <-- 说明:安全证书KEY文件,密钥文件

配置Apache

使用Apache需要使用cert.pemchain.pemprivkey.pem三个文件。

配置/etc/httpd/conf.d/ssl.conf文件:

sh
[root@hopewait ~]# cat -n /etc/httpd/conf.d/ssl.conf|sed -n '95,117p'
    95  #   Server Certificate:
    96  # Point SSLCertificateFile at a PEM encoded certificate.  If
    97  # the certificate is encrypted, then you will be prompted for a
    98  # pass phrase.  Note that a kill -HUP will prompt again.  A new
    99  # certificate can be generated using the genkey(1) command.
   100  SSLCertificateFile /etc/letsencrypt/live/hopewait.com/cert.pem   <-- 说明:letsencrypt服务器端颁发的证书文件
   101
   102  #   Server Private Key:
   103  #   If the key is not combined with the certificate, use this
   104  #   directive to point at the key file.  Keep in mind that if
   105  #   you've both a RSA and a DSA private key you can configure
   106  #   both in parallel (to also allow the use of DSA ciphers, etc.)
   107  SSLCertificateKeyFile /etc/letsencrypt/live/hopewait.com/privkey.pem     <-- 说明:安全证书KEY文件,密钥文件
   108
   109  #   Server Certificate Chain:
   110  #   Point SSLCertificateChainFile at a file containing the
   111  #   concatenation of PEM encoded CA certificates which form the
   112  #   certificate chain for the server certificate. Alternatively
   113  #   the referenced file can be the same as SSLCertificateFile
   114  #   when the CA certificates are directly appended to the server
   115  #   certificate for convinience.
   116  SSLCertificateChainFile /etc/letsencrypt/live/hopewait.com/chain.pem    <-- 说明:根证书和中继证书
   117

配置http重定向https:

sh
[root@hopewait ~]# cat > /etc/httpd/conf.d/http2https.conf << EOF
> <VirtualHost *:80>
>     ServerName hopewait.com
>     RewriteEngine on
>     RewriteCond %{SERVER_PORT} !^443$
>     RewriteRule ^/?(.*)$ https://%{SERVER_NAME}/$1 [L,R]
> </VirtualHost>
> EOF
[root@hopewait ~]# cat /etc/httpd/conf.d/http2https.conf
<VirtualHost *:80>
    ServerName hopewait.com
    RewriteEngine on
    RewriteCond %{SERVER_PORT} !^443$
    RewriteRule ^/?(.*)$ https://%{SERVER_NAME}/ [L,R]
</VirtualHost>

测试Apache服务:

sh
[root@hopewait ~]# httpd -t
Syntax OK
[root@hopewait ~]# systemctl restart httpd

使用google浏览器打开http://hopewait.com/链接或http://www.hopewait.com/时,会自动跳转到https://hopewait.com/链接或https://www.hopewait.com/链接,此时查看证书的详情:


可以看到证书的颁发者是"Let's Encrypt Authority X3"和使用者是"hopewait.com",有效期从2019年6月17日至2019年9月15日,并且浏览器提示"连接是安全的"、"证书有效"。

为测试nginx服务,先停止httpd服务:

sh
[root@hopewait ~]# netstat -tunlp|grep httpd
tcp6       0      0 :::80                   :::*                    LISTEN      1505/httpd
tcp6       0      0 :::443                  :::*                    LISTEN      1505/httpd
[root@hopewait ~]# systemctl stop httpd
[root@hopewait ~]# netstat -tunlp|grep httpd

配置Nginx

安装nginx:

sh
[root@hopewait ~]# yum install nginx
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
epel/x86_64/metalink                                                                                            |  19 kB  00:00:00
 * base: mirror.sfo12.us.leaseweb.net
 * epel: mirror.layeronline.com
 * extras: mirror.fileplanet.com
 * updates: mirror.fileplanet.com
base                                                                                                            | 3.6 kB  00:00:00
extras                                                                                                          | 3.4 kB  00:00:00
ius                                                                                                             | 1.3 kB  00:00:00
updates                                                                                                         | 3.4 kB  00:00:00
Resolving Dependencies
--> Running transaction check
---> Package nginx.x86_64 1:1.12.2-3.el7 will be installed
--> Processing Dependency: nginx-all-modules = 1:1.12.2-3.el7 for package: 1:nginx-1.12.2-3.el7.x86_64
--> Processing Dependency: nginx-filesystem = 1:1.12.2-3.el7 for package: 1:nginx-1.12.2-3.el7.x86_64
--> Processing Dependency: nginx-filesystem for package: 1:nginx-1.12.2-3.el7.x86_64
--> Processing Dependency: libprofiler.so.0()(64bit) for package: 1:nginx-1.12.2-3.el7.x86_64
--> Running transaction check
---> Package gperftools-libs.x86_64 0:2.6.1-1.el7 will be installed
---> Package nginx-all-modules.noarch 1:1.12.2-3.el7 will be installed
--> Processing Dependency: nginx-mod-http-geoip = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-http-image-filter = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-http-perl = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-http-xslt-filter = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-mail = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
--> Processing Dependency: nginx-mod-stream = 1:1.12.2-3.el7 for package: 1:nginx-all-modules-1.12.2-3.el7.noarch
---> Package nginx-filesystem.noarch 1:1.12.2-3.el7 will be installed
--> Running transaction check
---> Package nginx-mod-http-geoip.x86_64 1:1.12.2-3.el7 will be installed
---> Package nginx-mod-http-image-filter.x86_64 1:1.12.2-3.el7 will be installed
--> Processing Dependency: gd for package: 1:nginx-mod-http-image-filter-1.12.2-3.el7.x86_64
--> Processing Dependency: libgd.so.2()(64bit) for package: 1:nginx-mod-http-image-filter-1.12.2-3.el7.x86_64
---> Package nginx-mod-http-perl.x86_64 1:1.12.2-3.el7 will be installed
---> Package nginx-mod-http-xslt-filter.x86_64 1:1.12.2-3.el7 will be installed
--> Processing Dependency: libxslt.so.1(LIBXML2_1.0.11)(64bit) for package: 1:nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64
--> Processing Dependency: libxslt.so.1(LIBXML2_1.0.18)(64bit) for package: 1:nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64
--> Processing Dependency: libexslt.so.0()(64bit) for package: 1:nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64
--> Processing Dependency: libxslt.so.1()(64bit) for package: 1:nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64
---> Package nginx-mod-mail.x86_64 1:1.12.2-3.el7 will be installed
---> Package nginx-mod-stream.x86_64 1:1.12.2-3.el7 will be installed
--> Running transaction check
---> Package gd.x86_64 0:2.0.35-26.el7 will be installed
--> Processing Dependency: libjpeg.so.62(LIBJPEG_6.2)(64bit) for package: gd-2.0.35-26.el7.x86_64
--> Processing Dependency: libjpeg.so.62()(64bit) for package: gd-2.0.35-26.el7.x86_64
--> Processing Dependency: libXpm.so.4()(64bit) for package: gd-2.0.35-26.el7.x86_64
---> Package libxslt.x86_64 0:1.1.28-5.el7 will be installed
--> Running transaction check
---> Package libXpm.x86_64 0:3.5.12-1.el7 will be installed
---> Package libjpeg-turbo.x86_64 0:1.2.90-6.el7 will be installed
--> Finished Dependency Resolution

Dependencies Resolved

=======================================================================================================================================
 Package                                       Arch                     Version                           Repository              Size
=======================================================================================================================================
Installing:
 nginx                                         x86_64                   1:1.12.2-3.el7                    epel                   531 k
Installing for dependencies:
 gd                                            x86_64                   2.0.35-26.el7                     base                   146 k
 gperftools-libs                               x86_64                   2.6.1-1.el7                       base                   272 k
 libXpm                                        x86_64                   3.5.12-1.el7                      base                    55 k
 libjpeg-turbo                                 x86_64                   1.2.90-6.el7                      base                   134 k
 libxslt                                       x86_64                   1.1.28-5.el7                      base                   242 k
 nginx-all-modules                             noarch                   1:1.12.2-3.el7                    epel                    16 k
 nginx-filesystem                              noarch                   1:1.12.2-3.el7                    epel                    17 k
 nginx-mod-http-geoip                          x86_64                   1:1.12.2-3.el7                    epel                    23 k
 nginx-mod-http-image-filter                   x86_64                   1:1.12.2-3.el7                    epel                    27 k
 nginx-mod-http-perl                           x86_64                   1:1.12.2-3.el7                    epel                    36 k
 nginx-mod-http-xslt-filter                    x86_64                   1:1.12.2-3.el7                    epel                    26 k
 nginx-mod-mail                                x86_64                   1:1.12.2-3.el7                    epel                    54 k
 nginx-mod-stream                              x86_64                   1:1.12.2-3.el7                    epel                    76 k

Transaction Summary
=======================================================================================================================================
Install  1 Package (+13 Dependent packages)

Total download size: 1.6 M
Installed size: 4.7 M
Is this ok [y/d/N]: y
Downloading packages:
(1/14): gd-2.0.35-26.el7.x86_64.rpm                                                                             | 146 kB  00:00:00
(2/14): libXpm-3.5.12-1.el7.x86_64.rpm                                                                          |  55 kB  00:00:00
(3/14): libjpeg-turbo-1.2.90-6.el7.x86_64.rpm                                                                   | 134 kB  00:00:00
(4/14): gperftools-libs-2.6.1-1.el7.x86_64.rpm                                                                  | 272 kB  00:00:00
(5/14): libxslt-1.1.28-5.el7.x86_64.rpm                                                                         | 242 kB  00:00:00
(6/14): nginx-1.12.2-3.el7.x86_64.rpm                                                                           | 531 kB  00:00:00
(7/14): nginx-all-modules-1.12.2-3.el7.noarch.rpm                                                               |  16 kB  00:00:00
(8/14): nginx-filesystem-1.12.2-3.el7.noarch.rpm                                                                |  17 kB  00:00:00
(9/14): nginx-mod-http-geoip-1.12.2-3.el7.x86_64.rpm                                                            |  23 kB  00:00:00
(10/14): nginx-mod-http-image-filter-1.12.2-3.el7.x86_64.rpm                                                    |  27 kB  00:00:00
(11/14): nginx-mod-http-perl-1.12.2-3.el7.x86_64.rpm                                                            |  36 kB  00:00:00
(12/14): nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64.rpm                                                     |  26 kB  00:00:00
(13/14): nginx-mod-mail-1.12.2-3.el7.x86_64.rpm                                                                 |  54 kB  00:00:00
(14/14): nginx-mod-stream-1.12.2-3.el7.x86_64.rpm                                                               |  76 kB  00:00:00
---------------------------------------------------------------------------------------------------------------------------------------
Total                                                                                                  1.7 MB/s | 1.6 MB  00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : libjpeg-turbo-1.2.90-6.el7.x86_64                                                                                  1/14
  Installing : 1:nginx-filesystem-1.12.2-3.el7.noarch                                                                             2/14
  Installing : gperftools-libs-2.6.1-1.el7.x86_64                                                                                 3/14
  Installing : libxslt-1.1.28-5.el7.x86_64                                                                                        4/14
  Installing : libXpm-3.5.12-1.el7.x86_64                                                                                         5/14
  Installing : gd-2.0.35-26.el7.x86_64                                                                                            6/14
  Installing : 1:nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64                                                                   7/14
  Installing : 1:nginx-mod-http-perl-1.12.2-3.el7.x86_64                                                                          8/14
  Installing : 1:nginx-mod-mail-1.12.2-3.el7.x86_64                                                                               9/14
  Installing : 1:nginx-mod-stream-1.12.2-3.el7.x86_64                                                                            10/14
  Installing : 1:nginx-mod-http-geoip-1.12.2-3.el7.x86_64                                                                        11/14
  Installing : 1:nginx-1.12.2-3.el7.x86_64                                                                                       12/14
  Installing : 1:nginx-mod-http-image-filter-1.12.2-3.el7.x86_64                                                                 13/14
  Installing : 1:nginx-all-modules-1.12.2-3.el7.noarch                                                                           14/14
  Verifying  : libXpm-3.5.12-1.el7.x86_64                                                                                         1/14
  Verifying  : 1:nginx-all-modules-1.12.2-3.el7.noarch                                                                            2/14
  Verifying  : 1:nginx-mod-http-xslt-filter-1.12.2-3.el7.x86_64                                                                   3/14
  Verifying  : 1:nginx-mod-http-perl-1.12.2-3.el7.x86_64                                                                          4/14
  Verifying  : libxslt-1.1.28-5.el7.x86_64                                                                                        5/14
  Verifying  : 1:nginx-mod-http-image-filter-1.12.2-3.el7.x86_64                                                                  6/14
  Verifying  : gperftools-libs-2.6.1-1.el7.x86_64                                                                                 7/14
  Verifying  : gd-2.0.35-26.el7.x86_64                                                                                            8/14
  Verifying  : 1:nginx-1.12.2-3.el7.x86_64                                                                                        9/14
  Verifying  : 1:nginx-filesystem-1.12.2-3.el7.noarch                                                                            10/14
  Verifying  : 1:nginx-mod-mail-1.12.2-3.el7.x86_64                                                                              11/14
  Verifying  : 1:nginx-mod-stream-1.12.2-3.el7.x86_64                                                                            12/14
  Verifying  : 1:nginx-mod-http-geoip-1.12.2-3.el7.x86_64                                                                        13/14
  Verifying  : libjpeg-turbo-1.2.90-6.el7.x86_64                                                                                 14/14

Installed:
  nginx.x86_64 1:1.12.2-3.el7

Dependency Installed:
  gd.x86_64 0:2.0.35-26.el7                                             gperftools-libs.x86_64 0:2.6.1-1.el7
  libXpm.x86_64 0:3.5.12-1.el7                                          libjpeg-turbo.x86_64 0:1.2.90-6.el7
  libxslt.x86_64 0:1.1.28-5.el7                                         nginx-all-modules.noarch 1:1.12.2-3.el7
  nginx-filesystem.noarch 1:1.12.2-3.el7                                nginx-mod-http-geoip.x86_64 1:1.12.2-3.el7
  nginx-mod-http-image-filter.x86_64 1:1.12.2-3.el7                     nginx-mod-http-perl.x86_64 1:1.12.2-3.el7
  nginx-mod-http-xslt-filter.x86_64 1:1.12.2-3.el7                      nginx-mod-mail.x86_64 1:1.12.2-3.el7
  nginx-mod-stream.x86_64 1:1.12.2-3.el7

Complete!
[root@hopewait ~]# nginx -v
nginx version: nginx/1.12.2

配置nginx配置文件:

sh
[root@hopewait ~]# cp /etc/nginx/nginx.conf /etc/nginx/nginx.conf.bak
[root@hopewait ~]# cat -n /etc/nginx/nginx.conf|sed -n '36,91p'
    36      include /etc/nginx/conf.d/*.conf;
    37
    38      server {
    39          listen       80 default_server;
    40  #         listen       [::]:80 default_server;
    41           server_name  hopewait.com;
    42           rewrite ^(.*)$ https://${server_name}$1 permanent;
    43  #         root         /usr/share/nginx/html;
    44  #
    45  #         # Load configuration files for the default server block.
    46  #         include /etc/nginx/default.d/*.conf;
    47  #
    48  #         location / {
    49  #         }
    50  #
    51  #         error_page 404 /404.html;
    52  #             location = /40x.html {
    53  #         }
    54  #
    55  #         error_page 500 502 503 504 /50x.html;
    56  #             location = /50x.html {
    57  #         }
    58      }
    59
    60  # Settings for a TLS enabled server.
    61
    62      server {
    63          listen       443 ssl http2 default_server;
    64          listen       [::]:443 ssl http2 default_server;
    65          server_name  hopewait.com;
    66          root         /usr/share/nginx/html;
    67
    68          ssl_certificate "/etc/letsencrypt/live/hopewait.com/fullchain.pem";
    69          ssl_certificate_key "/etc/letsencrypt/live/hopewait.com/privkey.pem";
    70          ssl_session_cache shared:SSL:1m;
    71          ssl_session_timeout  10m;
    72          ssl_ciphers HIGH:!aNULL:!MD5;
    73          ssl_prefer_server_ciphers on;
    74
    75          # Load configuration files for the default server block.
    76          include /etc/nginx/default.d/*.conf;
    77
    78          location / {
    79          }
    80
    81          error_page 404 /404.html;
    82              location = /40x.html {
    83          }
    84
    85          error_page 500 502 503 504 /50x.html;
    86              location = /50x.html {
    87          }
    88      }
    89
    90  }
    91

测试Nginx服务:

sh
[root@hopewait ~]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@hopewait ~]# systemctl start nginx
[root@hopewait ~]# netstat -tunlp|grep nginx
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1715/nginx: master
tcp        0      0 0.0.0.0:443             0.0.0.0:*               LISTEN      1715/nginx: master
tcp6       0      0 :::443                  :::*                    LISTEN      1715/nginx: master

使用google浏览器打开http://hopewait.com/链接或http://www.hopewait.com/时,会自动跳转到https://hopewait.com/链接或https://www.hopewait.com/链接,此时查看证书的详情:


可以看到证书的颁发者是"Let's Encrypt Authority X3"和使用者是"hopewait.com",有效期从2019年6月17日至2019年9月15日,并且浏览器提示"连接是安全的"、"证书有效"。

自动续签证书

手动续签证书:

sh
[root@hopewait ~]# /root/letsencrypt/certbot-auto renew  --force-renewal
Saving debug log to /var/log/letsencrypt/letsencrypt.log

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Processing /etc/letsencrypt/renewal/hopewait.com.conf
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Plugins selected: Authenticator standalone, Installer None
Renewing an existing certificate

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
new certificate deployed without reload, fullchain is
/etc/letsencrypt/live/hopewait.com/fullchain.pem
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Congratulations, all renewals succeeded. The following certs have been renewed:
  /etc/letsencrypt/live/hopewait.com/fullchain.pem (success)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

安静模式手动续签证书:

sh
[root@hopewait ~]# /root/letsencrypt/certbot-auto renew --quiet --force-renewal

增加定时任务:

sh
[root@hopewait ~]# crontab -l
30 23 * * * /root/letsencrypt/certbot-auto renew --quiet --force-renewal

可以隔段时间再检查证书是否有效。

频繁续签证书会提示续签失败:

sh
[root@hopewait ~]# /root/letsencrypt/certbot-auto renew --force-renewal
Saving debug log to /var/log/letsencrypt/letsencrypt.log

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Processing /etc/letsencrypt/renewal/hopewait.com.conf
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Plugins selected: Authenticator standalone, Installer None
Renewing an existing certificate
Attempting to renew cert (hopewait.com) from /etc/letsencrypt/renewal/hopewait.com.conf produced an unexpected error: urn:ietf:params:acme:error:rateLimited :: There were too many requests of a given type :: Error creating new order :: too many certificates already issued for exact set of domains: hopewait.com,www.hopewait.com: see https://letsencrypt.org/docs/rate-limits/. Skipping.
All renewal attempts failed. The following certs could not be renewed:
  /etc/letsencrypt/live/hopewait.com/fullchain.pem (failure)

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

All renewal attempts failed. The following certs could not be renewed:
  /etc/letsencrypt/live/hopewait.com/fullchain.pem (failure)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1 renew failure(s), 0 parse failure(s)

参考https://letsencrypt.org/docs/rate-limits/说明可知:

Renewals are treated specially: they don’t count against your Certificates per Registered Domain limit, but they are subject to a Duplicate Certificate limit of 5 per week. (即每周的重复证书限制为5) There is a Failed Validation limit of 5 failures per account, per hostname, per hour. This limit is higher on our staging environment, so you can use that environment to debug connectivity problems.(每个账户每个主机名每小时有5个失败的失败验证限制!可以使用模拟环境测试连接问题)

模拟环境说明https://letsencrypt.org/docs/staging-environment/

The Failed Validations limit is 60 per hour. (即每小时可以失败60次验证!比生产环境5次高多了!)

所以我们更新crontab的自动续签的频率:

sh
[root@hopewait ~]# crontab -l
SHELL=/bin/bash
PATH=/sbin:/bin:/usr/sbin:/usr/bin

# For details see man 4 crontabs

# Example of job definition:
# .---------------- minute (0 - 59)
# |  .------------- hour (0 - 23)
# |  |  .---------- day of month (1 - 31)
# |  |  |  .------- month (1 - 12) OR jan,feb,mar,apr ...
# |  |  |  |  .---- day of week (0 - 6) (Sunday=0 or 7) OR sun,mon,tue,wed,thu,fri,sat
# |  |  |  |  |
# *  *  *  *  * user-name  command to be executed
# every two month to renew the CA at the first day
30 8 1 */2 * /root/letsencrypt/certbot-auto renew --quiet --force-renewal

这样每两个月的1号早上8:30会续签一次。下次续签后检查有效期是否续签成功!

参考文献:

  1. CentOS 7搭建CA认证中心实现https取证

  2. openssl 命令(1): openssl req命令详解

  3. 快速签发 Let's Encrypt 证书指南

  4. ACME Client Implementations

  5. Certbot User Guide

  6. 实战申请Let's Encrypt永久免费SSL证书过程教程及常见问题

  7. Let's Encrypt证书自动更新

本首页参考 https://notes.fe-mm.com/ 配置而成
